AUTOMATIC GEARBOX - JATCO

REPAIRS

44-5

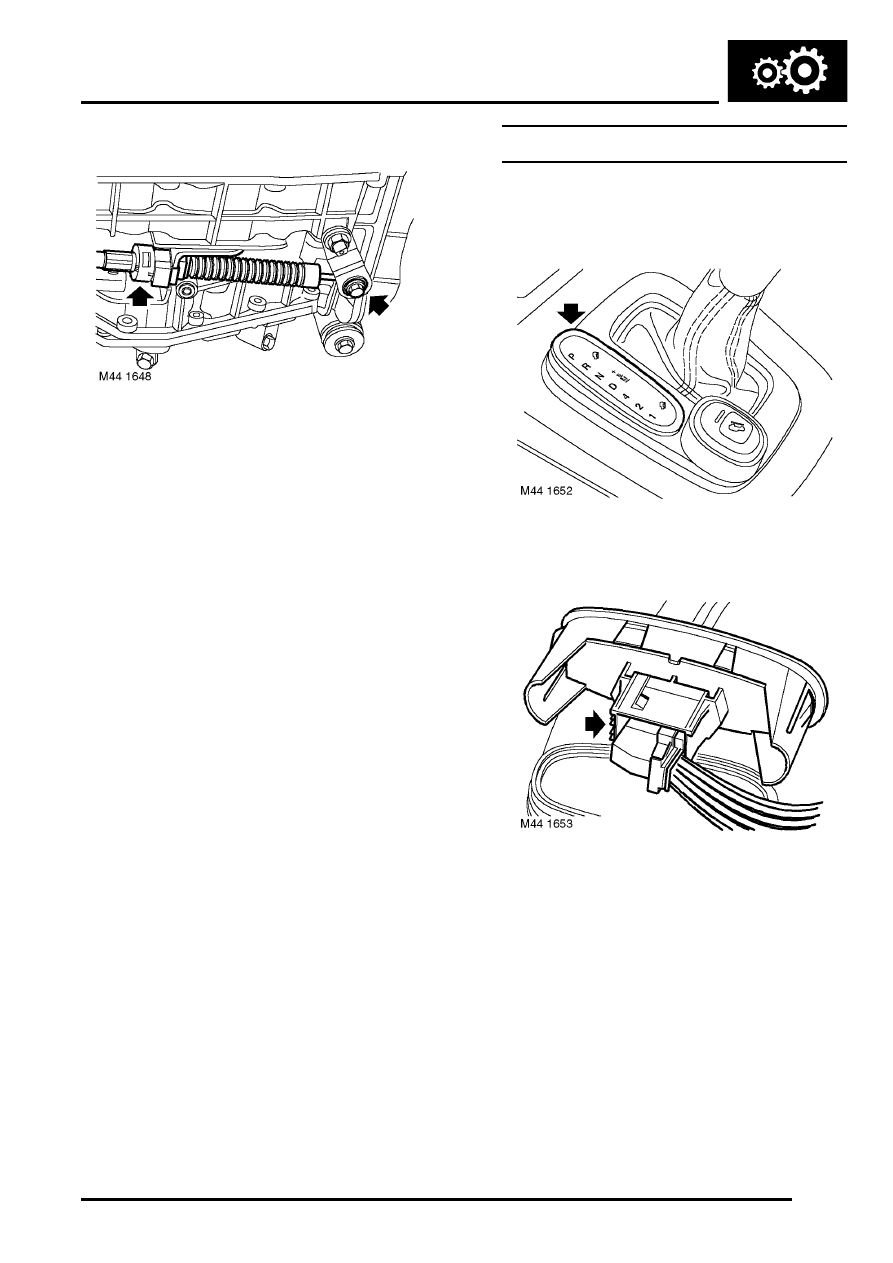

7. Loosen selector cable trunnion nut.
8. Release clip securing selector cable to gearbox

bracket, remove selector cable and collect
trunnion from selector lever.

Refit

1. Position trunnion to selector lever, locate inner

cable through trunnion, do not tighten nut at this
stage.

2. Position selector cable to gearbox bracket and

secure with clip.

3. Locate cable in selector housing and secure

outer cable in clip.

4. Secure outer cable to selector housing with 'C'

clip.

5. Secure inner cable to selector lever.
6. Fit front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

7. Check and adjust selector cable.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Selector cable - adjust.

8. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

9. Remove stands and lower vehicle.

 Selector indicator

$% 44.15.10

Remove

1. Release selector indicator from selector lever

trim panel.

2. Disconnect multiplug from selector indicator

and remove indicator.

Refit

1. Connect multiplug to selector indicator.
2. Position selector indicator to selector lever trim

panel.

AUTOMATIC GEARBOX - JATCO

44-6

REPAIRS

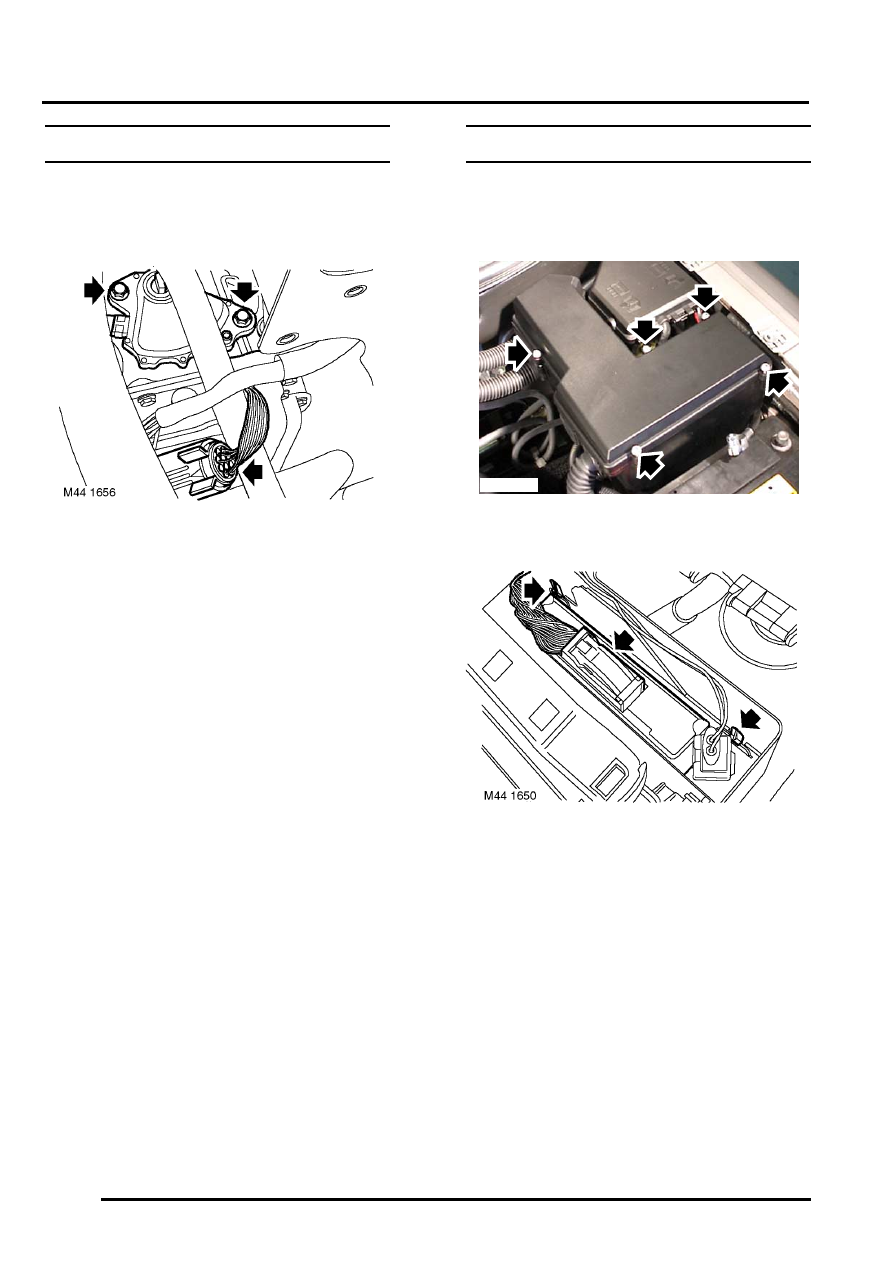

Inhibitor switch

$% 44.15.19

Remove

1. Release inhibitor switch harness multiplug from

clip on fluid pan and disconnect multiplug.

2. Set selector lever to 'N' position.
3. Remove 2 bolts securing inhibitor switch to

gearbox and remove inhibitor switch.

Refit

1. Clean inhibitor switch and mating face on

gearbox.

2. Align the internal lugs with the mark on the

inhibitor switch.

3. Position inhibitor switch, aligning the 2 lugs with

the machined grooves in the selector lever
shaft.

4. Fit bolts securing inhibitor switch but do not

tighten at this stage.

5. Connect inhibitor switch multiplug and secure

to mounting bracket with clip.

6. Adjust inhibitor switch.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Inhibitor switch - adjust.

ECU

$% 44.15.46

Remove

1. Loosen 5 screws and remove 'E' - box lid.

2. Release 2 retainers and withdraw ECU.
3. Disconnect multiplug from ECU and remove

ECU.

Refit

1. Connect multiplug to ECU.
2. Locate and secure ECU.
3. Fit 'E' - box lid and tighten screws.

M18 0672

AUTOMATIC GEARBOX - JATCO

REPAIRS

44-7

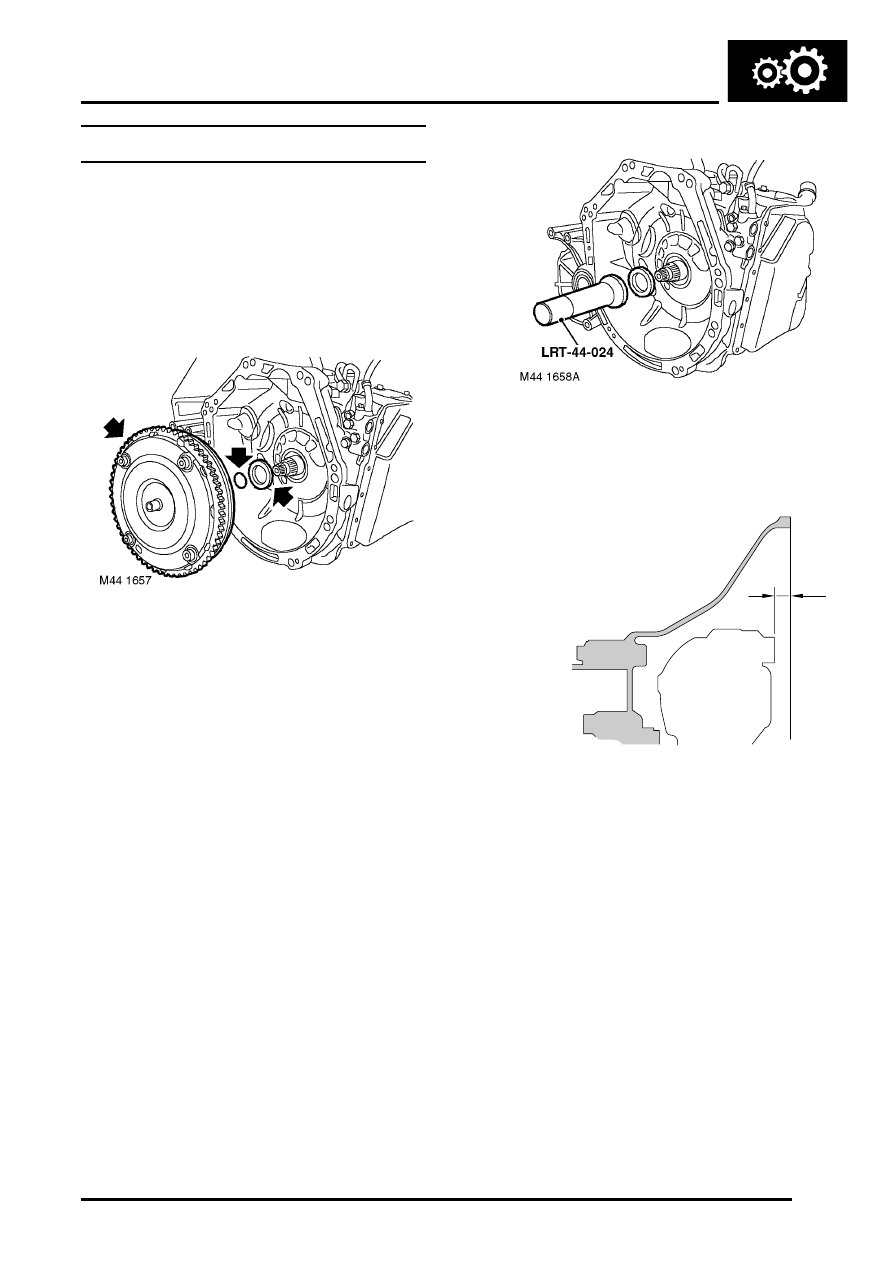

Oil seal - torque converter

$% 44.17.11

Remove

1. Remove gearbox assembly.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - KV6.


 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - Td4.

2. Remove torque converter from gearbox.

Discard 'O' ring from gearbox input shaft.

3. Remove torque converter oil seal from

gearbox. Discard torque converter oil seal.

CAUTION: When removing torque converter
oil seal take care not to damage oil pump
housing.

Refit

1. Clean torque converter spigot.
2. Clean torque converter oil seal recess in

gearbox. Lubricate torque converter oil seal
with clean transmission fluid.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Lubrication.

3. Fit new torque converter oil seal using LRT-44-

024.

4. Lubricate and fit new 'O' ring to input shaft.
5. Fit torque converter.

6. Ensure converter is fully located in oil pump

drive by checking depth 'A' as illustrated.

l

KV6 models: Depth A = 4 mm.

l

Td4 models: Depth A = 27 mm.

7. Fit gearbox assembly.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - KV6.


 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - Td4.

M44 1659

A

AUTOMATIC GEARBOX - JATCO

44-8

REPAIRS

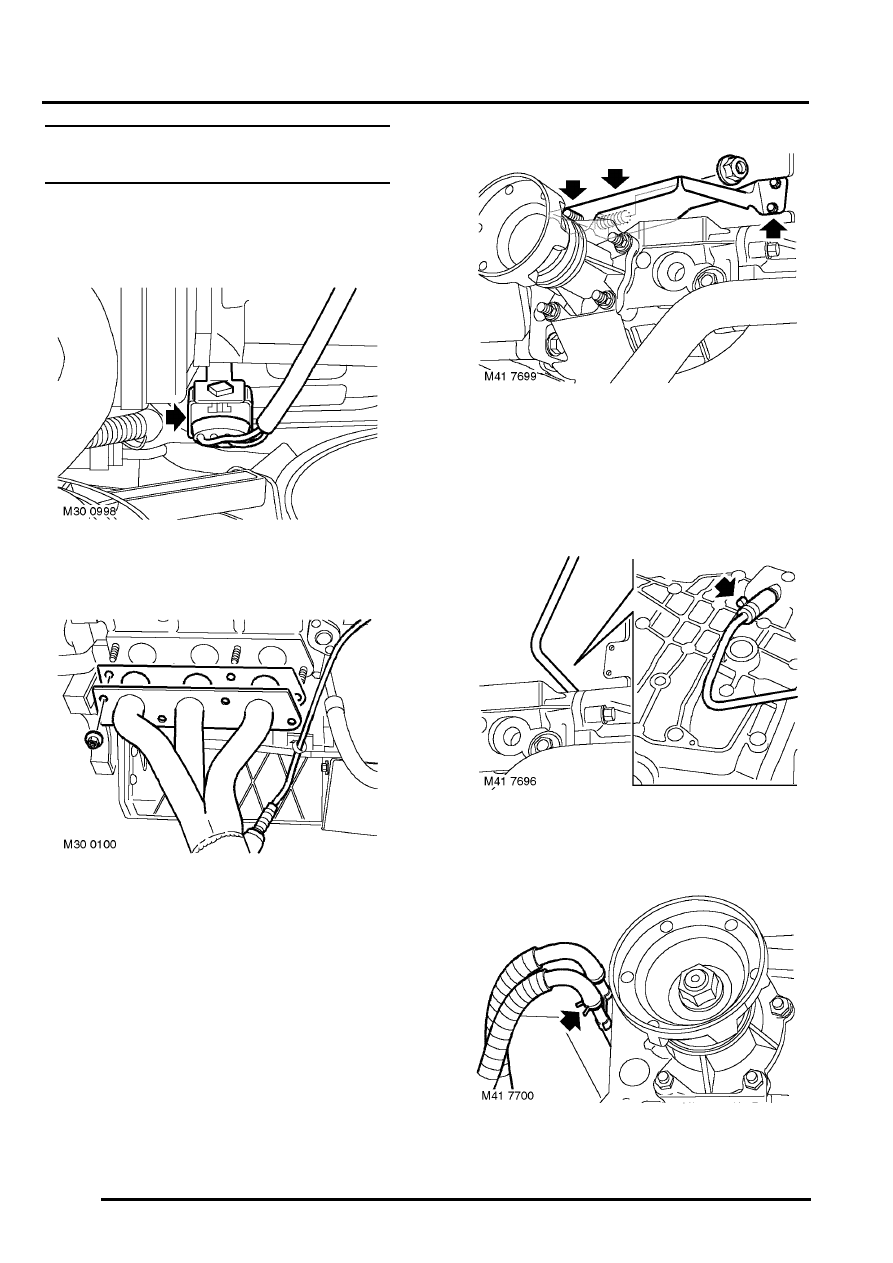

Gearbox - KV6 - with engine and gearbox
removed

$% 44.20.01.99

Remove

1. Release HO2S multiplug from support bracket

on LH camshaft cover, disconnect multiplug.

2. Remove 4 nuts securing LH exhaust manifold

to cylinder head.

3. Remove exhaust manifold, remove and discard

gasket.

4. Remove nut securing manifold heat shield to

IRD unit.

5. Remove nut securing heat shield to IRD pinion

housing.

6. Remove 2 bolts securing heat shield and

remove heat shield.

7. Disconnect breather hose from IRD housing.

8. Release clips and disconnect coolant hoses

from IRD.
