INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-9

Refit

1. Clean mating faces of IRD and gearbox.
2. Lubricate and fit new 'O' ring
3. With assistance, fit IRD.
4. Fit bolts securing IRD to gearbox and tighten

sufficiently only to pull mating faces of IRD and
gearbox together at this stage.

5. Fit IRD support bracket and tighten bolts

sufficiently only to pull mating faces together.

6. Final tighten bolts securing IRD to gearbox to

90 Nm (66 lbf.ft).

7. Final tighten bolts securing IRD support bracket

in following sequence:

l

5 bolts securing IRD support bracket to IRD
50 Nm (37 lbf.ft)

l

1 bolt securing support bracket to cylinder
block to 45 Nm (33 lbf.ft)

l

3 bolts securing support bracket to sump 45
Nm (33 lbf.ft).

8. Position engine lower steady bracket to sump,

fit and tighten bolts to 100 Nm (74 lbf.ft).

9. Fit engine lower steady, fit bolt securing steady

to gearbox bracket but do not tighten at this
stage.

10. Connect coolant hoses and secure with clips.
11. Connect breather hose to IRD housing.
12. Fit mass damper to pinion housing, fit nuts and

tighten to 25 Nm (18 lbf.ft).

13. Clean propeller shaft flange and mating face.
14. Fit propeller shaft to IRD flange and align

marks. Tighten nuts and bolts to 40 Nm (30
lbf.ft).

15. Inspect drive shaft oil seal, renew if worn or

damaged.

16. Clean drive shaft and flange splines.
17. Fit new circlip to drive shaft.
18. With assistance, pull hub outwards, align drive

shaft and fit to IRD taking care not to damage
oil seal.

CAUTION: Pull the drive shaft to ensure the
circlip is fully engaged and retains the shaft.

19. Fit splash shield and secure with bolts.
20. Fit exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
front.

21. Fit rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

22. Final tighten bolt securing lower engine steady

to sump bracket to 80 Nm (59 lbf.ft).

23. Fill IRD to correct level with fluid.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

24. Refill gearbox with oil.



 +

 MANUAL GEARBOX - PG1,

ADJUSTMENTS, Gearbox oil - drain and
refill.

25. Connect battery earth lead.
26. Refill cooling system.



 +

 COOLING SYSTEM - K SERIES 1.8,

ADJUSTMENTS, Coolant - refill system.

INTERMEDIATE REDUCTION DRIVE

41-10

REPAIRS

Intermediate reduction drive (IRD) unit -
KV6

$% 41.25.01.99

Remove

1. Disconnect battery earth lead.
2. Remove rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

3. Remove exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Front pipe - Non
NAS.

4. NAS models: Remove RH catalytic converter.



 +

 EMISSION CONTROL, REPAIRS,

Catalytic converter - RH - KV6 - NAS.

5. NAS models:Remove LH exhaust manifold

gasket.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Gasket(s) -
exhaust manifold - LH - NAS.

6. Drain fluid from IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.


 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) lubrication system -
drain & refill - NAS.

7. Drain gearbox fluid.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Gearbox fluid - drain &
refill.

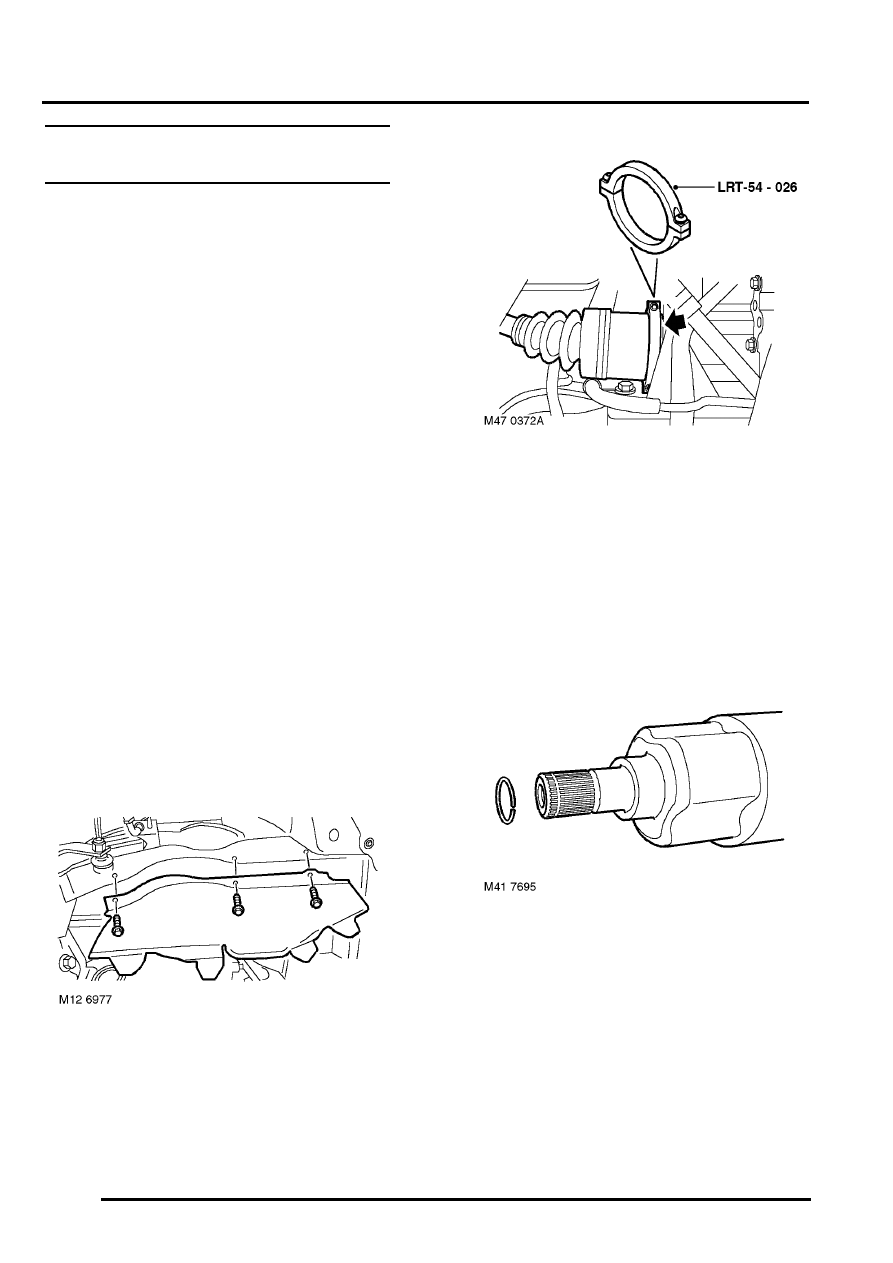

8. Remove 3 bolts securing RH splash shield to

body and remove shield.

9. Secure LRT-54-026 to drive shaft inboard joint.

Using a suitable lever, release drive shaft from
IRD.

10. With assistance, pull hub outwards and release

drive shaft from IRD.

CAUTION: Care must be taken not to
damage oil seal when removing drive shaft
from IRD.

11. Remove and discard drive shaft circlip.

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-11

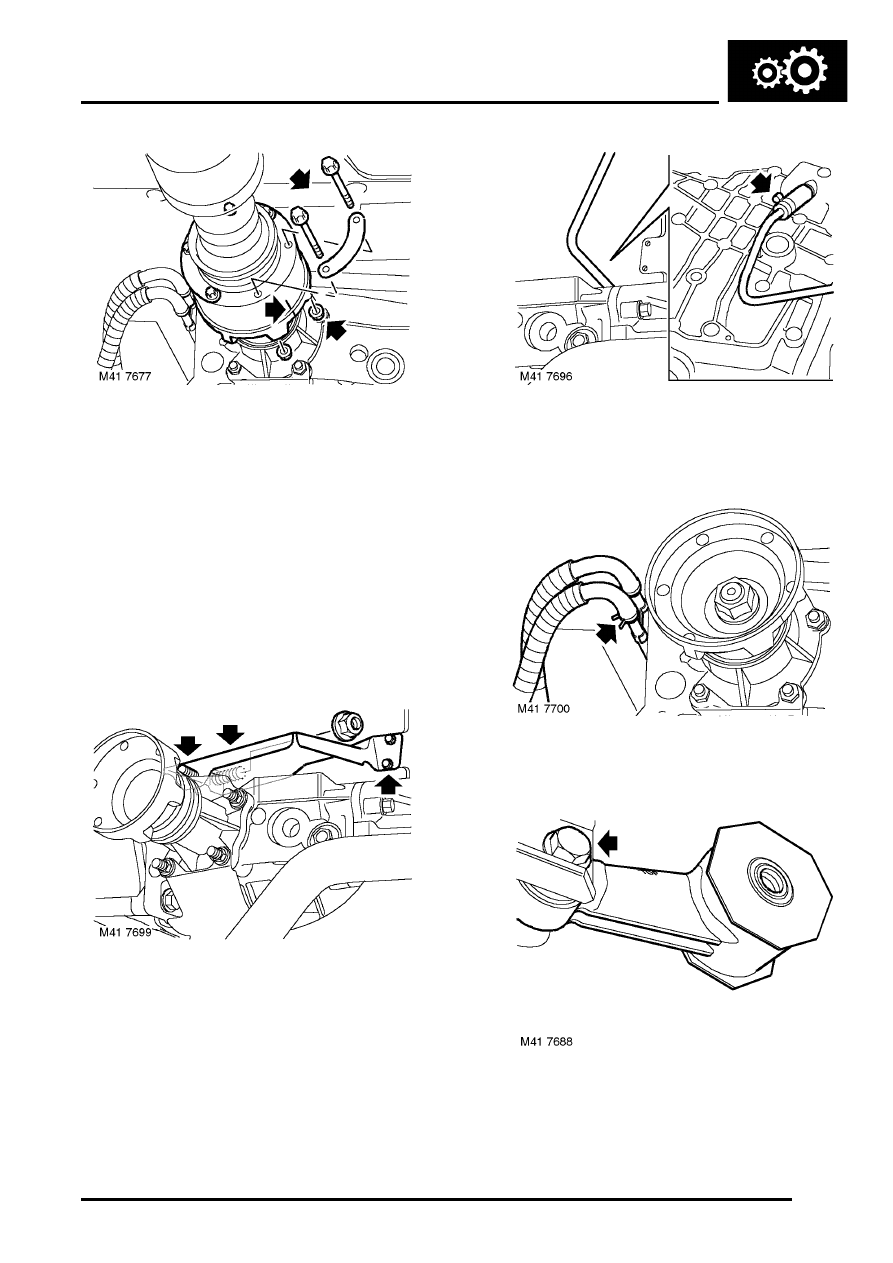

12. Reference mark front propeller shaft for

reassembly.

13. Raise one rear wheel for rotation of propeller

shaft to access bolts.

14. Remove 6 nuts and bolts securing propeller

shaft to IRD drive flange.

15. Release propeller shaft from IRD drive flange

and tie shaft aside.

CAUTION: Care must be taken to support
the Tripode joint when removed from the
IRD unit. To avoid damage to gaiter or steel
can, the joint should not be allowed to fully
extend or be dropped.

16. Remove nut securing manifold heat shield to

IRD unit.

17. Remove nut securing heat shield to IRD pinion

housing.

18. Remove 2 bolts securing heat shield and

remove heat shield.

19. Disconnect breather hose from IRD housing.
20. Position container to collect coolant spillage.

21. Release clips and disconnect coolant hoses

from IRD.

22. Remove bolt securing engine lower steady to

IRD support bracket.

23. Remove lower engine steady noting that 'TOP'

mark on engine steady faces uppermost.

INTERMEDIATE REDUCTION DRIVE

41-12

REPAIRS

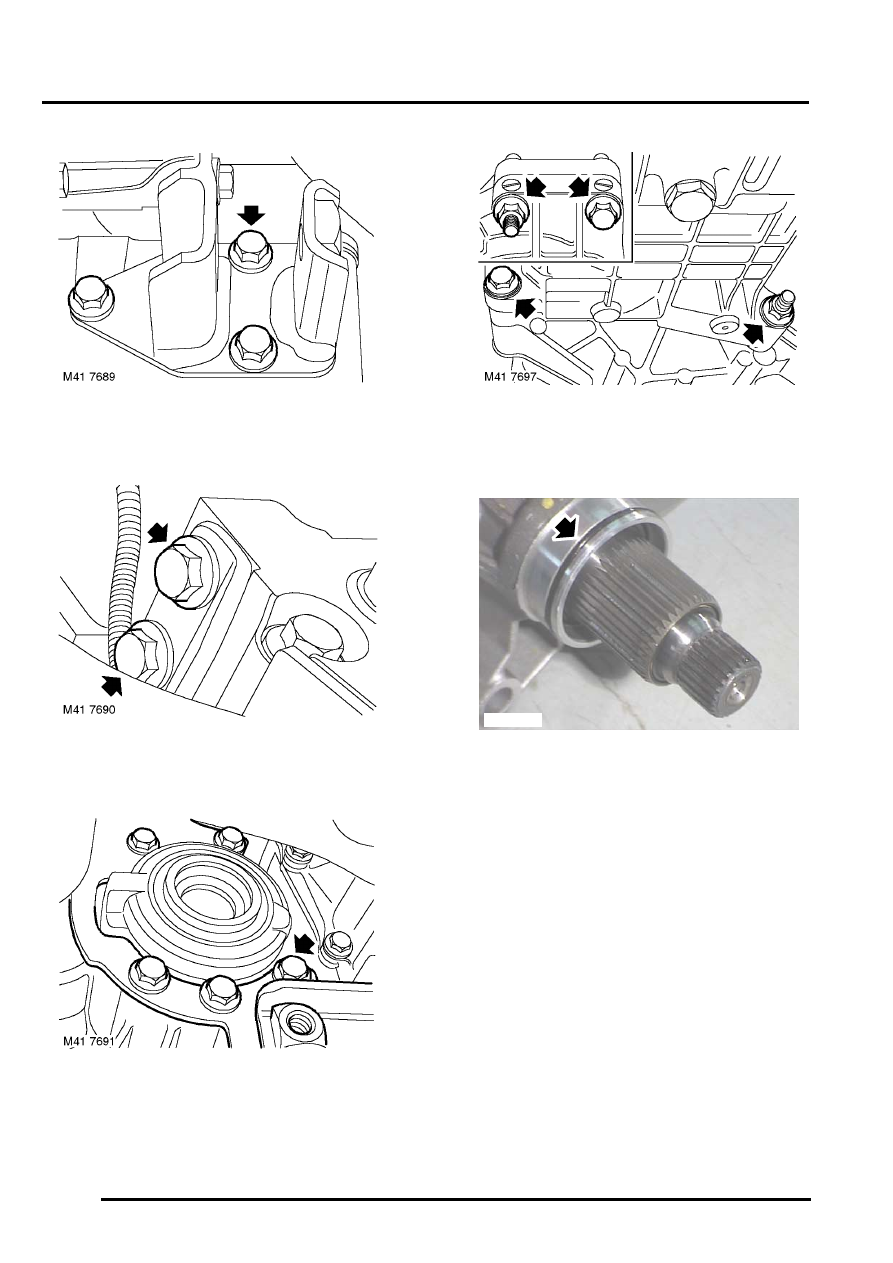

24. Remove 3 bolts securing IRD support bracket

to sump.

25. Remove 2 bolts securing IRD support bracket

to engine front mounting plate.

26. Remove 5 bolts securing support bracket to

IRD.

27. Remove support bracket.

28. Remove 4 bolts securing IRD.
29. With assistance, release IRD from gearbox and

remove.

30. Remove and discard 'O' ring from IRD.

Refit

1. Clean mating faces of IRD and gearbox.
2. Lubricate and fit new 'O' ring
3. With assistance, fit IRD.
4. Fit bolts securing IRD to gearbox and tighten

sufficiently only to pull mating faces of IRD and
gearbox together at this stage.

5. Fit IRD support bracket and tighten bolts

sufficiently only to pull mating faces together.

6. Final tighten bolts securing IRD to gearbox to

90 Nm (66 lbf.ft).

7. Final tighten bolts securing  IRD support

bracket in following sequence:

l

5 bolts securing support bracket to IRD 50
Nm (37 lbf.ft)

l

2 bolts securing support bracket to engine
front mounting bracket 50 Nm (37 lbf.ft)

l

3 bolts securing support bracket to sump 45
Nm (33 lbf.ft).

M41 7698
