Freelander 1. Manual - part 146





CLUTCH

REPAIRS

33-5

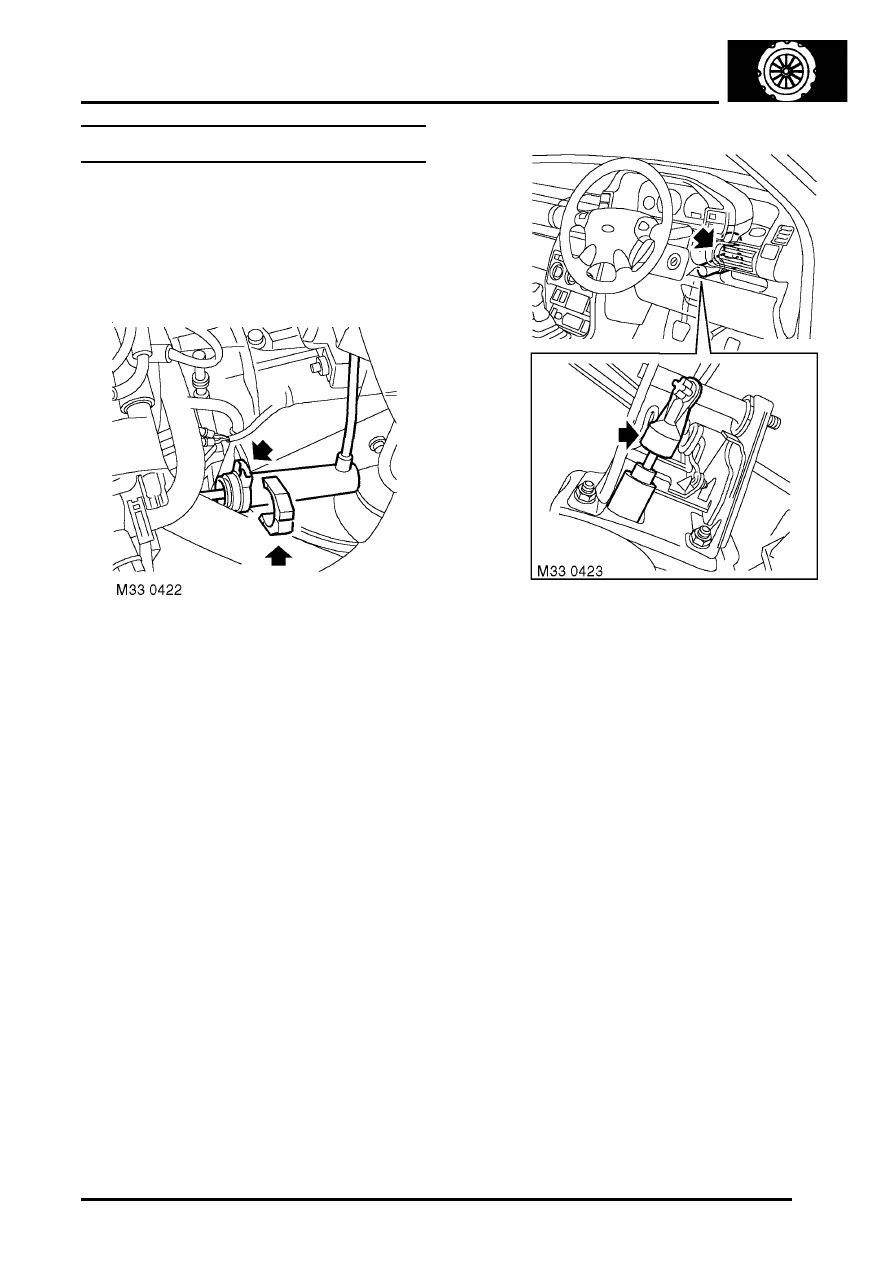

 Hydraulic assembly - RHD - K1.8

$% 33.15.03

Remove

1. Remove air cleaner assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Air cleaner - K1.8.

2. Remove 'C' clip from slave cylinder and release

cylinder from support bracket.

3. Release master cylinder push rod from clutch

pedal.

4. Rotate master cylinder clockwise and release

from bulkhead.

5. Note the routing of clutch pipe and release pipe

from clips.

6. Manoeuvre the clutch hydraulic assembly from

vehicle.

Refit

1. Manoeuvre the clutch hydraulic assembly into

position and secure clutch pipe in clips.

2. Position clutch master cylinder to bulkhead and

rotate anti-clockwise to secure in bulkhead.

3. Connect clutch master cylinder push rod to

clutch pedal.

4. Position clutch slave cylinder to support bracket

and secure with 'C' clip.

5. Operate clutch to confirm correct operation of

system.

6. Fit air cleaner assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Air cleaner - K1.8.

CLUTCH

33-6

REPAIRS

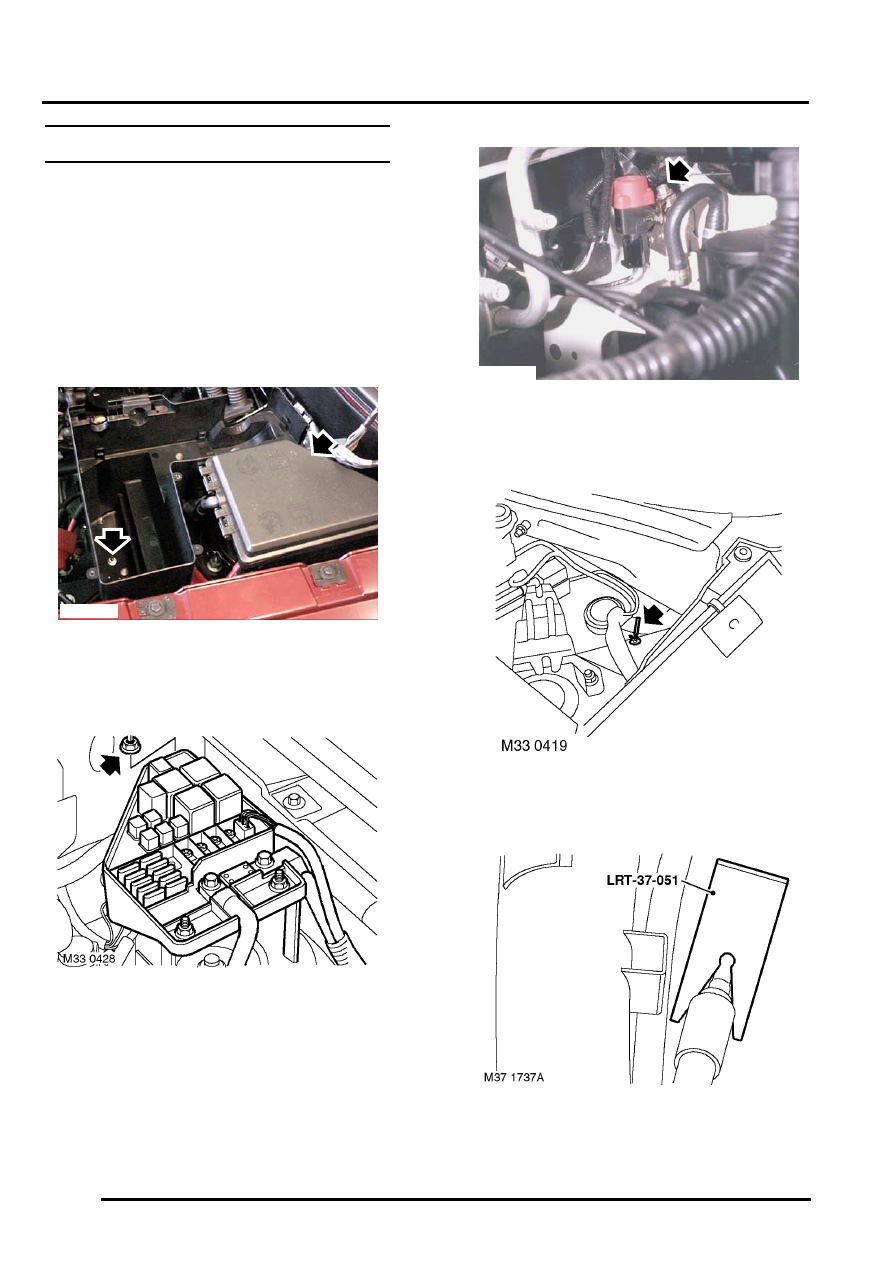

Master cylinder - LHD - Td4

$% 33.20.01

Remove

1. Remove battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

2. Remove ECM.



 +

 ENGINE MANAGEMENT SYSTEM -

EDC, REPAIRS, Engine control module
(ECM).

3. Remove nut securing 'E' box to bracket.
4. Release 'E' box from bracket.
5. Release and remove fuse box cover.

6. Remove 3 nuts securing fusebox and position

fusebox aside.

7. Remove bolt securing inertia switch bracket

and move inertia switch aside.

8. Carefully cut cable tie and move main harness

aside.

9. Use LRT-37-051 to release, and disconnect

clutch pipe connection.

M12 7149

M33 0424

CLUTCH

REPAIRS

33-7

10. Release clutch master cylinder push rod from

clutch pedal.

11. Rotate clutch master cylinder clockwise to

release from bulkhead and remove master
cylinder from vehicle.

Refit

1. Fit clutch master cylinder to bulkhead and

rotate anti-clockwise to secure.

2. Connect clutch master cylinder push rod to

clutch pedal.

3. Clean fluid pipe connection.
4. Connect clutch fluid pipe.
5. Position harness and secure with new cable tie.
6. Fit inertia switch and tighten bolt to 8 Nm (6

lbf.ft).

7. Position fusebox, fit nuts and tighten to 8 Nm (6

lbf.ft).

8. Fit fuse box cover.
9. Fit 'E' Box to bracket and tighten nut to 8 Nm (6

lbf.ft).

10. Fit ECM.



 +

 ENGINE MANAGEMENT SYSTEM -

EDC, REPAIRS, Engine control module
(ECM).

11. Fit battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

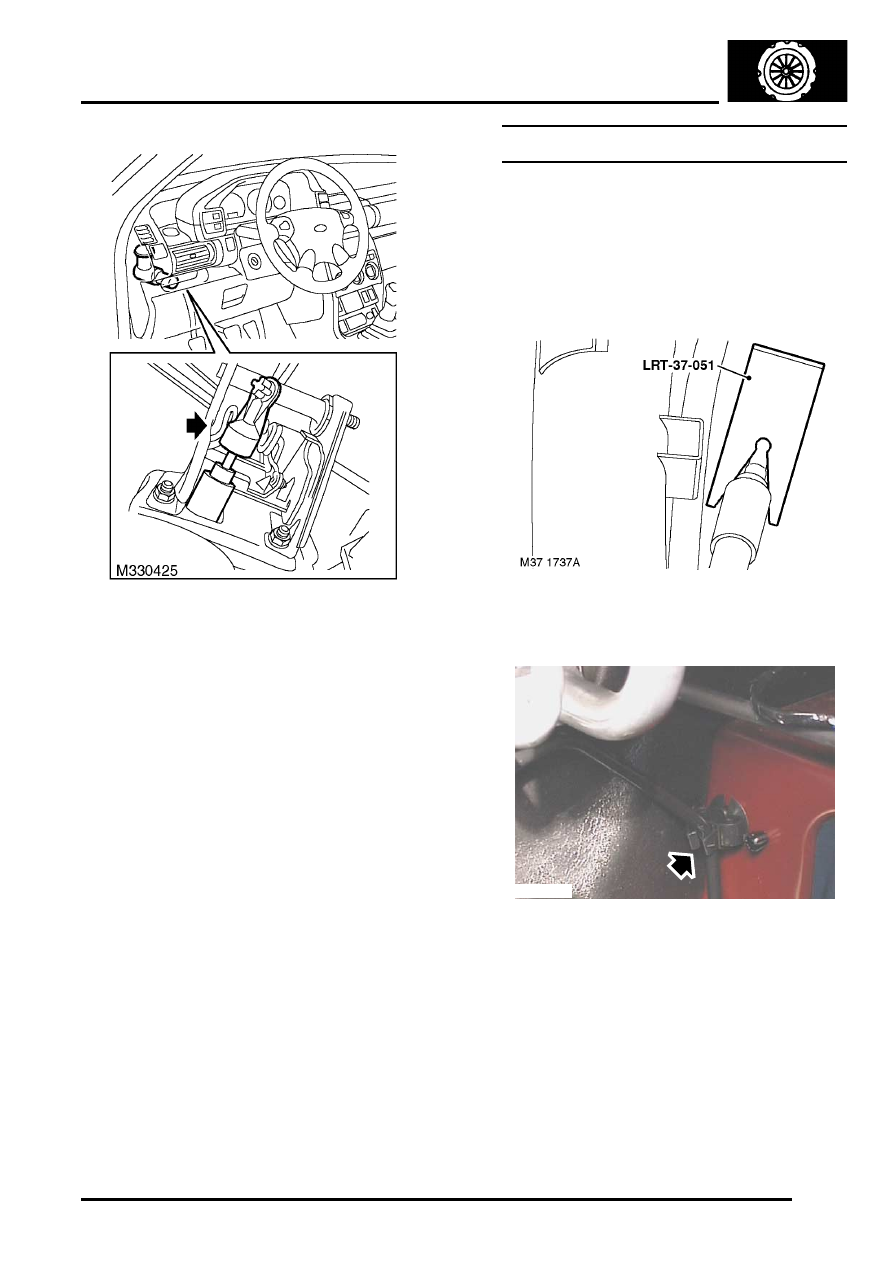

Master cylinder - RHD - Td4

$% 33.20.01

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner element.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Element - air cleaner.

3. Use LRT-37-051 to release, and disconnect

clutch pipe connection.

4. Note fluid pipe run and release from clip at inner

wing.

M33 0427

CLUTCH

33-8

REPAIRS

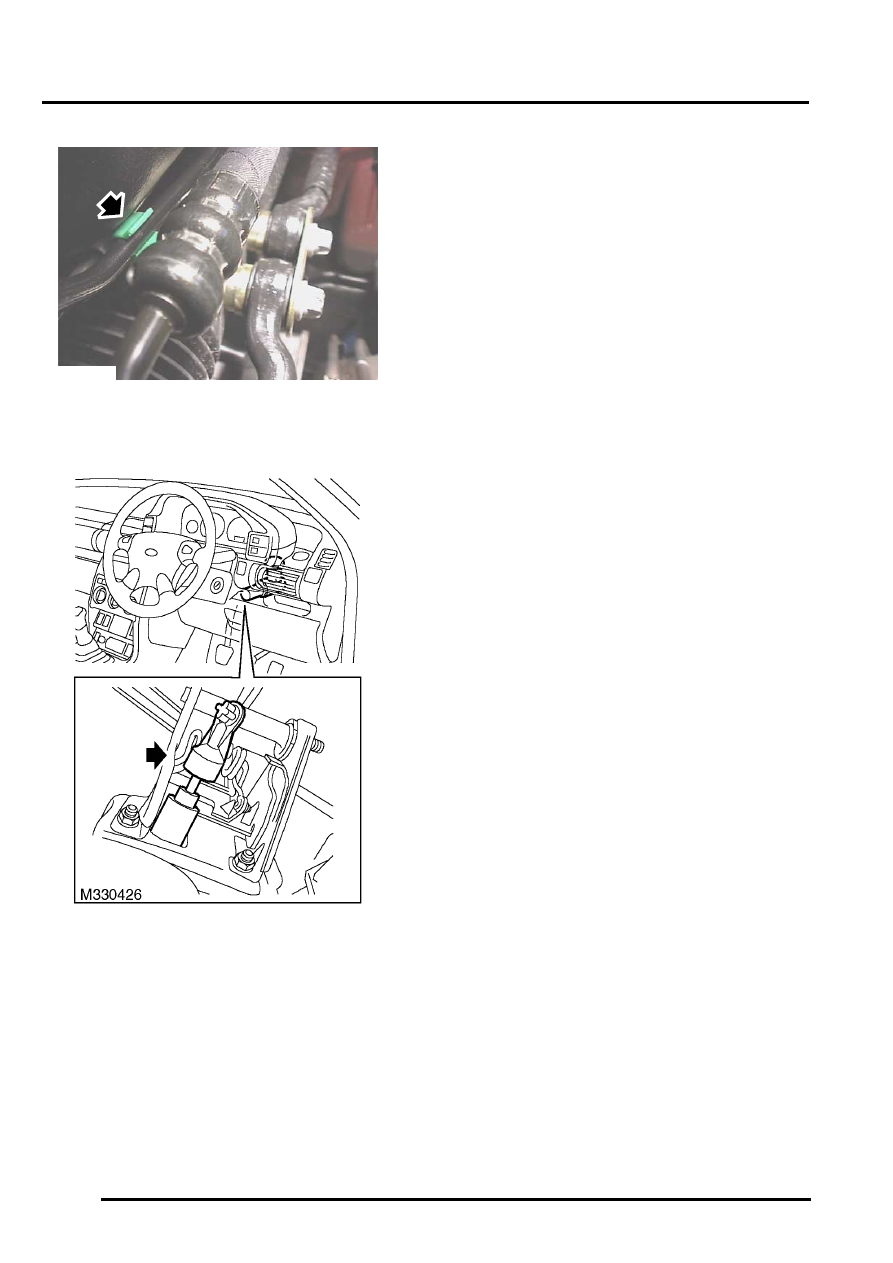

5. Note fluid pipe run and release from clip at

bulkhead.

6. Release clutch master cylinder push rod from

clutch pedal.

7. Rotate clutch master cylinder clockwise to

release from bulkhead and remove master
cylinder from vehicle.

Refit

1. Fit clutch master cylinder to bulkhead and

rotate anti-clockwise to secure.

2. Connect clutch master cylinder push rod to

clutch pedal.

3. Clean fluid pipe connection.
4. Connect clutch fluid pipe.
5. Fit fluid pipe to clips.
6. Fit air cleaner element.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Element - air cleaner.

7. Connect battery earth lead.

M33 0429
