MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

30-3-9

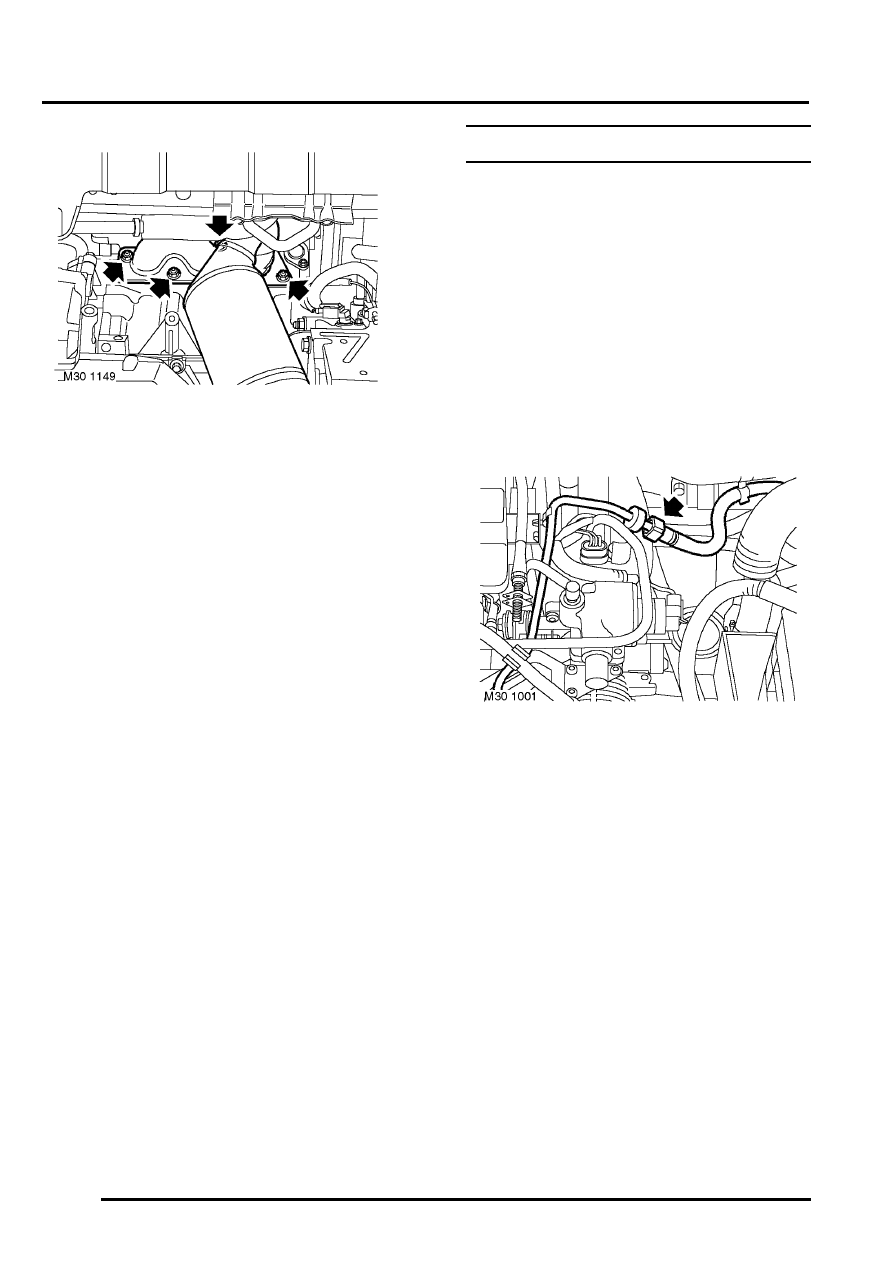

14. Remove 4 nuts securing RH exhaust manifold

to cylinder head.

15. Remove exhaust manifold, remove and discard

gasket.

Refit

1. Clean exhaust manifold and mating face on

cylinder head.

2. Fit new exhaust manifold gasket, position

exhaust manifold, fit nuts and tighten to 45 Nm
(33 lbf.ft).

3. Position heat shield to IRD unit.
4. Fit nut securing heat shield to IRD housing and

tighten to 45 Nm (33 lbf.ft).

5. Fit nut securing heat shield to IRD pinion

housing and tighten to 25 Nm (18 lbf.ft).

6. Fit 2 bolts securing heat shield to lower engine

steady mounting bracket and tighten to 9 Nm (7
lbf.ft).

7. Fit gear selector cable in body clip and secure

with cable tie.

8. Position lower engine steady to sump

mounting, fit and tighten bolt to 100 Nm (74
lbf.ft).

9. Tighten bolt securing lower engine steady to

subframe to 100 Nm (74 lbf.ft).

10. Fit exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Front pipe - Non
NAS.

11. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

12. Lower vehicle on ramp.
13. Connect RH HO2S multiplug, secure multiplug

in coolant rail bracket.

14. Position upper RH engine steady to top arm, fit

and tighten bolt to 100 Nm (74 lbf.ft).

15. Tighten bolt securing upper RH engine steady

to body to 100 Nm (74 lbf.ft).

16. Connect battery earth lead.

Gasket(s) - exhaust manifold - RH - KV6 -
NAS

$% 30.15.16

Remove

1. Disconnect battery earth lead.
2. Remove RH catalytic converter.



 +

 EMISSION CONTROL, REPAIRS,

Catalytic converter - RH - KV6 - NAS.

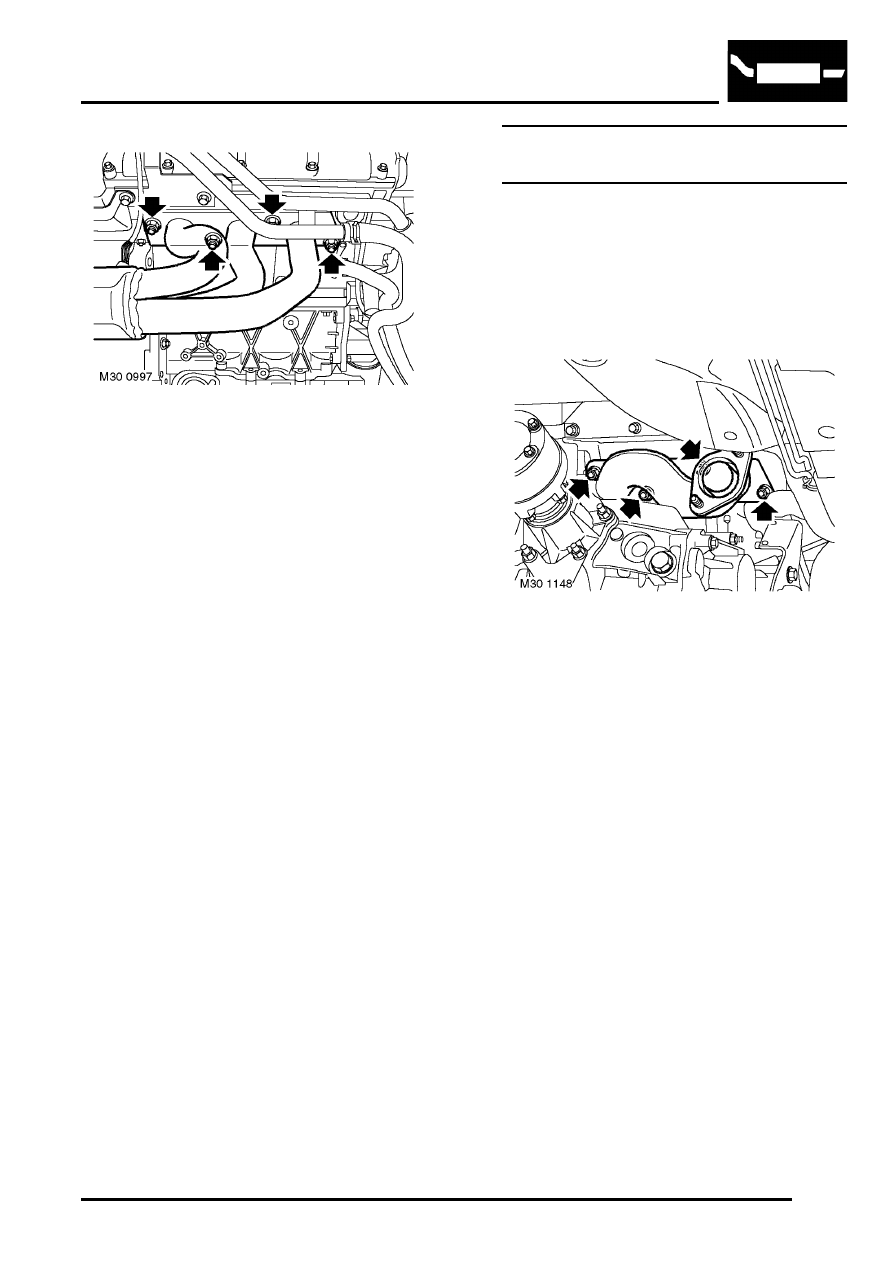

3. Remove 4 nuts securing exhaust manifold to

cylinder head, remove manifold and discard
gasket.

Refit

1. Clean exhaust manifold and mating face.
2. Using new gasket, fit exhaust manifold and

tighten nuts to 45 Nm (33 lbf.ft).

3. Fit RH catalytic converter.



 +

 EMISSION CONTROL, REPAIRS,

Catalytic converter - RH - KV6 - NAS.

4. Connect battery earth lead.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-10 REPAIRS

Gasket - exhaust manifold - LH - Non
NAS

$% 30.15.17

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

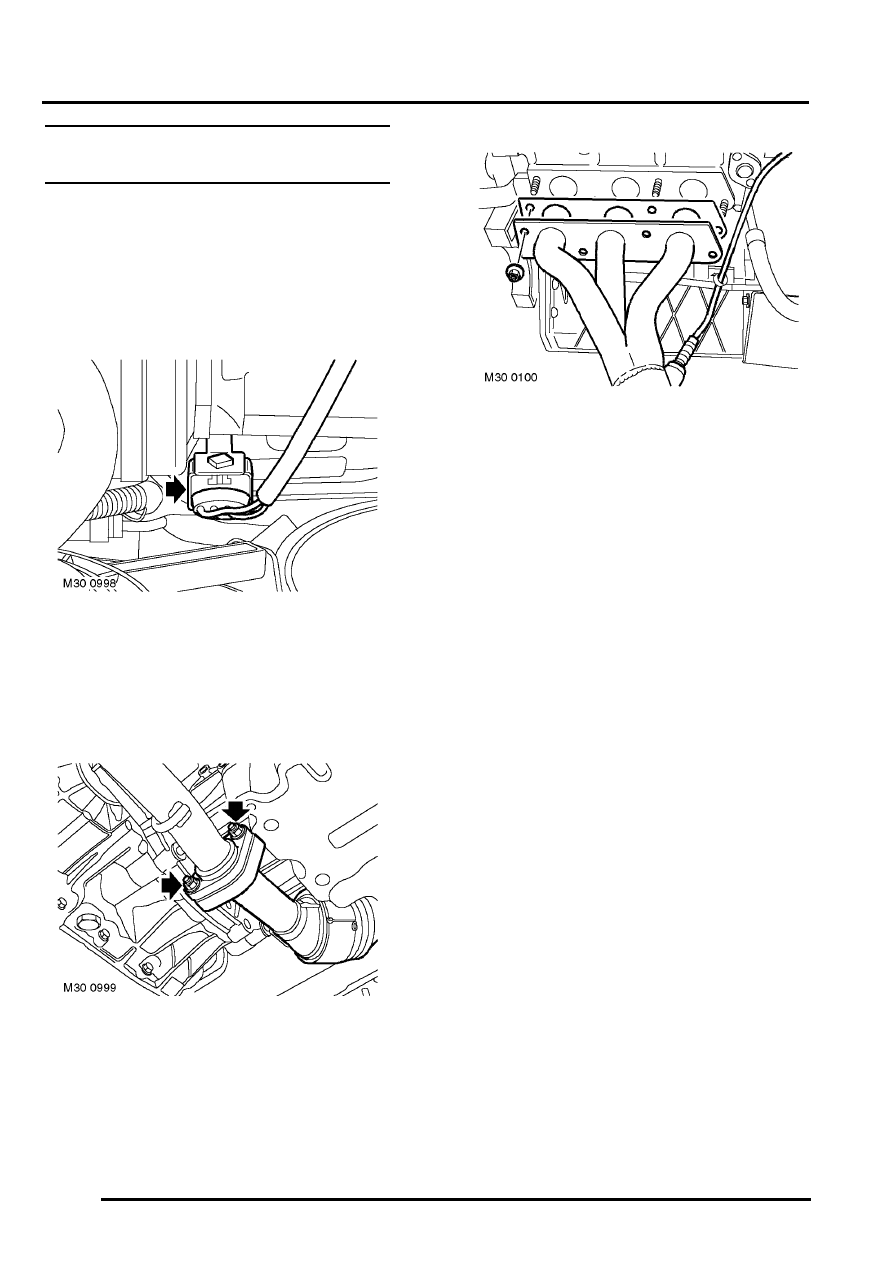

3. Release HO2S multiplug from support bracket

on LH camshaft cover, disconnect multiplug.

4. Raise vehicle on ramp.
5. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

6. Remove 2 nuts securing front exhaust pipe to

manifold flange.

7. Lower vehicle on ramp.

8. Release HO2S lead from clip on cylinder block.

Remove 4 nuts securing exhaust manifold to
cylinder head, remove manifold and discard
gasket.

Refit

1. Clean exhaust manifold and mating face on

cylinder head.

2. Fit new exhaust manifold gasket to cylinder

head.

3. Position exhaust manifold to cylinder head, fit

and tighten nuts to 45 Nm (33 lbf.ft).

4. Raise vehicle on ramp.
5. Position LH exhaust manifold flange to front

pipe, fit and tighten nuts to 50 Nm (37 lbf.ft).

6. Secure HO2S lead in clip on cylinder block.
7. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

8. Lower vehicle on ramp.
9. Connect HO2S multiplug and secure to support

bracket.

10. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

11. Connect battery earth lead.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS 30-3-11

Gasket(s) - exhaust manifold - LH - NAS

$% 30.15.17

Remove

1. Position vehicle on 4 post ramp.
2. Disconnect battery earth lead.
3. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

4. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

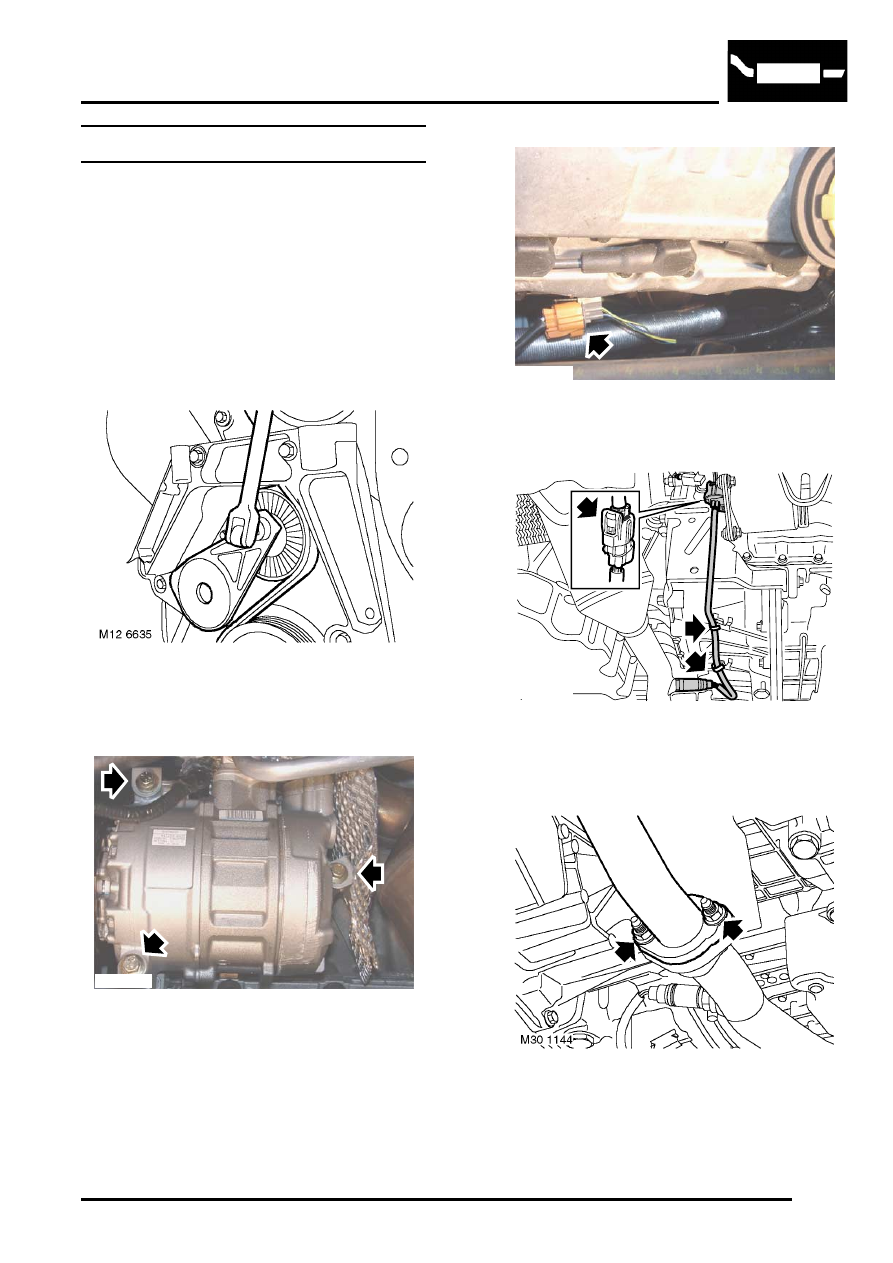

5. Using a 3/8" socket bar raise ancillary drive belt

tensioner and release drive belt from alternator
and PAS pump pulleys.

6. Remove 3 bolts securing A/C compressor to

fixing brackets and position compressor aside.

7. Remove compressor heat shield.

8. Release and disconnect HO2S multiplug.
9. Release HO2S harness from clip.

10. Release and disconnect post catalyst HO2S

multiplug.

11. Release HO2S harness from clips.

12. Remove 2 nuts securing exhaust front pipe to

exhaust manifold.

M30 1142

M19 3505

M19 3481

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-12 REPAIRS

13. Remove 4 nuts securing manifold and remove

exhaust manifold.

14. Remove and discard manifold and down pipe

gaskets.

Refit

1. Clean exhaust manifold and mating faces.
2. Using new gaskets, fit exhaust manifold and

tighten nuts to cylinder head to 45 Nm (33 lbf.ft)
and nuts to front pipe to 50 Nm (37 lbf.ft).

3. Connect H02S multiplugs, secure multiplugs to

brackets and harness to clips.

4. Clean compressor and mounting bracket

mating faces.

5. Fit compressor heat shield.
6. Position compressor to mounting and align

heat shield. Fit and tighten bolts to 25 Nm (18
lbf.ft).

7. Using a 3/8" square drive socket bar, raise

ancillary drive belt tensioner and fit drive belt to
pulleys.

8. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

9. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

10. Connect battery earth lead.

Seals - inlet manifold chamber

$% 30.15.37

Remove

1. Disconnect battery earth lead.
2. Remove vacuum enhancer.



 +

 BRAKES, REPAIRS, Vacuum -

enhancer - KV6.

3. Position absorbent cloth around fuel feed pipe

connection to collect spillage.

WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.

4. Pull back rubber sleeve on fuel pipe connector,

release connector and disconnect fuel pipe
from fuel rail pipe.

CAUTION: Always fit plugs to open
connections to prevent contamination.
