COOLING SYSTEM - K SERIES KV6

REPAIRS

26-3-7

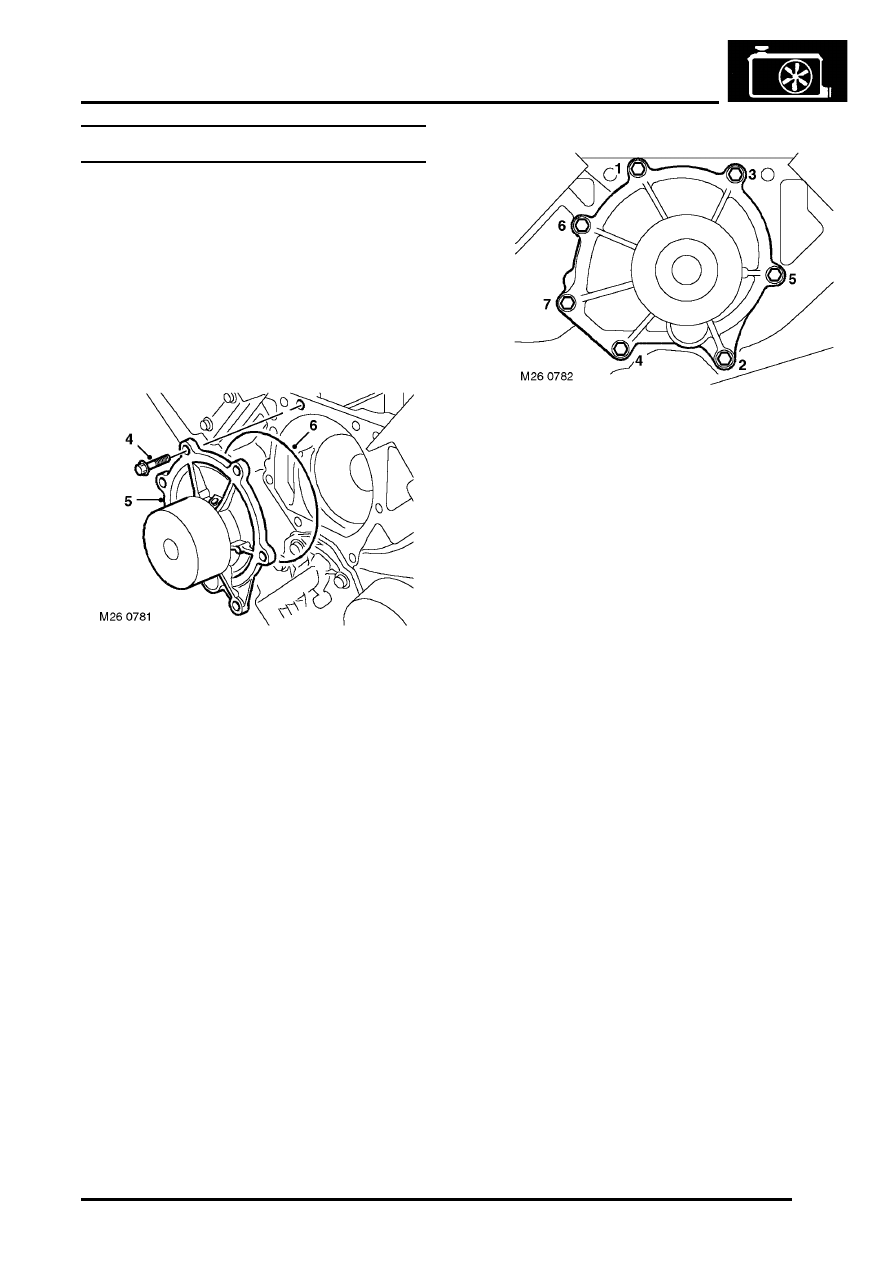

Coolant pump

$% 26.50.01

Remove

1. Disconnect battery earth lead.
2. Drain cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

3. Remove camshaft timing belt.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt.

4. Remove and discard 7 bolts securing coolant

pump to cylinder block.

5. Release coolant pump from cylinder block and

remove.

6. Remove and discard 'O' ring from coolant

pump.

Refit

1. Clean coolant pump and mating face of cylinder

block.

2. Lubricate new 'O' ring with rubber grease and fit

to coolant pump.

3. Fit coolant pump to cylinder block. Fit new bolts

and tighten progressively in the sequence
illustrated to 9 Nm (7 lbf.ft).

4. Fit camshaft timing belt.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt.

5. Fill cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

6. Connect battery earth lead.

COOLING SYSTEM - K SERIES KV6

26-3-8

REPAIRS

MANIFOLDS & EXHAUST SYSTEMS - TD4

REPAIRS

30-1-1

MANIFOLDS & EXHAUST SYSTEMS - Td4

REPAIRS

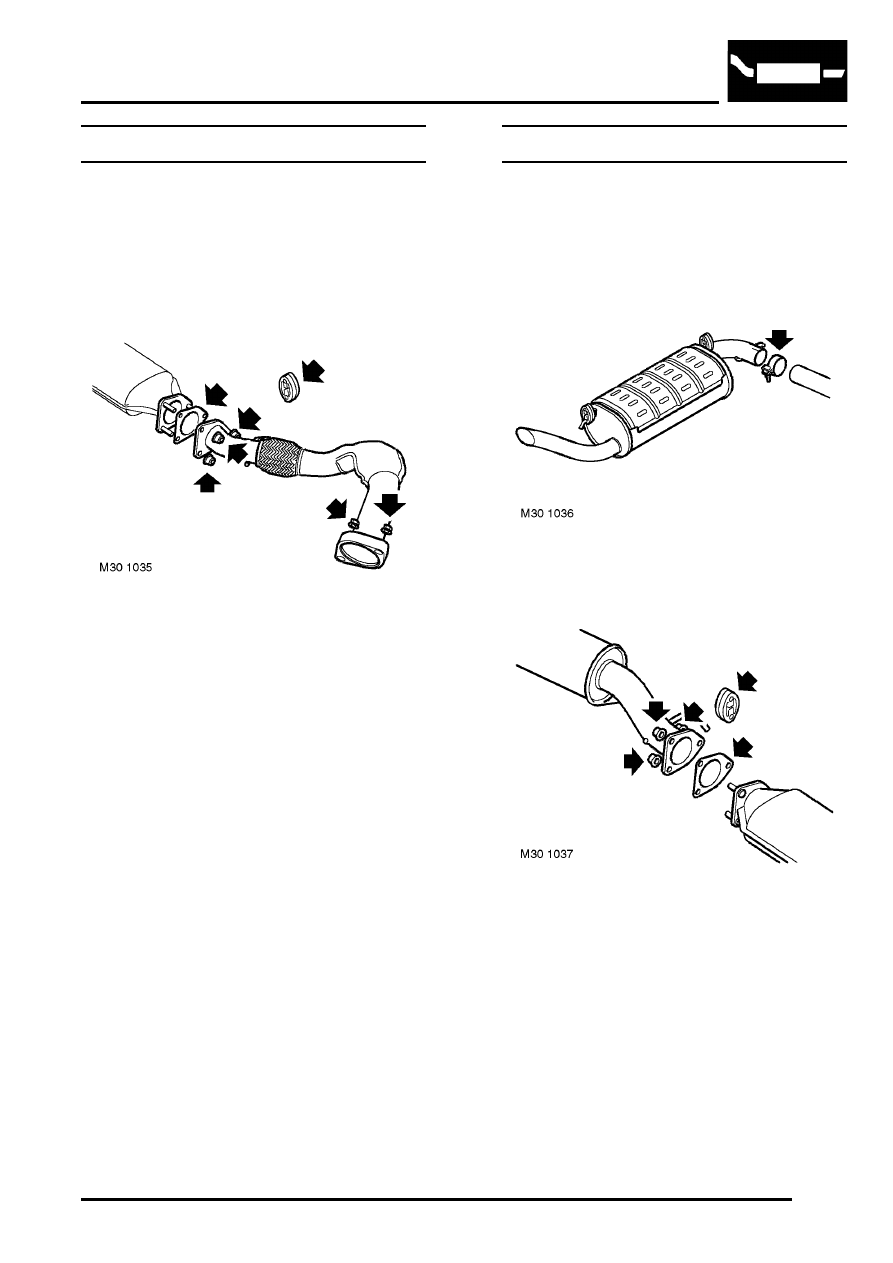

Exhaust pipe - front

$% 30.10.09

Remove

1. Raise vehicle on 4 post ramp.
2. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Remove 2 nuts securing front pipe clamping

plate.

4. Remove 3 nuts securing front pipe to

intermediate pipe.

5. Release intermediate pipe from front pipe.
6. Remove and discard exhaust flange gasket.
7. Release rubber mounting from front pipe.
8. Remove exhaust front pipe.

Refit

1. Clean exhaust pipe and turbocharger down

pipe flanges.

2. Align front pipe flanges, fit new gasket and start

nuts.

3. Connect rubber mounting to front pipe.
4. Tighten front pipe to intermediate pipe flange

nuts to 60 Nm (44 lbf.ft).

5. Tighten front pipe clamping plate to 50 Nm (37

lbf.ft).

6. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

7. Lower vehicle.

Exhaust pipe - intermediate

$% 30.10.11

Remove

1. Raise vehicle on 4 post ramp.

2. Loosen tail pipe clamp nut and release tail pipe

from intermediate pipe.

3. Remove 3 nuts securing front pipe to

intermediate pipe.

4. Release intermediate pipe from front pipe.
5. Remove and discard gasket.
6. Release rubber mounting from intermediate

pipe.

7. With assistance release and remove

intermediate pipe.

MANIFOLDS & EXHAUST SYSTEMS - TD4

30-1-2

REPAIRS

Refit

1. Clean intermediate pipe/silencer, front pipe and

tail pipe mating faces.

2. Fit new gasket to front pipe flange.
3. With assistance fit intermediate pipe to tail pipe

and front pipe.

4. Fit nuts to intermediate pipe flange and tighten

to 60 Nm (44 lbf.ft).

5. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
6. Fit intermediate pipe to rubber mounting.
7. Lower vehicle.

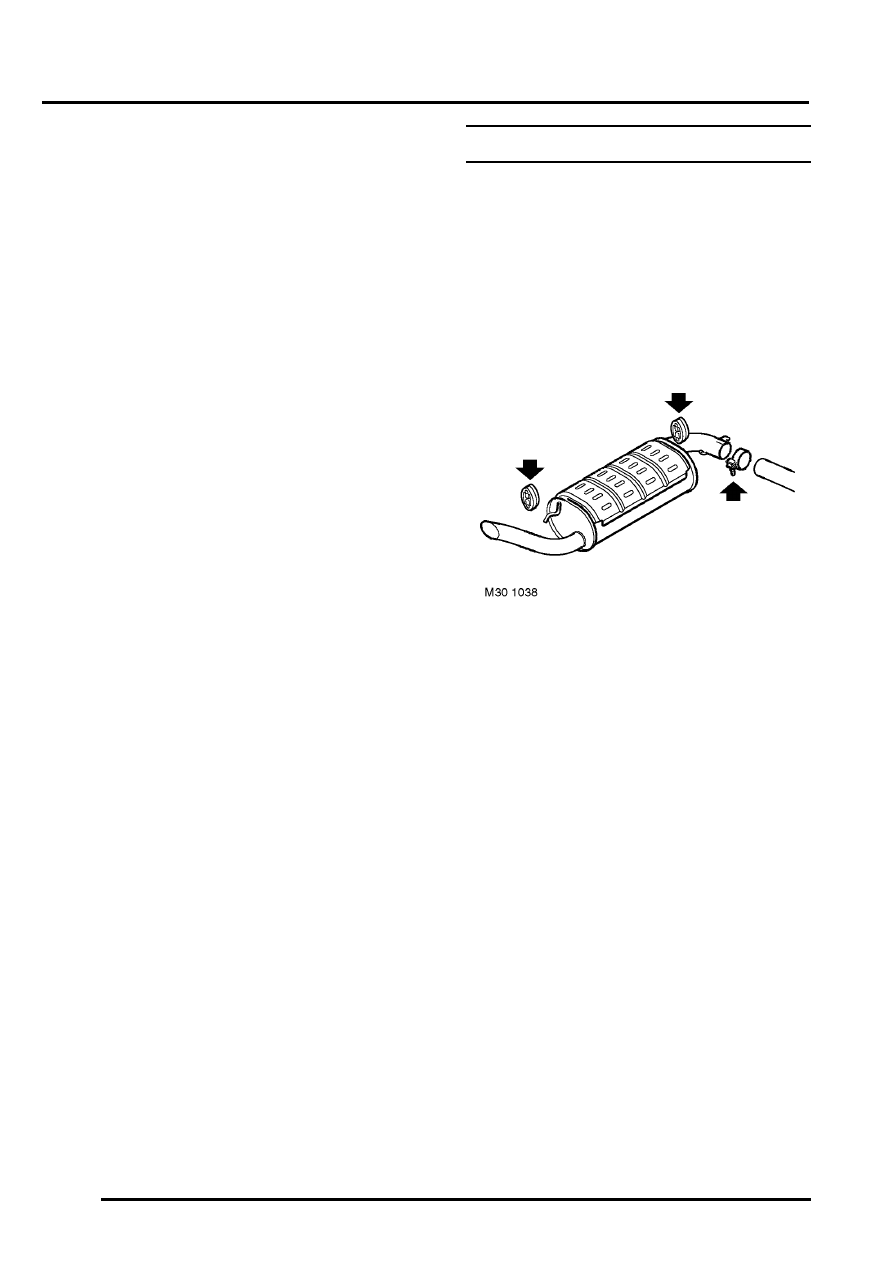

Exhaust pipe - tail

$% 30.10.22

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Loosen tail pipe clamp nut.
3. Release 2 rubber mountings from tail pipe.
4. Remove tail pipe.

Refit

1. Clean mating faces of tail pipe and intermediate

pipe.

2. Fit tail pipe and connect rubber mountings.
3. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
4. Remove stands and lower vehicle.
