COOLING SYSTEM - TD4

REPAIRS

26-1-3

REPAIRS

Cooling fan and motor

$% 26.25.22

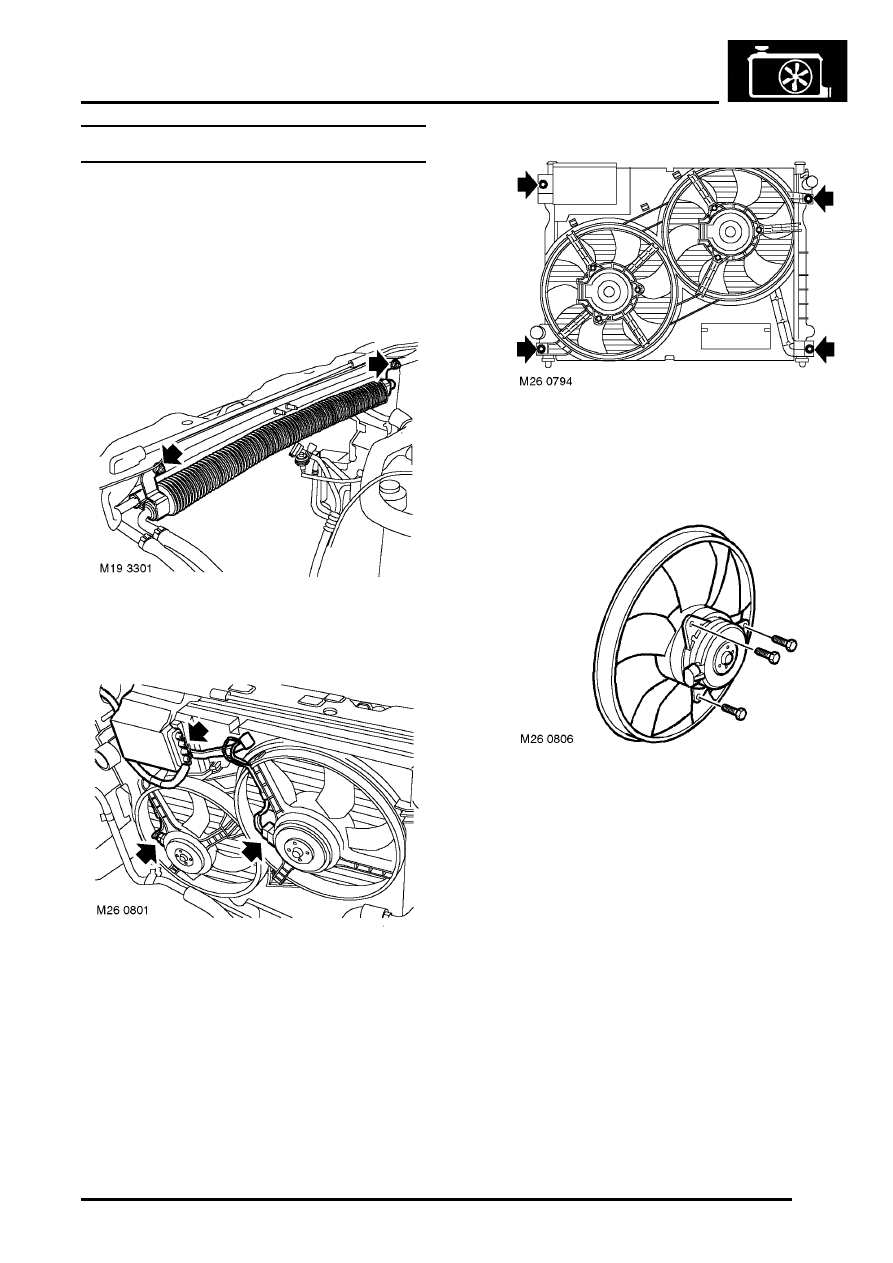

Remove

1. Disconnect battery earth lead.
2. Remove acoustic cover.



 +

 ENGINE - Td4, REPAIRS, Cover -

engine acoustic.

3. Remove 2 nuts securing fuel cooler matrix to

bonnet locking platform, move cooler aside.

4. Release multiplugs from relay housing and fan

motors.

5. Release harness from fan cowling.

6. Remove 4 bolts securing fan cowl to radiator.
7. With assistance manoeuvre fan cowl and motor

assembly from vehicle.

8. Remove 3 bolts securing motor to fan cowl,

release motor and fan assembly.

Refit

1. Position fan and motor assembly to fan cowl, fit

and tighten bolts to 5 Nm (4 lbf.ft).

2. Position fan cowl to radiator, fit and tighten

bolts to 5 Nm (4 lbf.ft).

3. Secure relay and harness to fan cowl.
4. Connect multiplugs.
5. Fit fuel cooler to mounting and tighten nuts to

10 Nm (7.5 lbf.ft).

6. Fit acoustic cover.



 +

 ENGINE - Td4, REPAIRS, Cover -

engine acoustic.

7. Connect battery earth lead.

COOLING SYSTEM - TD4

26-1-4

REPAIRS

Radiator assembly

$% 26.40.01

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - Td4, REPAIRS, Cover -

engine acoustic.

3. Models without A/C: Remove bumper

valance.


 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

4. Models without A/C: Remove 4 nuts and 4

bolts securing armature to body and remove
armature.

5. Models without A/C: Remove intercooler.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Intercooler.

6. Models with A/C: Remove A/C condenser.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

7. Drain cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

8. Release clips and remove top and bottom

hoses.

CAUTION: Always fit plugs to open
connections to prevent contamination.

9. Release clip and remove expansion hose from

radiator.

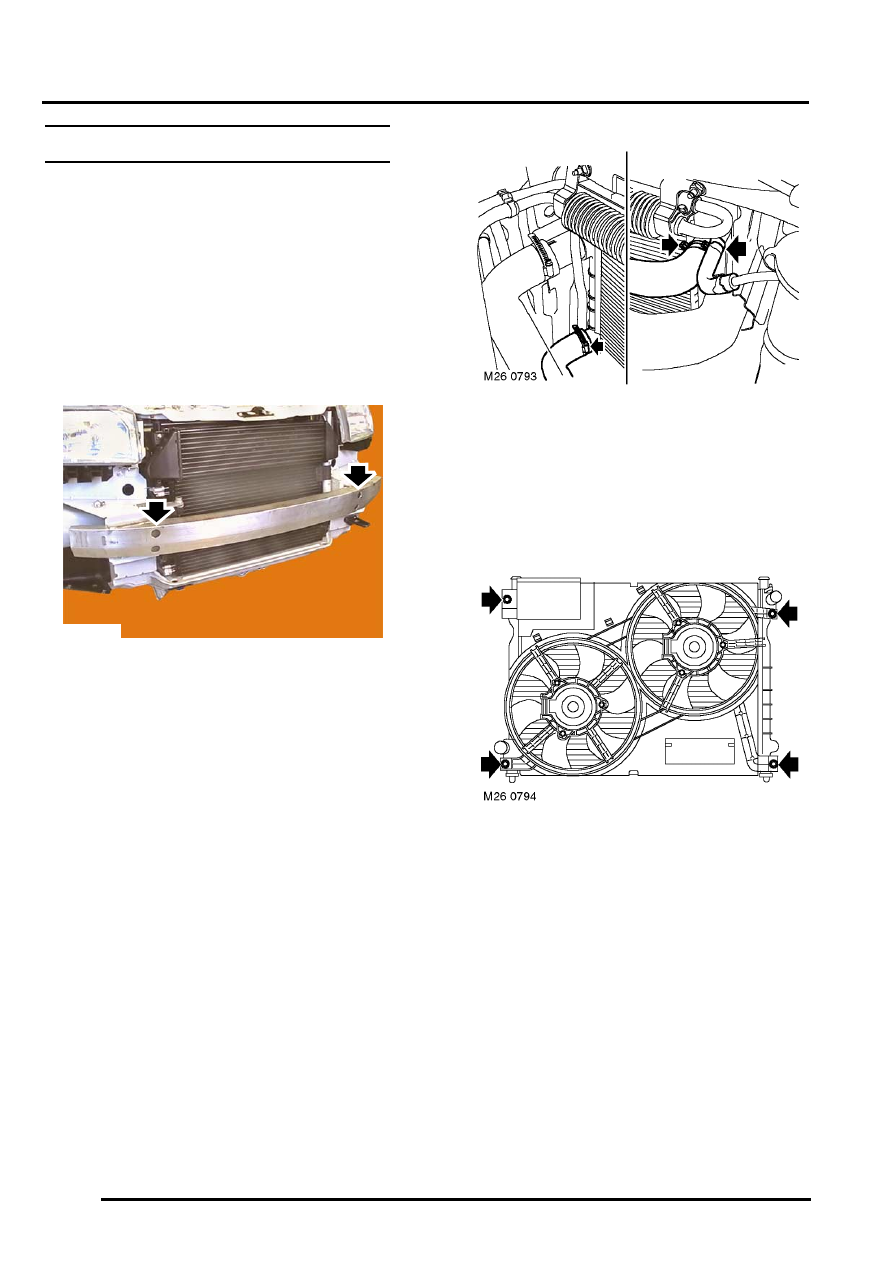

10. Remove 4 bolts securing fan cowl to radiator.



M76 4176

COOLING SYSTEM - TD4

REPAIRS

26-1-5

11. Remove 4 scrivets securing radiator baffles to

body, release baffles and remove from vehicle.

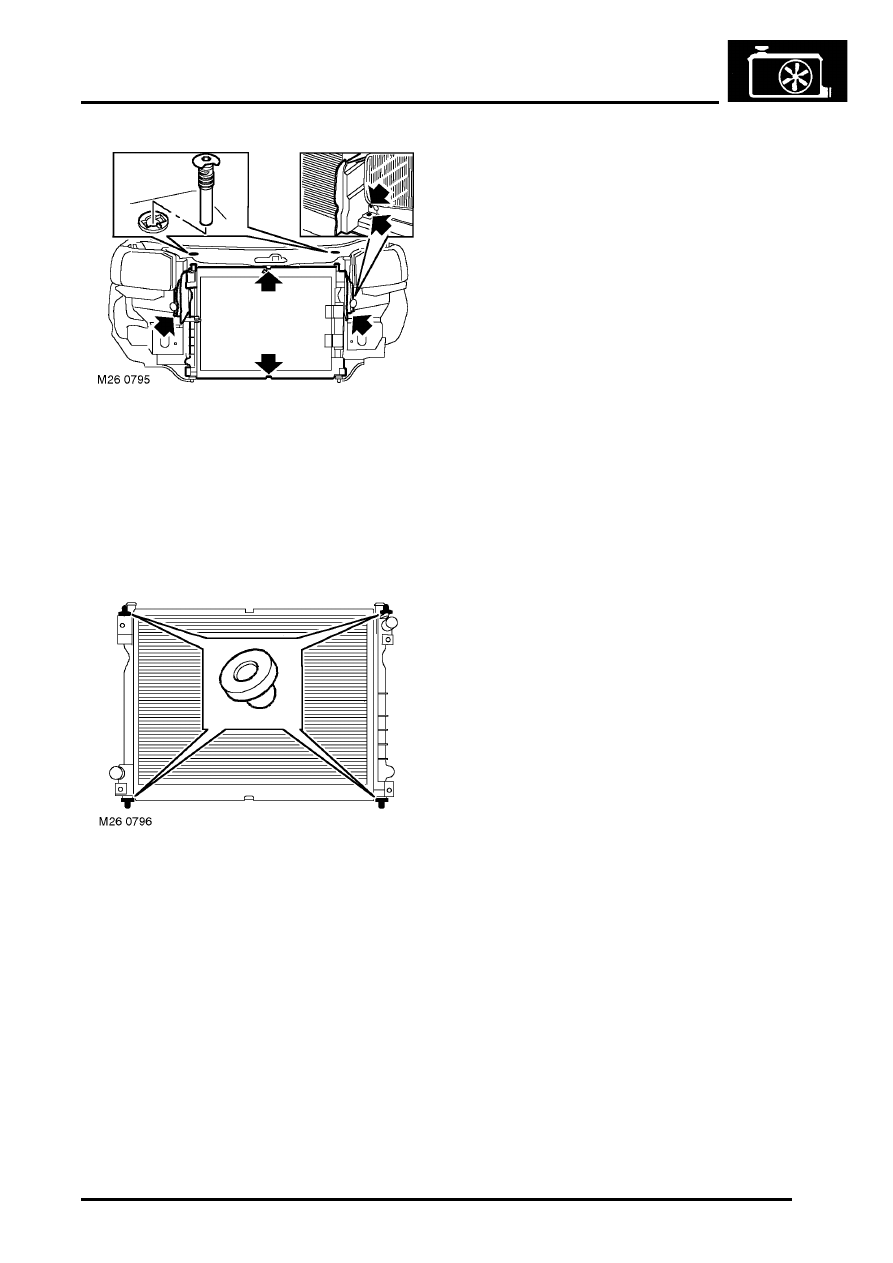

12. Remove radiator upper retaining pegs from

bonnet locking platform. Ease top of radiator
forward.

13. Remove 2 cowl retaining clips from radiator.
14. Release radiator from lower mountings and

remove from vehicle.

15. Remove 4 rubber mountings from radiator.

Refit

1. Fit mounting rubbers to radiator.
2. Align radiator with fan cowl and fit clips.
3. Fit radiator and engage lower mountings in

chassis.

4. Fit radiator top mountings to bonnet locking

platform.

5. Fit bolts fan cowl to radiator, tighten to 5 Nm (4

lbf.ft).

6. Connect expansion tank hose and secure with

clip.

7. Connect bottom and top hoses to radiator

secure with clips.

8. Models with A/C: Fit A/C condenser.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

9. Models without A/C: Fit intercooler.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Intercooler.

10. Fit radiator baffles and secure with scrivets.
11. Models without A/C: Position armature, fit and

tighten 4 nuts and bolts securing armature to
body.

12. Models without A/C: Fit bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

13. Refill cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

14. Fit acoustic cover.



 +

 ENGINE - Td4, REPAIRS, Cover -

engine acoustic.

15. Connect battery earth lead.

COOLING SYSTEM - TD4

26-1-6

REPAIRS

Coolant pump and thermostat

$% 26.50.01

Remove

1. Disconnect battery earth lead.
2. Remove camshaft cover gasket.



 +

 ENGINE - Td4, REPAIRS, Gasket -

camshaft cover.

3. Drain cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

4. Remove RH front road wheel.
5. Remove ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

6. Remove engine lower steady.



 +

 ENGINE - Td4, REPAIRS, Engine

steady - lower.

7. Remove hydramount.



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

8. Release 2 clips securing hose to coolant rail

and thermostat housing.

9. Release and remove hose.

10. Release clip and disconnect expansion tank

hose from coolant rail.

11. Loosen clips and remove turbocharger outlet

hose.

12. Remove bolt coolant rail to exhaust manifold.

13. Remove bolt, fuel rail to coolant rail.

M26 0784

M12 6784

M12 6756
