FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-39

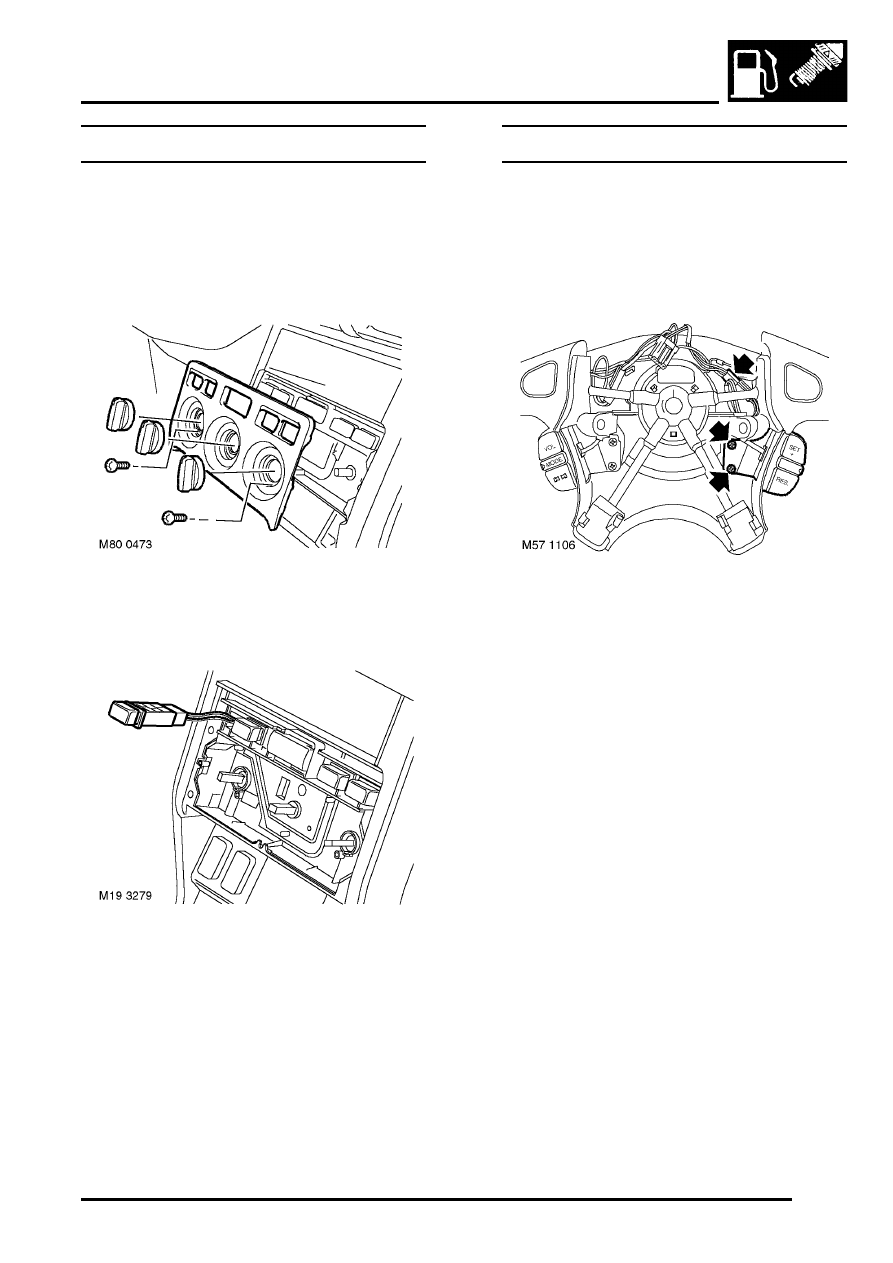

Switch - cruise control - KV6

$% 19.75.30

Remove

1. Remove radio.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Radio.

2. Remove selector knobs from heater controls.
3. Remove 2 screws securing heater control

finisher to heater controls and remove finisher.

4. Release cruise control switch, disconnect

multiplug and remove switch.

Refit

1. Position cruise control switch, connect

multiplug and secure switch.

2. Fit heater control finisher to heater controls and

secure with screws.

3. Fit heater control knobs.
4. Fit radio.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Radio.

Switch - multi-purpose

$% 19.75.33

Remove

1. Remove airbag module from steering wheel.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

2. Release cruise control switch leads from clip

and disconnect multiplug.

3. Remove 2 screws securing cruise control

switch and remove switch.

Refit

1. Fit cruise control switch and secure with

screws.

2. Connect switch multiplug and fit leads in clip.
3. Fit drivers airbag.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

FUEL DELIVERY SYSTEM - PETROL

19-2-40 REPAIRS

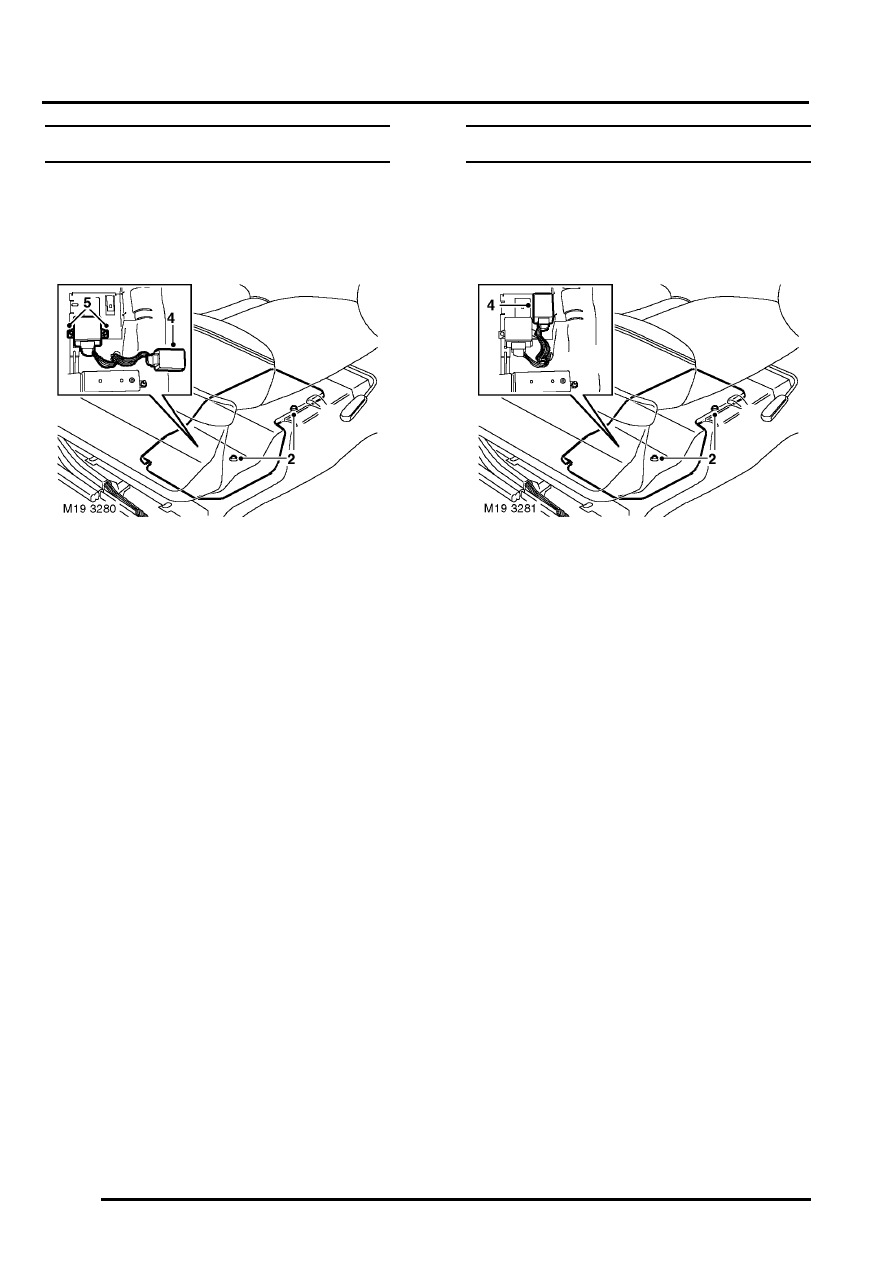

ECU - cruise control - KV6

$% 19.75.49

Remove

1. Slide RH front seat fully rearwards.

2. Remove 2 screws securing ECU cover.
3. Remove cover.
4. Release interface ECU from bracket and move

aside.

5. Remove 2 screws securing cruise control ECU.
6. Disconnect multiplug from ECU and remove

ECU.

Refit

1. Connect multiplug to ECU.
2. Position ECU and tighten screws.
3. Secure interface ECU to bracket.
4. Fit ECU cover and secure with screws.
5. Position seat to mid position.

Interface ECU - cruise control - KV6

$% 19.75.55

Remove

1. Slide RH front seat fully rearwards.

2. Remove 2 screws securing ECU cover.
3. Remove cover.
4. Release interface ECU from bracket,

disconnect multiplug and remove ECU.

Refit

1. Position ECU, connect multiplug and secure

ECU to bracket.

2. Fit ECU cover and secure with screws.
3. Position seat to mid position.

COOLING SYSTEM - TD4

ADJUSTMENTS

26-1-1

COOLING SYSTEM -  Td4

ADJUSTMENTS

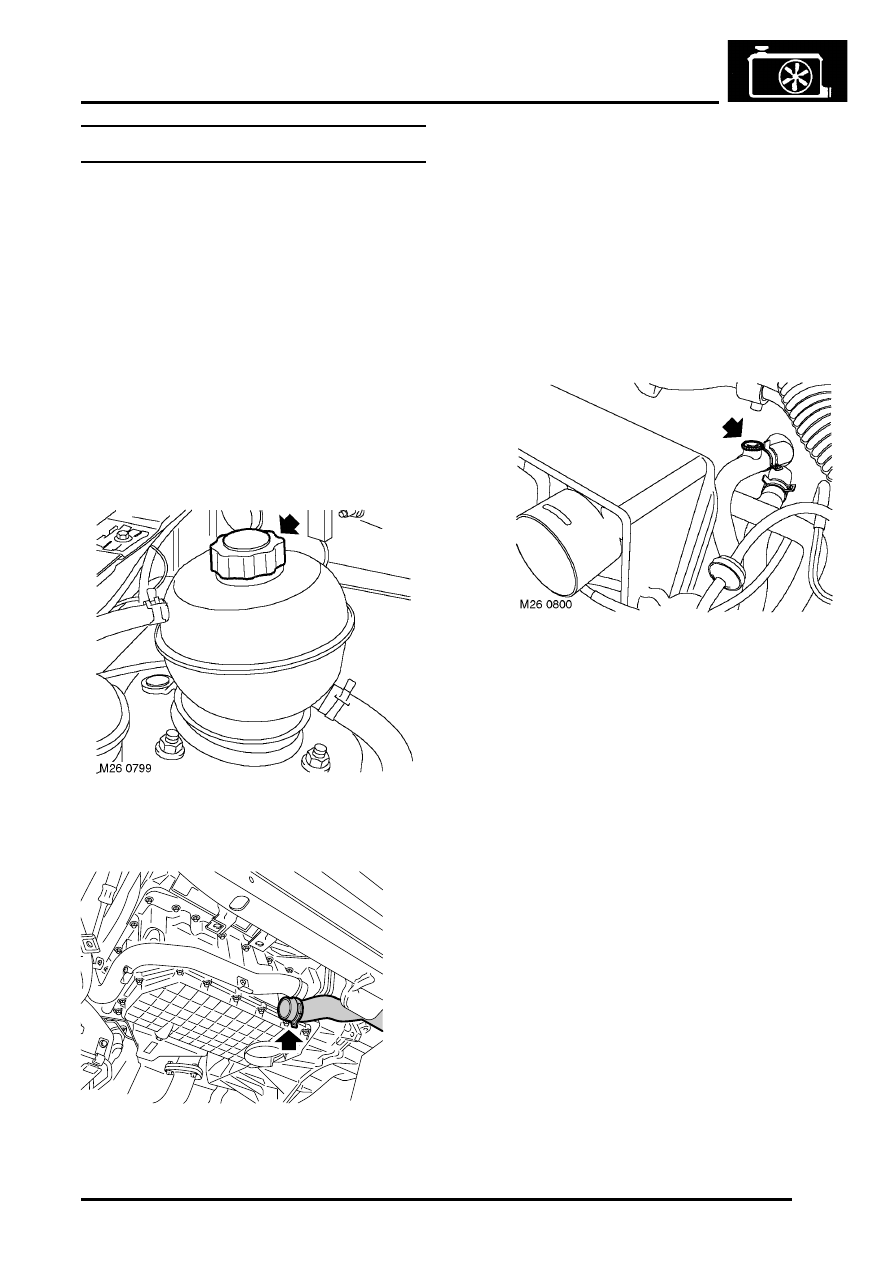

Coolant - drain and refill

$% 26.10.01

Drain

1. Visually check engine and cooling system for

signs of coolant leaks.

WARNING: Since injury such as scalding
could be caused by escaping steam or
coolant, do not remove the filler cap from
the coolant expansion tank while the
system is hot.

2. Examine hoses for signs of cracking, distortion

and security of connections.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Remove expansion tank filler cap.
5. Position container to collect coolant.

6. Release clip and remove hose from lower

coolant rail, allow system to drain.

Refill

1. Flush system with water under low pressure.

CAUTION: Do not use water under high
pressure as it could damage the radiator.

2. Fit hose to lower coolant rail and secure with

clip.

3. Prepare coolant to required concentration.



 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Fluids.

4. Remove bleed screw from coolant pipe.
5. Ensure heater control is set to maximum.
6. Slowly fill the system through the coolant

expansion tank until a steady flow of coolant is
emitted from the bleed hole.

7. Close bleed screw as coolant emerges,

carefully by hand.

8. Fit expansion tank filler cap.
9. Start and run engine until normal operating

temperature is reached.

CAUTION: DO NOT operate air conditioning

10. Ensure warm air is available at vents.

NOTE: If warm air is not available, an air-lock
may be present in heater matrix. If necessary,
allow engine to cool, remove expansion tank
filler cap and repeat bleed operation at heater
hose

11. Switch off engine and allow to cool.
12. Check for leaks and top-up coolant to 'MAX'

mark on expansion tank

13. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

26 0817

COOLING SYSTEM - TD4

26-1-2

ADJUSTMENTS
