FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-31

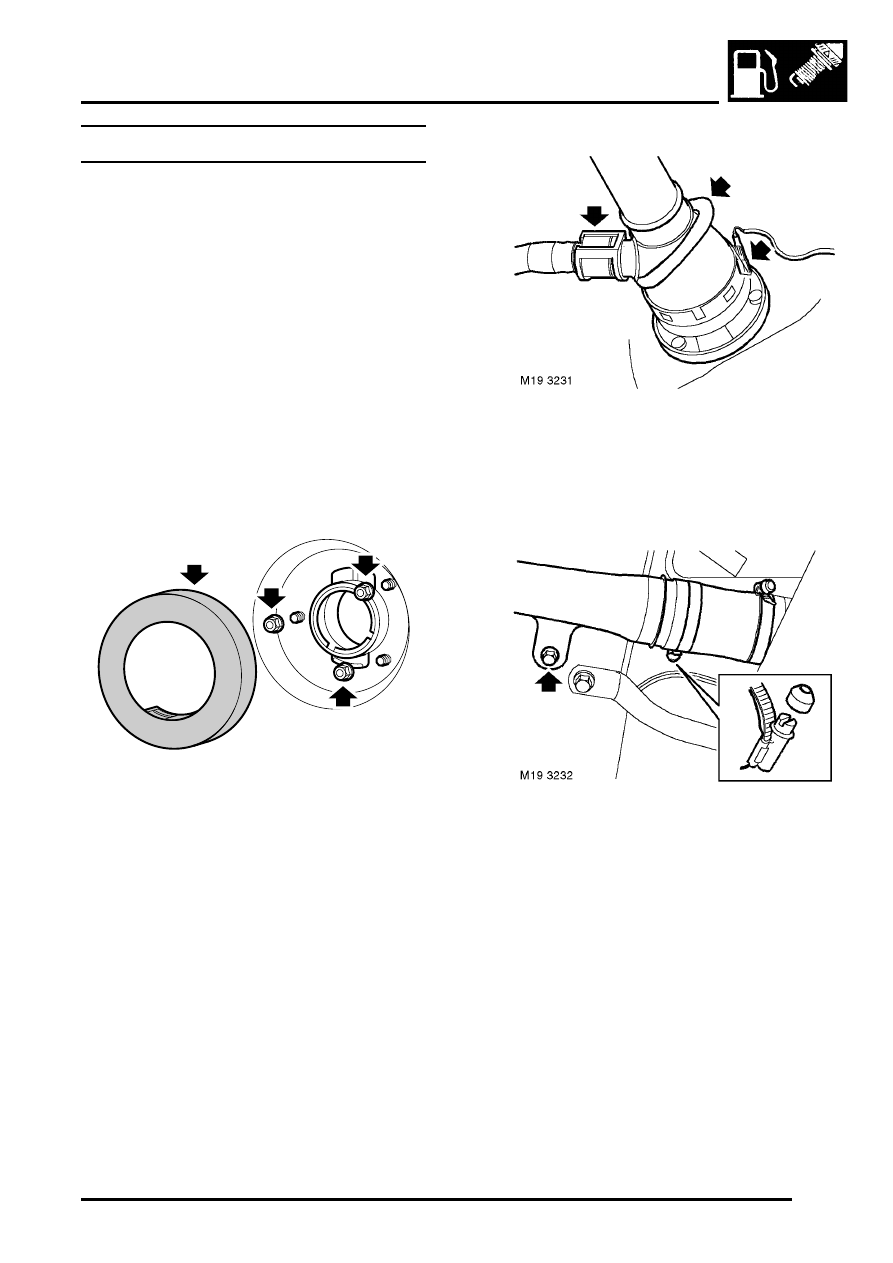

Filler neck

$% 19.55.07

Remove

1. Disconnect battery earth lead.
2. Ensure fuel tank is less than half full. If not,

drain fuel tank to less than half full.


 +

 FUEL DELIVERY SYSTEM -

PETROL, ADJUSTMENTS, Fuel tank - drain.

3. Remove RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

4. Remove fuel filler cap.

CAUTION: Before disconnecting any part of
the fuel system, it is imperative that all dust,
dirt and debris is removed from around
components to prevent ingress of foreign
matter into fuel system.

5. Unclip escutcheon from fuel filler neck.

WARNING: Fuel vapour is highly flammable
and in confined spaces is also explosive
and toxic. Always have a fire extinguisher
containing foam, CO

2

, gas or powder close

at hand when handling or draining fuel.

6. Remove 3 nuts securing fuel filler neck to body.

7. Release clip from breather hose and

disconnect breather hose from filler neck.

8. Release fuel tank vent pipe from filler neck.
9. Disconnect Lucar connector from fuel filler

neck.

10. Remove bolt securing filler neck to body.
11. Remove tamper proof cover from filler hose clip

and loosen clip.

12. Disconnect hose from filler neck and remove

filler neck assembly.

M19 3230

FUEL DELIVERY SYSTEM - PETROL

19-2-32 REPAIRS

Refit

1. Position filler neck assembly, connect to hose,

secure clip and fit tamper proof cover.

2. Fit bolt securing filler neck to body and tighten

to 9 Nm (7 lbf.ft).

3. Connect Lucar connector to fuel filler neck.
4. Position fuel tank vent pipe around filler neck.
5. Connect breather hose to filler neck, fit and

secure clip.

6. Fit nuts securing fuel filler neck to body and

tighten to 9 Nm (7 lbf.ft).

7. Clip escutcheon to fuel filler neck.
8. Fit fuel filler cap.
9. Fit RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

10. Connect battery earth lead.

Fuel rail - KV6 - Non NAS

$% 19.60.04.99

Remove

1. Disconnect battery earth lead.
2. Remove inlet manifold chamber.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber.

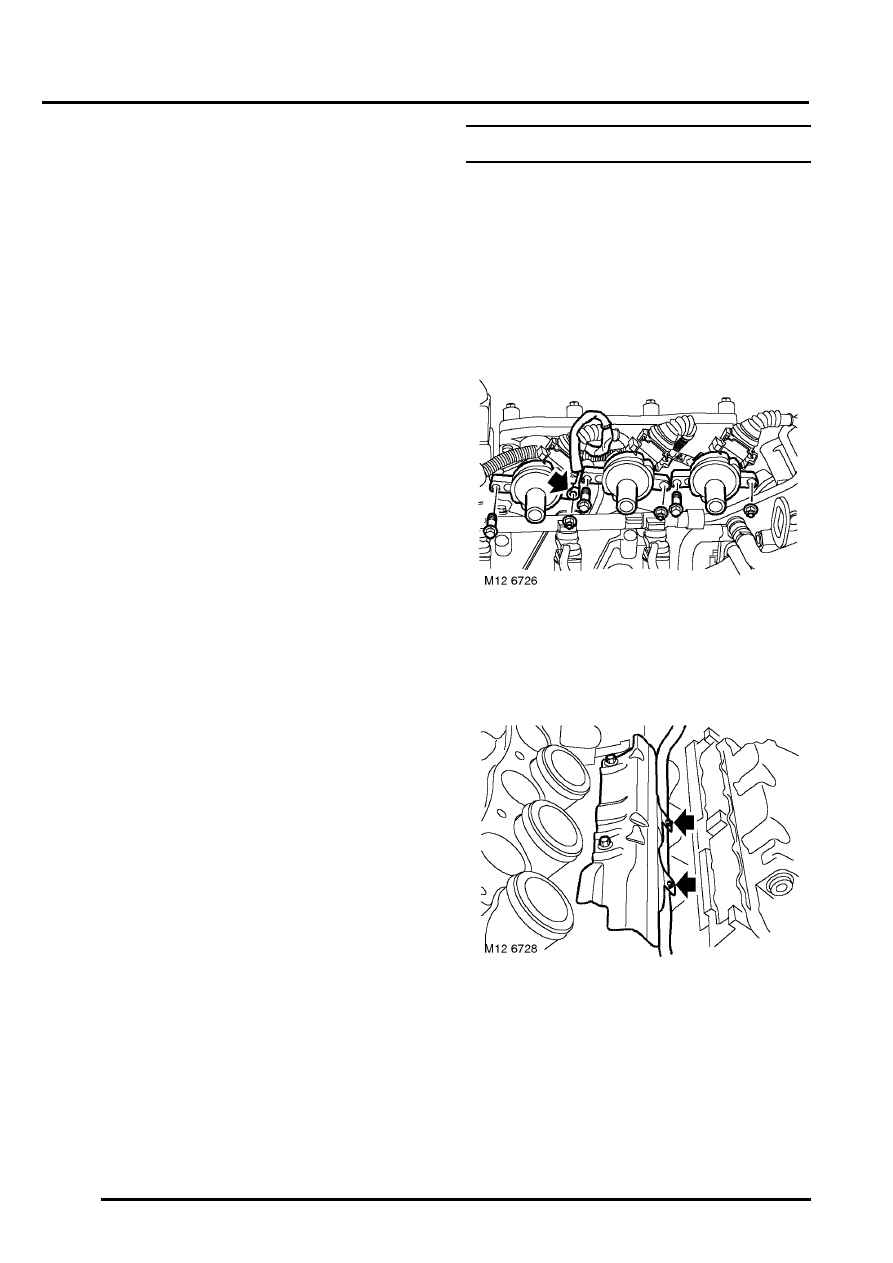

3. Note position of coil earth lead, remove 3 nuts

and 3 bolts securing ignition coils to LH inlet
manifold.

4. Remove ignition coils and position aside.

5. Disconnect clips securing RH injector harness

to injector protection cover.

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-33

6. Remove 2 bolts securing protection cover and

RH fuel rail to RH inlet manifold, remove cover.

7. Remove 2 bolts securing fuel rail to LH inlet

manifold.

8. Release clips and disconnect injector

multiplugs.

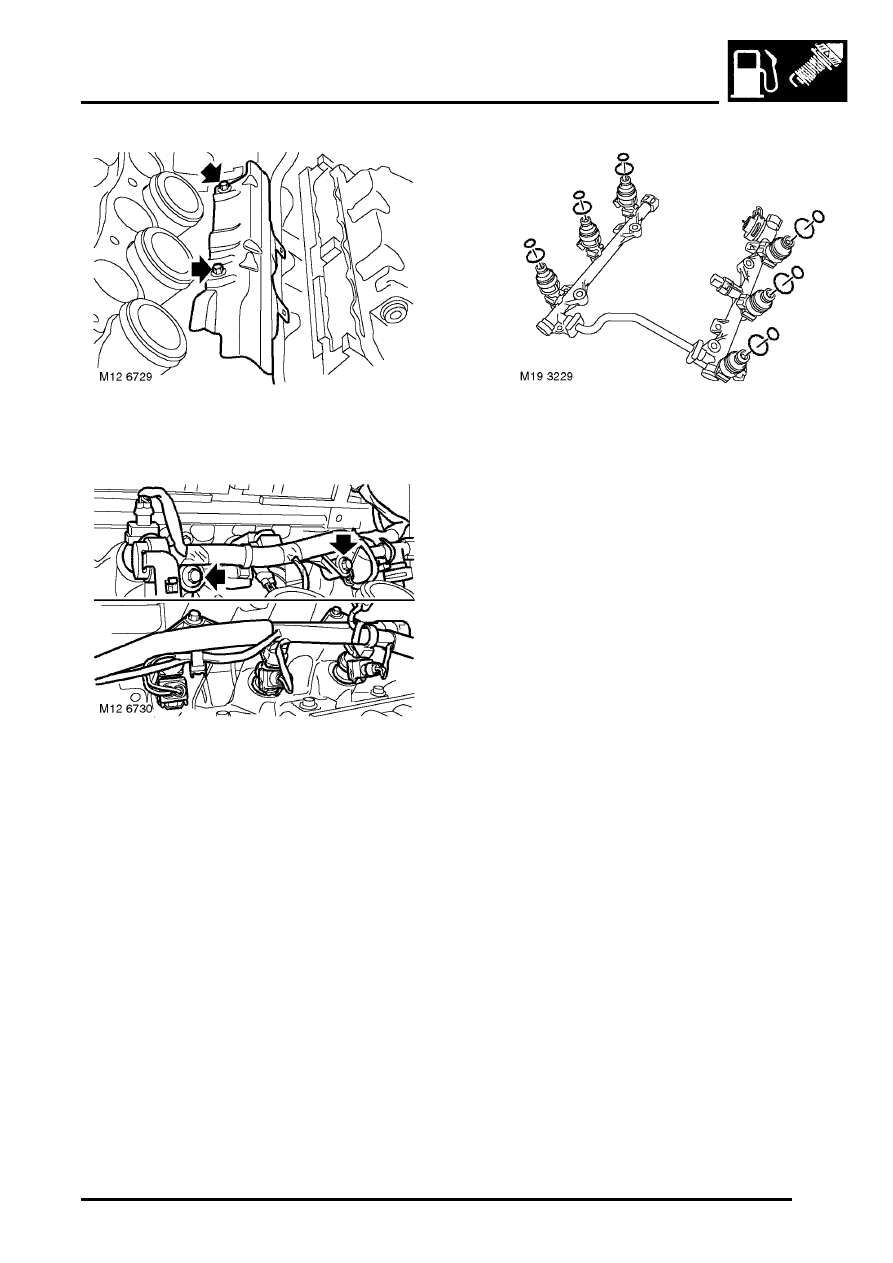

9. Release injectors from manifolds, raise fuel rail

assembly, disconnect 4 clips securing injector
harness to fuel rails and move harness aside.

10. Remove fuel rail.

CAUTION: Always fit plugs to open
connections to prevent contamination.

11. Remove and discard 'O' rings from injectors.

Refit

1. Lubricate new 'O' rings with castor oil and fit to

injectors.

2. Remove plugs from inlet manifolds.
3. Position injector harness to LH fuel rail and

secure with clips.

4. Position injectors and fuel rail to inlet manifolds.
5. Connect multiplugs to injectors.
6. Position injector cover to RH fuel rail and

secure injector harness to protection cover with
clips.

7. Fit bolts securing fuel rail to inlet manifolds and

tighten to 9 Nm (7 lbf.ft).

8. Position ignition coils to LH inlet manifold.
9. Position earth lead, fit nuts and bolts securing

ignition coils to LH inlet manifold and tighten to
9 Nm (7 lbf.ft).

10. Fit inlet manifold chamber.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber.

11. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

19-2-34 REPAIRS

Fuel rail - KV6 - NAS

$% 19.60.04.99

Remove

1. Disconnect battery earth lead.
2. Remove inlet manifold chamber.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

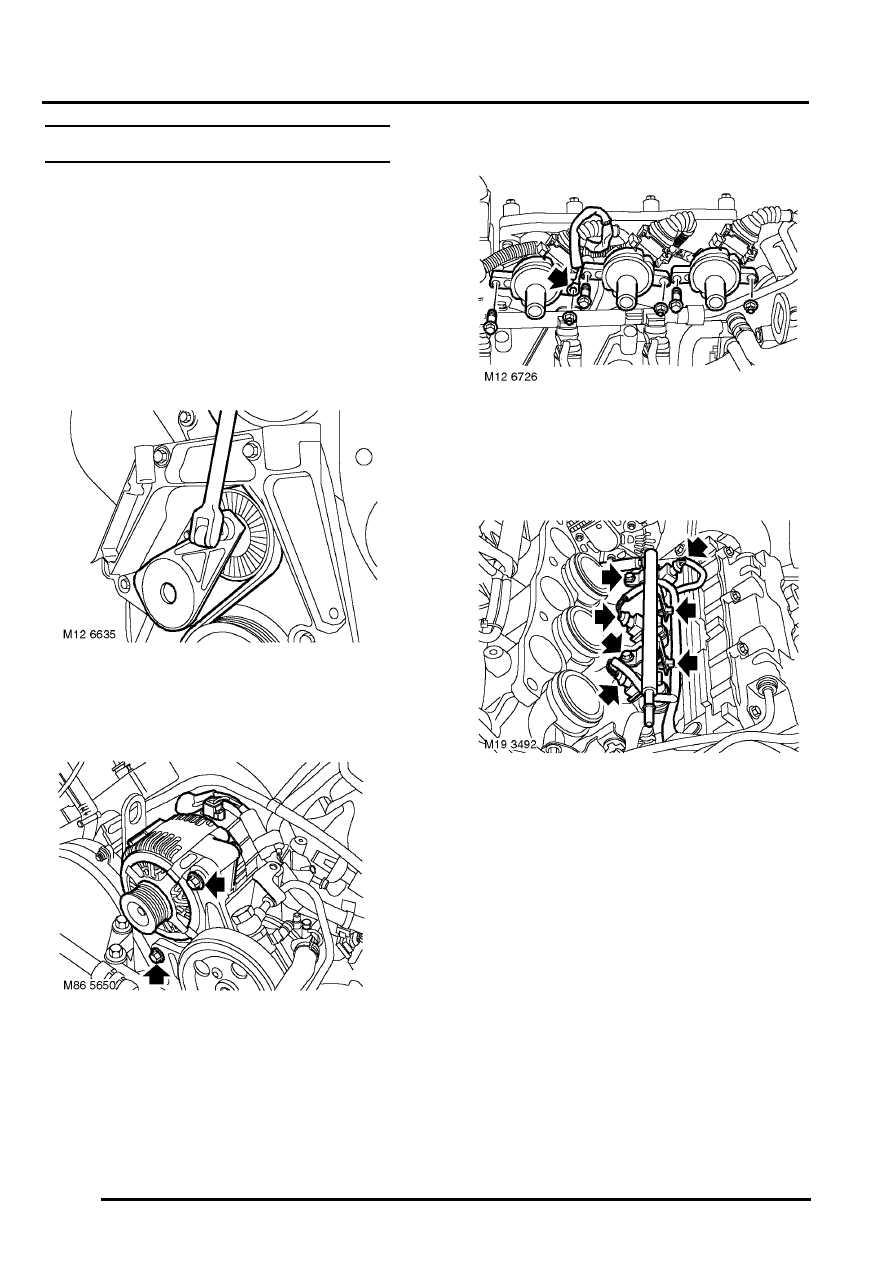

4. Using a 3/8" socket bar raise ancillary drive belt

tensioner and release drive belt from alternator
and PAS pump pulleys.

5. Remove nuts and bolts securing alternator.
6. Release alternator and place aside.

7. Note position of coil earth lead, remove 3 nuts

and 3 bolts securing ignition coils to LH inlet
manifold.

8. Remove ignition coils and position aside.

9. Disconnect clips securing RH injector harness

to injector protection cover.

10. Remove 2 bolts securing RH fuel rail to RH inlet

manifold.

11. Release clips and disconnect injector

multiplugs.
