FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-27

Tank - Non NAS

$% 19.55.01

Remove

1. Position vehicle on ramp.
2. Disconnect battery earth lead.
3. Remove fuel pump assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Pump - fuel.

WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.

4. Using a fuel recovery appliance, drain the fuel

from the tank into a sealed container. Follow
the manufacturer's instructions for the
connection and safe use of the appliance.

WARNING: The fuel tank must be drained
before it is removed from the vehicle.

5. Remove intermediate exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
intermediate.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - Non NAS.

6. Remove propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft assembly.

7. Remove RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

8. Release clip from breather hose and

disconnect breather hose from filler neck.

9. Release clip and disconnect vent hose from

fuel tank on vapour separator.

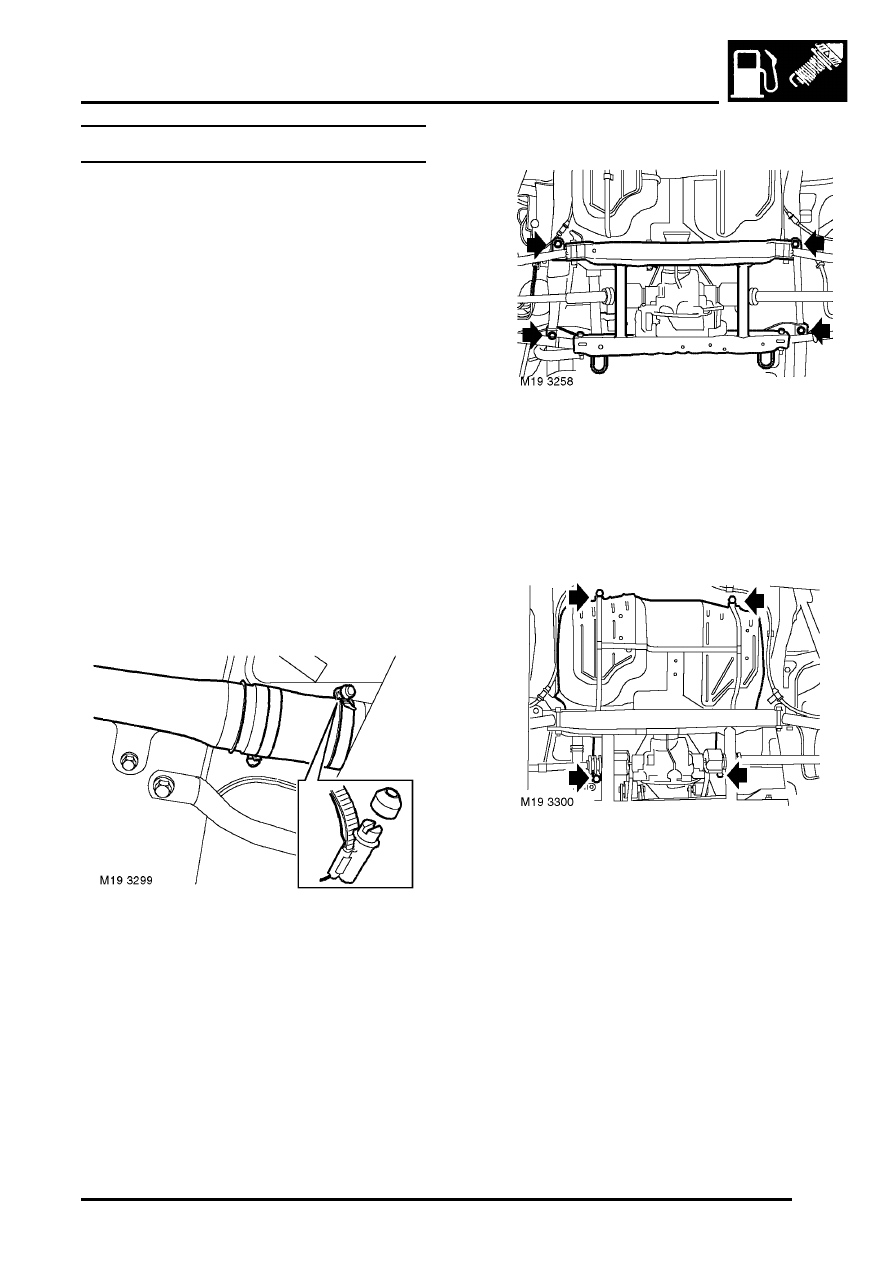

10. Remove tamper proof cover from filler hose clip

and loosen clip.

11. Support weight of rear subframe and remove 4

bolts securing subframe to body.

12. Lower subframe.

CAUTION: Do not allow sub frame to hang
on rear brake hoses.

FUEL DELIVERY SYSTEM - PETROL

19-2-28 REPAIRS

13. With assistance, remove 4 bolts securing fuel

tank to body and remove tank.

NOTE: Pull vent and breather hoses through
body while lowering fuel tank.

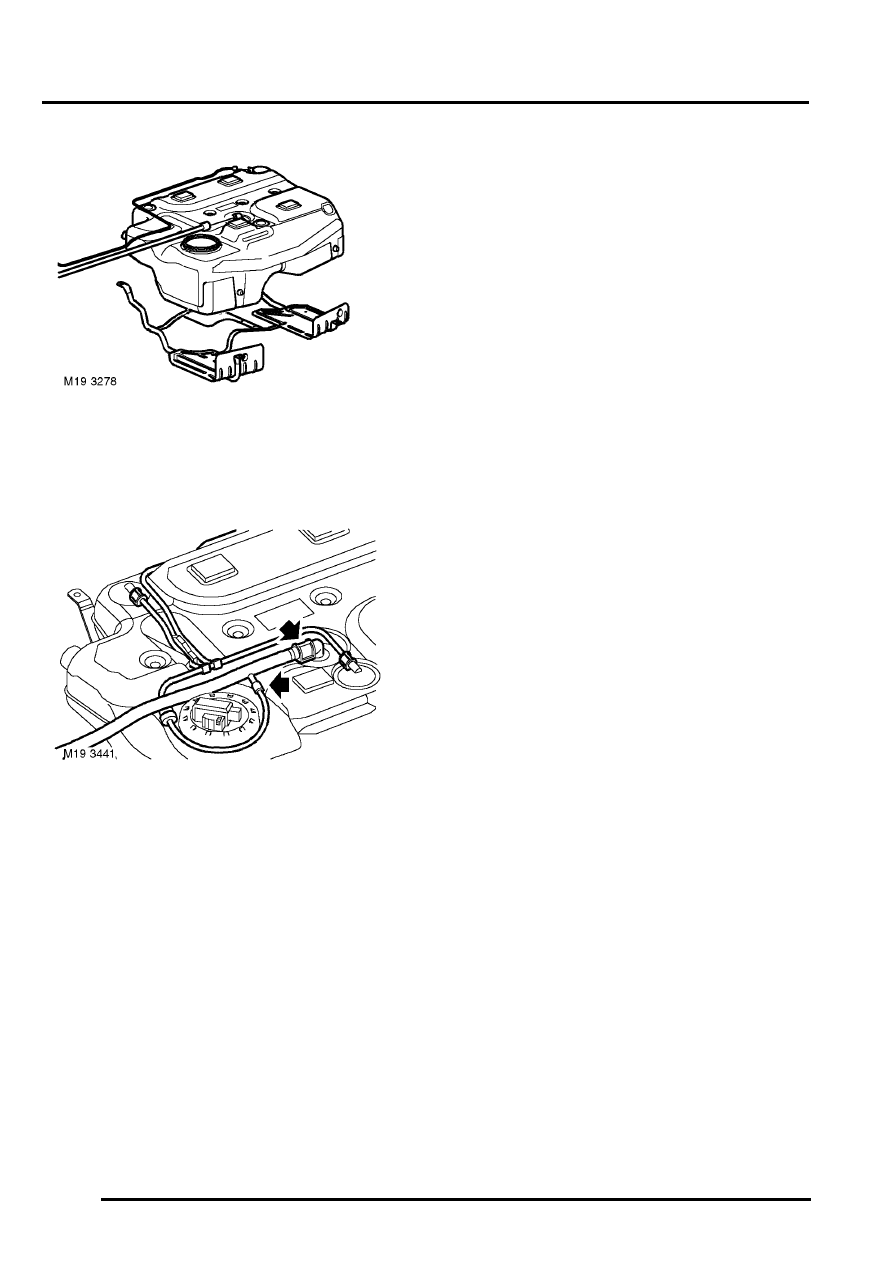

14. Remove fuel tank from cradle. Collect heat and

fire shields.

15. Remove clips from breather hose and vent

pipes.

16. Disconnect breather hose and vent pipes from

fuel tank.

Refit

1. Connect breather hose and vent pipes to fuel

tank, secure with clips.

2. Position heat and fire shields. Fit cradle to fuel

tank.

3. With assistance, fit bolts securing fuel tank to

body and tighten to 45 Nm (33 lbf.ft).

NOTE: Pass vent and breather hoses through
body while fitting tank.

4. Raise subframe, fit bolts and tighten to 190 Nm

(140 lbf.ft).

5. Connect breather hose to filler neck, fit and

secure clip.

6. Connect vent hose to vapour separator, fit and

secure clip.

7. Fit RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

8. Fit propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft assembly.

9. Fit intermediate exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
intermediate.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - Non NAS.

10. Fit fuel pump assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Pump - fuel.

11. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-29

Tank - NAS

$% 19.55.01

Remove

1. Position vehicle on ramp.
2. Disconnect battery earth lead.
3. Using a fuel recovery appliance, drain the fuel

from the tank into  a sealed container. Follow
the manufacturer's instructions for the
connection and safe use of the appliance.


 +

 FUEL DELIVERY SYSTEM -

PETROL, ADJUSTMENTS, Fuel tank - drain.

WARNING: The fuel tank must be drained
before it is removed from the vehicle.

4. Remove intermediate exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.

5. Remove propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft assembly.

6. Remove RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

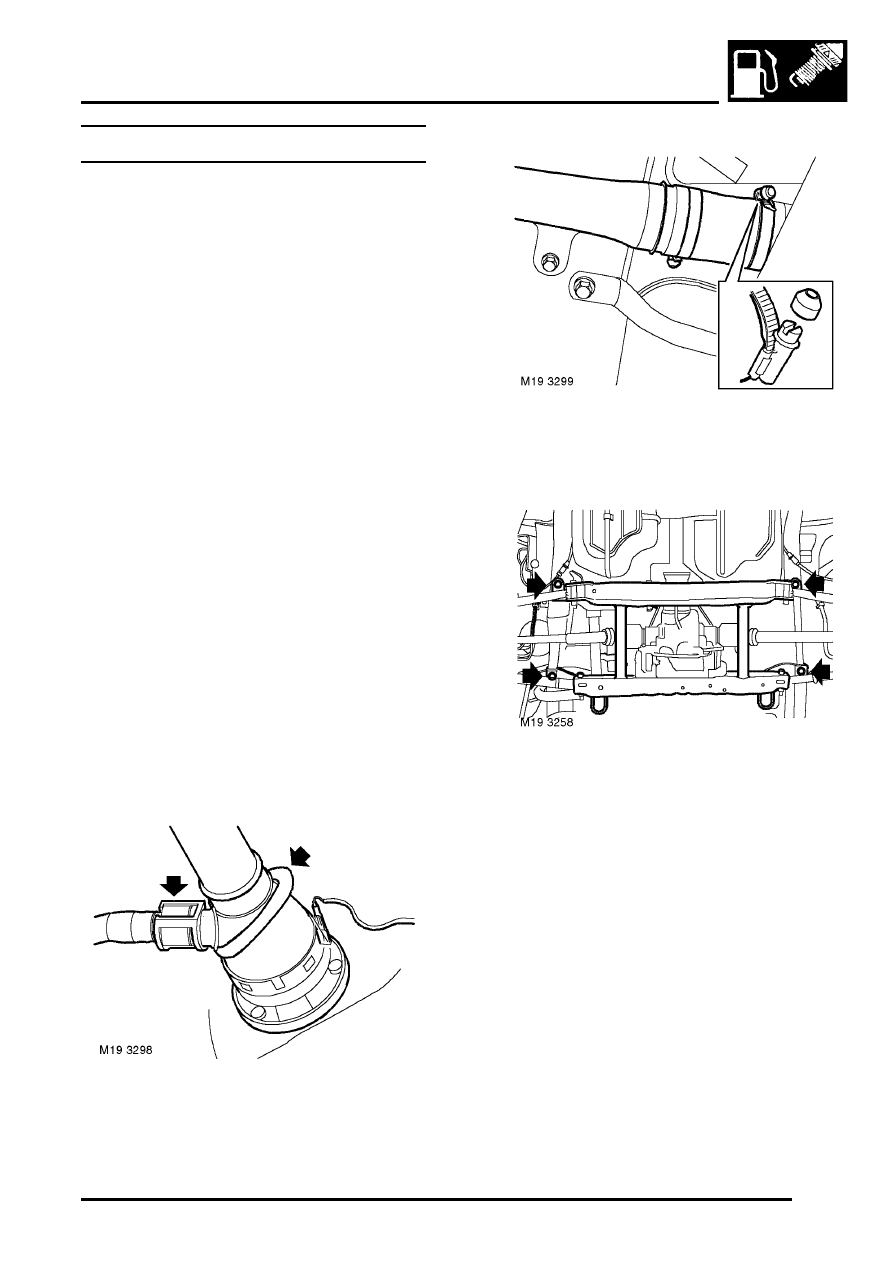

7. Remove tamper proof cover from filler hose clip

and loosen clip.

8. Support weight of rear subframe and remove 4

bolts securing subframe to body.

9. Lower subframe.

CAUTION: Do not allow sub frame to hang
on rear brake hoses.

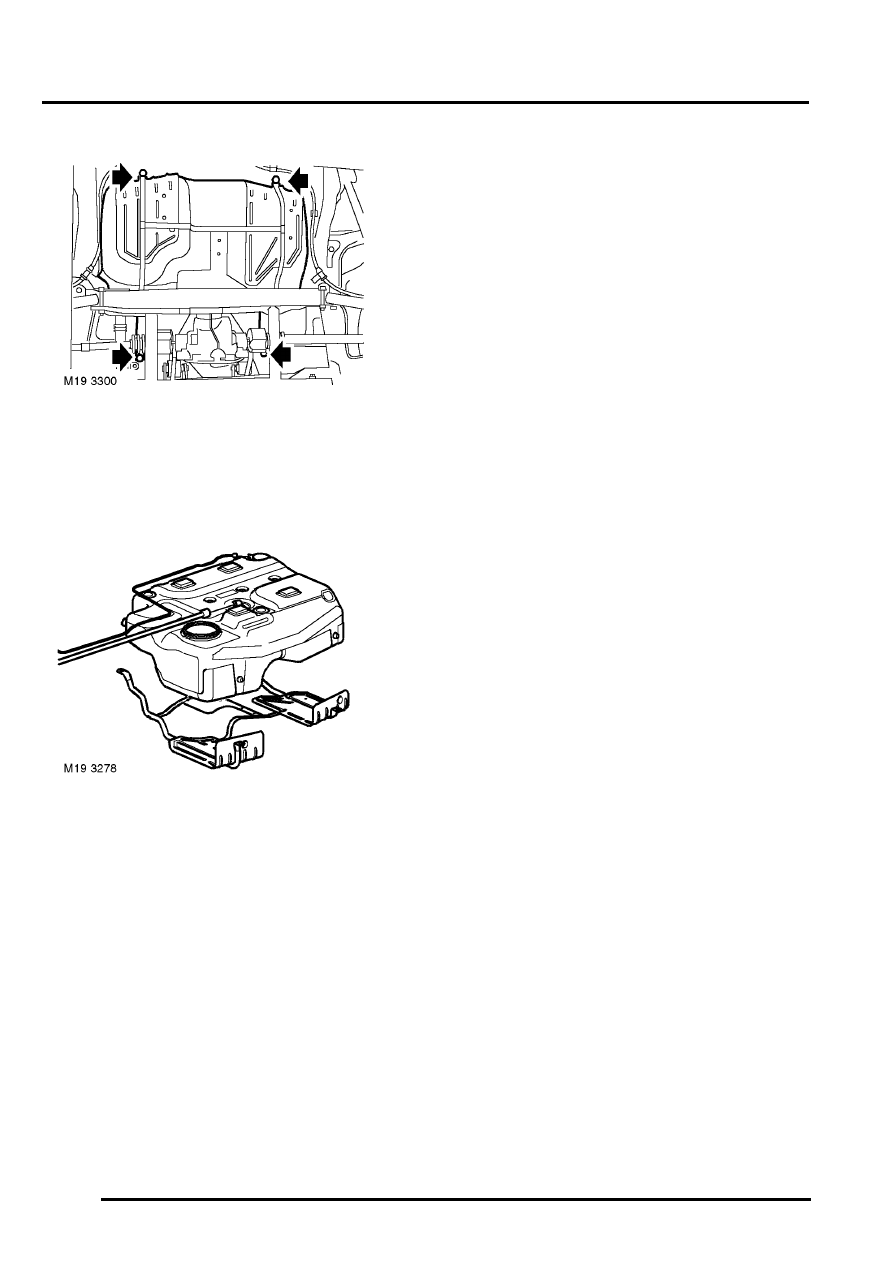

10. With assistance, remove 4 bolts securing fuel

tank to body and remove tank.

NOTE: Pull vent and breather hoses through
body while lowering fuel tank.

FUEL DELIVERY SYSTEM - PETROL

19-2-30 REPAIRS

11. Remove fuel tank from cradle. Collect heat and

fire shields.

12. Remove clips from breather hose and vent

pipes.

13. Disconnect breather hose and vent pipe from

fuel tank.

Refit

1. Connect breather hose and vent pipe to tank,

secure with clips.

2. Position heat and fire shields. Fit cradle to fuel

tank.

3. With assistance, fit bolts securing fuel tank to

body and tighten to 45 Nm.

NOTE: Pass vent and breather hoses through
body while fitting tank.

4. Raise subframe, fit bolts and tighten to 190 Nm.
5. Connect breather hose to filler neck, fit and

secure clip.

6. Fit RH rear wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

7. Fit propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft assembly.

8. Fit intermediate exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.


9. Fit fuel pump assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Pump - fuel.

10. Connect battery earth lead.
