FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-23

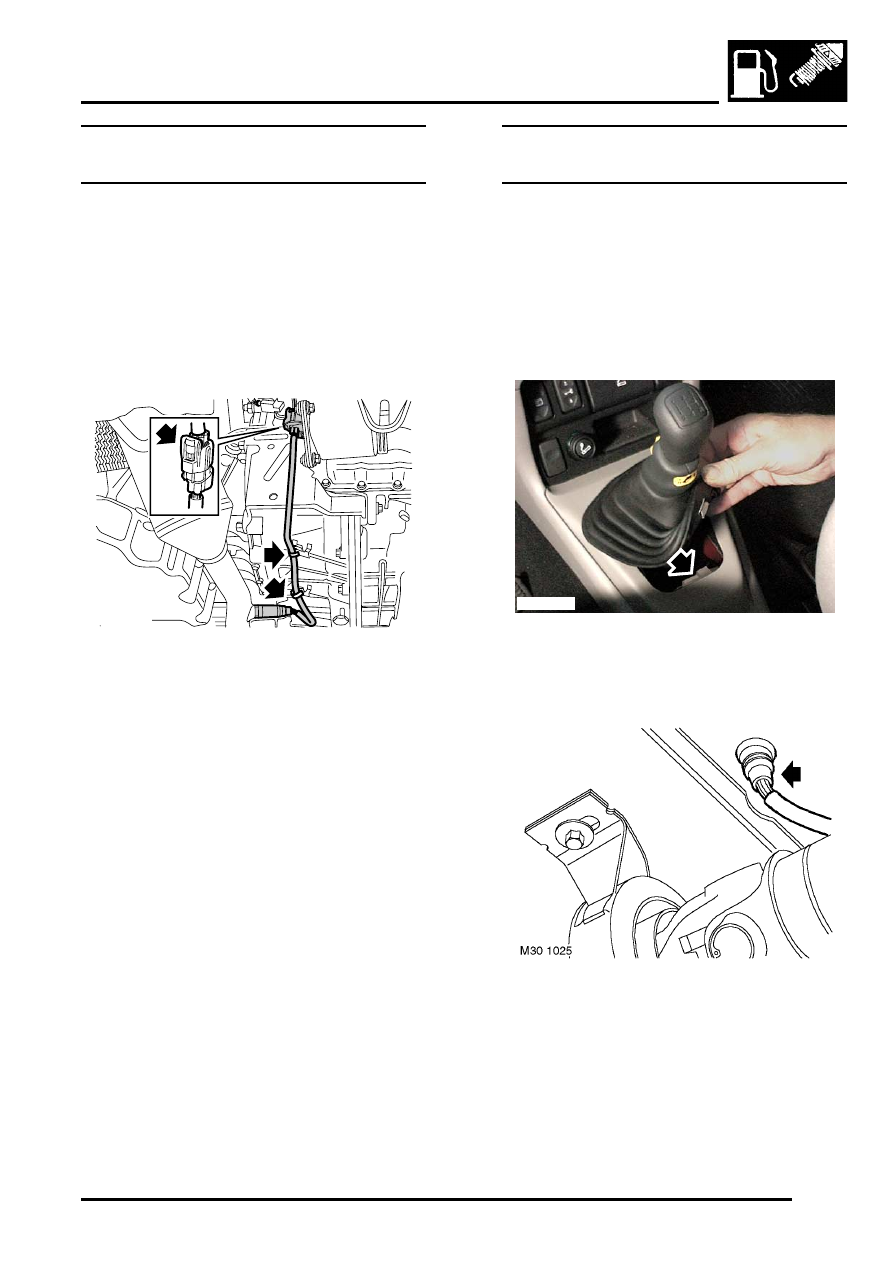

Sensor - heated oxygen (H02S) - post
catalyst - LH - KV6 - NAS

$% 19.22.71

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle and support on stands.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

3. Release HO2S harness from clips.
4. Release and disconnect HO2S multiplug.

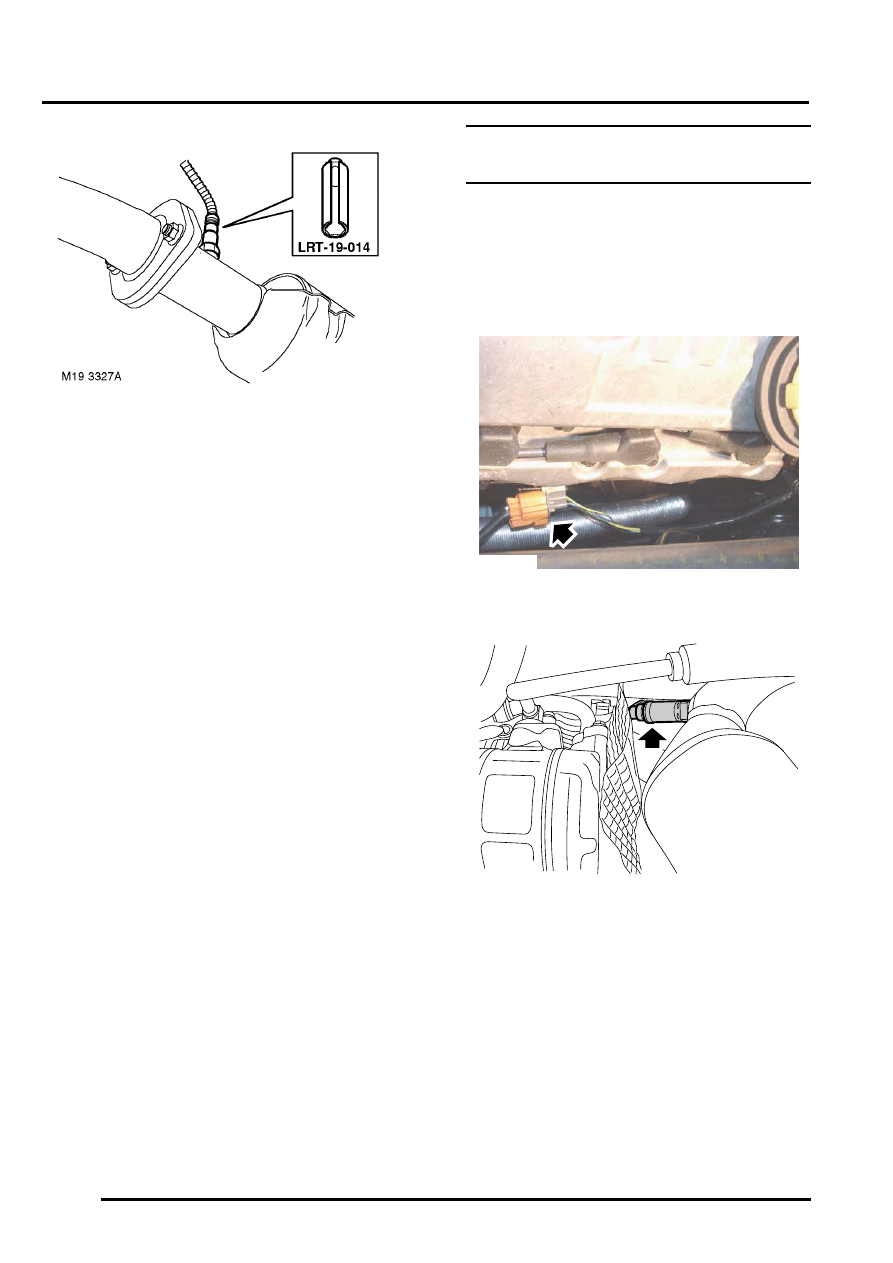

5. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit H02S and tighten to 55 Nm (40 lbf.ft).
3. Connect H02S multiplug and fit to bracket.
4. Fit harness into clips.
5. Remove stands and lower vehicle.
6. Connect battery earth lead.

Sensor - heated oxygen (H02S) - post cat
- front - K1.8

$% 19.22.71

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Release clips securing gear lever gaiter to

centre console.

3. Disconnect HO2S multiplug from harness.

4. Release grommet and withdraw HO2S harness

multiplug through grommet aperture.

M19 3481

M19  3325

FUEL DELIVERY SYSTEM - PETROL

19-2-24 REPAIRS

5. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit HO2S and tighten to 55 Nm (41 lbf.ft) using

tool LRT-19-014.

3. Feed HO2S harness through grommet aperture

and secure grommet.

4. Connect HO2S multiplug.
5. Fit gaiter to centre console and secure with

clips.

6. Remove stand(s) and lower vehicle.

Sensor - heated oxygen (H02S) - post
catalyst - RH - KV6 - NAS

$% 19.22.72

Remove

1. Disconnect battery earth lead.
2. Raise vehicle on 4 post ramp.
3. Release HO2S harness from clips.

4. Release and disconnect HO2S multiplug.

5. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit H02S and tighten to 55 Nm (40 lbf.ft).
3. Connect H02S multiplug and fit to bracket.
4. Fit harness into clips.
5. Lower ramp.
6. Connect battery earth lead.

M19 3505

M19 3483

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-25

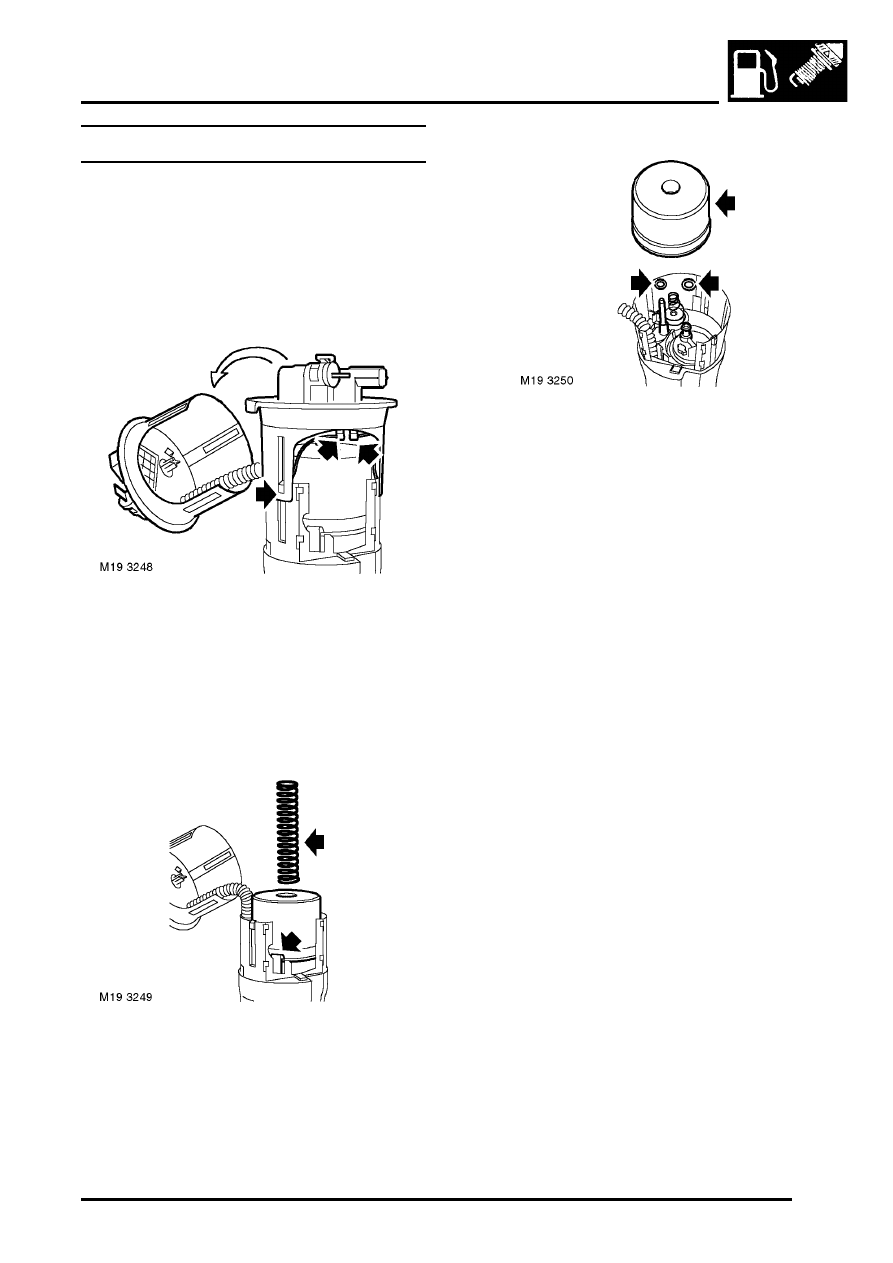

Filter - main

$% 19.25.02

Remove

1. Disconnect battery earth lead.
2. Remove sender unit.



 +

 INSTRUMENTS, REPAIRS, Sender

unit - fuel tank gauge.

3. Disconnect 2 Lucars from top of pump unit

assembly.

4. Release 3 slots in top of pump unit assembly

from lugs in base.

5. Carefully manoeuvre top of pump unit

assembly away from base, ensuring that fuel
feed hose does not become strained.

6. Collect compression spring from fuel filter.
7. Carefully release 3 sprag clips securing fuel

filter.

8. Release fuel filter from inlet and outlet

connections.

9. Remove fuel filter.

10. Collect 'O' rings.

Refit

1. Lubricate NEW 'O' rings with silicone grease

and fit to ports.

2. Carefully fit fuel filter to ports and push fully

home, ensuring that sprag clips engage fully.

WARNING: Ensure earthing spring fitted to
fuel pressure regulator is correctly located.

3. Position spring to fuel filter recess and engage

in top location.

WARNING: Ensure that filter earthing tag is
correctly located to contact the base of fuel
filter.

4. Engage pump top to base, ensuring that slots

engage correctly with lugs.

WARNING: During refit, ensure that all
electrical connections are made correctly.
Earth tag on fuel pump negative terminal
must not become distorted.

5. Fit sender unit.



 +

 INSTRUMENTS, REPAIRS, Sender

unit - fuel tank gauge.

6. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

19-2-26 REPAIRS

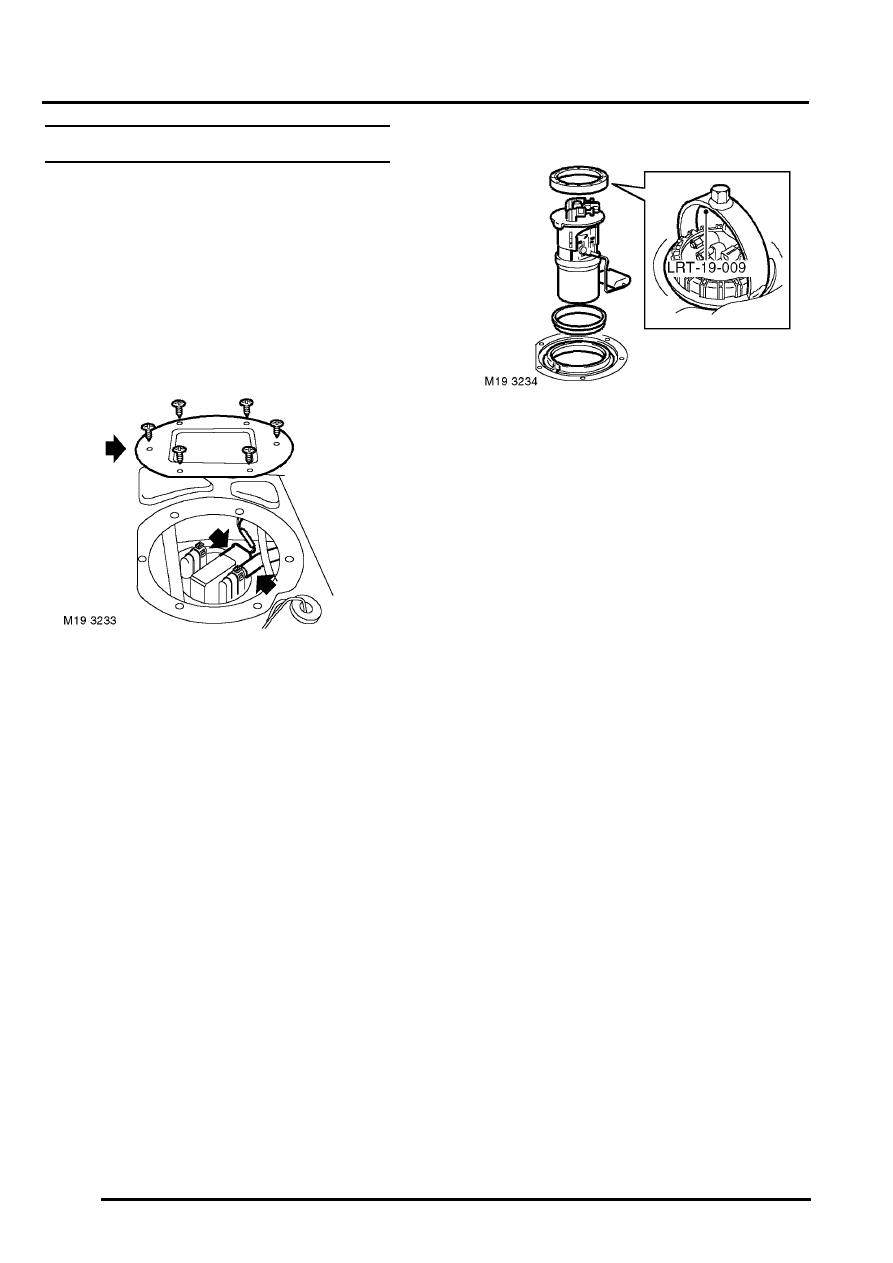

Pump - fuel

$% 19.45.08

Remove

1. Disconnect battery earth lead.
2. Open RH rear and tail doors.
3. Fold RH rear seat forward.
4. Remove 2 fasteners securing front and rear

carpets.

5. Pull back loadspace carpet from fuel pump

access panel.

6. Remove 6 screws securing access panel.

WARNING: Depressurise the system before
disconnecting any components. Fuel
pressure will be present in the system even
if the ignition has been switched off for
some time.

7. Remove access panel.

WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.

8. Disconnect multiplug and fuel hose from fuel

pump housing.

CAUTION: Always fit plugs to open
connections to prevent contamination.

9. Use LRT-19-009 to remove locking ring from

fuel pump housing.

10. Remove fuel pump housing and discard sealing

ring.

Refit

1. Clean fuel pump housing and mating face on

fuel tank.

2. Fit new seal to fuel pump housing.
3. Fit fuel pump housing to fuel tank, fit and tighten

locking ring to 35 Nm (26 lbf.ft) using LRT-19-
009.

4. Connect multiplug and fuel hose to fuel pump

housing.

5. Fit access panel and secure with screws.
6. Position carpet and secure with fasteners.
7. Reposition rear seat.
8. Close rear and tail doors.
9. Connect battery earth lead.
