Freelander 1. Manual - part 124





FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-19

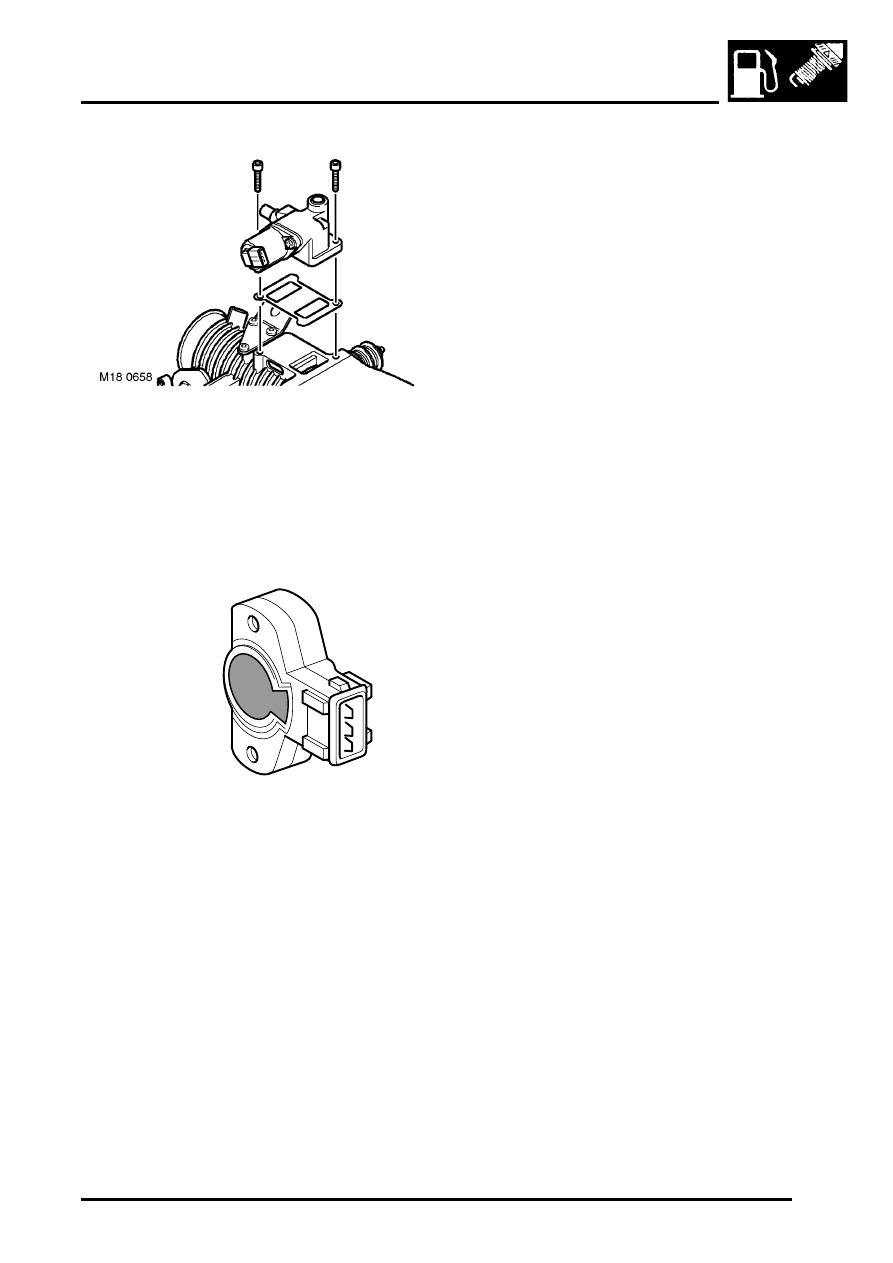

11. Remove 2 Allen screws securing IACV to

throttle body, remove IACV and discard gasket.

Refit

1. Clean mating faces of IACV and throttle body.
2. Fit new gasket, position IACV to throttle body,

fit and tighten Allen screws to 6 Nm (4.5 lbf.ft).

3. Clean TP sensor and throttle body mating face.

4. Fit TP sensor to throttle spindle. Ensure that

during fitting the machined flat on the throttle
spindle is aligned with the mating portion of the
TP sensor

CAUTION: The throttle position sensor can
be easily damaged during fitting. When
pressing the sensor onto the throttle
spindle, use fingers only, and only apply
pressure to the area shown shaded in the
illustration.

5. Rotate TP sensor in an anti-clockwise direction

to align fixing holes.

CAUTION: Do not rotate throttle position
sensor in a clockwise direction and ensure
that it is not rotated beyond its internal
stops.

6. Fit TP sensor specification plate.

7. Fit new Torx screws and wave washers, tighten

Torx screws to 1.5 Nm _1.0 lbf.ft).

8. Vehicles with cruise control: Position

actuator support bracket to throttle body. Fit
Torx screws and tighten to 9 Nm (7 lbf.ft).
Connect actuator arm to throttle linkage.

9. Clean throttle body and mating face on inlet

manifold chamber.

10. Fit new seal to inlet manifold chamber.
11. Position throttle body to inlet manifold chamber,

fit and tighten Torx screws to 7 Nm ( 5 lbf.ft).

12. Connect multiplugs to TP sensor and IACV.
13. Vehicles with cruise control: Connect cruise

control actuator vacuum hose.

14. Connect primary throttle cable to throttle cam

and abutment bracket.

15. Connect engine breather/vacuum pipes to

throttle body and IACV.

16. Adjust throttle cable.



 +

 FUEL DELIVERY SYSTEM -

PETROL, ADJUSTMENTS, Throttle cable -
check and adjust - KV6.

17. Connect battery earth lead.
18. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

19. Retune using TestBook

M18 0695

FUEL DELIVERY SYSTEM - PETROL

19-2-20 REPAIRS

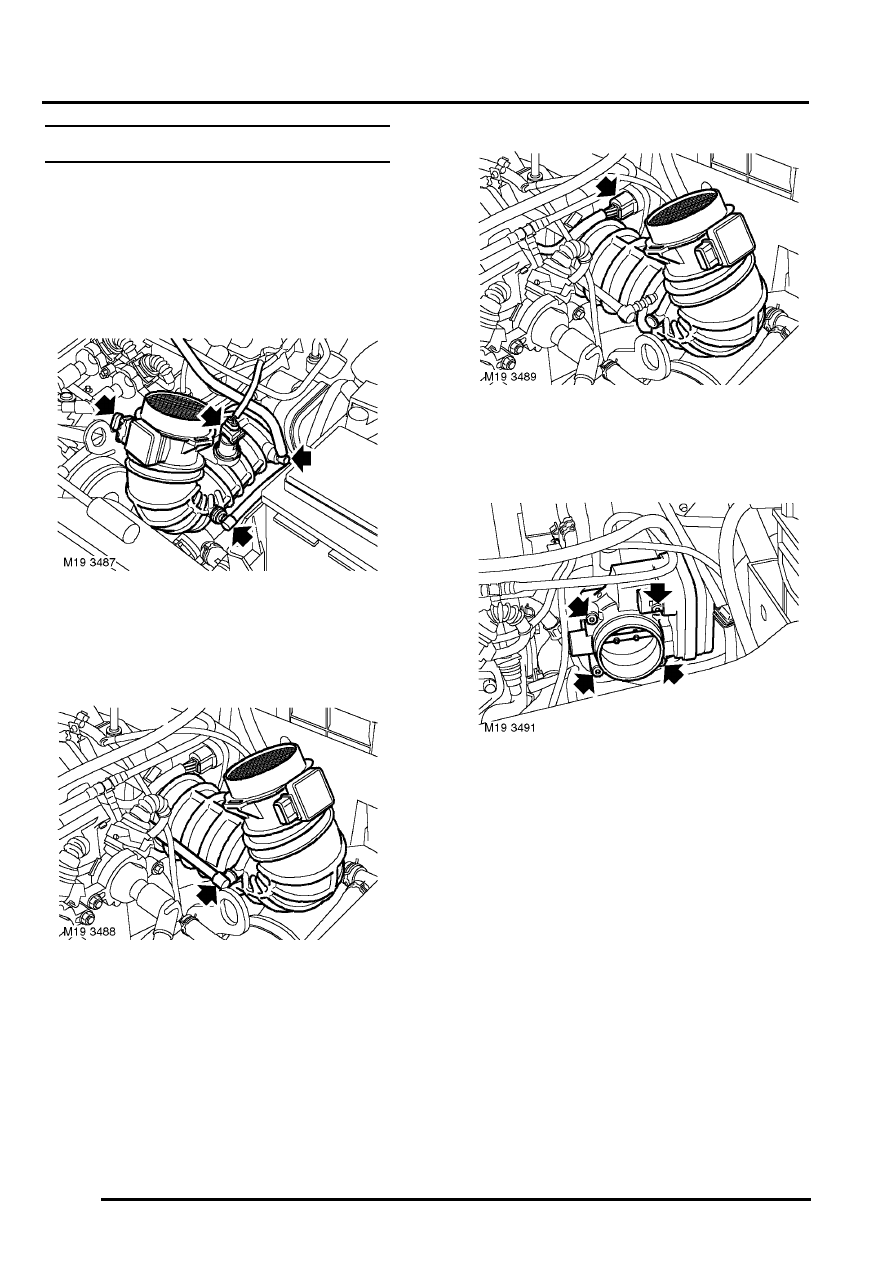

Throttle housing - KV6 - NAS

$% 19.22.45

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Disconnect multiplug from MAF sensor.
4. Disconnect multiplug from IAT sensor.
5. Release clip and disconnect vacuum enhancer

from intake hose.

6. Disconnect engine breather pipe from intake

hose.

7. Disconnect injector air supply pipe from intake

hose.

8. Disconnect multiplug from throttle body.
9. Release clip and remove intake hose and MAF

sensor assembly.

10. Remove 4 Torx screws securing throttle body.
11. Remove throttle body and discard gasket.

Refit

1. Clean throttle body and mating face.
2. Using a new seal, fit throttle body and tighten

Torx screws to 7 Nm (5.2 lbf.ft).

3. Connect multiplug to throttle body.
4. Fit intake hose assembly and secure with clip.
5. Connect engine breather pipe.
6. Connect injector air supply pipe.
7. Connect vacuum enhancer and secure with

clip.

8. Connect IAT sensor multiplug.
9. Connect multiplug to MAF sensor.

10. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

11. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-21

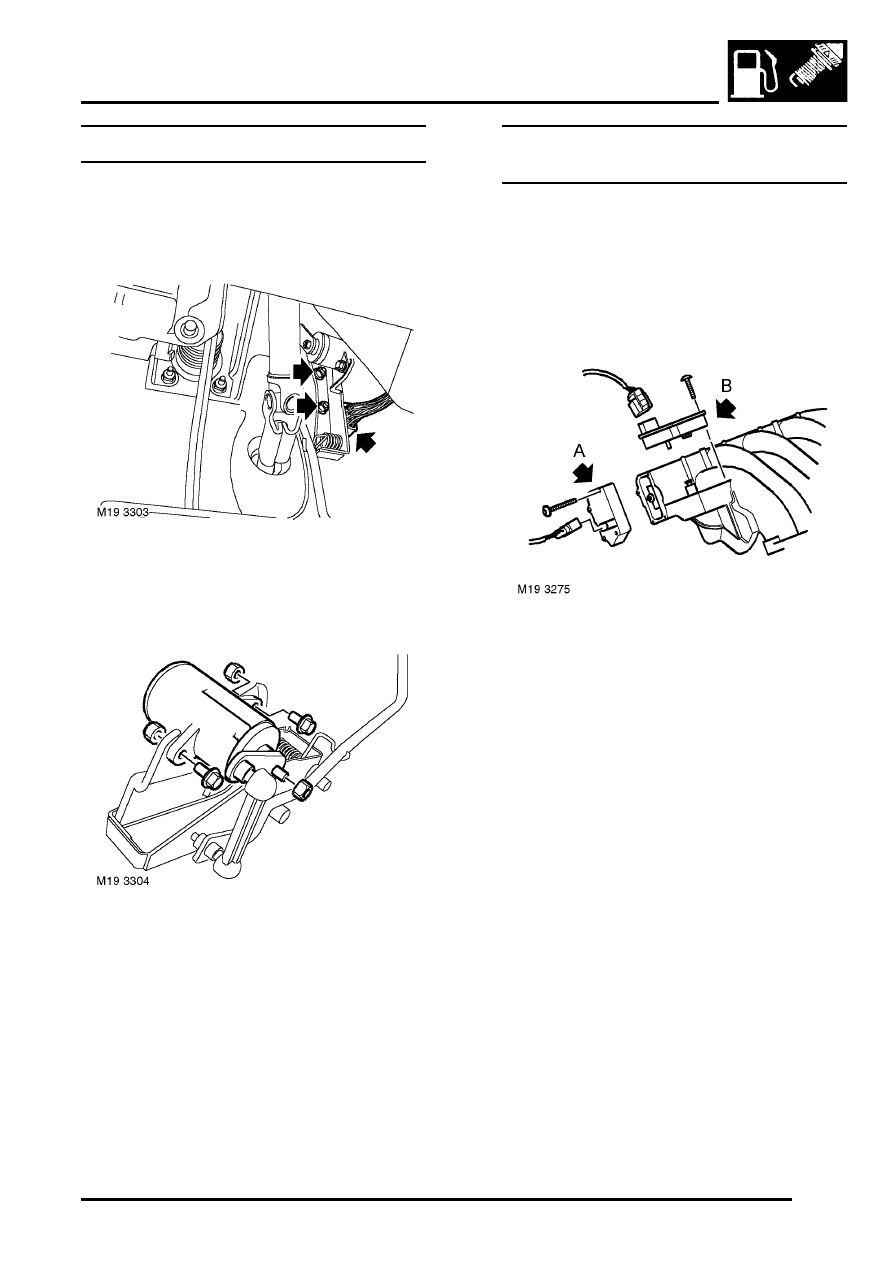

Sensor - throttle position (TP) - NAS

$% 19.22.49

Remove

1. Disconnect battery earth lead.

2. Remove 2 nuts and release throttle pedal from

studs.

3. Release TP sensor multiplug from bracket and

disconnect from main harness.

4. Remove nut and release lever from sensor.
5. Remove 2 nuts and bolts and remove sensor.

Refit

1. Fit TP sensor and tighten nuts and bolts to 10

Nm (7 lbf.ft).

2. With throttle pedal held closed, fit lever to

sensor and tighten nut to 10 Nm (7 lbf.ft).

3. Position throttle pedal, connect multiplug and

secure to pedal bracket.

4. Fit pedal to studs and tighten nuts to 25 Nm (18

lbf.ft).

5. Connect battery earth lead.
6. Use TestBook to confirm correct operation.

Variable Induction System (VIS) motor -
KV6

$% 19.22.64

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

Balance valve VIS motor.

Power valve VIS motor.

3. Disconnect multiplug from VIS motor to be

removed.

4. Remove 4 screws securing VIS motor to inlet

manifold chamber.

5. Carefully remove VIS motor from inlet manifold

chamber.

Refit

1. Clean VIS motor and manifold chamber mating

faces.

2. Ensure that the seal which is already fitted on

the new VIS motor is correctly positioned.

3. Fit VIS motor, carefully locating drive pin into

groove and seal correctly positioned on the
manifold chamber.

4. Fit and tighten screws securing VIS motor to

inlet manifold chamber to 1.7 Nm (1.25 lbf.ft).

5. Connect multiplug to VIS motor.
6. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

7. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

19-2-22 REPAIRS

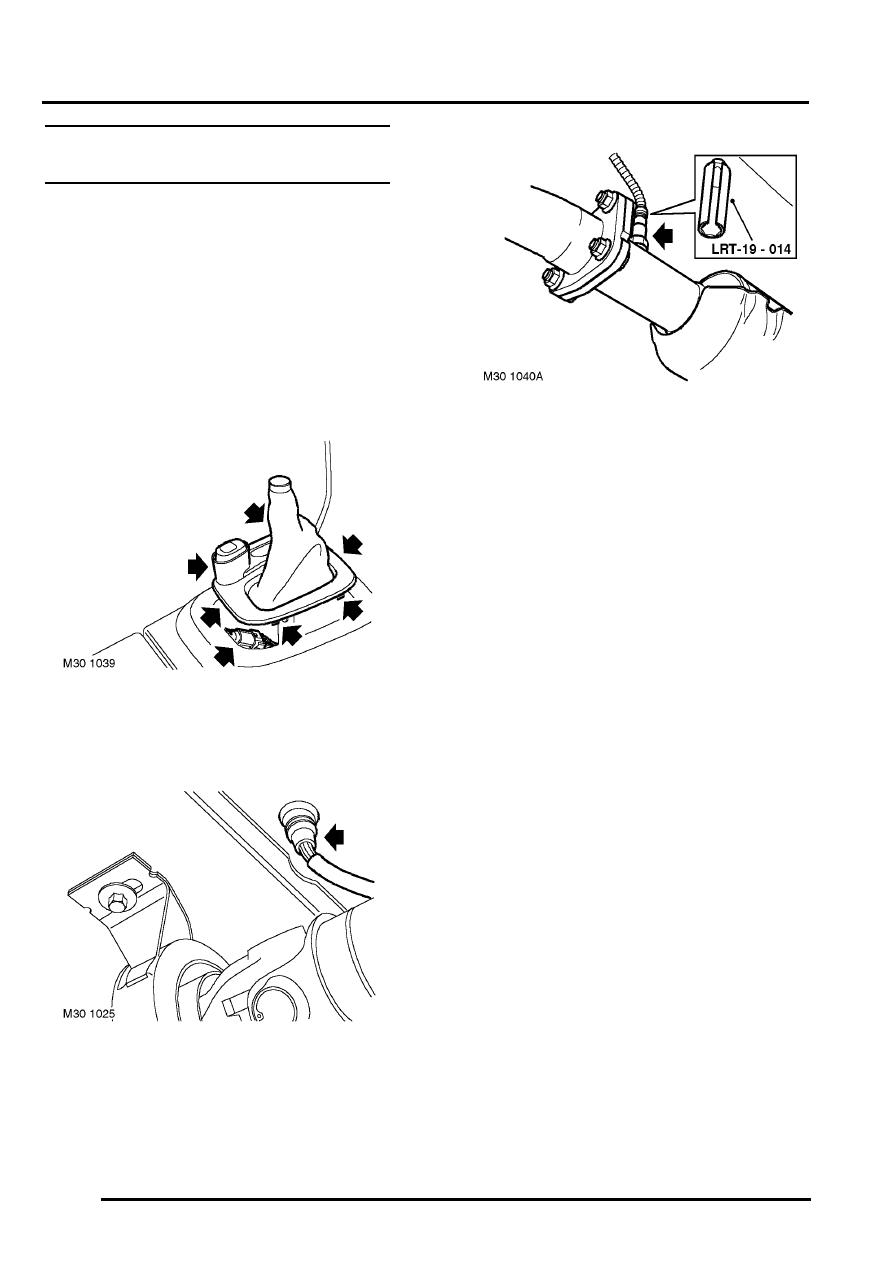

Sensor - heated oxygen (H02S) - post
catalyst - LH - KV6 - Non NAS

$% 19.22.71

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove gear selector knob.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gear knob.

3. Release clips securing selector lever trim panel

to centre console and move trim panel aside.

4. Disconnect HO2S multiplug from harness.

5. Release grommet and withdraw HO2S harness

multiplug through grommet aperture.

6. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit HO2S and tighten to 55 Nm (41 lbf.ft) using

tool LRT-19-014.

3. Feed HO2S harness through grommet aperture

and secure grommet.

4. Connect HO2S multiplug.
5. Fit trim panel and gaiter to centre console and

secure clips.

6. Fit gear selector knob.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gear knob.

7. Remove stand(s) and lower vehicle.
