ENGINE - K SERIES KV6

OVERHAUL 12-3-83

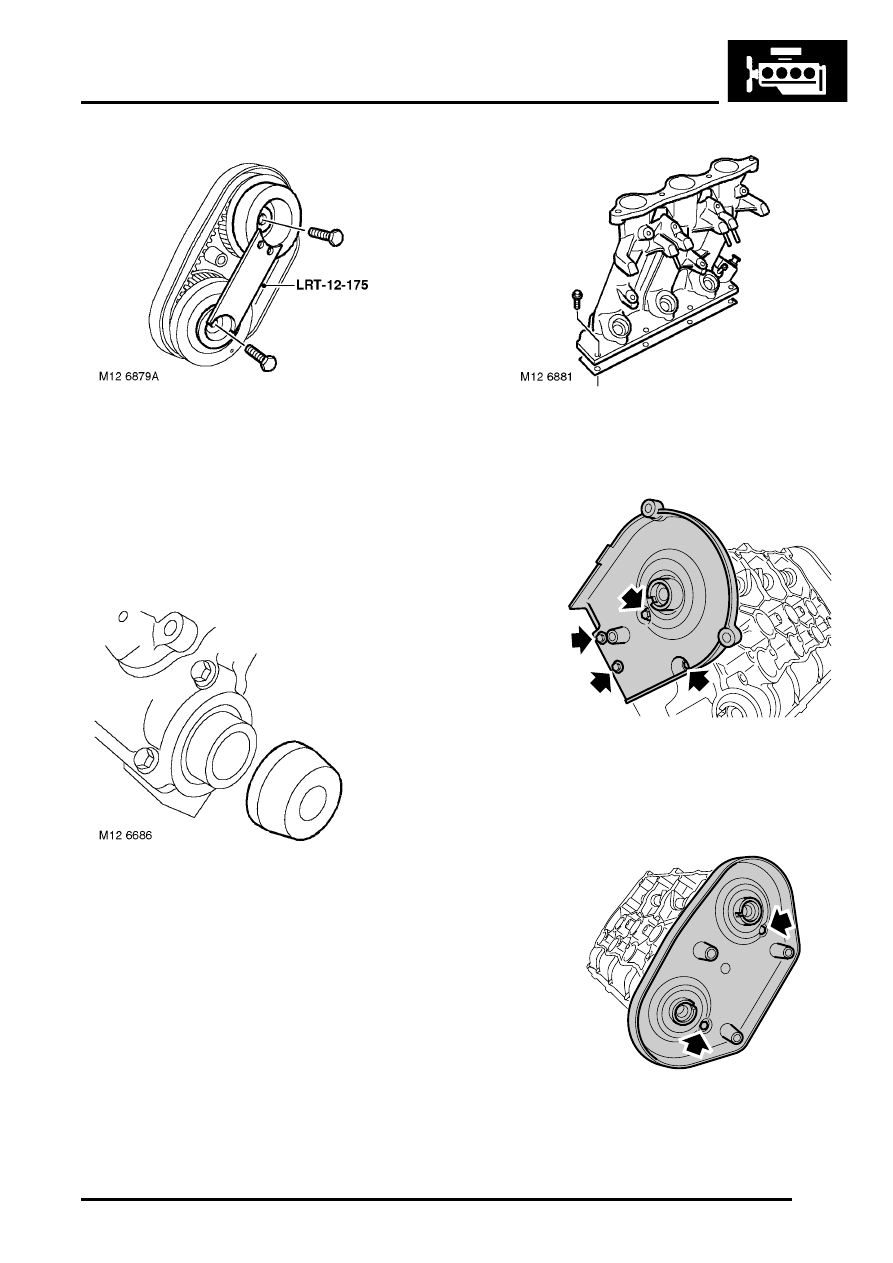

4. Position LRT-12-175 to rear camshaft gears as

illustrated, remove and discard bolts securing
gears to camshafts.

5. Remove rear camshaft gears, timing belt and

LRT-12-175 as an assembly.

6. Remove LRT-12-175 from camshaft gears and

remove timing belt from gears. Discard timing
belt.

7. Remove spark plugs.

8. Remove and discard exhaust camshaft cap

seal from cylinder head.

Note: RH cylinder head illustrated.

9. Progressively loosen then remove 7 bolts

securing inlet manifold to cylinder head,
remove inlet manifold and discard gasket.

10. Remove 4 bolts securing camshaft front timing

belt cover backplate to cylinder head and
remove backplate.

Note: LH backplate illustrated.

11. Remove 2 bolts securing camshaft rear timing

belt cover backplate to cylinder head and
remove backplate.

Note: LH backplate illustrated.

M12 6882

M12 6883

ENGINE - K SERIES KV6

12-3-84 OVERHAUL

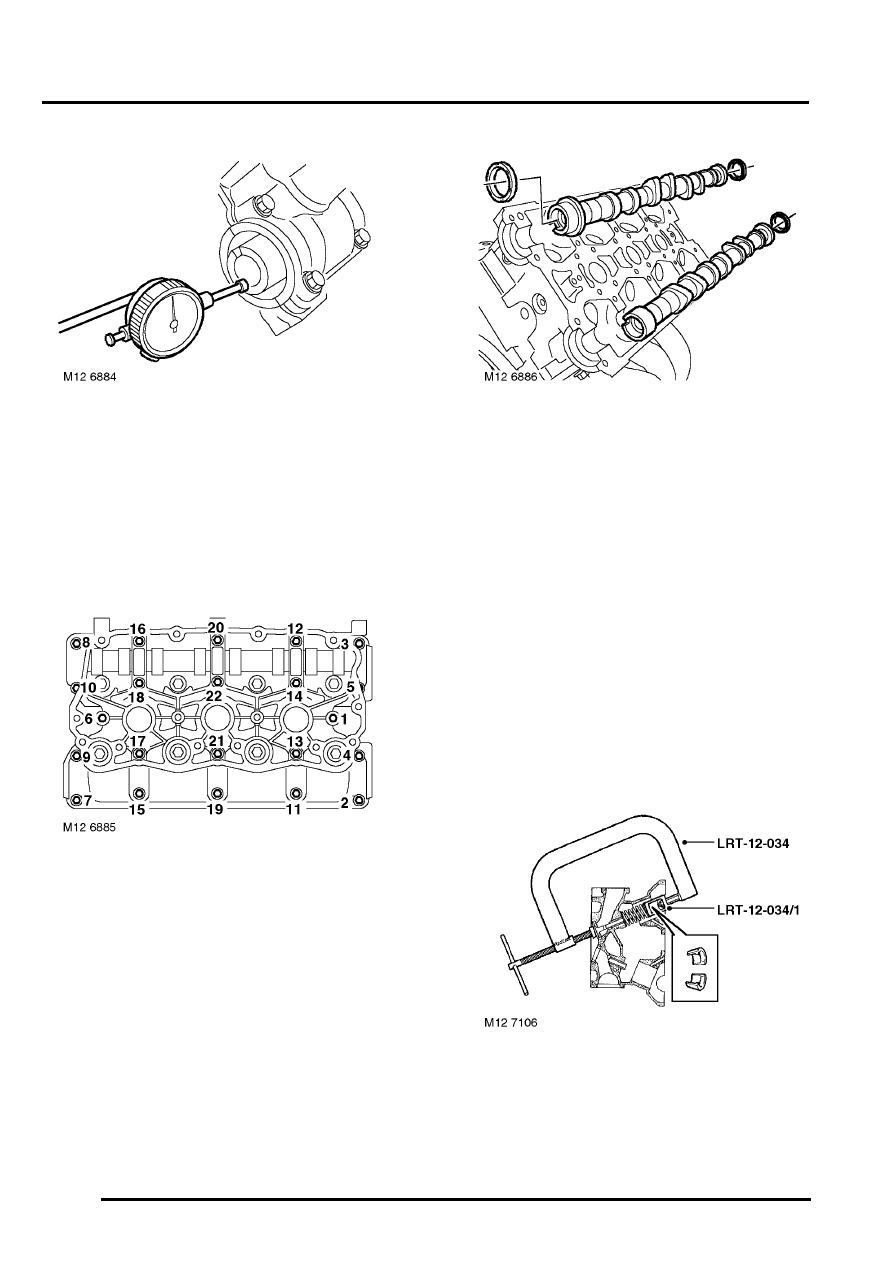

12. Check end-float of camshafts using a DTI.



 +

 GENERAL DATA, Engine – KV6

Petrol.

CAUTION: If camshaft end-float exceeds
limits given, repeat check with new
camshaft(s). If end-float is still excessive,
replace cylinder head and camshaft carrier
as an assembly.

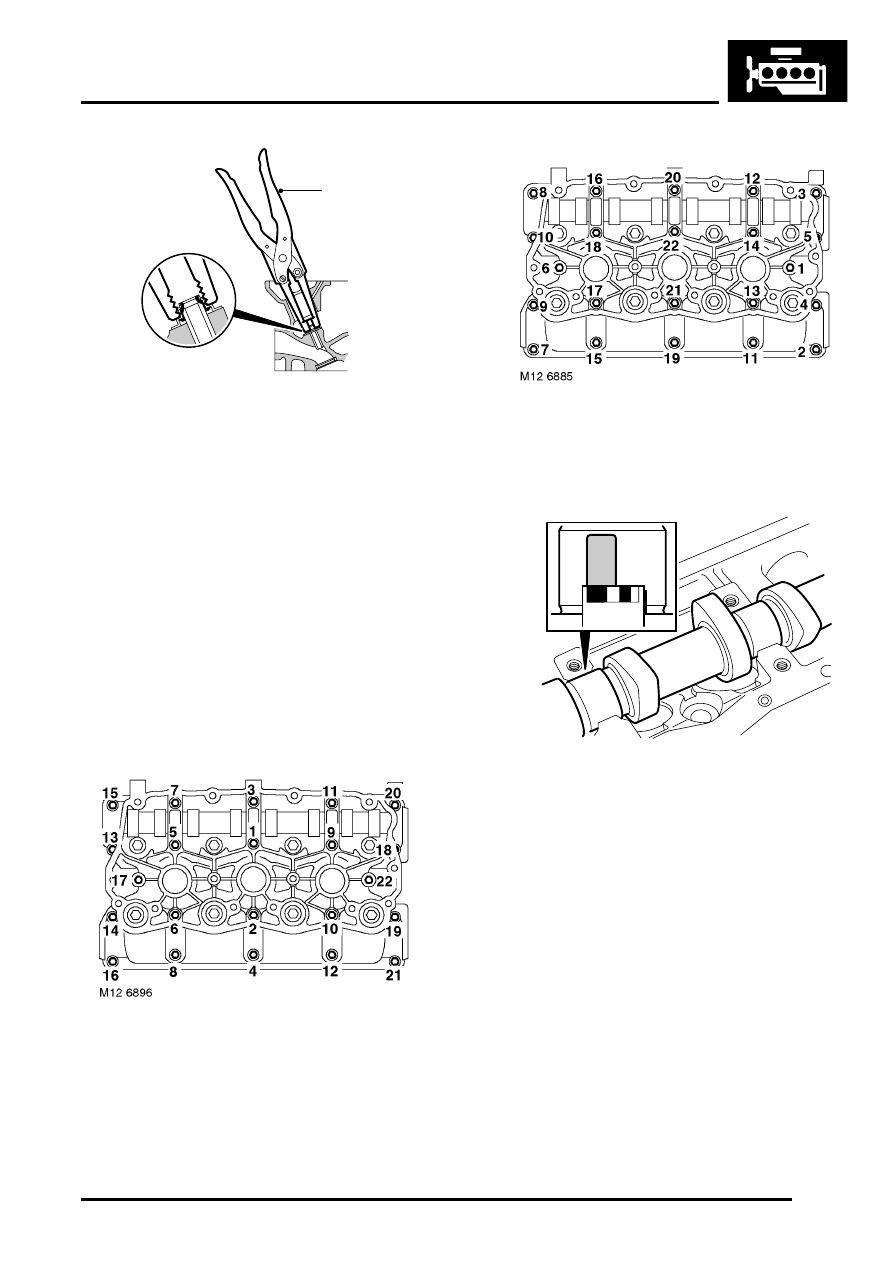

13. Using sequence shown, progressively loosen

22 bolts securing camshaft carrier to cylinder
head until valve spring pressure is released
and remove bolts.

14. Remove camshaft carrier.

15. Remove camshafts and discard oil seals.

Note: Inlet camshafts are colour coded orange,
exhaust camshafts

16. Using a stick magnet, remove 12 hydraulic

tappets from cylinder head.

CAUTION: Store hydraulic tappets in their
fitted order and store upright. Maintain
absolute cleanliness when handling
hydraulic tappets. Failure to observe these
precautions can result in engine failure.

17. Measure the outside diameter of hydraulic

tappets.


 +

 GENERAL DATA, Engine – KV6

Petrol.

Note: Measurement must be taken half-way
along tappet body.

18. Using LRT-12-034, and adapter LRT-12-034/1

compress valve spring, remove 2 collets,
release valve spring and remove LRT-12-034.

19. Remove valve spring cap and valve spring.
20. Remove valve from cylinder head.

ENGINE - K SERIES KV6

OVERHAUL 12-3-85

21. Remove valve stem oil seal using LRT-12-071.

Discard stem seal.

22. Repeat procedure for remaining valves,

keeping components in their fitted order.

Inspect

1. Clean camshafts, bearing running surfaces in

carrier and cylinder head, carrier and cylinder
head mating faces.

2. Inspect camshafts and replace camshafts if

scored, pitted or excessively worn.

3. Position camshafts in cylinder head and place

Plastigauge across each journal.

CAUTION: Ensure camshafts are in their
correct fitted locations. Camshafts are
colour coded - Inlet - Orange; Exhaust -
Blue.

4. Refit camshaft carrier, fit bolts and using

sequence shown, tighten to 10 Nm (7.5 lbf.ft).
Do not rotate camshafts.

5. Using the sequence shown, progressively

loosen and remove camshaft carrier bolts.
Release and remove camshaft carrier from
cylinder head.

6. Measure widest part of Plastigauge on each

journal.


 +

 GENERAL DATA, Engine – KV6

Petrol.

7. If clearance is excessive, fit new camshafts and

repeat check. If clearance is still excessive
renew cylinder head.

8. Remove all traces of Plastigauge using an oily

rag.

9. Clean sealing surfaces of cylinder heads.

Clean inlet and exhaust manifold mating faces.

CAUTION: Do not use a metal scraper.

10. Decarbonise combustion areas of cylinder

heads

11. Blow out all oilways and coolant passages.
12. Check cylinder head for damage, pay particular

attention to sealing faces.

M12 6889

LRT-12-071

mm

.025

.038

.051

.076

M12 6887

ENGINE - K SERIES KV6

12-3-86 OVERHAUL

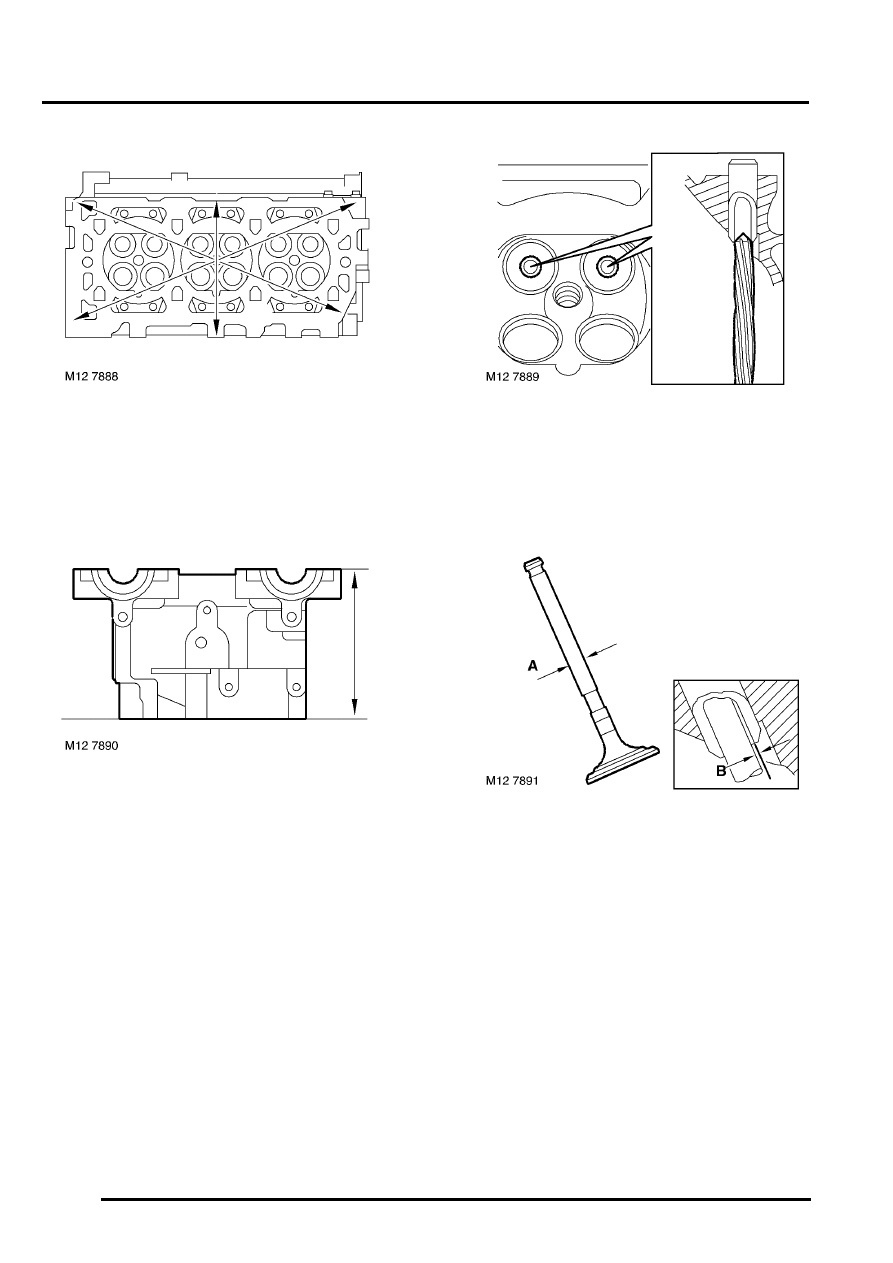

13. Check cylinder head face for warping, across

centre and from corner to corner.


 +

 GENERAL DATA, Engine – KV6

Petrol.

14. Check cylinder head height.



 +

 GENERAL DATA, Engine – KV6

Petrol.

Note: Provided that cylinder head height is kept
within limits, cylinder heads may be refaced.

15. Check condition of valve springs and measure

free length of springs.


 +

 GENERAL DATA, Engine – KV6

Petrol.

16. Remove carbon deposits from exhaust valve

guides using a 6 mm diameter reamer inserted
from combustion side of cylinder head.

17. Remove carbon from inlet valve guides, inlet

and exhaust valves and valve seat inserts.
Remove all loose carbon on completion.

18. Check and record existing valve stem

diameters 'A', replace any valve with stem
diameter less than specified.


 +

 GENERAL DATA, Engine – KV6

Petrol.

19. Check inlet and exhaust valve to guide

clearances 'B' using the following procedures.
