ENGINE - K SERIES KV6

OVERHAUL 12-3-71

2. Using sequence shown, remove 8 M8 bolts

securing lower crankcase to cylinder block.

3. Remove remaining M8 bolt and 2 M6 bolts

securing lower crankcase to cylinder block.

4. Remove lower crankcase.

5. Using sequence shown, remove and discard 16

bolts securing bearing ladder to cylinder block.

NOTE: Short length bolts are fitted to the outer
edge of the bearing ladder.

6. Release bearing ladder from dowels and

remove from cylinder block.

7. Remove main bearing shells and 2 thrust

washer halves from bearing ladder, keep main
bearing shells in fitted order; discard thrust
washers.

8. Temporarily fit crankshaft pulley bolt.
9. Remove 4 dowel bolts and remove big end

bearing caps from No 1 and No 2 connecting
rods. Keep bearing caps in order.

NOTE: Number stamped below bearing cap
bolt is bearing bore size code. Number
stamped on connecting rod is cylinder number
and letter is weight code.

CAUTION: Do not remove cylinder clamps
LRT-12-144 unless pistons and connecting
rods are to be removed.

10. Release connecting rods from crankshaft.
11. Remove bearing shells from connecting rod

and cap.

12. Rotate crankshaft using pulley bolt, remove

bolts securing remaining connecting rod
bearing caps. Remove bearing caps and
bearing shells from caps. Keep bearing caps in
their fitted order.

M12 6858

M12 6835

ENGINE - K SERIES KV6

12-3-72 OVERHAUL

13. Remove crankshaft, remove main bearing

shells and thrust washers from cylinder block.
Discard thrust washers.

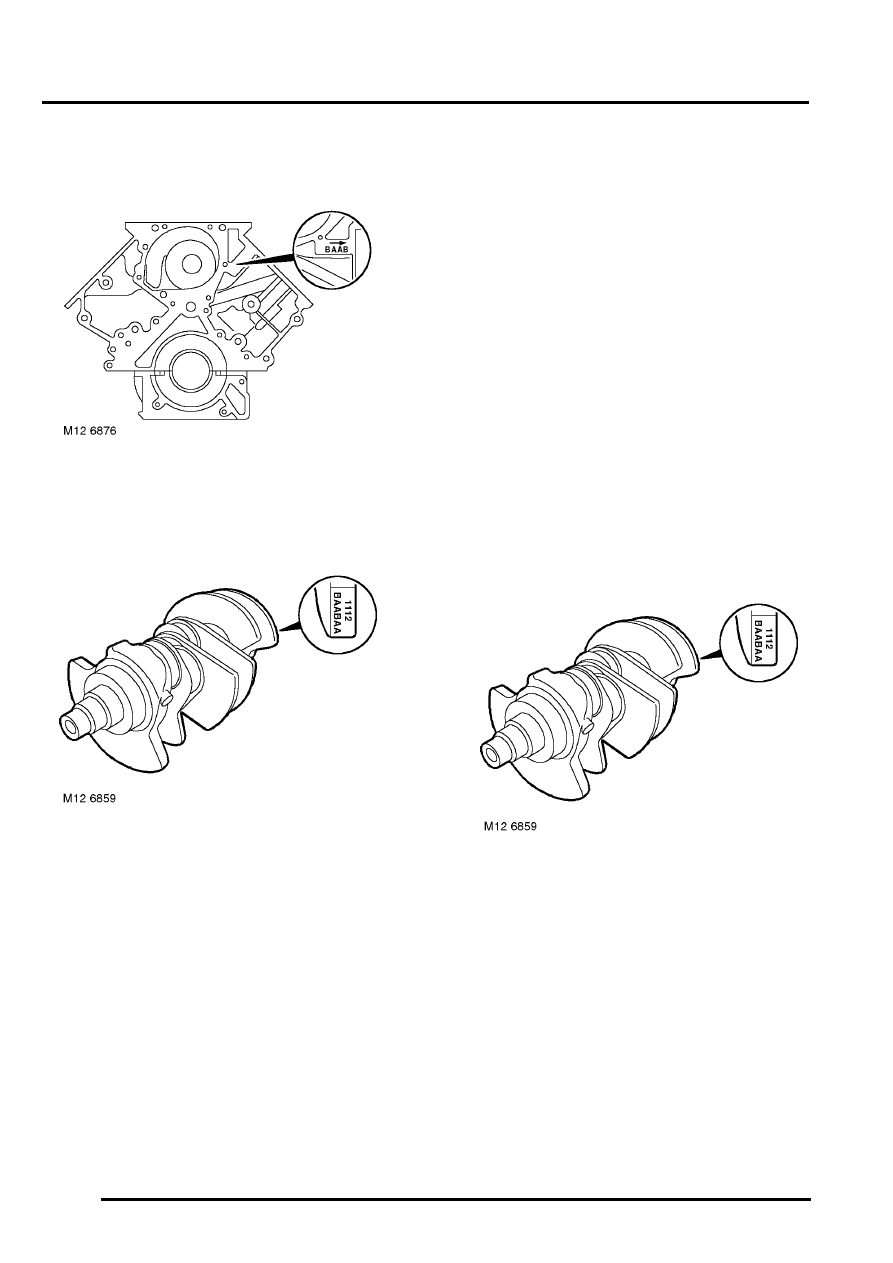

14. Main bearings - selection: record main

bearing code letters from front face of cylinder
block. Reading from left to right, the first letter
relates to No.1, (front) main bearing journal.

15. Record main bearing code numbers, located on

the crankshaft rear web. The first number,
reading left to right, relates to number one main
bearing journal.

Inspect

1. Check crankshaft main journal diameters.
2. Diameters should be within tolerances.

Replace crankshaft if outside tolerance.


 +

 GENERAL DATA, Engine – KV6

Petrol.

3. Determine appropriate main bearing shells to

be fitted from size selection and type tables in
general data.


 +

 GENERAL DATA, Engine – KV6

Petrol.

4. Determine main bearing thickness by colour

code on edge of bearing.


 +

 GENERAL DATA, Engine – KV6

Petrol.

5. Crankshaft big-end journal

diameters:Check crankshaft big-end journal
diameters; replace crankshaft if outside
tolerance.


 +

 GENERAL DATA, Engine – KV6

Petrol.

6. Determine big-end bearing thickness by colour

code on edge of bearing.


 +

 GENERAL DATA, Engine – KV6

Petrol.

7. Big-end bearings - selection: Record big-end

journal code letters, located on the rear
crankshaft web. The first letter, reading from
left to right, relates to the number one big-end
journal.

ENGINE - K SERIES KV6

OVERHAUL 12-3-73

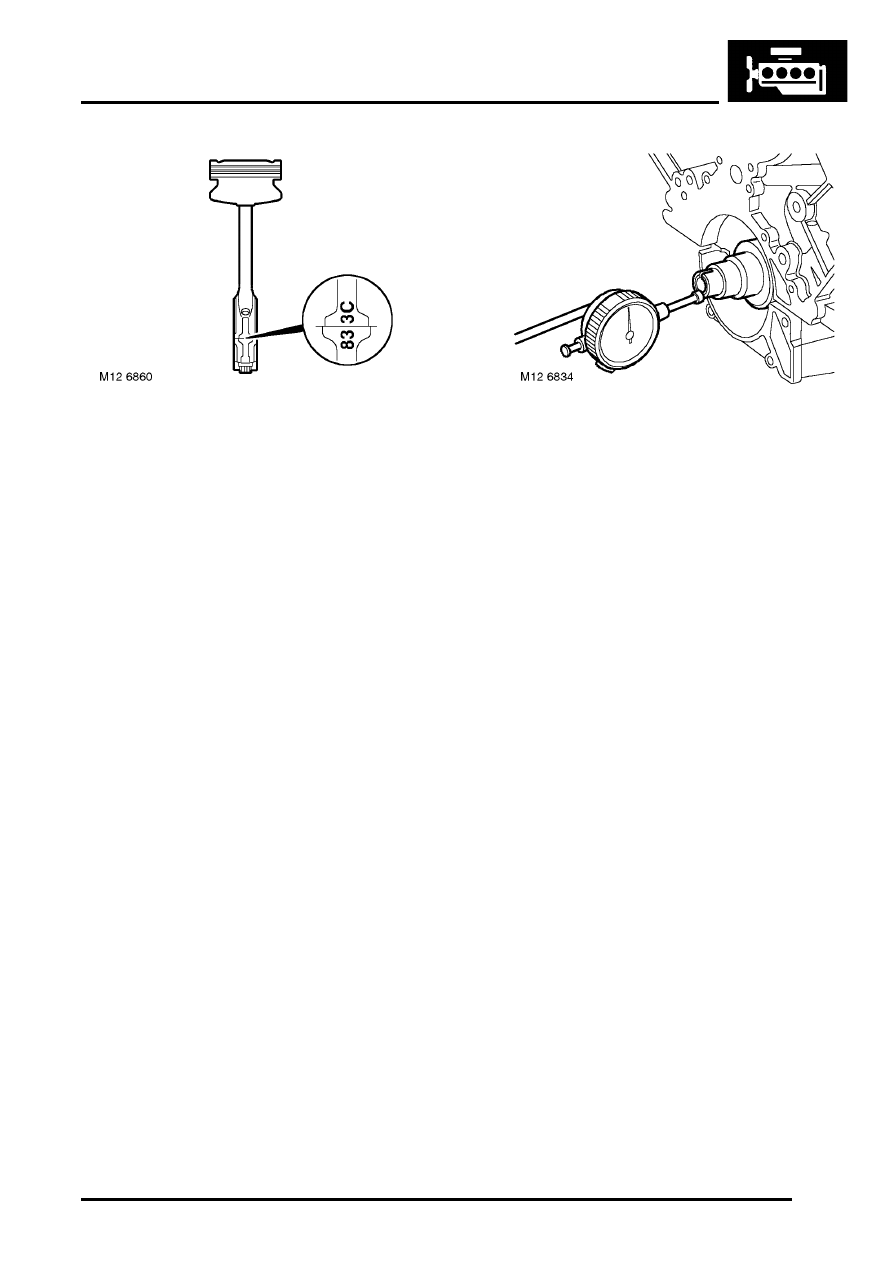

8. Record big-end bearing bore numbers, this will

be 7, 8 or 9 located on the connecting rod
bearing cap.

9. Big-end bearings selection: Select the

required bearing shells from general data.


 +

 GENERAL DATA, Engine – KV6

Petrol.

10. Ensure all bolt holes are clean and dry.

Remove all traces of thread locking material
from oil pick-up strainer bolt hole.

CAUTION: Do not use a tap.

11. Ensure bearing ladder locating dowels are

fitted and dowel holes in bearing ladder are
clean and dry.

12. Check coolant stub pipe in cylinder block for

signs of leakage and corrosion, replace as
necessary. Seal replacement pipe with Loctite
638.

13. Clean main bearing shell recesses in cylinder

block.

14. Clean crankshaft main bearing and big end

bearing journals. Clean bearing shell locations
in connecting rods and caps.

15. Fit selected main bearing shells, grooved into

cylinder block and plain into bearing ladder.

16. Fit new thrust washers to cylinder block.

17. Position DTI gauge stylus on end of crankshaft

as illustrated, push crankshaft away from DTI,
zero DTI gauge, push crankshaft in the
opposite direction and note reading on gauge.


 +

 GENERAL DATA, Engine – KV6

Petrol.

CAUTION: If end-float exceeds limits given,
crankshaft must be replaced.

Reassembly

1. Fit selected big-end bearing shells to

connecting rods and caps.

2. Lubricate crankshaft journals with clean engine

oil. Hold crankshaft with big end journals
horizontal, lower crankshaft into main bearings.

3. Carefully pull connecting rods into place, fit

connecting rod caps noting that featherways
are on opposite sides; fit and lightly tighten
dowel bolts.

4. Tighten dowel bolts to:

l

Stage 1 - 20 Nm (15 lbf.ft)

l

Stage 2 - Further 45

°

5. Using a lint free cloth and a suitable cleaning

solvent, clean bearing ladder and mating face
on cylinder block.

6. Apply clean engine oil to crankshaft thrust

washers and fit to bearing ladder with oil
grooves facing outwards.

7. Fit bearing ladder and ensure that all bearing

shells are seated correctly.

ENGINE - K SERIES KV6

12-3-74 OVERHAUL

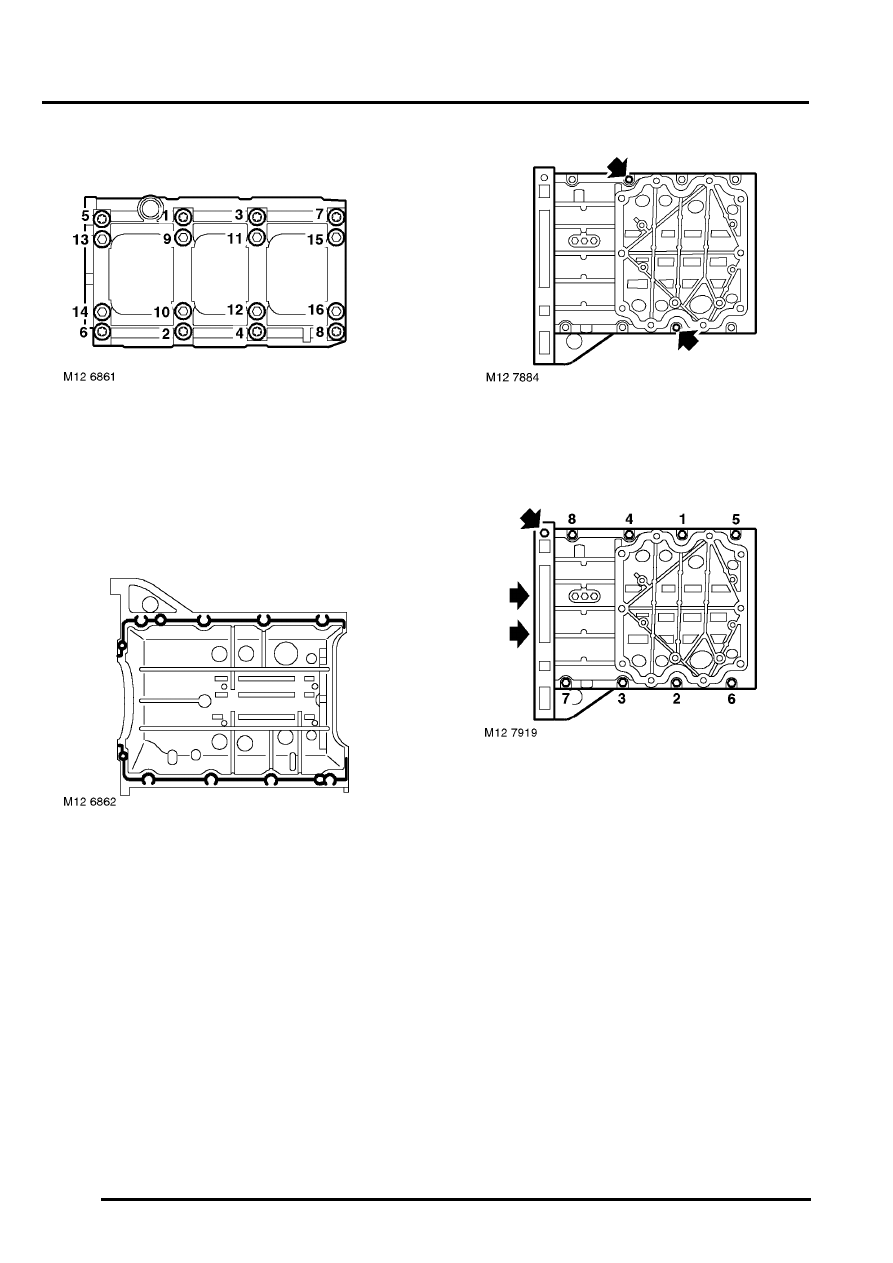

8. Noting that longest bolts must be fitted in inner

holes in bearing ladder, fit new bolts and tighten
to:

l

Stage 1 - 20 Nm (15 lbf.ft)

l

Stage 2 - Further 90

°

9. Using a lint free cloth and a suitable cleaning

solvent, clean mating surfaces on cylinder
block and lower crankcase.

10. Apply a continuous bead of sealant, Part No.

STC 50550, to paths on lower crankcase as
shown then spread to an even film using a
roller.

CAUTION: To avoid contamination,
assembly must be completed immediately
after application of sealant.

11. Fit 2 M8 slave guide studs into cylinder block at

positions shown.

12. Position lower crankcase to cylinder block.

13. Fit and lightly tighten 6 M8 bolts, remove guide

studs, fit and lightly tighten 2 remaining M8
bolts.

14. Using sequence shown, tighten bolts to 25 Nm

(18 lbf.ft).

15. Fit and tighten remaining M8 bolt to 25 Nm (18

lbf.ft).

16. Fit 2 rear M6 bolts and tighten to 9 Nm (7 lbf.ft).
17. Clean oil pick-up strainer and mating face.
18. Lubricate new 'O' ring with clean engine oil and

fit to pick-up strainer.

CAUTION: Ensure 'O' ring, Part No. LYX
000210L is used.

19. Position oil pick-up strainer, fit and tighten bolt

to 25 Nm (18 lbf.ft).

20. Clean oil pump, oil seal recess in oil pump body

and mating face on cylinder block, ensure bolt
holes are clean and dry.

21. Clean oil seal running surface on crankshaft.
