Freelander 1. Manual - part 94





ENGINE - K SERIES KV6

OVERHAUL 12-3-67

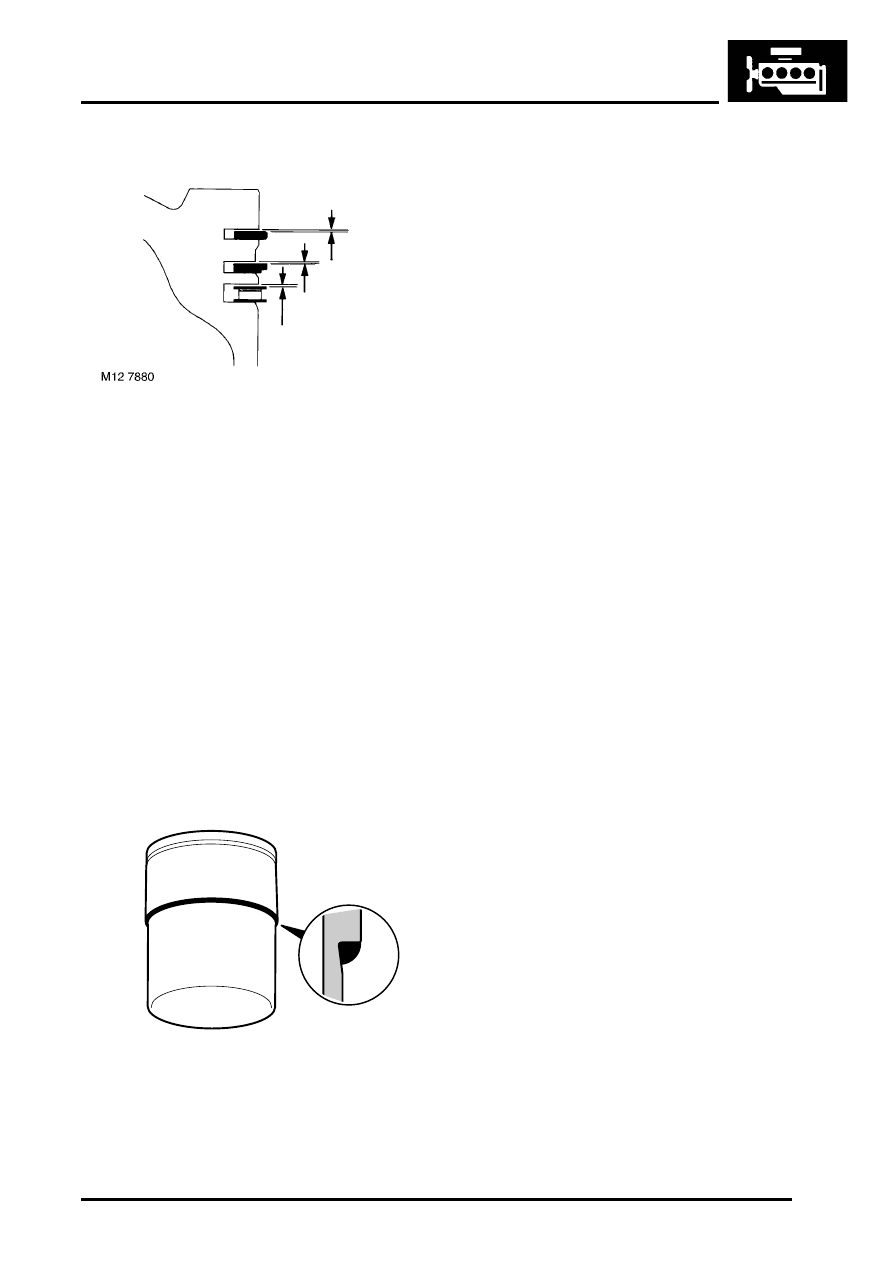

10. Check clearance of each piston ring to its

respective groove.


 +

 GENERAL DATA, Engine – KV6

Petrol.

Reassembly

1. Clean cylinder liners and liner recess in cylinder

block.

2. Lubricate cylinder liner bores, pistons and rings

with clean engine oil, ensure ring gaps are
correctly spaced.

3. Clean bearing shell recesses in connecting

rods and bearing caps.

4. Fit piston ring clamp, LRT-12-204 to each

piston in turn and fit piston to its respective
cylinder liner ensuring that when fitted, arrow
on piston crown will be towards front of engine.

CAUTION: Do not push pistons fully down
bores at this stage.

5. Remove piston ring clamp.

6. Apply a 2.00 mm (0.1 in) thick continuous bead

of sealant, Part No. RTC 3347, around
shoulder of each cylinder liner as shown.

7. Keeping cylinder liner 'square' to cylinder block,

push each liner fully down until shoulder of liner
seats against cylinder block ensuring that the
arrow on the piston is towards front of engine.

8. To prevent cylinder liners from being displaced,

position LRT-12-144  cylinder liner clamps and
secure to cylinder block with cylinder head
bolts. Ensure that feet of clamps do not
protrude over liner bores.

9. Fit crankshaft.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Crankshaft.

M12 6842

ENGINE - K SERIES KV6

12-3-68 OVERHAUL

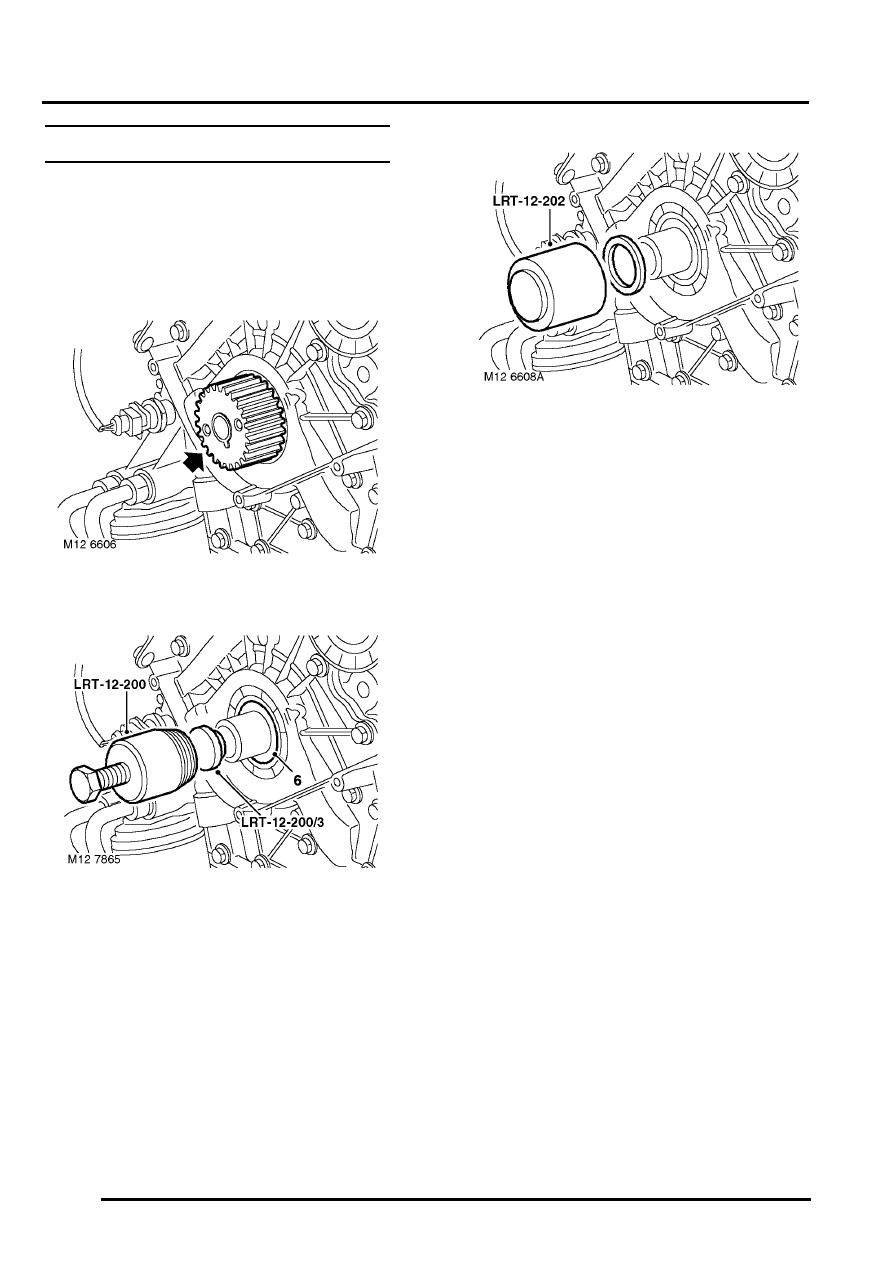

Crankshaft front oil seal

$% 12.21.14.01

Remove

1. Remove camshaft timing belt.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Camshaft timing belt.

2. Remove crankshaft drive gear.

3. Fit thrust button, LRT-12-200/3 to end of

crankshaft.

4. Screw LRT-12-200 into crankshaft front oil

seal.

5. Tighten centre bolt of LRT-12-200 to remove oil

seal.

6. Remove and discard oil seal from LRT-12-200.
7. Remove thrust button from crankshaft.

Refit

1. Clean oil seal recess in oil pump and running

surface on crankshaft, ensure bolt holes are
clean and dry.

2. Fit oil seal guide from seal kit, over end of

crankshaft.

3. Position new seal on crankshaft up against oil

pump housing. Drift seal into place using tool
LRT-12-202.

CAUTION: Oil seal must be fitted dry.

4. Remove LRT-12-202 and oil seal guide from

crankshaft.

5. Clean crankshaft gear and wipe end of

crankshaft.

6. Fit drive gear to crankshaft.
7. Fit camshaft timing belt.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Camshaft timing belt.

ENGINE - K SERIES KV6

OVERHAUL 12-3-69

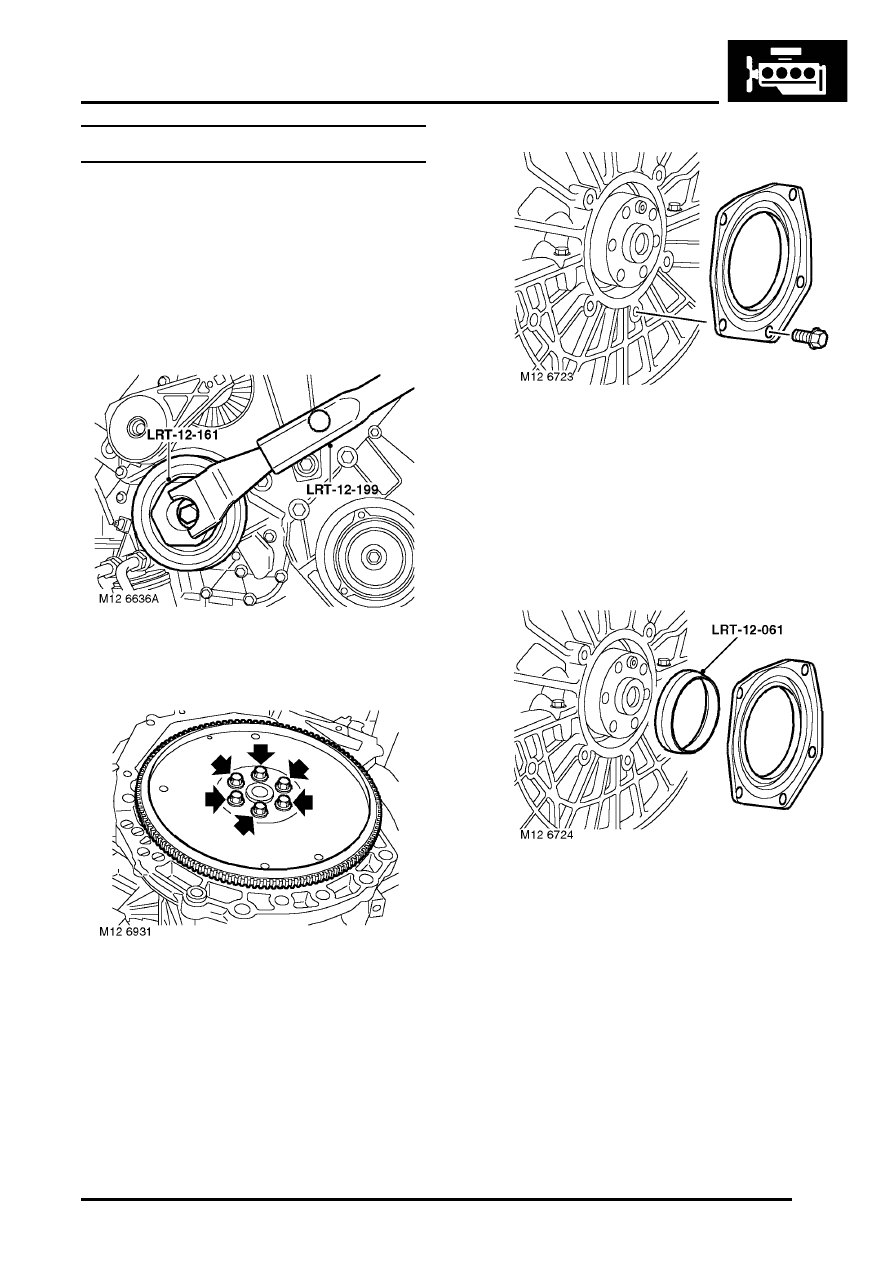

Crankshaft rear oil seal

$% 12.21.20.01

Remove

1. Remove automatic gearbox.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - KV6 - with engine and
gearbox removed.

2. Assemble  LRT-12-161  to  LRT-12-199 and

secure with clamp bolt.

3. Position LRT-12-161 and LRT-12-199 to

crankshaft pulley to restrain crankshaft.

4. With assistance, remove and discard 6 bolts

securing drive plate to crankshaft.

5. Remove drive plate from crankshaft.

6. Remove and discard 5 bolts securing

crankshaft rear oil seal housing to cylinder
block.

7. Remove crankshaft rear oil seal.

Refit

1. Clean cylinder block face and oil seal running

surface on crankshaft, ensure bolt holes are
clean and dry.

2. Position oil seal protector, LRT-12-061 to

crankshaft.

3. Position oil seal to crankshaft.

CAUTION: Oil seal must be fitted dry.

ENGINE - K SERIES KV6

12-3-70 OVERHAUL

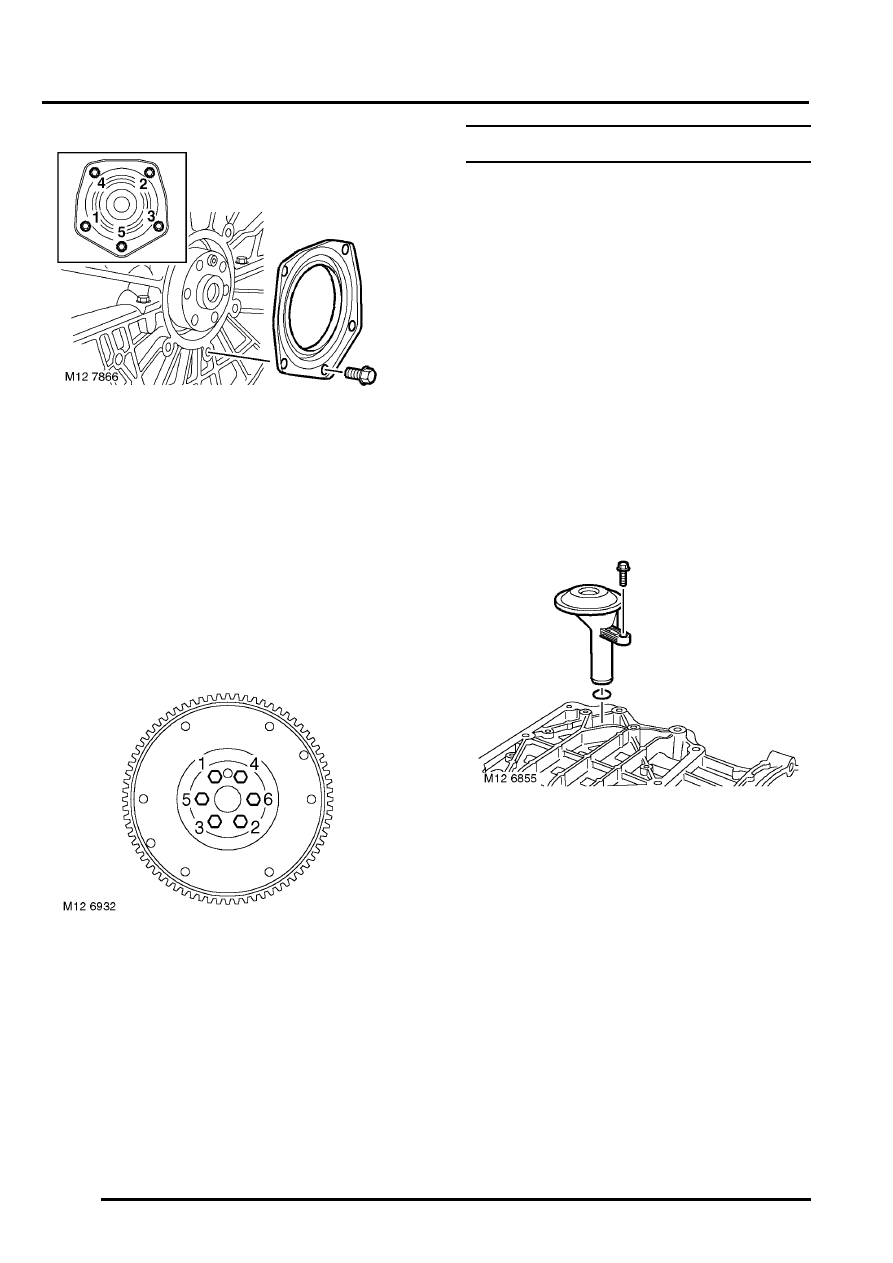

4. Fit new Patchlok bolts securing oil seal to

cylinder block and using sequence shown,
tighten to 8 Nm (6 lbf.ft).

5. Remove oil seal protector LRT-12-061.
6. Clean bolt holes in crankshaft using an old

drive plate bolt with two saw cuts at an angle of
45

°

 to the bolt shank.

7. Clean drive plate and mating face of

crankshaft.

8. Position drive plate to crankshaft and fit but do

not tighten new Patchlok bolts.

9. Position LRT-12-161 and LRT-12-199 to

crankshaft pulley to restrain crankshaft.

10. Using sequence shown, tighten to bolts to:

l

Stage 1 - 25 Nm (18 lbf.ft)

l

Stage 2 - 100 Nm (74 lbf.ft)

11. Remove special tool from crankshaft pulley,

loosen bolt and remove LRT-12-161 from LRT-
12-199.

12. Fit automatic gearbox.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gearbox - KV6 - with engine and
gearbox removed.

Crankshaft

$% 12.21.33.01

Remove

1. Remove cylinder head gaskets.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Cylinder head gasket - LH.


 +

 ENGINE - K SERIES KV6,

OVERHAUL, Cylinder head gasket - RH.

2. Remove oil pump gasket.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Oil pump.

3. Remove crankshaft rear oil seal.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Crankshaft rear oil seal.

4. Remove engine sump.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Sump - engine oil.

Disassembly

1. Remove bolt securing oil pick up strainer,

remove strainer and discard 'O' ring.
