ENGINE - K SERIES KV6

REPAIRS 12-3-63

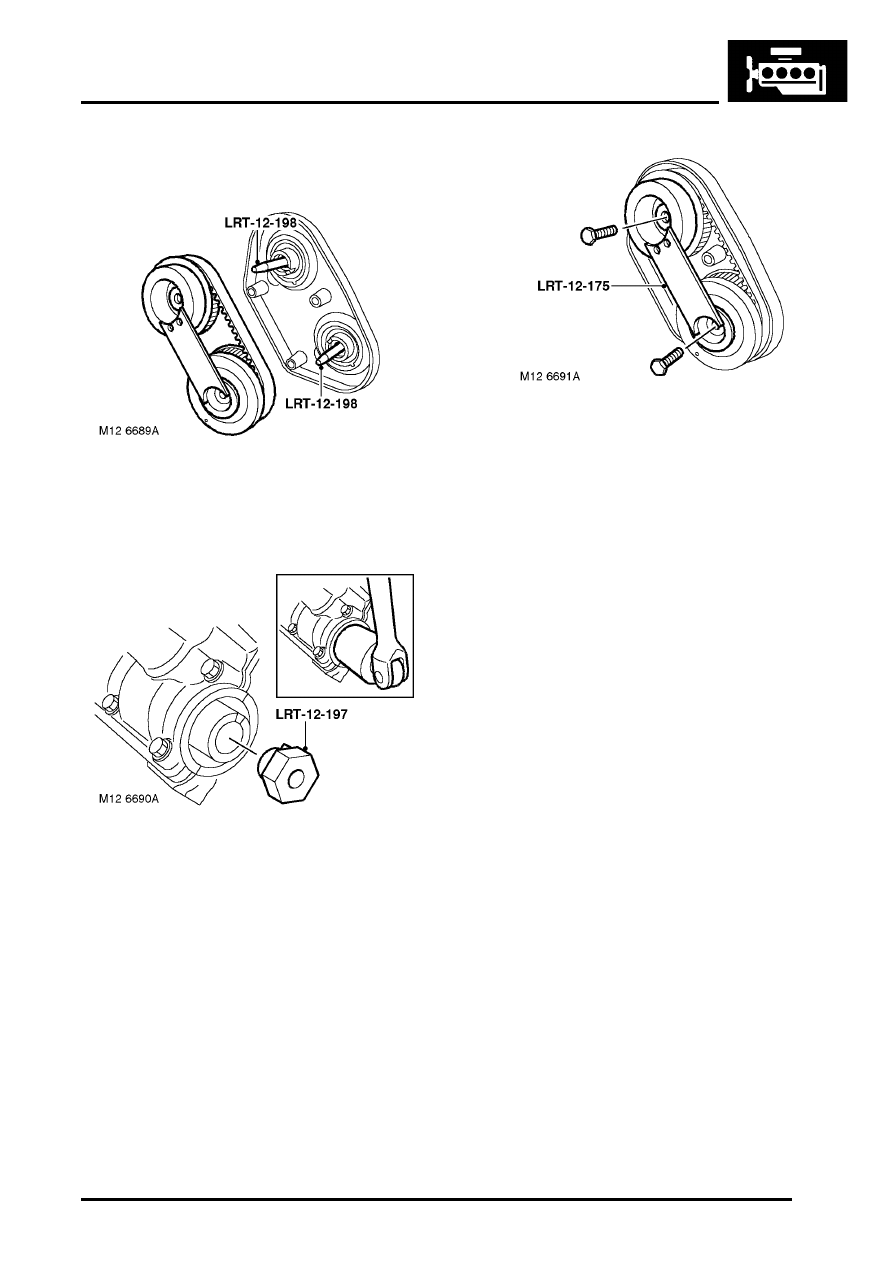

6. Check that the locating lugs are correctly

aligned and remove LRT-12-195  from between
camshaft gears.

7. Fit  LRT-12-198 alignment pins into the end of

each camshaft.

8. Position timing belt and gears over LRT-12-198

and locate gears onto camshafts.

9. Position LRT-12-197 into the front end of the

RH exhaust camshaft.

10. With assistance, using a 30 mm socket on LRT-

12-197, turn the RH exhaust camshaft
sufficiently to align camshaft gears to the drive
slots in each camshaft.

11. Remove LRT-12-198 alignment pins and fit

new camshaft gear retaining bolts.

12. Tighten camshaft gear bolts to:

l

Stage 1 - 27 Nm (20 lbf.ft)

l

Stage 2 - Further 90

°

13. Remove LRT-12-175 from camshaft gears.
14. Remove LRT-12-197 from front end of exhaust

camshaft.

15. Clean RH exhaust camshaft cap seal recess

and fit new cap seal.

16. Remove timing pin LRT-12-232 from lower

crankcase.

17. Fit splash shield and secure with bolts.
18. Fit RH road wheel and tighten nuts to 115 Nm

(85 lbf.ft).

19. Fit RH rear timing belt cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt cover - RH rear.

20. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

21. Connect battery earth lead.

ENGINE - K SERIES KV6

12-3-64 REPAIRS

ENGINE - K SERIES KV6

OVERHAUL 12-3-65

OVERHAUL

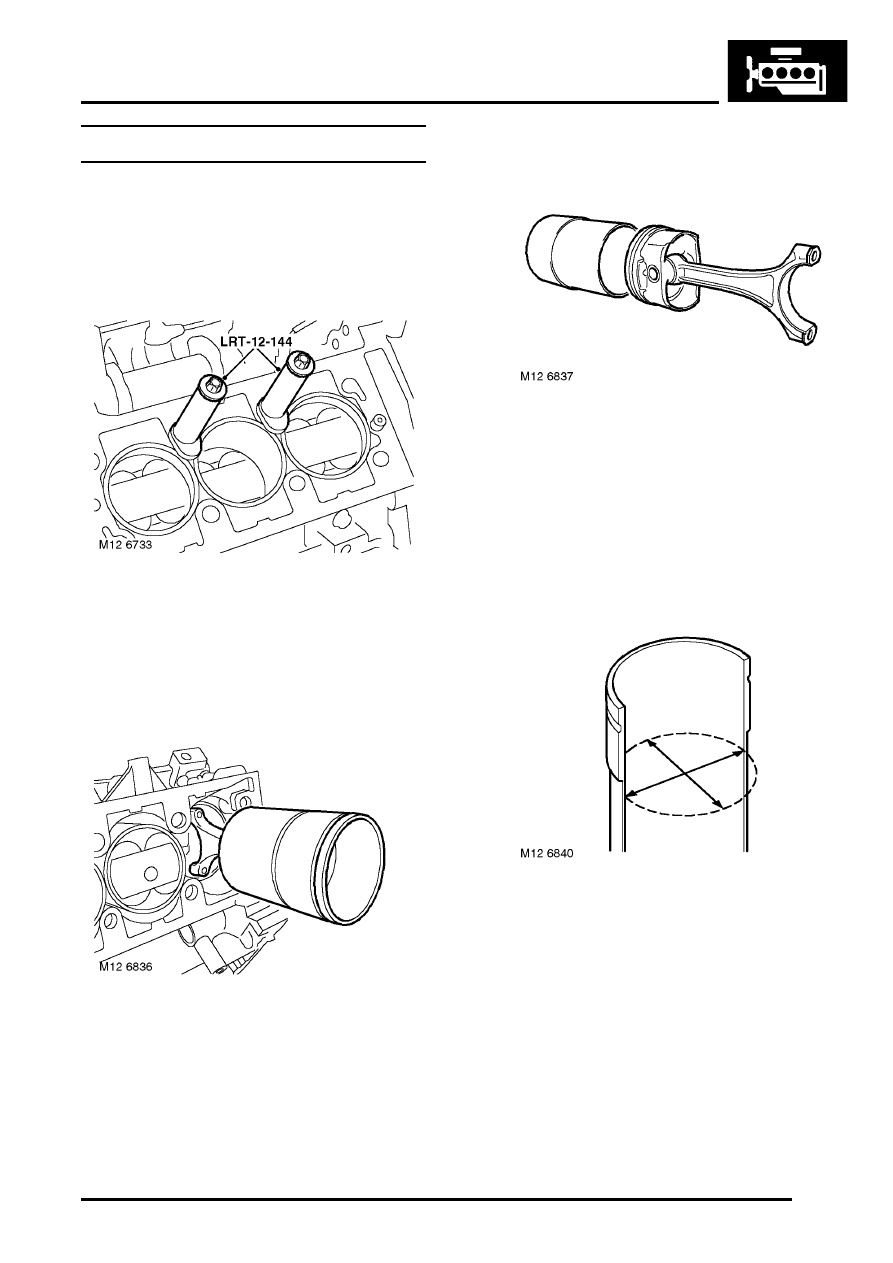

Piston assemblies - engine set

$% 12.17.03.01

Disassembly

1. Remove crankshaft.



 +

 ENGINE - K SERIES KV6,

OVERHAUL, Crankshaft.

2. Remove LRT-12-144 cylinder liner clamps from

cylinder block.

3. Suitably identify each cylinder liner to its fitted

position in cylinder block.

4. With assistance, position cylinder block to

enable each piston and cylinder liner to be
removed.

5. Carefully push each piston assembly and

cylinder liner from cylinder block.

CAUTION: Suitably identify each piston with
its respective cylinder liner.

6. Remove piston assemblies from liners, keep

liners in their fitted order.

7. Refit caps onto connecting rods, lightly tighten

dowel bolts.

8. Using a suitable expander, remove and discard

piston rings from each piston.

9. Using a squared off end of an old piston ring,

remove carbon from piston ring grooves.

Inspect

1. Cylinder liner bores: Measure wear and taper

in two axis 65 mm (2.5 in) from top of cylinder
liner bore The cylinder liner grade is marked on
outside diameter of liner.

CAUTION: Cylinder liners with excessively
glazed, worn, scratched or scored bores
must be replaced. DO NOT attempt to hone
or remove glazing from bore. Ensure that if
original liners are to be refitted, reference
marks made during dismantling are not
erased.

ENGINE - K SERIES KV6

12-3-66 OVERHAUL

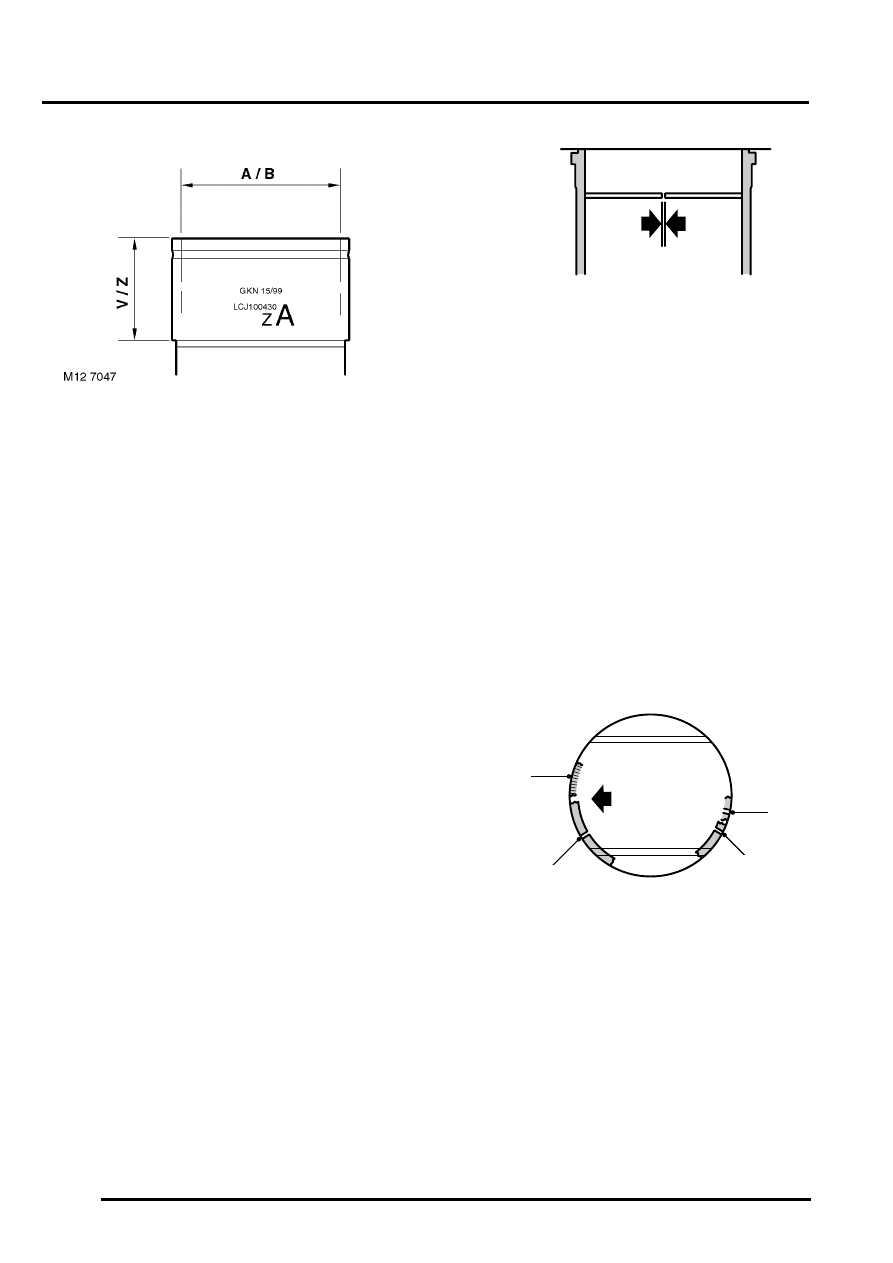

2. Cylinder liners have their bore/grade and step

height determined at manufacture. The bore/
grade, red, blue (A) or (B), and step heights V
or Z together with the cylinder liner part number
and colour code are marked on the external
diameter of the cylinder liners. If cylinder(s) are
to be replaced, the replacement liner(s) must
have the same step height as the original
liner(s). Both step heights are available in red
(A) and blue (B) grades of cylinder liners.


 +

 GENERAL DATA, Engine – KV6

Petrol.

3. Check pistons for distortion and cracks.

NOTE: Piston grades A or B are stamped on
the crown of the piston.

4. Piston diameter check: Measure piston

diameter at right angles to gudgeon pin and 8
mm (0.3 in) from bottom of skirt.


 +

 GENERAL DATA, Engine – KV6

Petrol.

NOTE: Piston and connecting rods are only
supplied as an assembly.

CAUTION: Ensure pistons are retained with
their respective cylinder liners.

5. Position piston in cylinder liner and measure

clearance 20 mm (0.75 in) from bottom of
cylinder liner


 +

 GENERAL DATA, Engine – KV6

Petrol.

6. Piston ring gap: Position new top and second

compression piston rings 20 mm (0.75 in) from
top of cylinder bore and measure ring gaps.


 +

 GENERAL DATA, Engine – KV6

Petrol.

CAUTION: Ensure piston rings are kept
square to liner bore. Retain rings with the
piston fitted to the liner in which they were
checked.

7. Piston rings - refit:Using a suitable expander,

fit oil control spring.

8. With 'TOP' or identification markings to top of

piston, use an expander to fit piston rings in
sequence; oil control, 2nd and top
compression.

NOTE: The second compression ring is
stepped.

9. Ensure rings are free to rotate, position

compression ring gaps A and B at 120

°

 to each

other and away from thrust side. Position oil
control ring gap C and spring gap D at 30

°

 on

opposite side of gudgeon pin axis.

M12 6838

M12 6839

D

B

A

C
