Freelander 1. Manual - part 68





ENGINE - K SERIES 1.8

REPAIRS 12-2-45

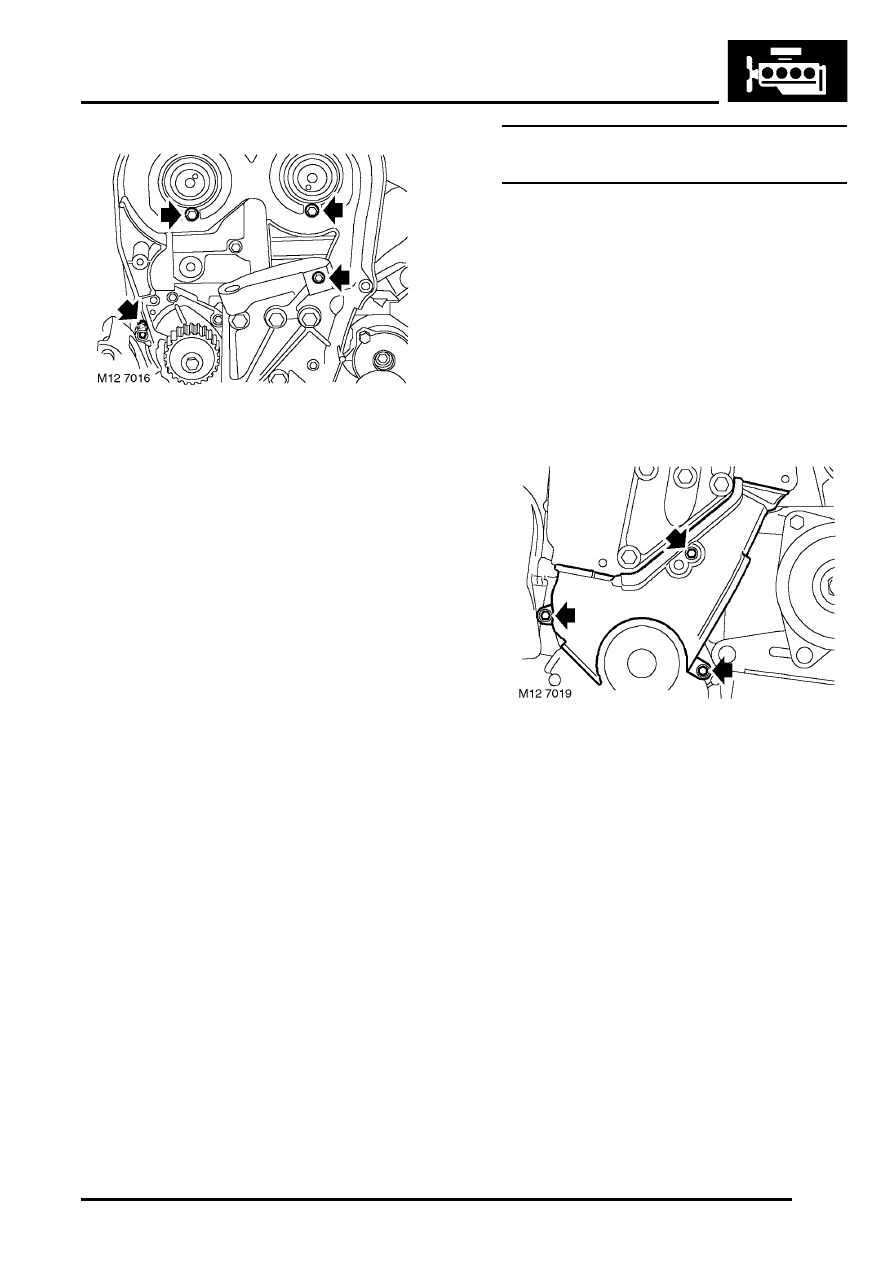

7. Remove 4 bolts securing camshaft timing belt

rear cover to cylinder head and block.

8. Remove rear cover.

Refit

1. Fit timing belt rear cover and tighten bolts to 9

Nm (7 lbf.ft).

2. Fit bolt securing dipstick tube support bracket

and tighten to 9 Nm (7 lbf.ft).

3. Clean camshaft timing gears.
4. Fit camshaft gears to their respective

camshafts.

5. Fit bolts and washers securing camshaft gears

to camshafts. Using tool LRT-12-182  restrain
camshaft gears and tighten bolts to 65 Nm (48
lbf.ft).

6. Align camshaft gear timing marks and fit tool

LRT-12-134.

7. Fit camshaft timing belt.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Camshaft timing belt.

Cover - timing belt - front lower - without
A/C

$% 12.65.43

Remove

1. Disconnect battery earth lead.
2. Remove timing belt upper cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Cover - timing gear - upper.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Remove crankshaft pulley.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Pulley - crankshaft.

5. Remove 3 bolts securing camshaft timing belt

lower cover to cylinder block and remove cover.

Refit

1. Clean lower timing belt cover.
2. Fit timing belt lower cover ensuring correct

position of rubber seal.

3. Fit bolts securing timing belt lower cover and

tighten to 9 Nm (7 lbf.ft).

4. Fit crankshaft pulley.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Pulley - crankshaft.

5. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

6. Fit timing belt upper cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Cover - timing gear - upper.

7. Connect battery earth lead.

ENGINE - K SERIES 1.8

12-2-46 REPAIRS

Cover - timing belt - front lower - with A/C

$% 12.65.43

Remove

1. Disconnect battery earth lead.
2. Remove timing belt upper cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Cover - timing gear - upper.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Remove crankshaft pulley.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Pulley - crankshaft.

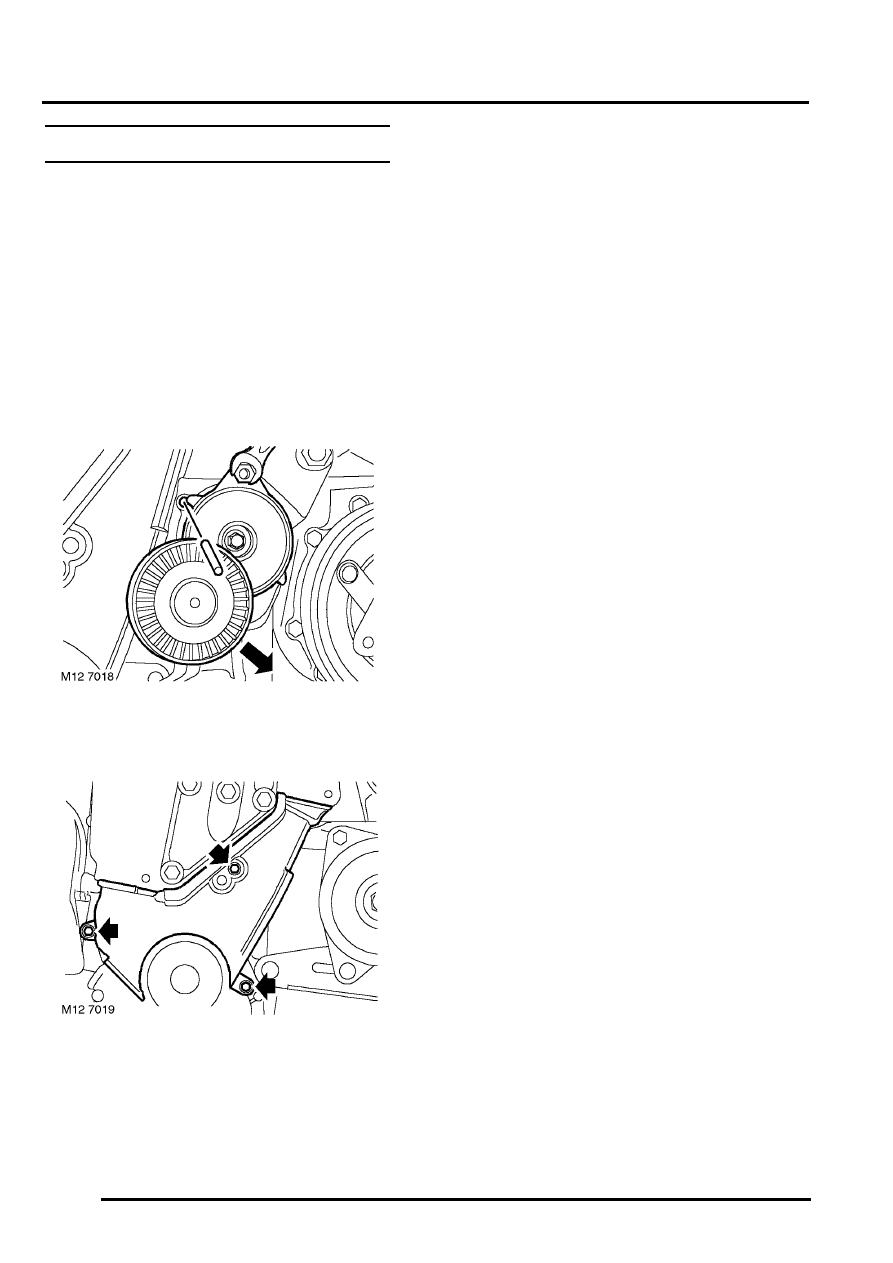

5. Hold ancillary timing belt tensioner, remove pin

and allow tensioner to move fully anti-clockwise

6. Remove 3 bolts securing camshaft timing belt

lower cover to cylinder block and remove cover.

Refit

1. Clean lower timing belt cover.
2. Fit timing belt lower cover ensuring correct

position of rubber seal.

3. Fit bolts securing timing belt lower cover and

tighten to 9 Nm (7 lbf.ft).

4. Rotate ancillary timing belt tensioner fully

clockwise. Whilst holding tensioner in this
position, fit pin into hole in tensioner backplate.

5. Fit crankshaft pulley.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Pulley - crankshaft.

6. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

7. Fit timing belt upper cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Cover - timing gear - upper.

8. Connect battery earth lead.

ENGINE - K SERIES 1.8

OVERHAUL 12-2-47

OVERHAUL

Piston assembly - engine set

$% 12.17.03.01

Remove

1. Remove connecting rod bearings.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Connecting rod bearings - engine set.

2. Remove ridge of carbon from top of cylinder

liner bores.

3. Ensure that the feet of cylinder liner clamps,

LRT-12-144, do not protrude over cylinder liner
bores.

4. Suitably identify each piston and connecting

rod assembly to its respective bore.

5. Carefully push each piston to top of cylinder

liner bores.

6. Carefully push out each piston assembly taking

care that the big-ends do not contact surface of
cylinder liners.

CAUTION: Removal of pistons will
necessitate removal and re-sealing of
cylinder liners.

7. Using an expander, remove and discard old

piston rings.

Refit

1. Clean ring grooves in pistons and blow out oil

holes in ring grooves.

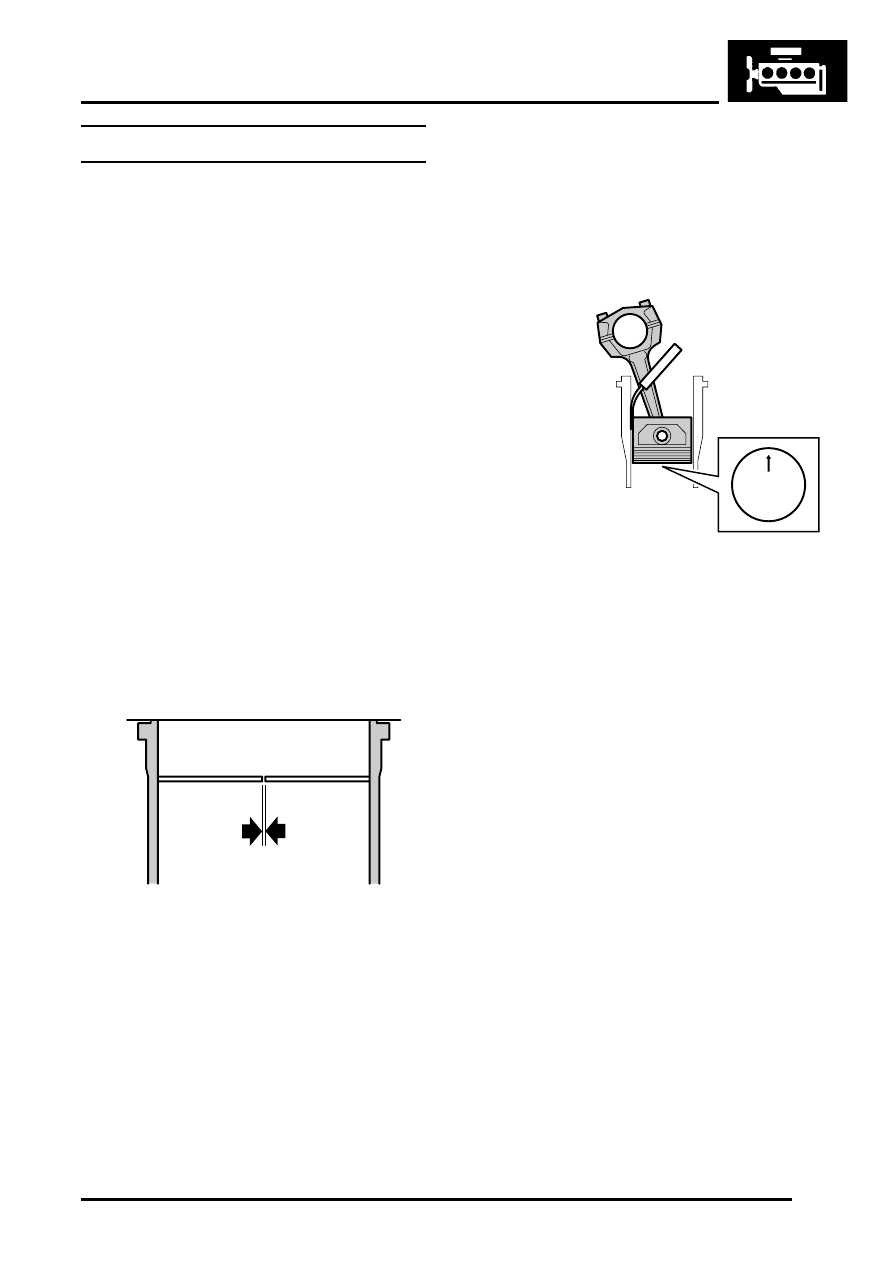

2. Check compression and oil control ring gaps,

positioning each piston ring 20 mm (0.75 in)
from top of cylinder liner as shown.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

CAUTION: Ensure rings are suitably
identified with the cylinder in which they
were checked and fitted to the piston for
that bore.

3. Check pistons for distortion and cracks.

4. Measure and record piston diameter at right

angles to gudgeon pin and 8 mm (0.3 in) from
bottom of skirt.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

NOTE: Piston grades A or B are stamped on
the crown of the piston.

5. Starting with number 1 piston, invert piston and

connecting rod and with the word 'FRONT' or
arrow on piston crown facing towards 'REAR' of
cylinder block, insert piston in cylinder liner.

CAUTION: Ensure piston is checked in its
correct bore.

6. Position piston with bottom of skirt 30 mm (1.2

in) from top of cylinder liner.

7. Using feeler gauges, measure and record

clearance between piston and left hand side of
cylinder liner - viewed from the front of the
cylinder block.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

8. Repeat procedure for remaining pistons.

NOTE: Piston and connecting rods are only
supplied as an assembly.

9. Fit oil control spring.

10. With 'TOP' or identification markings to top of

piston, use an expander to fit piston rings in
sequence; oil control, 2nd compression and top
compression.

M12 7042

M12 7043

FR

ONT

ENGINE - K SERIES 1.8

12-2-48 OVERHAUL

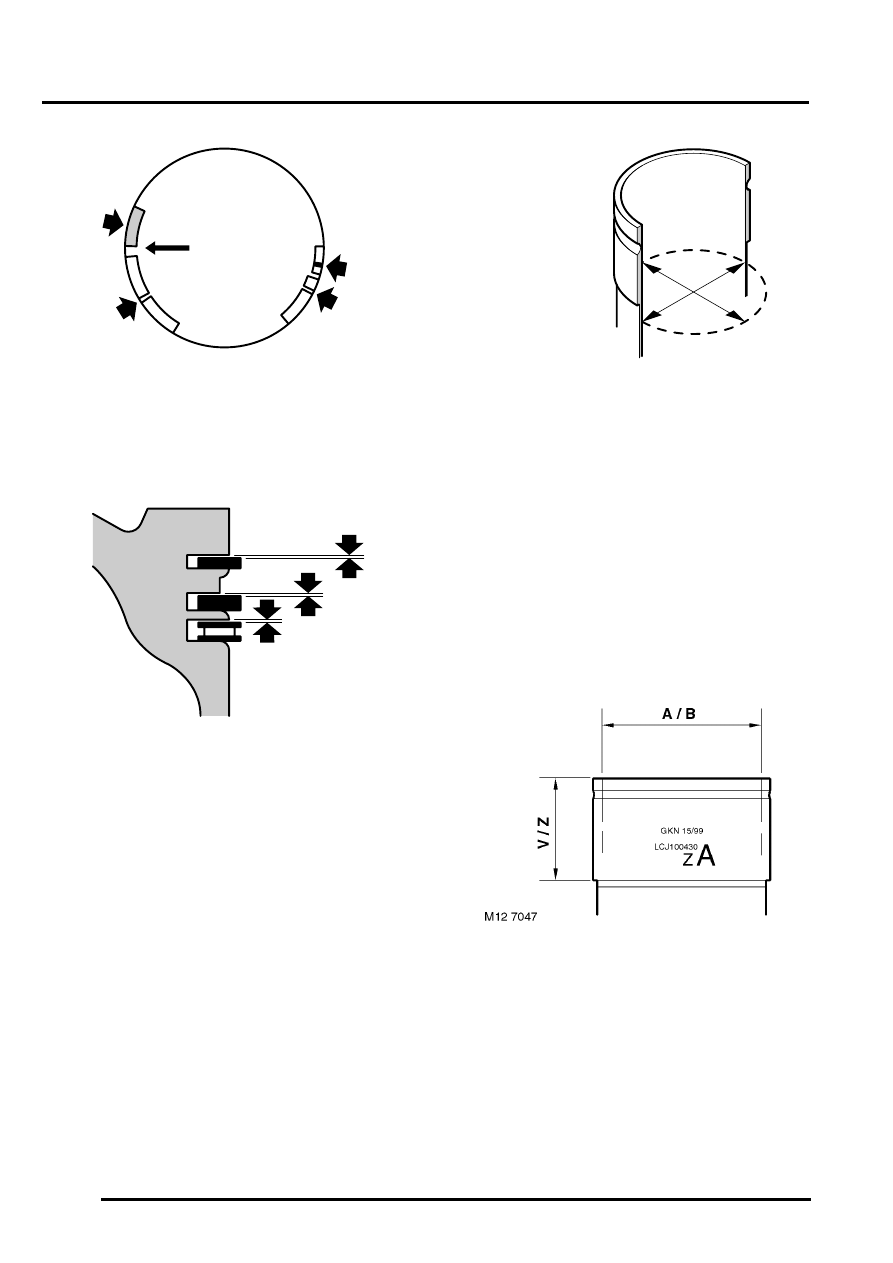

11. Ensure rings are free to rotate, position

compression ring gaps A and B at 120

°

 to each

other and away from thrust side. Position oil
control ring gap C and spring gap D at 30

°

 on

opposite side of gudgeon pin axis

12. Check new ring to groove clearance.



 +

 GENERAL DATA, Engine – K1.8

Petrol.

13. Remove bolts securing cylinder liner clamps

LRT-12-144 and remove clamps. If original
cylinder liner is to be refitted, use a felt tipped
pen to make suitable alignment marks between
liner and cylinder block. DO NOT etch or stamp
liners.

CAUTION: Keep bolts in their original fitted
order.

14. Using hand pressure, push cylinder liners out

towards cylinder head face of block and
remove liners.

15. Measure wear and taper in two axes, 65 mm

(2.5 in) from top of cylinder liner bore. RED
grade = 80.000 to 80.015 mm (3.1496 to
3.1501 in). BLUE grade = 80.016 to 80.030 mm
(3.1502 to 3.1508 in). Service cylinder liners
are grade A and B, marked on the outside
diameter of the liner.

CAUTION: Cylinder liners with excessively
glazed, worn, scratched or scored bores
must be replaced. DO NOT attempt to hone
or remove glazing from bore. Ensure that if
original liners are to be refitted , reference
marks made during dismantling are not
erased.

16. Cylinder liners have their bore/grade and step

height determined at manufacture. The bore/
grade, red, A or B, blue and step heights V or Z
together with the cylinder liner part number and
colour code are marked on the external
diameter of the cylinder liners. If cylinder(s) are
to be replaced, the replacement liner(s) must
have the same step height as the original
liner(s). Both step heights are available in red,
A and blue B grades of cylinder liners.

M12 7044

C

A

B

D

M12 7045

A

B

C

M12 7046
