Freelander 1. Manual - part 65





ENGINE - K SERIES 1.8

REPAIRS 12-2-33

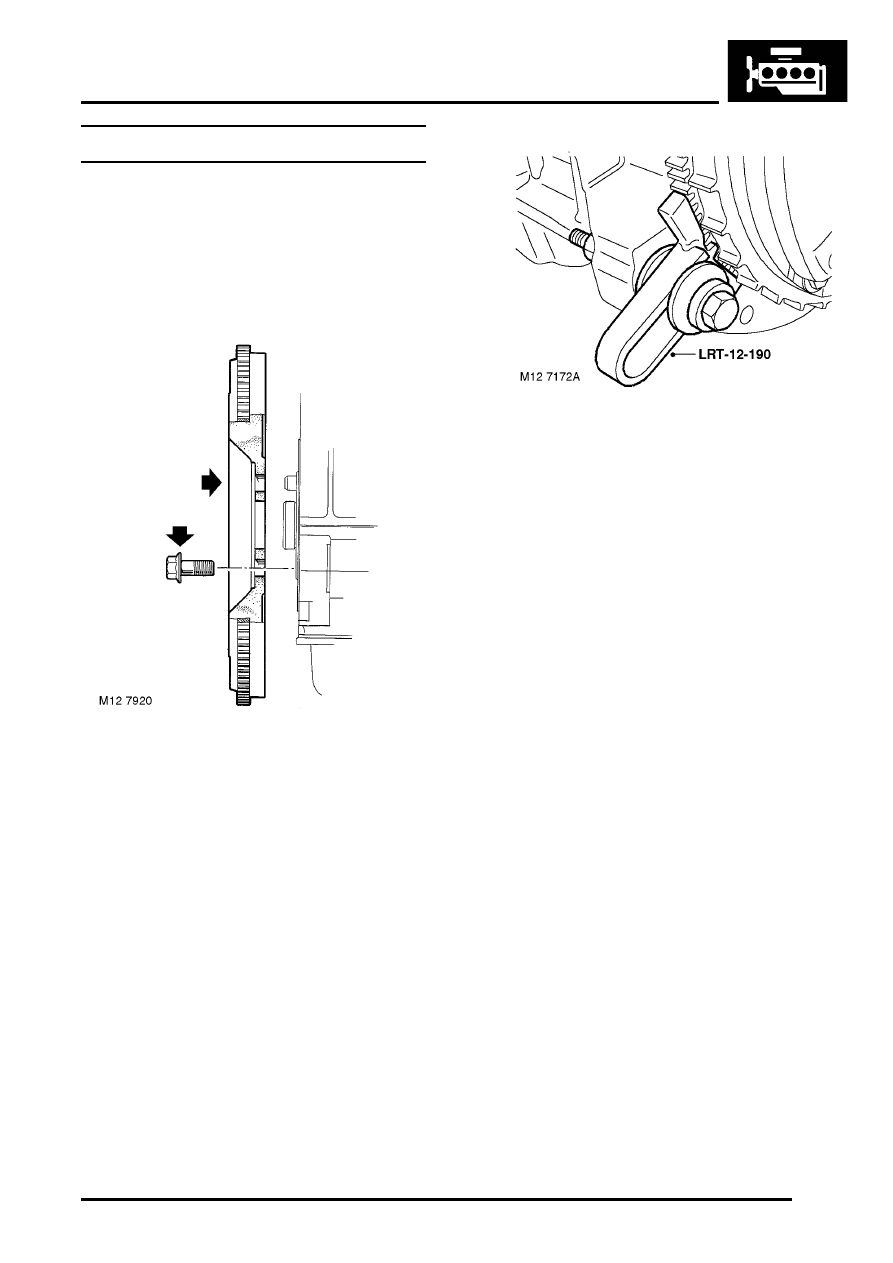

Flywheel

$% 12.53.07

Remove

1. Remove clutch.



 +

 CLUTCH, REPAIRS, Clutch

assembly/drive plate and release bearing -
K1.8.

2. Loosen but do not remove 6 bolts securing

flywheel.

3. Remove tool LRT-12-190.
4. Remove and discard 6 bolts securing flywheel.
5. Using assistance, remove flywheel.

Refit

1. Clean flywheel and crankshaft faces.
2. Use an old flywheel bolt with 2 saw cuts at 45

°



along bolt threads and clean thread locking
agent from tapped holes in crankshaft.

3. Using assistance, fit flywheel, fit and lightly

tighten new Patchlok bolts to secure flywheel.

4. Position flywheel locking tool LRT-12-190

secure tool with 2 bolts.

5. Tighten flywheel securing bolts by diagonal

selection to 80 Nm (59 lbf.ft).

6. Fit clutch.



 +

 CLUTCH, REPAIRS, Clutch

assembly/drive plate and release bearing -
K1.8.

ENGINE - K SERIES 1.8

12-2-34 REPAIRS

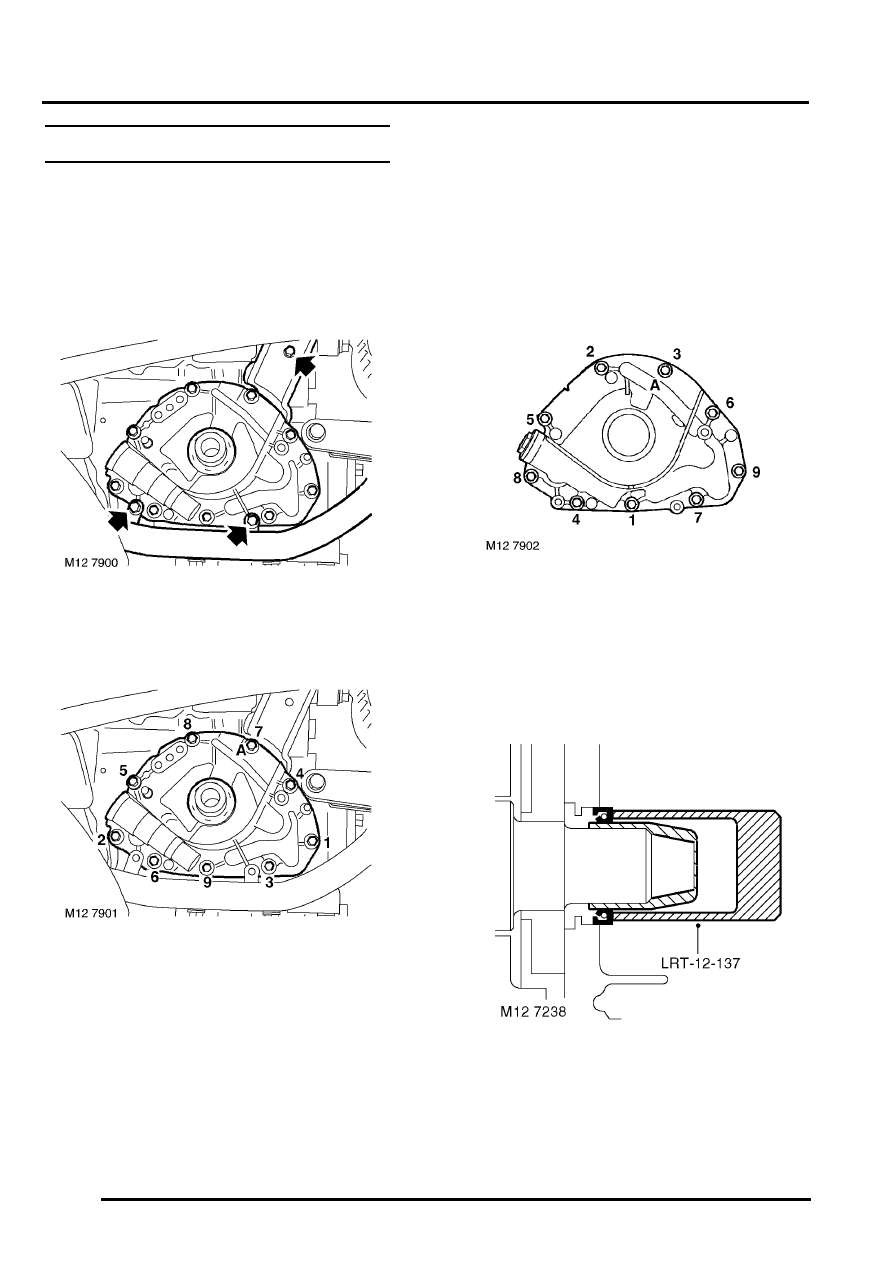

Pump - engine oil

$% 12.60.26

Remove

1. Remove camshaft timing belt.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Camshaft timing belt.

2. Remove crankshaft gear.

3. Remove 2 bolts securing engine harness to oil

pump.

4. Remove lower bolt from timing belt rear cover.

5. Noting fitted position of M6 x 20 bolt  'A' and

using the sequence shown, remove and
discard 9 bolts securing oil pump to cylinder
block.

6. Release rear cover to facilitate oil pump

removal.

7. Remove oil pump, remove and discard gasket.

Note: Dowel located.

8. Remove and discard crankshaft front oil seal

from oil pump.

Refit

1. Clean oil pump and mating face.
2. Clean oil seal running surface on crankshaft.
3. Fit new oil pump gasket, align and fit oil pump.

CAUTION: Gasket must be fitted dry.

4. Fit new Patchlok bolts ensuring M6 x 20 bolt is

in position 'A'. Tighten bolts securing oil pump
in sequence shown to 10 Nm (7.5 lbf.ft).

5. Fit bolt securing timing belt rear cover and

tighten to 9 Nm (7 lbf.ft).

6. Align engine harness to oil pump, fit bolts and

tighten to 10 Nm (7.5 lbf.ft).

7. Fit seal guide from crankshaft front oil seal kit

over front of crankshaft.

8. Fit new oil seal using tool LRT-12-137

CAUTION: Oil seal must be fitted dry.

ENGINE - K SERIES 1.8

REPAIRS 12-2-35

9. Clean crankshaft timing gear.

10. Fit crankshaft timing gear.
11. Fit camshaft timing belt.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Camshaft timing belt.

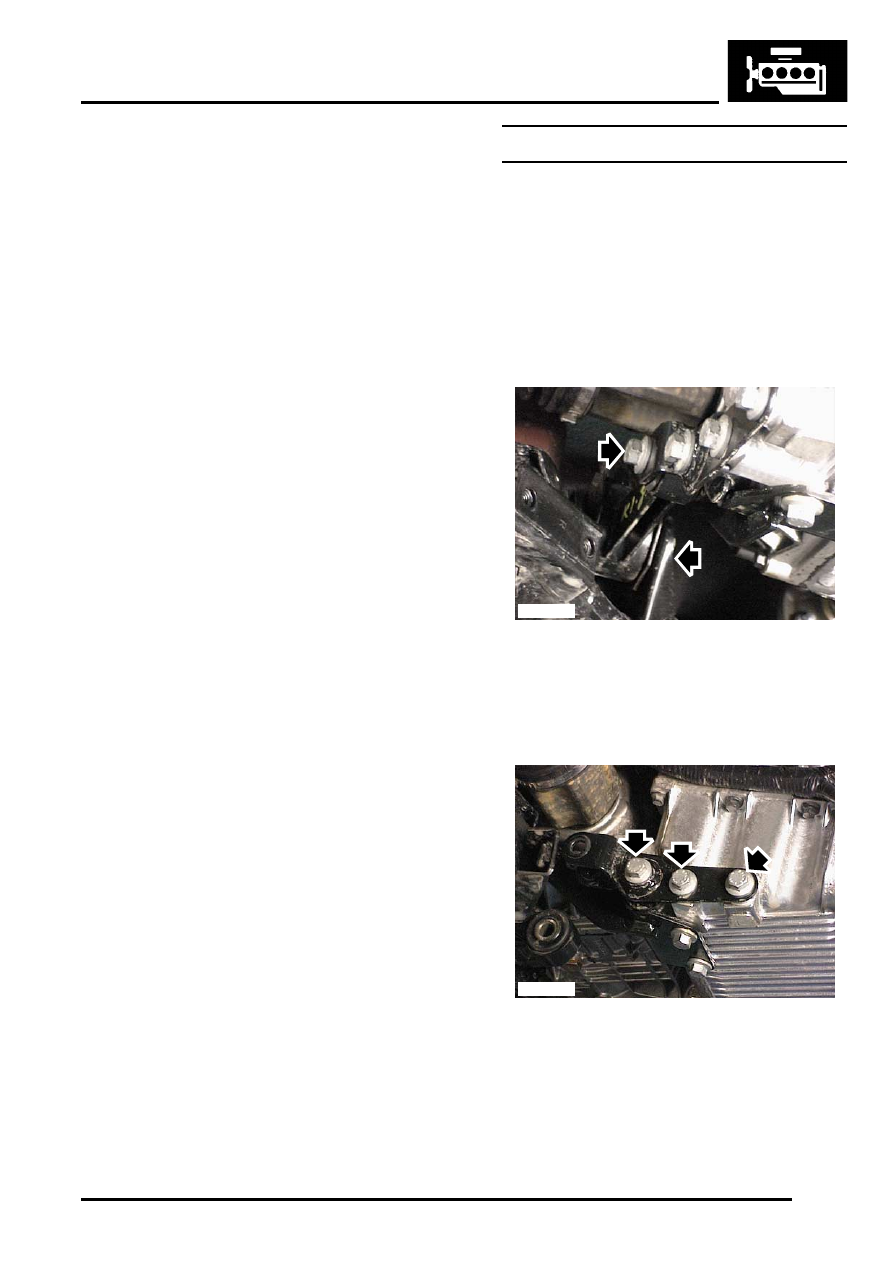

Sump - engine reseal

$% 12.60.38

Remove

1. Remove exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
front.

2. Drain engine oil.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – K1.8.

3. Remove bolt securing lower engine steady to

sump mounting bracket.

4. Loosen bolt securing lower engine steady to

subframe, pivot steady away from sump
mounting bracket.

5. Remove 3 bolts securing lower engine steady

bracket to sump and remove bracket.

M12 7069

M12 7070

ENGINE - K SERIES 1.8

12-2-36 REPAIRS

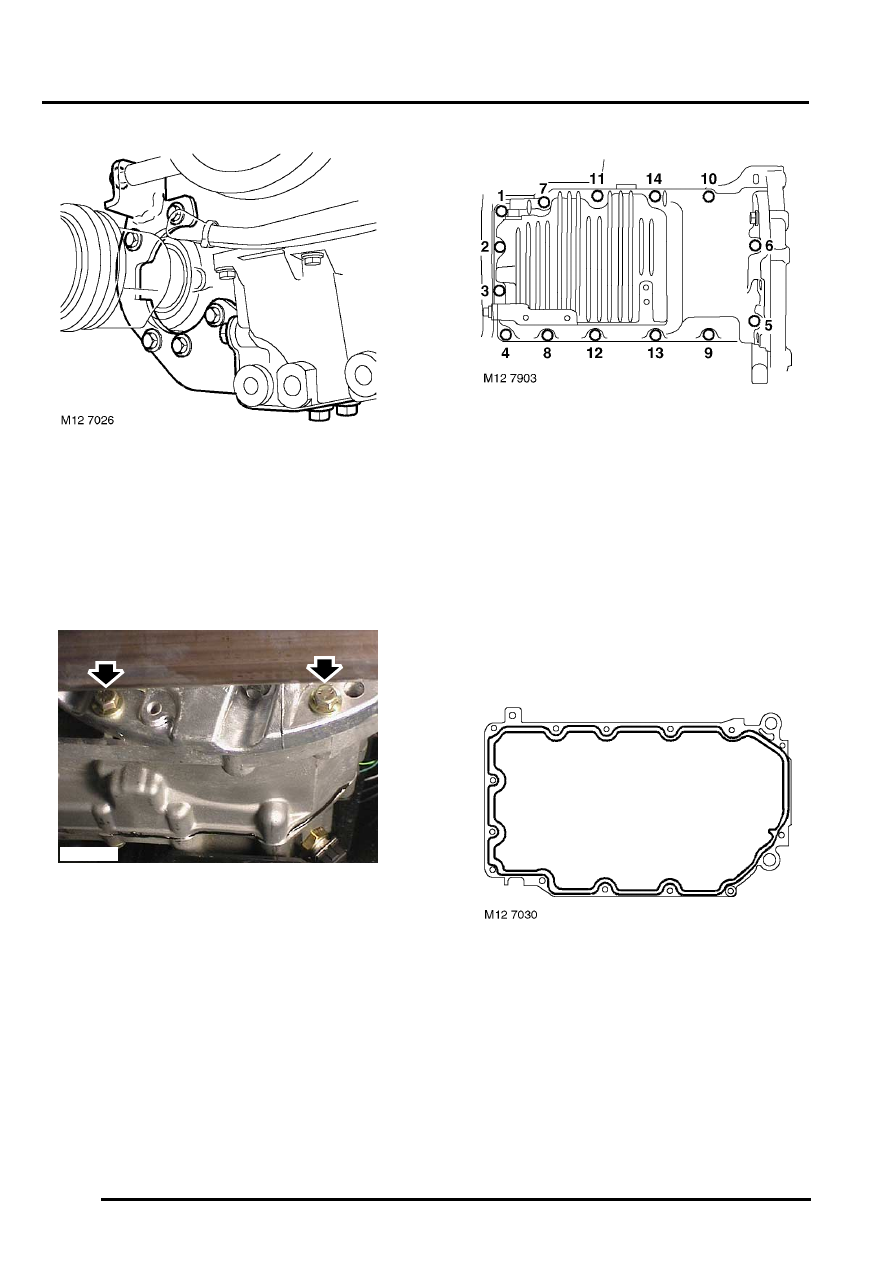

6. Remove upper bolt securing IRD support

bracket to cylinder block.

7. Remove 5 bolts securing support bracket to

IRD.

8. Remove 3 bolts securing IRD support bracket

to sump.

9. Position IRD support bracket to gain access for

sump removal.

10. Remove 2 bolts securing sump to gearbox.

11. Noting the fitted position of 2 M8 x 60 mm

longest bolts and using the sequence shown,
remove 14 bolts securing sump to bearing
ladder.

12. Using a mallet, gently tap sump sideways to

release sealant bond, remove sump.

CAUTION: Do not lever between sump and
bearing ladder.

Refit

1. Clean inside of sump. Use a lint-free cloth and

suitable solvent to clean mating faces of sump
and bearing ladder.

2. Apply a continuous bead of sealant, STC 4600,

to sump face and spread to an even film using
a roller.

CAUTION: To avoid contamination,
assembly should be completed immediately
after application of sealant.

M12 7028
