Freelander 1. Manual - part 63





ENGINE - K SERIES 1.8

REPAIRS 12-2-25

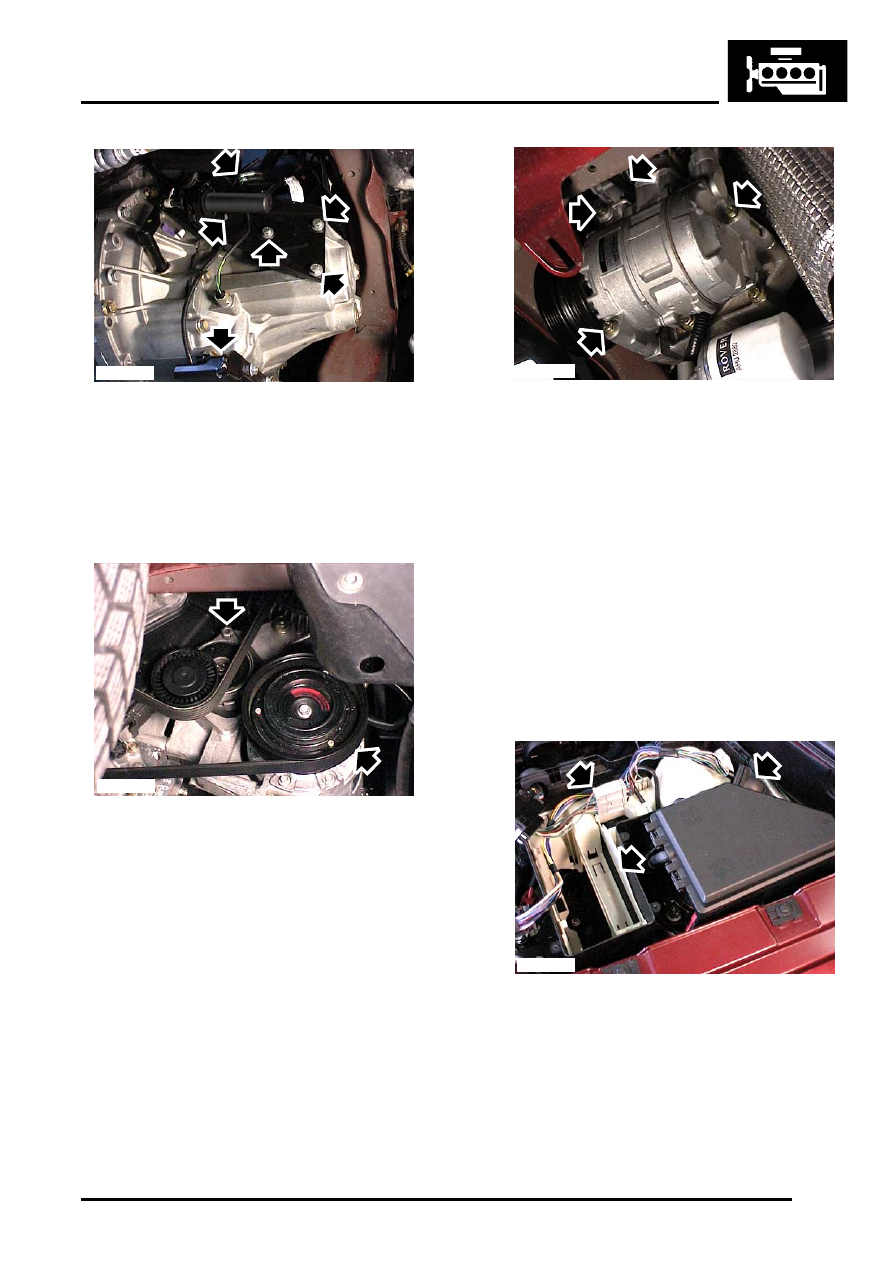

23. Disconnect reverse light switch connectors.
24. Disconnect multiplug from 1st gear switch.
25. Release clip securing 1st gear switch harness

to clutch slave cylinder bracket.

26. Remove 3 bolts securing clutch slave cylinder

mounting bracket to gearbox and tie bracket
assembly aside.

27. Models with A/C: Fit a 13 mm spanner to

hexagon on ancillary timing belt tensioner and
rotate fully clockwise to release tension on
timing belt.

28. Models with A/C: Hold tensioner in this

position, fit a suitable pin, not exceeding 3 mm
in diameter, through centre of hexagon into
tensioner backplate. Release timing belt from
A/C compressor pulley.

29. Models with A/C: Disconnect multiplug from A/

C compressor.

30. Models with A/C: Remove 3 bolts securing A/

C compressor to joint alternator/compressor
mounting bracket, release compressor from
bracket and tie aside.

31. Lower vehicle on ramp.
32. Remove air cleaner assembly.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Air cleaner - K1.8.

33. Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

34. Remove engine ECM.



 +

 ENGINE MANAGEMENT SYSTEM -

MEMS, REPAIRS, Engine control module
(ECM) - combined ignition & fuel.

35. Disconnect engine harness multiplug in 'E' box.
36. Release air duct and harness rubber sleeve

from 'E' box.

37. Release 4 clips securing carrier in 'E' box,

remove carrier from 'E' box and position aside.

M12 7145

M12 7146

M12 7147

M12 7148

ENGINE - K SERIES 1.8

12-2-26 REPAIRS

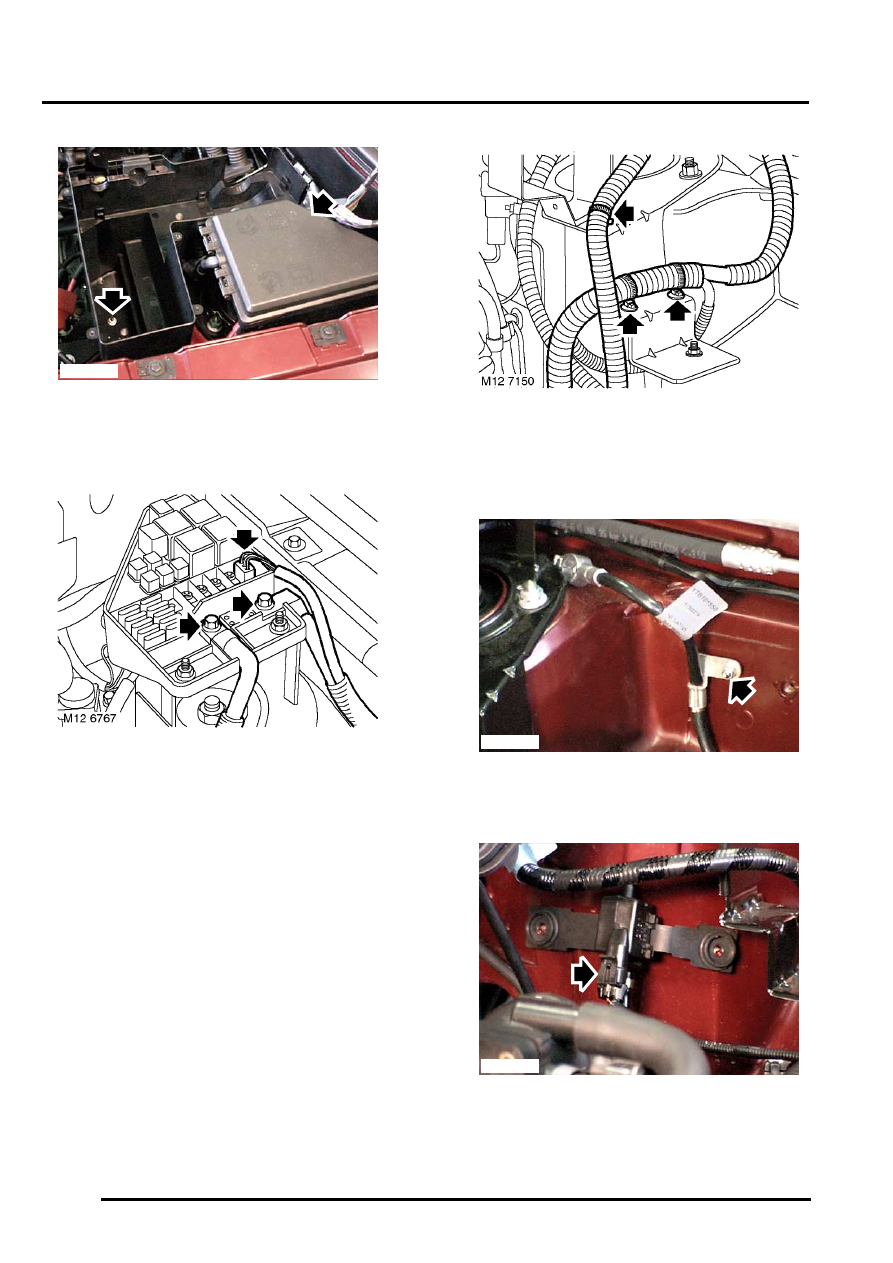

38. Remove nut, release retainer and remove 'E'

box.

39. Remove engine compartment fuse box cover.

40. Remove 2 bolts securing battery and starter

lead to fuse box.

41. Disconnect multiplug from fuse box.

42. Release clip securing battery lead to 'E' box

mounting bracket.

43. Release 2 clips securing starter lead harness to

'E' box mounting bracket.

44. Remove nut securing engine earth lead to body

and release earth lead from stud.

45. Disconnect multiplug from purge control valve.

M12 7149

M12 7151

M12 7152

ENGINE - K SERIES 1.8

REPAIRS 12-2-27

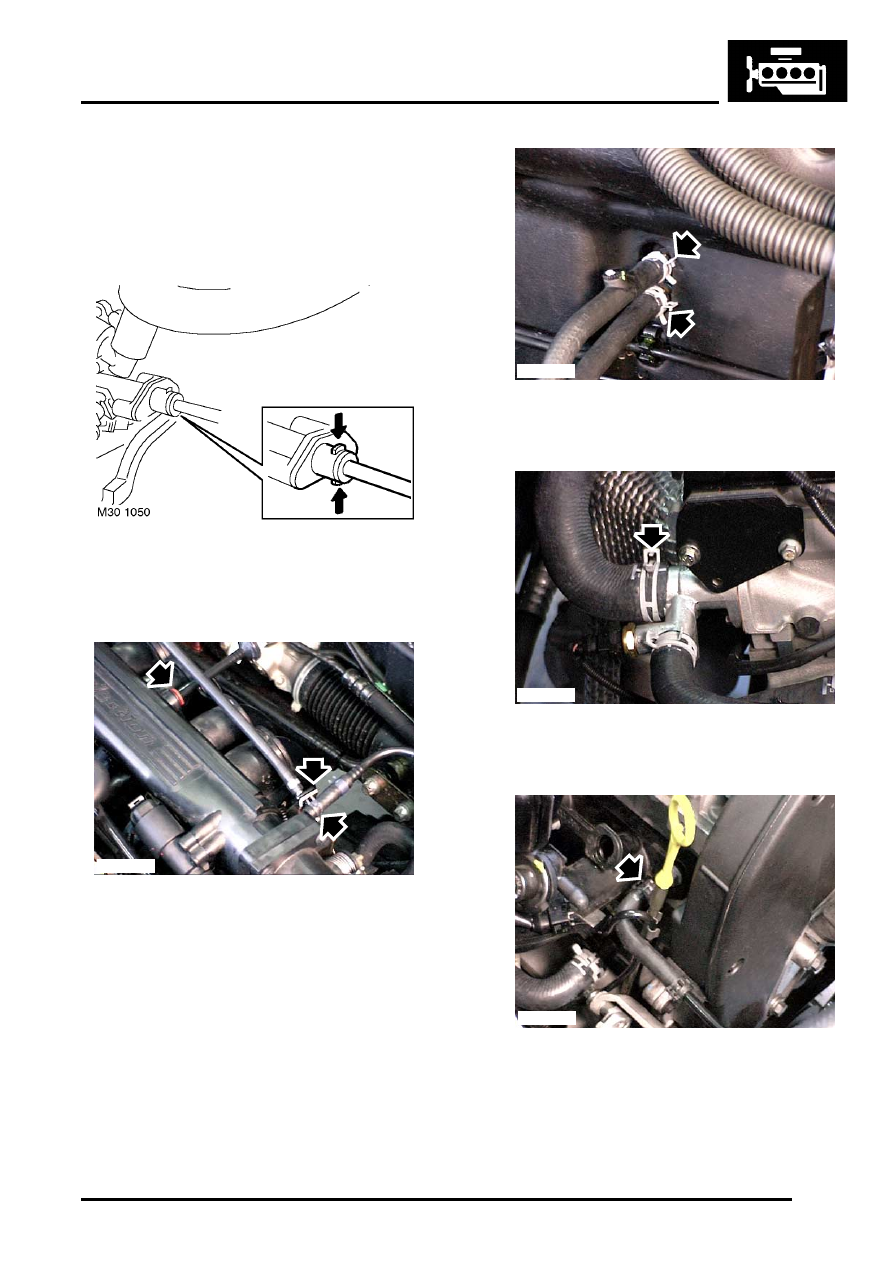

46. Position absorbent cloth around fuel feed pipe

connection to collect spillage.

WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.

47. Disconnect fuel feed hose from fuel rail.

CAUTION: Always fit plugs to open
connections to prevent contamination.

48. Release clip and disconnect purge control hose

from inlet manifold.

49. Release throttle cable adjusting nut from

abutment bracket.

50. Release throttle cable from throttle cam.
51. Depress plastic collar and disconnect brake

servo hose from inlet manifold.

52. Release clips and disconnect heater feed and

return hoses.

53. Release clip and disconnect top hose from

coolant elbow.

54. Release clip and disconnect expansion tank

hose from inlet manifold.

M12 7153

M12 7154

M12 7155

M12 7156

ENGINE - K SERIES 1.8

12-2-28 REPAIRS

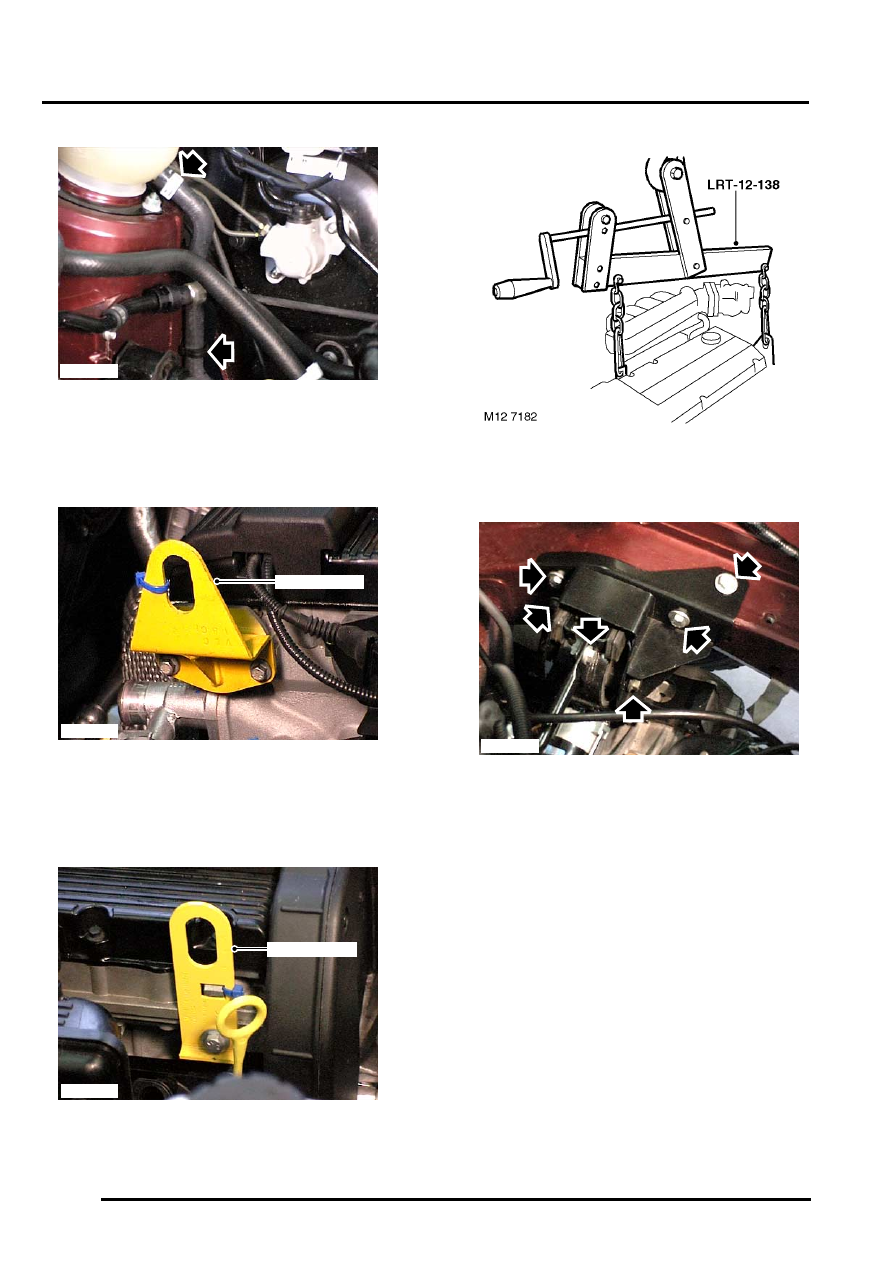

55. Release clip and disconnect hose from

underside of expansion tank.

56. Release expansion tank hose from clip on

body.

57. Remove 2 bolts securing oil seal cover plate to

cylinder head and remove plate.

58. Fit lifting bracket LRT-12-135/1 in place of

cover plate, fit and tighten bolts.

59. Fit lifting bracket LRT-12-135/2 to front of

cylinder head and secure with bolt.

60. Using a hoist, connect adjustable lifting

bracket, LRT-12-138 to engine.

61. Remove bolt securing steady bar to LH engine

mounting.

62. Loosen through bolt securing LH engine

mounting to body mounting bracket.

63. Remove 4 bolts securing LH engine mounting

bracket to body.

64. Remove through bolt securing LH engine

mounting to mounting bracket and remove
bracket.

M12 7157

M12 7158

LRT-12-135/1

LRT-12-135/2

M12 7159

M12 7160
