ENGINE - TD4

REPAIRS 12-1-63

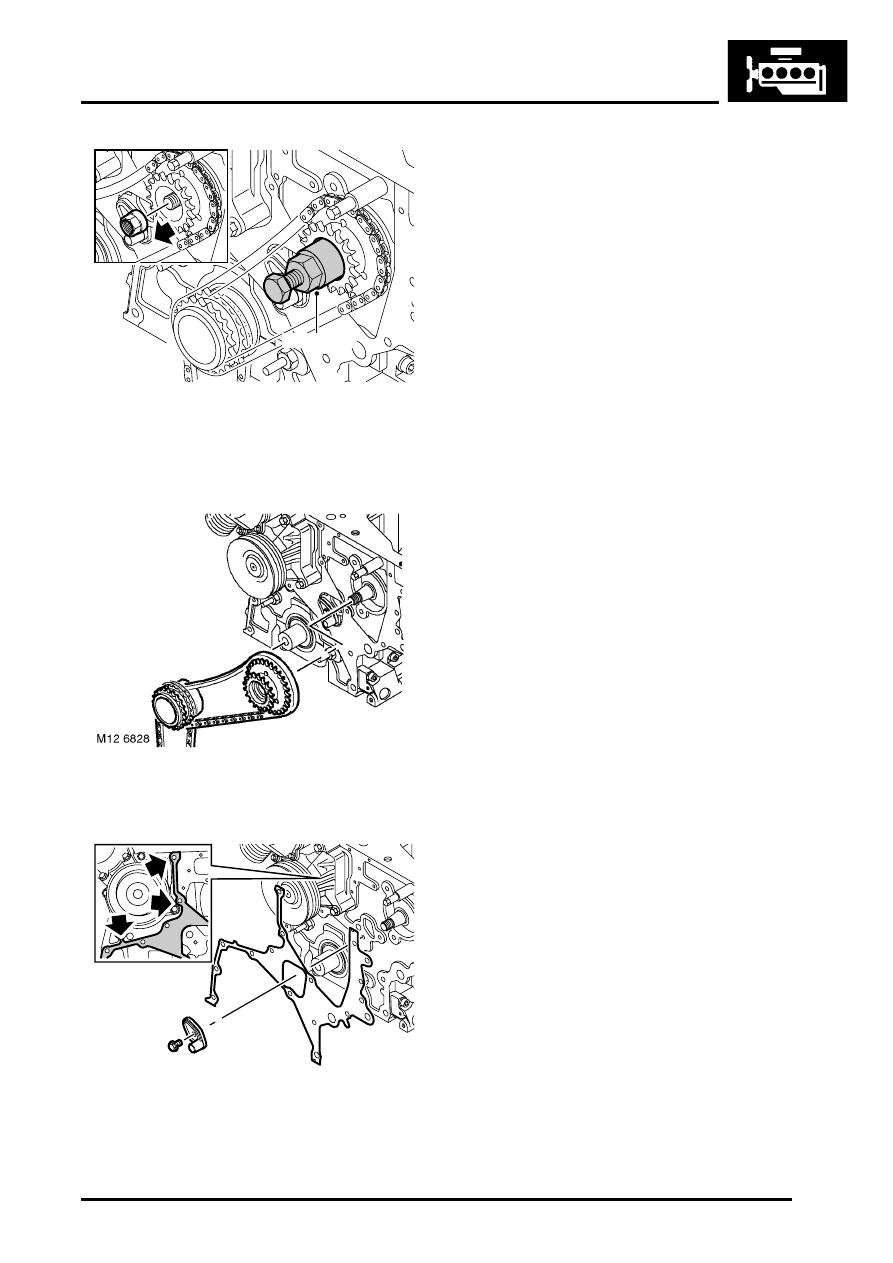

18. Fit LRT-12-178 to fuel pump sprocket and

tighten centre screw to release sprocket from
fuel pump.

19. Remove LRT-12-178 from fuel pump sprocket.

20. Remove sprockets and chains from crankshaft

and fuel pump.

21. Remove bolt and remove chain lubrication jet.
22. Cut to release and remove timing cover gasket.

Refit

1. Clean timing cover and mating face, clean

dowels and dowel holes.

2. Cut to remove water pump gasket and fit new

timing cover gasket to cylinder block.

3. Clean chain lubrication jet and mating face.
4. Fit chain lubrication jet and tighten bolt to 10

Nm (7.5 lbf.ft).

5. Clean crankshaft sprocket, fuel pump sprocket

and mating faces.

6. Clean oil and fuel pump drive chains.
7. Lubricate chains and sprockets.
8. Assemble oil and fuel pump drive chains to

crankshaft and fuel pump sprockets.

9. Fit sprockets and chains to crankshaft and fuel

pump.

10. Fit fuel pump sprocket retaining nut and tighten

to 65 Nm (48 lbf.ft).

11. Clean fuel pump drive chain guides.
12. Fit fuel pump drive chain lower guide to pin and

tighten new Allen bolt to 24 Nm (18 lbf.ft).

13. Fit fuel pump drive chain upper guide to pin.
14. Clean timing chain tensioner and mating face.

Ensure oil way is clear.

15. Fit timing chain tensioner and tighten bolts to

10 Nm (7.5 lbf.ft).

16. Hold tensioner lower plunger against spring

pressure, remove LRT-12-172 and release
plunger onto chain guide.

17. Clean camshaft drive chain.
18. Lubricate camshaft drive chain.
19. Fit camshaft drive chain to fuel pump sprocket.
20. Clean timing cover.
21. Fit timing cover to cylinder block.
22. Temporary fit ancillary belt tensioner pulley arm

to align tensioner.

23. Evenly and progressively tighten timing cover

bolts to 15 Nm (11 lbf.ft).

24. Remove ancillary belt tensioner pulley arm.
25. Fit seal to ancillary drive belt tensioner arm

bush.

26. Fit ancillary belt tensioner arm and tighten nut

to 10 Nm (7.5 lbf.ft).

27. Fit lower coolant rail support bracket and

tighten bolts to 15 Nm (11 lbf.ft).

28. Fit ancillary drive belt jockey pulley and tighten

new Allen bolt to 24 Nm (18 lbf.ft).

M12 6827A

LRT-12-178

M12 6829

ENGINE - TD4

12-1-64 REPAIRS

29. Position PAS pump and tighten, 6 mm bolts to

10 Nm (7.5 lbf.ft), and 8 mm bolts to 25 Nm (18
lbf.ft).

30. Fit crankshaft front oil seal.



 +

 ENGINE - Td4, REPAIRS, Crankshaft

front oil seal.

31. Fit alternator.



 +

 CHARGING AND STARTING,

REPAIRS, Alternator - Td4.

32. Fit oil pump.



 +

 ENGINE - Td4, REPAIRS, Pump - oil.

33. Fit cylinder head gasket.



 +

 ENGINE - Td4, REPAIRS, Gasket -

cylinder head - manual models.


 +

 ENGINE - Td4, REPAIRS, Gasket -

cylinder head - automatic models.

34. Connect battery earth lead.

ENGINE - TD4

OVERHAUL 12-1-65

OVERHAUL

Crankshaft

$% 12.21.33.01

Remove

1. Remove timing cover gasket.



 +

 ENGINE - Td4, REPAIRS, Gasket -

timing gear cover.

2. Remove crankshaft rear oil seal.



 +

 ENGINE - Td4, REPAIRS, Crankshaft

rear oil seal.

3. Remove connecting rod bearings.



 +

 ENGINE - Td4, REPAIRS,

Connecting rod bearings - engine set.

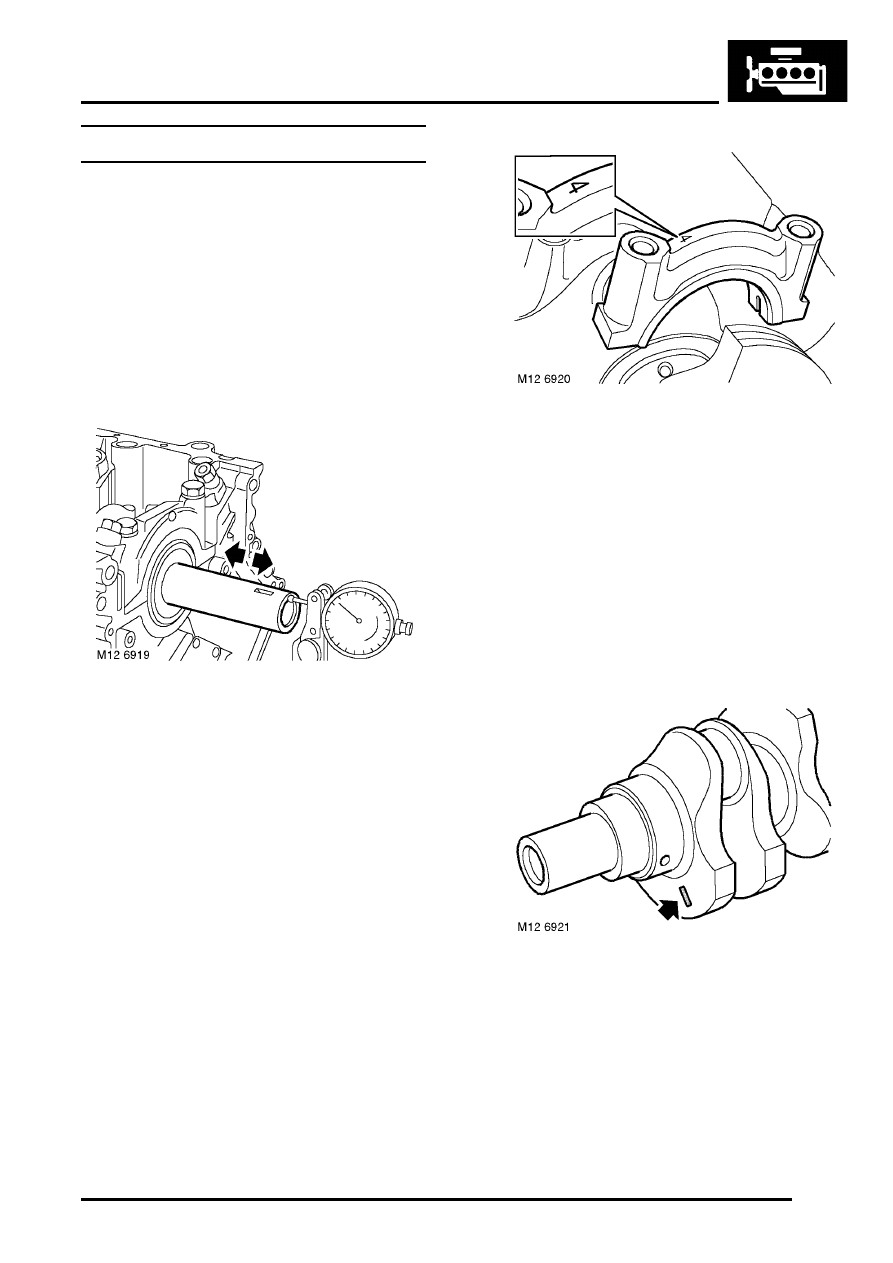

4. Check crankshaft end-float, position DTI gauge

as shown, push crankshaft away from DTI and
zero gauge. Push crankshaft in the opposite
direction and note reading.


 +

 GENERAL DATA, Engine – Td4

Diesel.

5. Remove 10 bolts securing main bearing caps to

cylinder block, do not discard bolts at this
stage.

6. Carefully remove each main bearing cap noting

that number 4 main bearing cap carries the
integral thrust/main bearing shell. Keep main
bearing caps in their fitted order.

7. Lift out crankshaft from cylinder block.
8. Remove and discard bearing shells from

cylinder block and main bearing caps.

9. Clean crankshaft, ensure all oilways are clear

of obstructions.

10. Clean main bearing caps and bearing shell

locations in cylinder block; ensure bearing cap
bolt holes are clean and dry.

11. Clean original main bearing cap bolts and

lightly oil bolt threads.

12. To determine grinding stage, note paint mark

on crankshaft front web, if visible. If paint mark
is not visible measure journal diameters.

13. Measure and record each main journal

diameter, taking 4 measurements of each
journal at 90

°

 intervals to check for appropriate

specified size and ovality. Compare journal
diameter specifications.


 +

 GENERAL DATA, Engine – Td4

Diesel.

ENGINE - TD4

12-1-66 OVERHAUL

14. If standard or undersize 1 journals are found to

be oval, the crankshaft may be ground to the
next undersize.

15. If journals are worn below the original colour

code size but ovality is within limits, then the
next size main bearing shells should be fitted in
the main bearing caps and cylinder block when
carrying out the Plastigauge check.

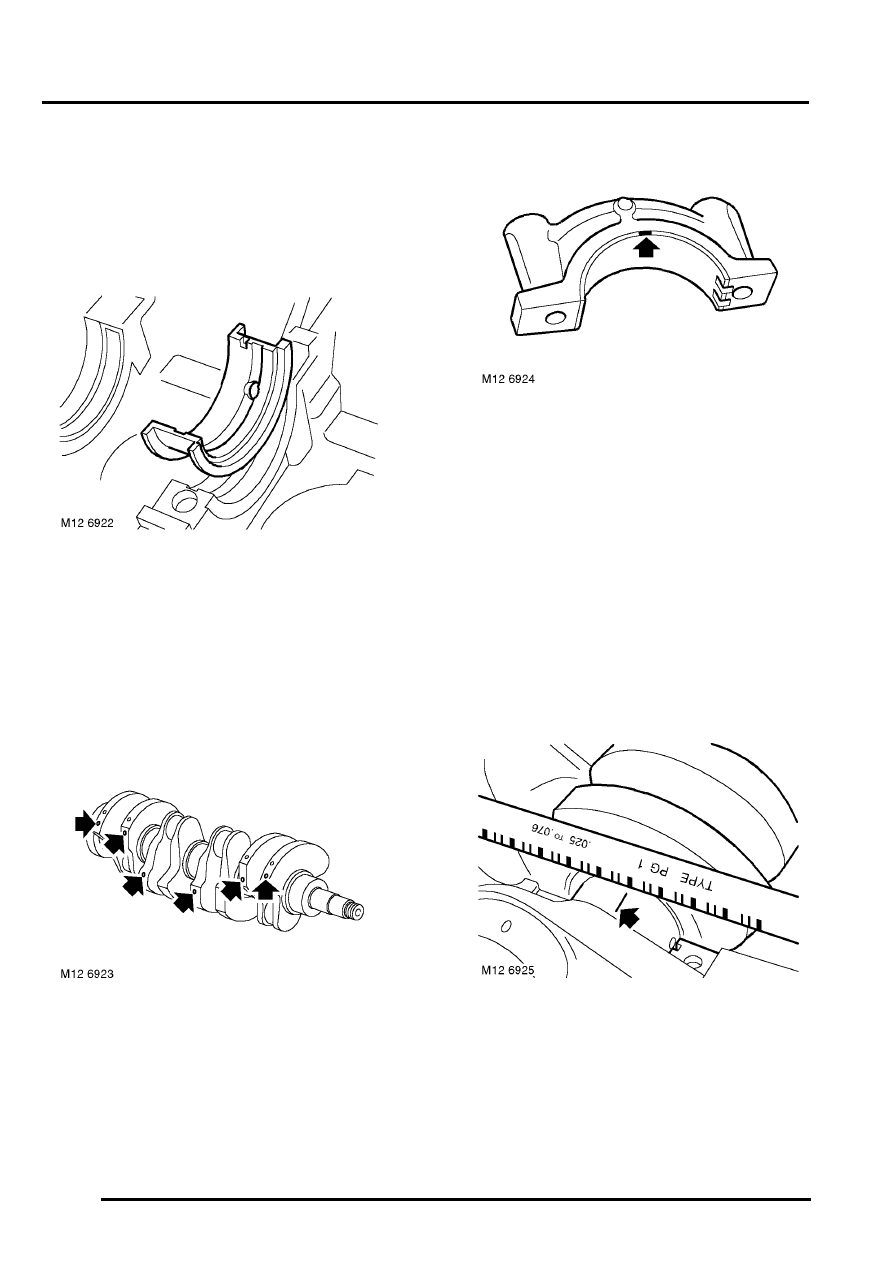

16. Fit new appropriate size main bearing shells to

cylinder block, noting that the thrust/main
bearing shell is fitted to No.4 journal position.

Note: Only fit yellow bearing shells into the
crankcase. The clearance is adjusted by
changing the bearing cap shells. Ignore the
paint marks on cylinder block webs.

17. Position crankshaft to cylinder block.

18. Check colour coding on crankshaft webs as

illustrated.

19. Fit new appropriate size main bearing shells of

the same colour coding, colour marked on edge
of bearing shell, to the main bearing caps,
noting that the thrust / main bearing shell is
fitted to No. 4 main bearing cap.

20. Place a strip of Plastigauge across each main

bearing journal.

21. Position crankshaft, main bearing caps and

original bolts. Tighten main bearing cap bolts in
a diagonal sequence to 20 Nm 15 lbf.ft) then a
further 70

°

. Recheck crankshaft end-float.

CAUTION: Do not rotate the crankshaft
when plastigauge is being used.

22. Progressively loosen and remove main bearing

bolts, bearing caps and shells.

23. Using the scale provided, measure the width of

Plastigauge on each main bearing journal and
compare with specified bearing clearances.


 +

 GENERAL DATA, Engine – Td4

Diesel.

24. If clearances are incorrect, select alternative

main bearing cap shell(s) from the range
available and repeat check.
