ENGINE - TD4

REPAIRS 12-1-43

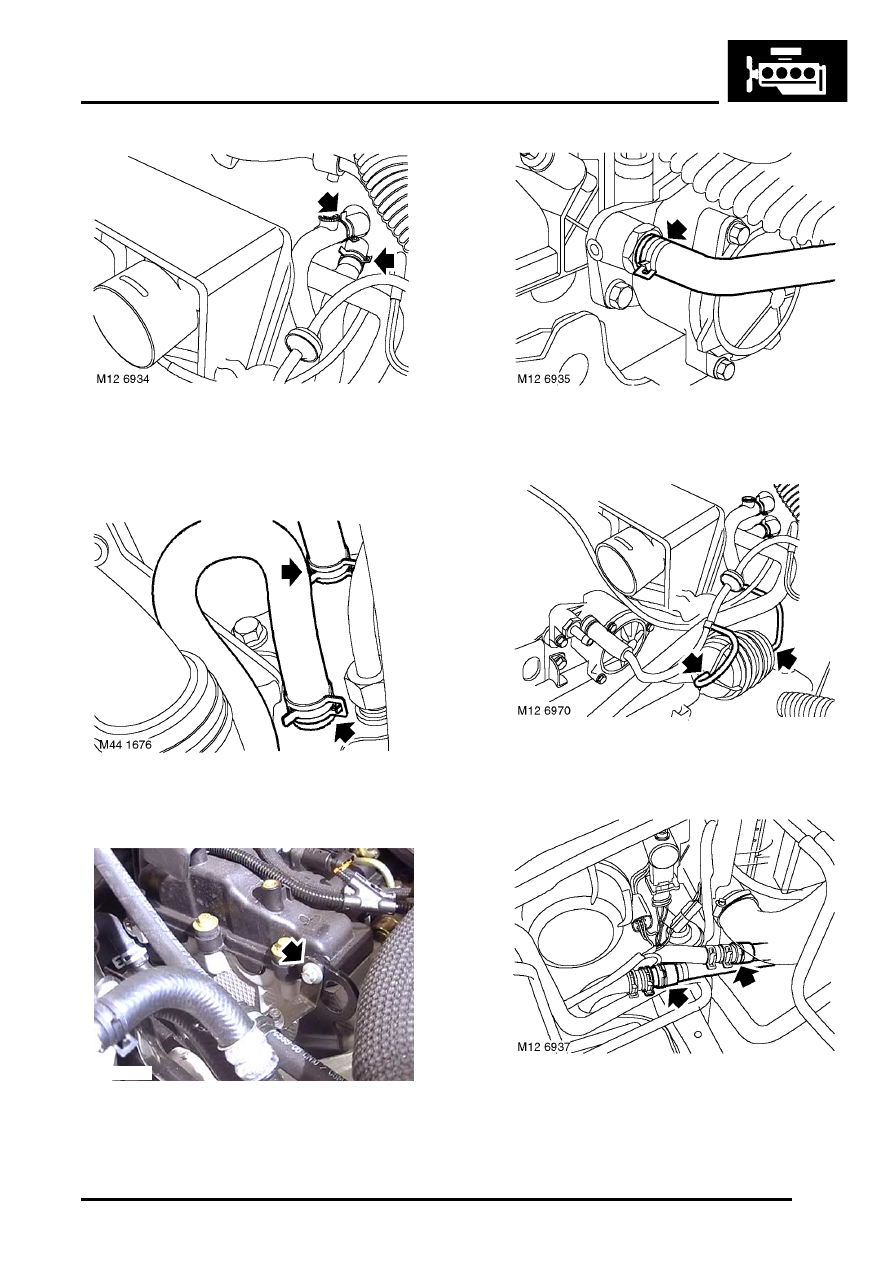

23. Release 2 clips securing heater hoses to heater

and disconnect hoses.

24. Position container beneath gearbox cooler

hoses to contain fluid spillage.

25. Release clips and disconnect coolant hoses

from gearbox fluid cooler.

26. Remove bolt securing PAS pipe clip to engine

lifting eye.

27. Release clip and disconnect hose from vacuum

pump.

28. Note fitted position and carefully remove both

vacuum hoses from reservoir.

29. Release clips, disconnect coolant feed and

return hoses from FBH.

M12 6975

ENGINE - TD4

12-1-44 REPAIRS

30. Remove rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

31. Drain gearbox fluid.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Gearbox fluid - drain &
refill.

32. Drain fluid from IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

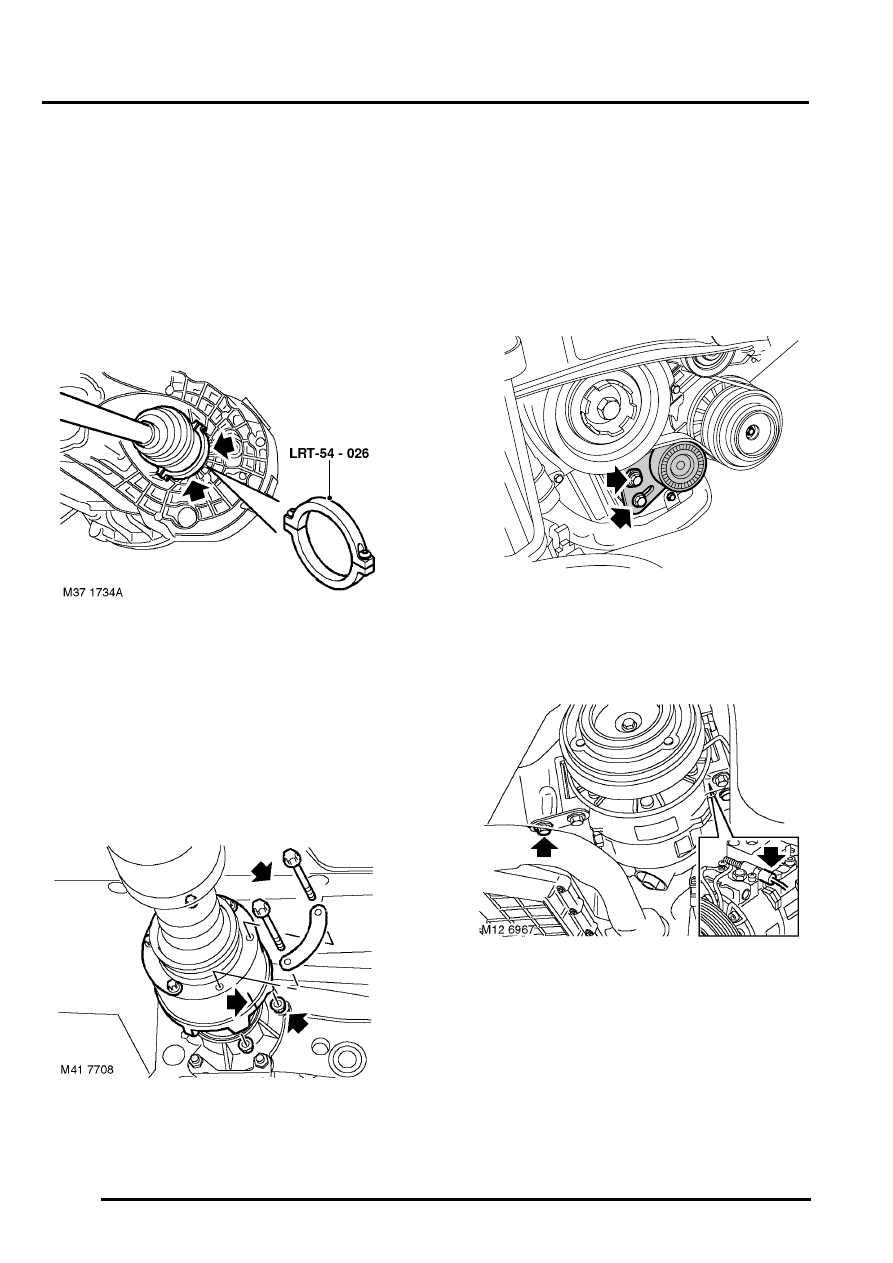

33. Secure LRT-54-026 to drive shaft inner joints.

Using a suitable lever release drive shafts from
IRD unit and gearbox.

34. With assistance, pull hubs outwards and

remove drive shafts from gearbox.

35. Remove front exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - front.

36. Raise one rear wheel for rotation of propeller

shaft to access bolts.

37. Reference mark position of viscous coupling

flange to IRD unit flange to aid reassembly.

38. Remove 6 nuts and bolts securing propeller

shaft to IRD drive flange.

39. Release propeller shaft from IRD drive flange

and tie shaft aside.

CAUTION: Care must be taken to support
the Tripode joint when removed from the
IRD unit. To avoid damage to gaiter or steel
can, the joint should not be allowed to fully
extend or be dropped.

40. Models with A/C: Loosen pivot and clamp

bolts on compressor drive belt tensioner.

41. Models with A/C: Remove compressor drive

belt from compressor pulley.

42. Models with A/C: Loosen bolt securing

compressor support bracket to sump, do not
remove.

43. Models with A/C: Disconnect compressor

multiplug.

M82 0721

ENGINE - TD4

REPAIRS 12-1-45

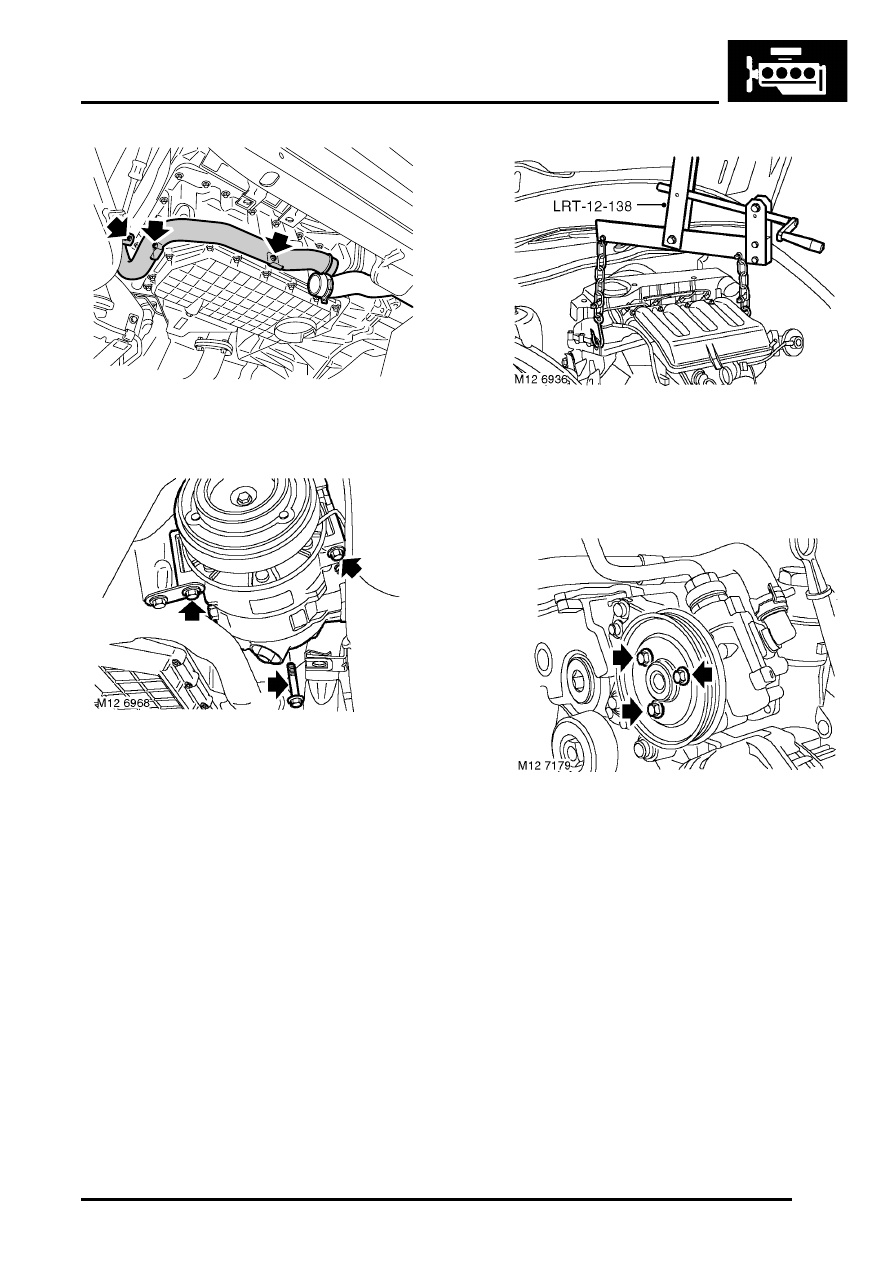

44. Models with A/C: Remove 3 bolts securing

coolant rail to sump and cylinder block.

45. Models with A/C: Remove 3 bolts securing

compressor to mounting bracket, release and
tie compressor aside.

46. Fit tool LRT-12-138 to suitable lifting chains

and connect to lifting eyes on engine.

47. Remove hydramount



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

48. Loosen 3 PAS pump pulley bolts.

M86 5309

ENGINE - TD4

12-1-46 REPAIRS

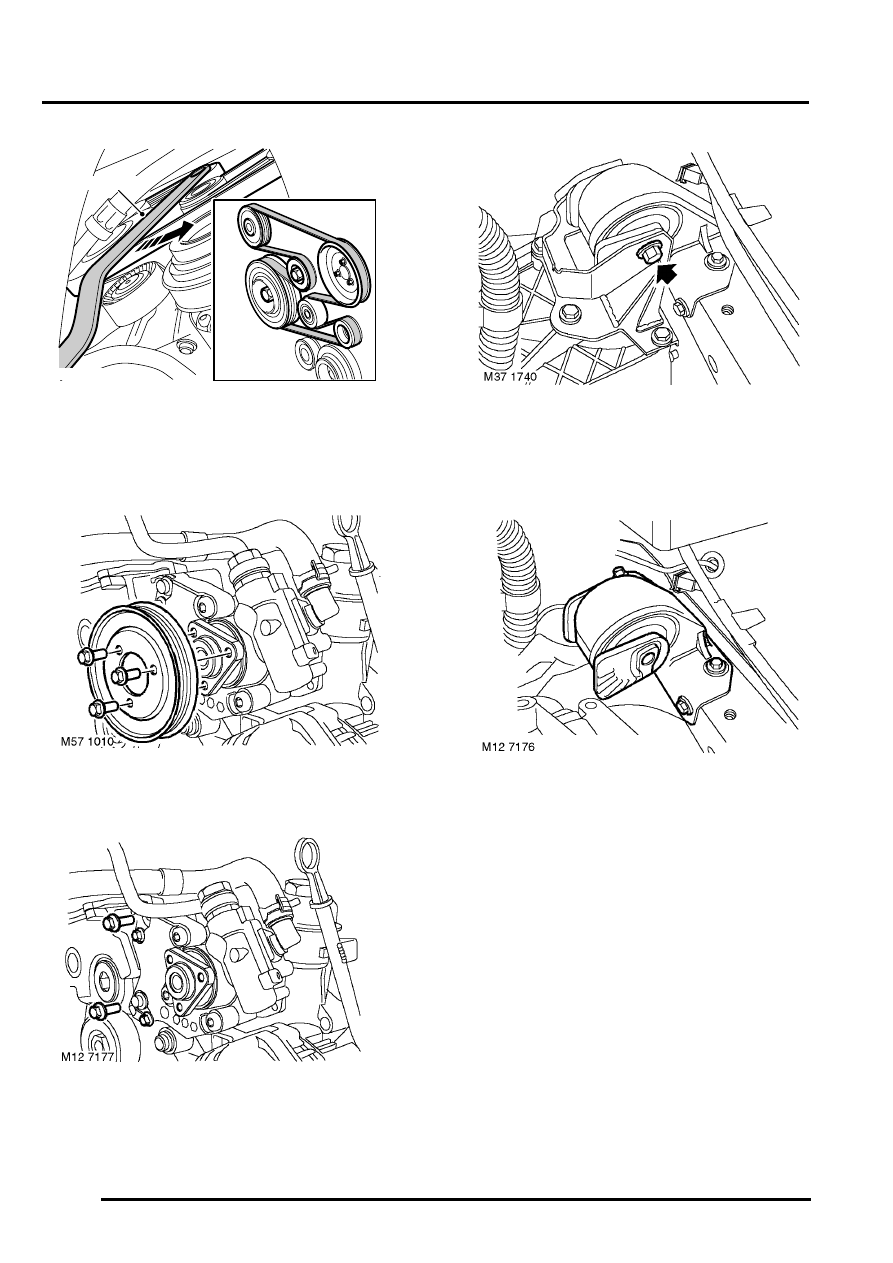

49. Fit LRT-12-163 to ancillary belt tensioner pulley

nut. Rotate tensioner anti-clockwise to release
tension from belt and remove ancillary drive
belt.

50. Remove bolts and remove PAS pump pulley.

51. Remove 4 bolts securing PAS pump to

mounting, release pump and tie aside.

52. Remove through bolt securing LH engine

mounting to gearbox bracket.

53. With assistance, manoeuvre and lower engine

and gearbox to floor.

54. Remove snubber from mounting.

Refit

1. Using a hoist, connect adjustable lifting

bracket, LRT-12-138 to engine.

2. Fit snubber to mounting.
3. Raise engine and gearbox, align gearbox

mounting bracket.

4. Adjust height of engine, fit through bolt securing

gearbox mounting bracket to gearbox mounting
on body and tighten bolt to 100 Nm (74 lbf.ft).

5. Fit PAS pump. Tighten M6 bolts to 10 Nm. and

M8 bolts to 24 Nm (18 lbf.ft).

6. Fit PAS pump pulley and align bolts holes.

Ensure FRONT mark is facing outwards. Fit
bolts finger tight.

7. Use LRT-12-163 to hold belt tensioner off and

with assistance, fit ancillary belt. Ensure belt is
correctly located in pulley grooves.

8. Tighten PAS pump pulley bolts to 10 Nm (7.5

lbf.ft).

M86 5290A

LRT-12-163
