ENGINE - TD4

REPAIRS 12-1-39

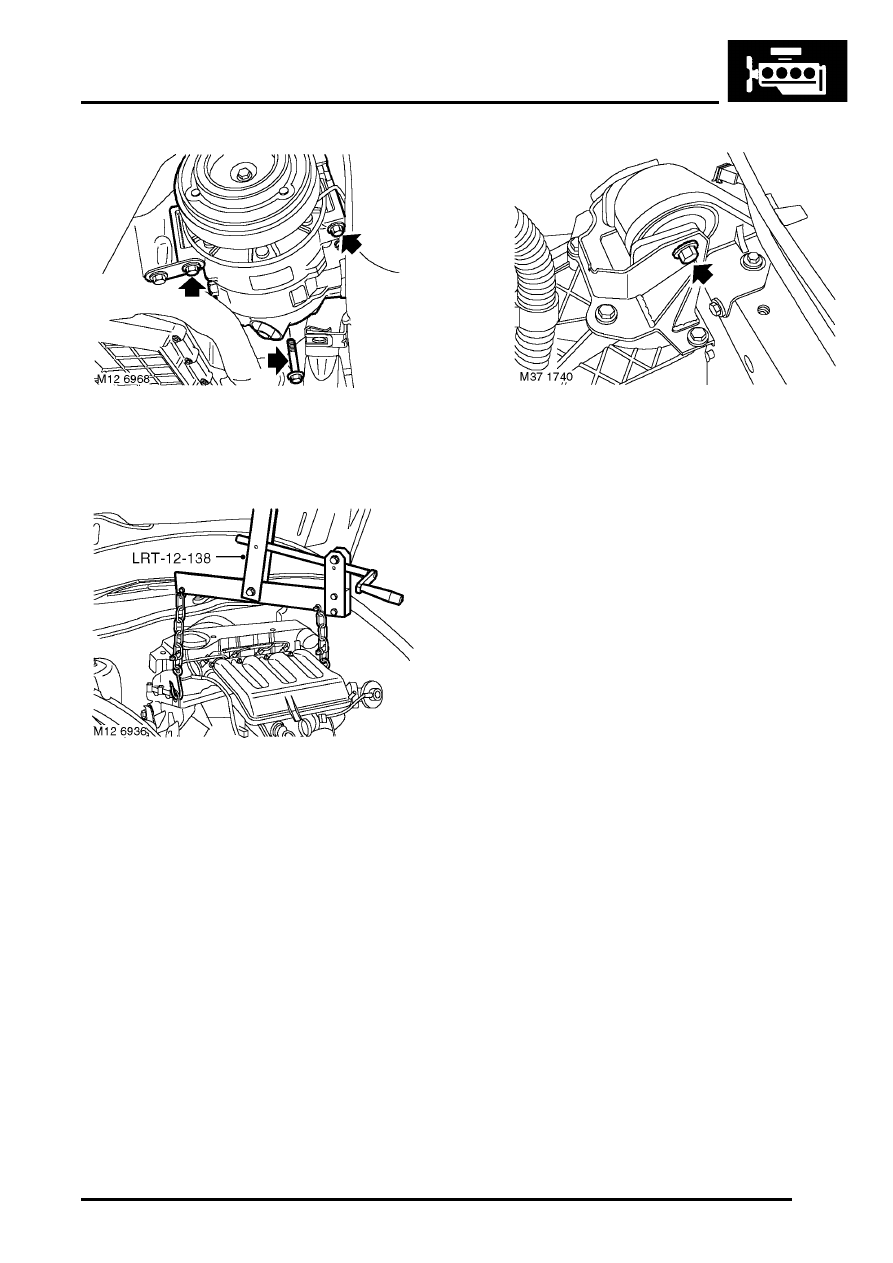

45. Models with A/C: Remove 3 bolts securing

compressor to mounting bracket, release
compressor and tie aside.

46. Fit tool LRT-12-138 to suitable lifting chains

and connect to lifting eyes on engine.

47. Remove hydramount



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

48. Remove through bolt securing LH engine

mounting to gearbox bracket.

49. Manoeuvre engine and gearbox to floor.

Ensure turbocharger pipe does not foul
intermediate gear linkage on bulkhead.

50. Lower hoist, disconnect and remove lifting

bracket, LRT-12-138.

Refit

1. Using a hoist, connect adjustable lifting

bracket, LRT-12-138 to engine.

2. Fit snubber to mounting.
3. Raise engine and gearbox, align gearbox

mounting bracket.

4. Adjust height of engine, fit through bolt securing

gearbox mounting bracket to gearbox mounting
on body and tighten bolt to 100 Nm (74 lbf.ft).

5. Fit hydramount.



 +

 ENGINE - Td4, REPAIRS,

Hydramount - engine - RH.

6. Lower hoist, disconnect and remove lifting

bracket, LRT-12-138.

7. Fit exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - front.

8. Align gearchange linkage to bulkhead, fit bolts

and tighten to 25 Nm (18 lbf.ft).

9. Fit upper and lower gearchange operating rods

to quadrant.

10. Fit propeller shaft to IRD flange and align

marks. Tighten nuts and bolts to 40 Nm (30
lbf.ft).

11. Fit rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

12. Clean ends of drive shaft and locations in hub

and differential.

13. With assistance, fit drive shafts to gearbox,

keeping both shafts square to prevent damage
to oil seals in gearbox.

ENGINE - TD4

12-1-40 REPAIRS

14. Models with A/C: Position A/C compressor, fit

bolts and tighten to 25 Nm (18 lbf.ft).

15. Models with A/C: Align compressor support

bracket to sump and tighten bolt to 10 Nm (7.5
lbf.ft).

16. Models with A/C: Fit lower coolant rail to sump

and tighten bolts to 10 Nm (7.5 lbf.ft).

17. Models with A/C: Ensure compressor drive

belt and compressor, crankshaft and tensioner
pulleys are clean.

18. Models with A/C: Fit compressor drive belt to

compressor pulley.

19. Models with A/C: Tension compressor drive

belt.


 +

 AIR CONDITIONING,

ADJUSTMENTS, Drive belt - compressor -
Td4.

20. Connect coolant hoses to FBH and secure with

clips.

21. Clean hoses and vacuum reservoir

connections.

22. Connect hoses to vacuum reservoir.
23. Clean hose and vacuum pump connections.
24. Fit vacuum hose and tighten clip.
25. Clean PAS reservoir hoses and connections.
26. Connect hoses to PAS reservoir and secure

clips.

27. Fit bolt, securing PAS pipe clip to engine lifting

eye and tighten to 10 Nm (7.5 lbf.ft).

28. Connect heater hoses and secure with clips.
29. Connect coolant hose to coolant rail and secure

with clip.

30. Connect top hose to radiator and secure with

clip.

31. Connect fuel hoses to clips on fuel rail.
32. Connect hose to intercooler and secure with

clip.

33. Fit cables to starter motor solenoid and tighten

nut to 13 Nm (10 lbf.ft).

34. Connect multiplug to 1st gear switch.
35. Connect reverse lamp switch multiplug.
36. Connect clutch pipe quick release connection.
37. Position earth lead to gearbox and tighten bolt

to 25 Nm (18 lbf.ft).

38. Fit engine harness leads to 'E' box and locate

grommets.

39. Fit 'E' box harness straps and tighten screws.

40. Connect multiplugs.
41. Fit ECM.



 +

 ENGINE MANAGEMENT SYSTEM -

EDC, REPAIRS, Engine control module
(ECM).

42. Refill gearbox with oil.



 +

 MANUAL GEARBOX - GETRAG,

ADJUSTMENTS, Gearbox oil - drain and
refill.

43. Untie and close bonnet.
44. Fit battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

45. Fit intake ducting assembly.
46. Refill cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

ENGINE - TD4

REPAIRS 12-1-41

Engine & automatic gearbox

$% 12.37.01.99

Remove

1. Position vehicle on a 2 post ramp.
2. Disconnect battery earth lead.
3. Tie bonnet back in upright position.
4. Drain cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

5. Remove intake ducting assembly.
6. Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

7. Remove engine ECM.



 +

 ENGINE MANAGEMENT SYSTEM -

EDC, REPAIRS, Engine control module
(ECM).

8. Disconnect multiplug from automatic gearbox

ECU.

9. Disconnect multiplug from glowplug ECU.

10. Disconnect engine harness multiplug from 'E'

box.

11. Remove 4 screws and remove 'E' box engine

harness clamps.

12. Release engine harnesses from 'E' box and  lay

over engine.

13. Remove bolt and release earth lead from

gearbox.

14. Release 2 gearbox harness multiplugs from

mounting bracket clips and disconnect
multiplugs.

15. Loosen selector cable trunnion nut.
16. Release clip, disconnect selector cable and

remove trunnion.

ENGINE - TD4

12-1-42 REPAIRS

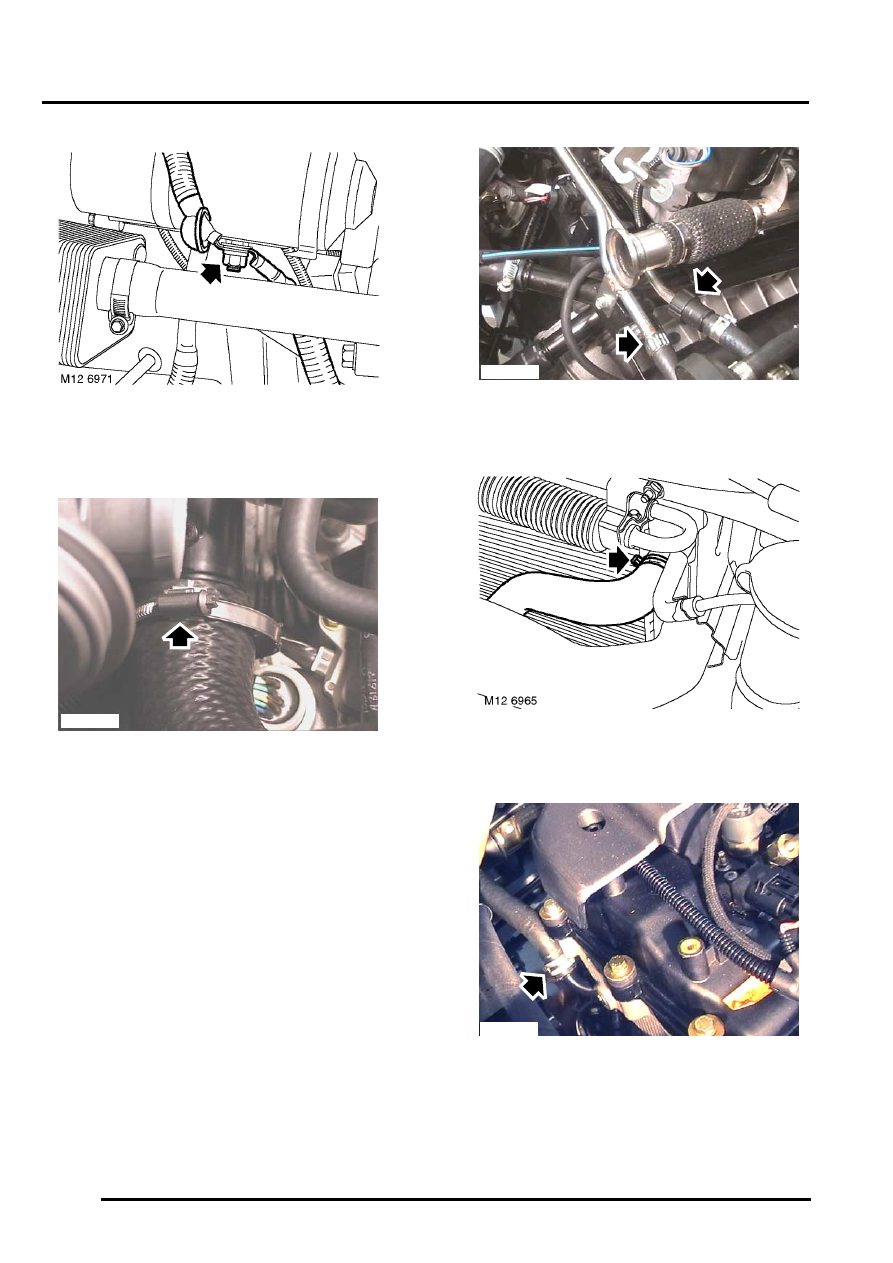

17. Release terminal cover, remove nut and

disconnect 2 cables from starter motor
solenoid.

18. Loosen clip and remove intercooler inlet hose

from engine.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

19. Position container to catch fuel spillage.

20. Release clips and disconnect fuel hoses from

fuel rail.

21. Release clip and disconnect top hose from

radiator.

22. Release clip and disconnect hose from coolant

rail.

M44 1681

M12 6966

M12 6974
