ENGINE - TD4

REPAIRS 12-1-35

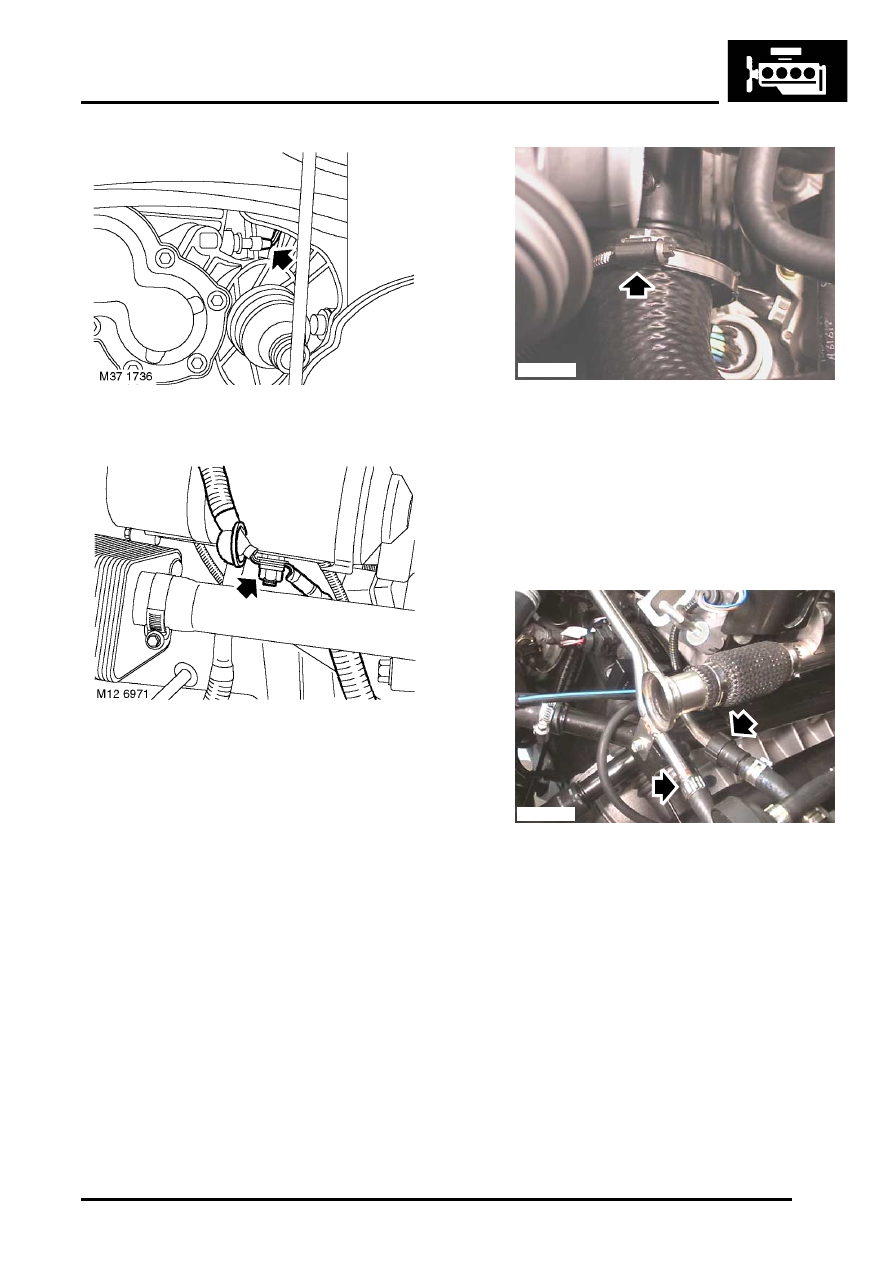

15. Disconnect multiplug from reverse lamp switch.

16. Release terminal cover, remove nut and

disconnect 2 cables from starter motor
solenoid.

17. Loosen clip and remove intercooler inlet hose

from engine.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

18. Position container to catch fuel spillage.

19. Release clips and disconnect fuel hoses from

fuel rail.

M44 1681

M12 6966

ENGINE - TD4

12-1-36 REPAIRS

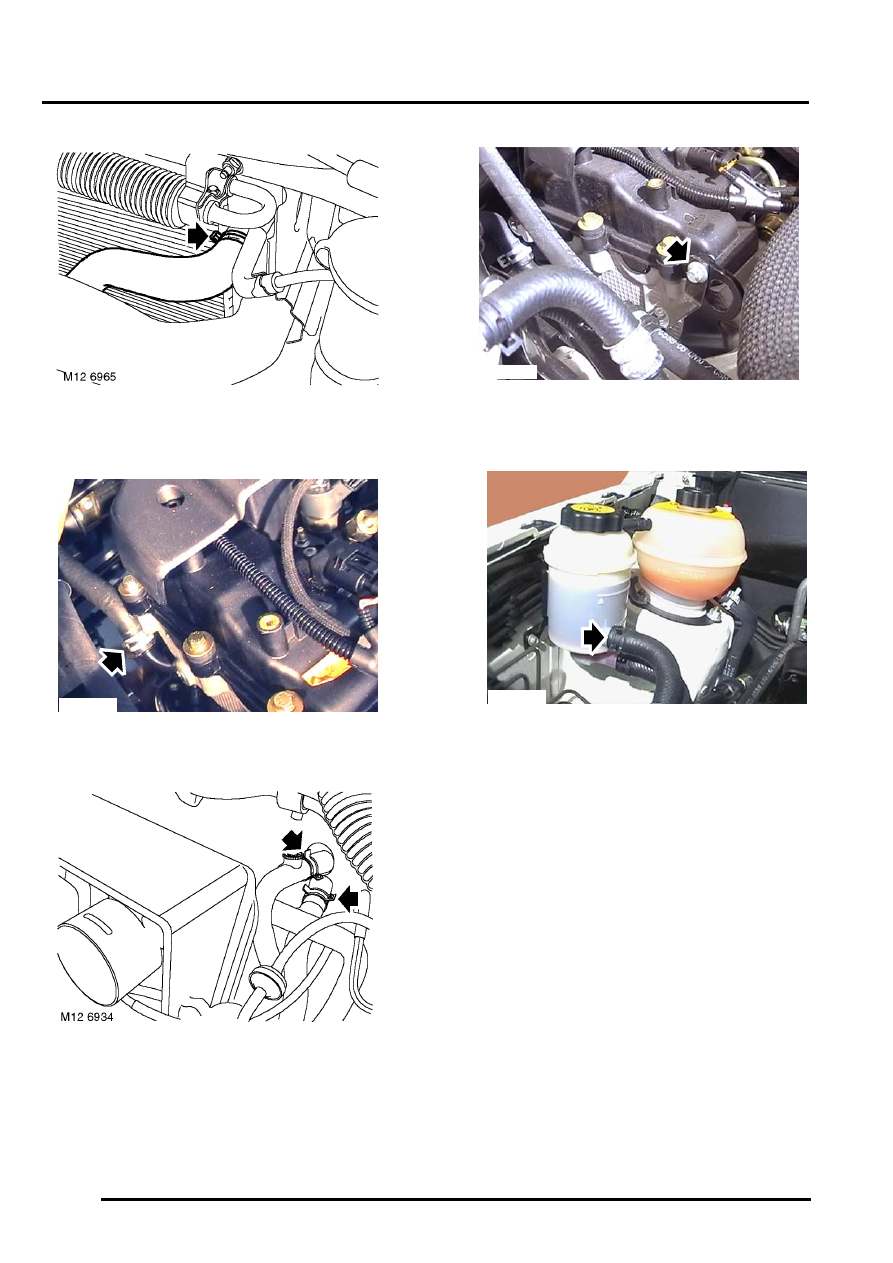

20. Release clip and disconnect top hose from

radiator.

21. Release clip and remove hose from coolant rail.

22. Release 2 clips securing heater hoses to heater

and release hoses.

23. Remove bolt securing PAS pipe clip to engine

lifting eye.

24. Place a suitable container beneath PAS

reservoir, release clip and return hose from
mount. Allow fluid to drain.

CAUTION: Care must be taken to ensure
that oil or fluid does not enter or
contaminate the alternator.

25. Cover alternator to prevent PAS oil

contamination.

M12 6974

M12 6975



M12 6972

ENGINE - TD4

REPAIRS 12-1-37

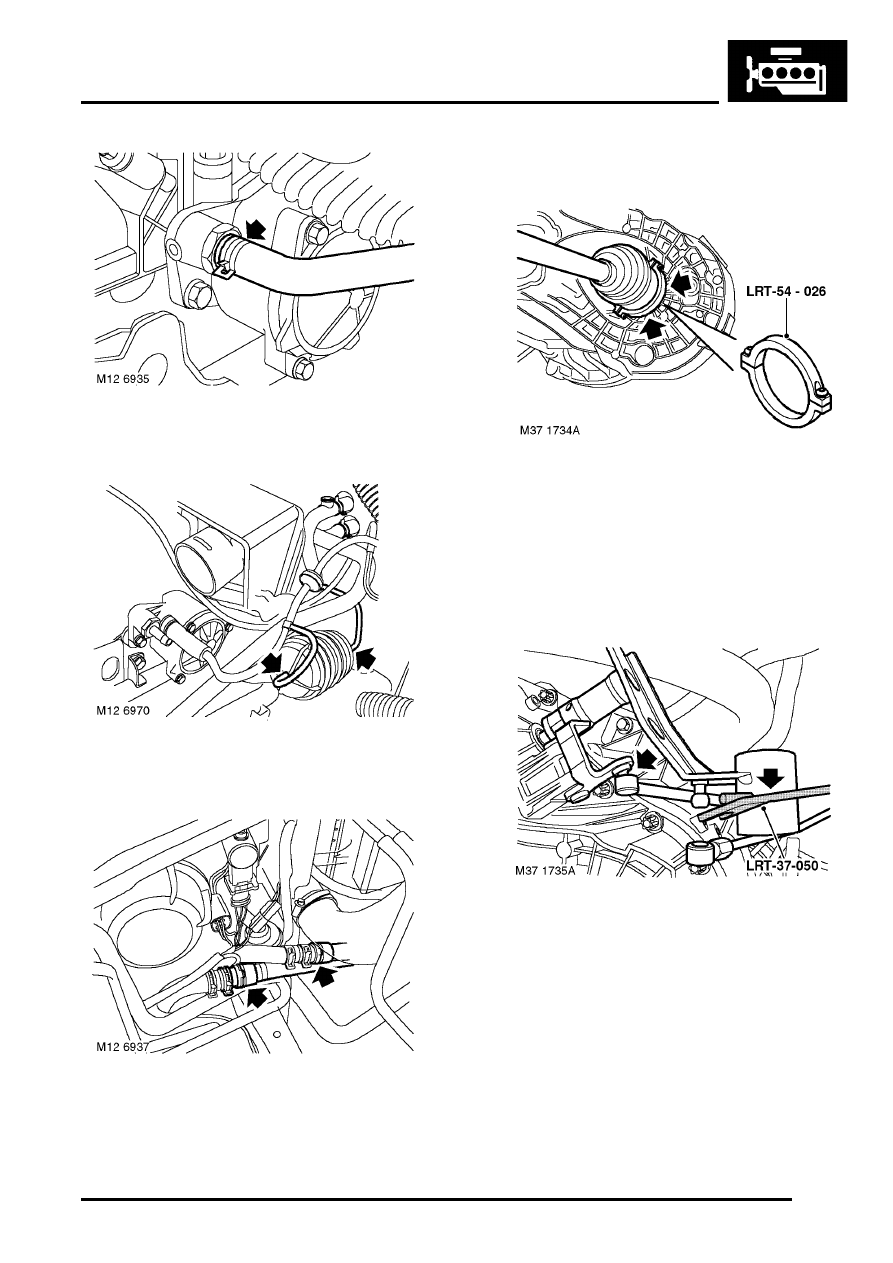

26. Release clip and disconnect hose from vacuum

pump.

27. Note fitted position and carefully remove both

vacuum hoses from reservoir.

28. Release clips, disconnect coolant feed and

return hoses from FBH.

29. Remove rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

30. Secure LRT-54-026,  to drive shaft inboard

joints. Using a suitable lever, release drive
shafts from IRD unit and gearbox.

31. With assistance, pull hubs outwards and

remove drive shafts from gearbox and IRD unit.

32. Remove front exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - front.

33. Use LRT-37-050 and release gear change rods

from quadrant.

34. Raise one rear wheel for rotation of propeller

shaft to access bolts.

ENGINE - TD4

12-1-38 REPAIRS

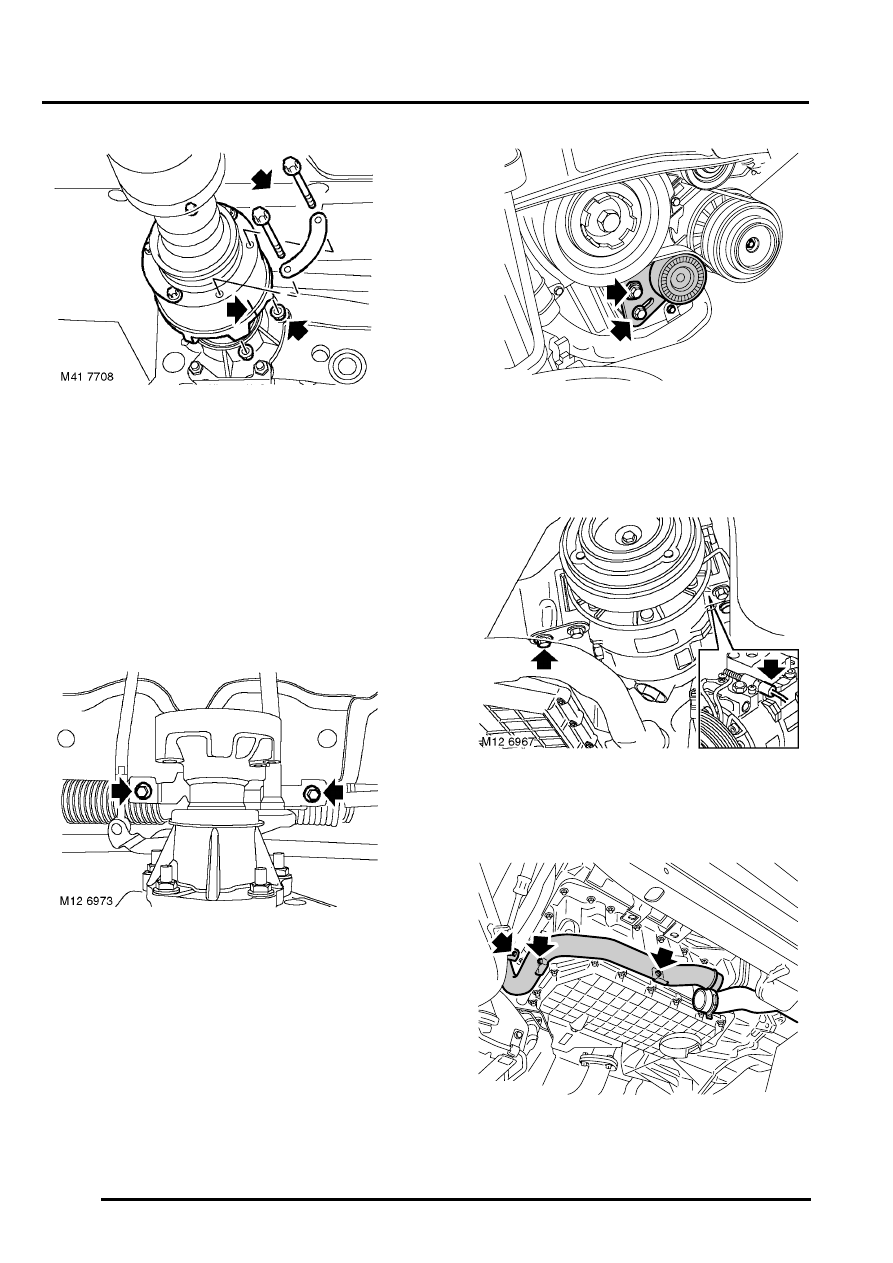

35. Reference mark position of viscous coupling

flange to IRD unit flange to aid reassembly.

36. Remove 6 nuts and bolts securing propeller

shaft to IRD drive flange.

37. Release propeller shaft from IRD drive flange

and tie shaft aside.

CAUTION: Care must be taken to support
the Tripode joint when removed from the
IRD unit. To avoid damage to gaiter or steel
can, the joint should not be allowed to fully
extend or be dropped.

38. Remove 2 bolts securing gearchange linkage

to bulkhead and tie aside.

39. Drain gearbox oil.



 +

 MANUAL GEARBOX - GETRAG,

ADJUSTMENTS, Gearbox oil - drain and
refill.

40. Drain fluid from IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

41. Models with A/C: Loosen pivot and clamp

bolts on compressor drive belt tensioner.

42. Models with A/C: Remove compressor drive

belt from compressor pulley.

43. Models with A/C: Loosen bolt securing

compressor support bracket to sump, do not
remove.

44. Models with A/C: Remove 3 bolts securing

coolant rail to sump and cylinder block.

M82 0721

M86 5309
