MAINTENANCE

MAINTENANCE

10-31

Endorse Service Record

Check

1. Insert date and mileage of next service.
2. Insert current mileage.
3. Tick one of the boxes on the brake fluid

replacement indicator.

4. Tick one of the boxes on the camshaft drive belt

indicator.

5. Endorse service record with dealer stamp.
6. Sign and date the service record.
7. Sign and date the maintenance check sheet.

Report any Unusual Features

Check

1. Produce a written report detailing additional

work necessary, or items which may require
attention prior to the next service.

MAINTENANCE

10-32

MAINTENANCE

ENGINE - TD4

ADJUSTMENTS

12-1-1

ENGINE - Td4

ADJUSTMENTS

Piston protrusion - check - head
removed

$% 12.17.35.01

Check

1. Cylinder block face and piston crowns must be

clean.

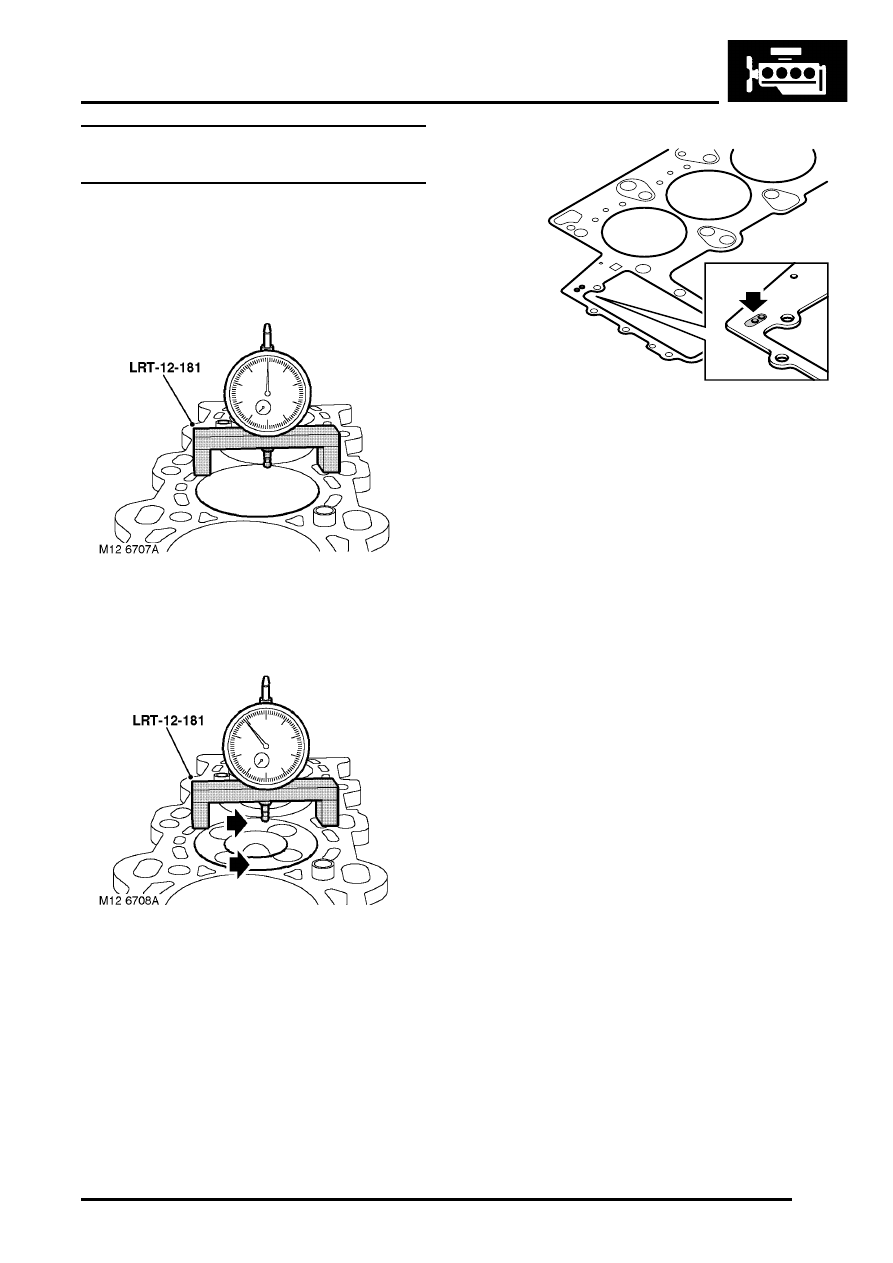

2. Position a dial gauge with LRT-12-181 to

cylinder block.

3. Preload and zero gauge on cylinder block.

4. Move gauge onto piston crown and measure

protrusion in 2 places as shown. Determine
piston TDC position by rocking crankshaft, until
highest reading is achieved. Note and record
piston protrusion measurements and repeat for
all pistons.

5. The highest piston protrusion figure recorded,

determines thickness of required cylinder head
gasket.

6. Piston protrusion up to 0.91 mm, install 1 hole

cylinder head gasket.

7. Piston protrusion 0.92 mm to 1.03 mm, install 2

hole cylinder head gasket.

8. Piston protrusion over 1.03 mm, install 3 hole

cylinder head gasket.

M12 6709

ENGINE - TD4

12-1-2

ADJUSTMENTS

Valve timing - check & adjust

$% 12.65.07

Check

1. Disconnect battery earth lead.
2. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Remove RH front road wheel.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

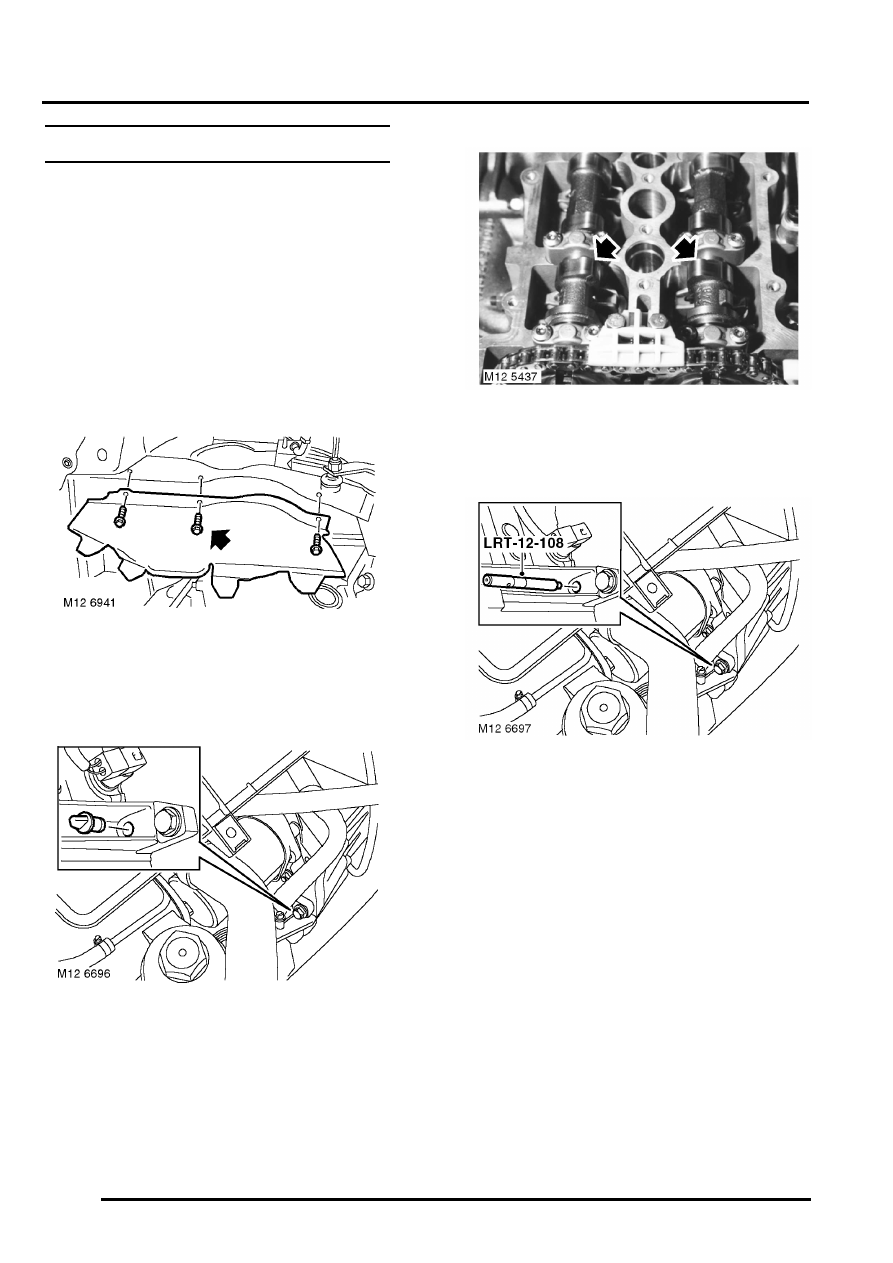

4. Remove 3 bolts and remove splash shield.
5. Remove camshaft cover gasket.



 +

 ENGINE - Td4, REPAIRS, Gasket -

camshaft cover.

6. Remove blanking plug from crankshaft timing

pin hole.

7. With a socket and bar fitted to pulley bolt, rotate

crankshaft in direction of rotation until No 1
cylinder is at TDC position.

8. Fit LRT-12-108 to lock crankshaft.

CAUTION: Do not turn the engine against its
direction of rotation.
