MAINTENANCE

MAINTENANCE

10-19

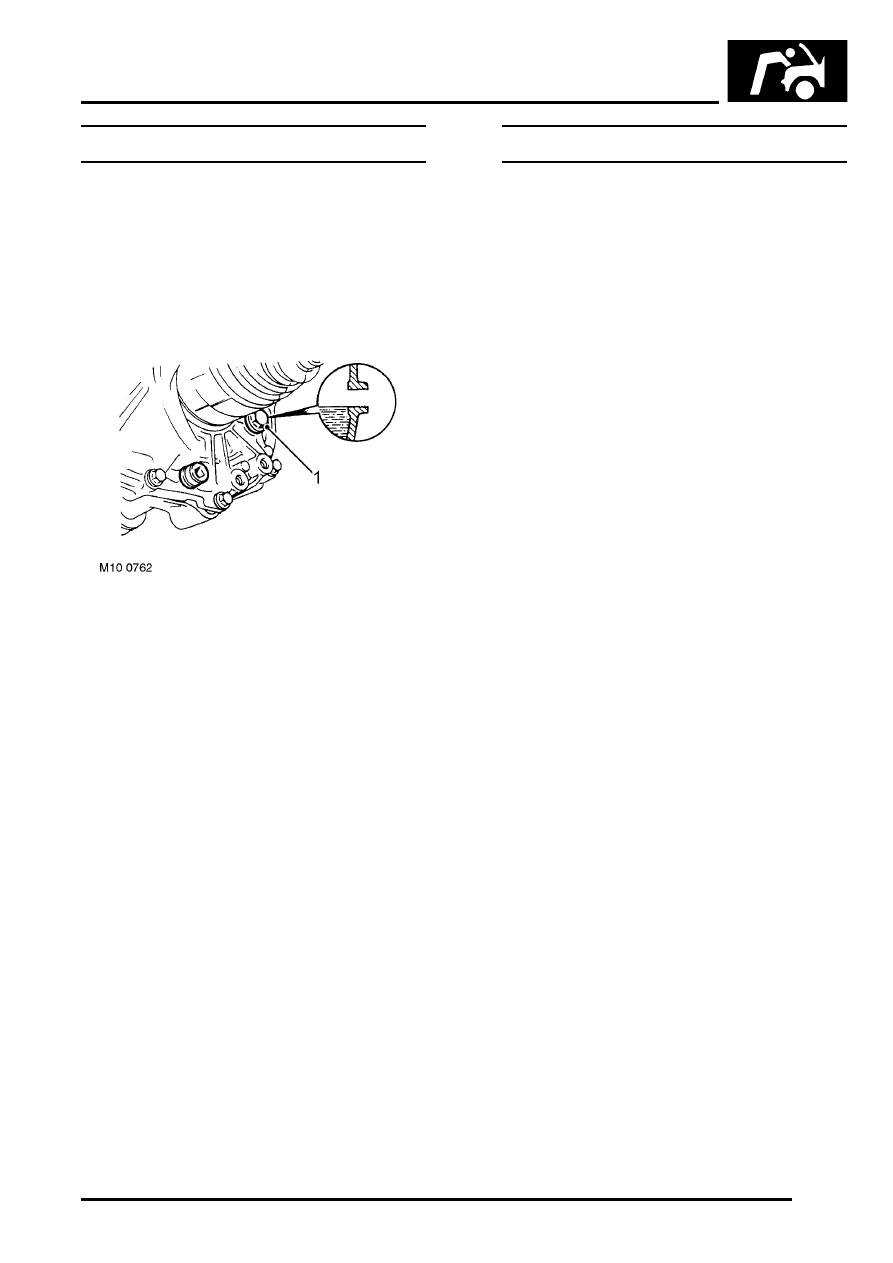

Manual Gearbox – PG1

Check and Top-up Fluid

WARNING: Avoid excessive skin contact
with mineral oil. Mineral oils remove the
natural fats from the skin, leading to
dryness, irritation and dermatitis.

1. With vehicle on a ramp at a convenient working

height, carefully remove gearbox level plug and
collect sealing washer.

2. Check oil level. Before topping up oil level,

check for visible signs of  leakage. Pay
particular attention to drive shaft oil seal.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Lubrication.

3. Refit level plug to gearbox using a new sealing

washer.

Manual Gearbox – GETRAG

Replace Fluid

WARNING: Avoid excessive skin contact
with mineral oil. Mineral oils remove the
natural fats from the skin, leading to
dryness, irritation and dermatitis.

1. Replace gearbox fluid.



 +

 MANUAL GEARBOX - GETRAG,

ADJUSTMENTS, Gearbox oil - drain and
refill.

MAINTENANCE

10-20

MAINTENANCE

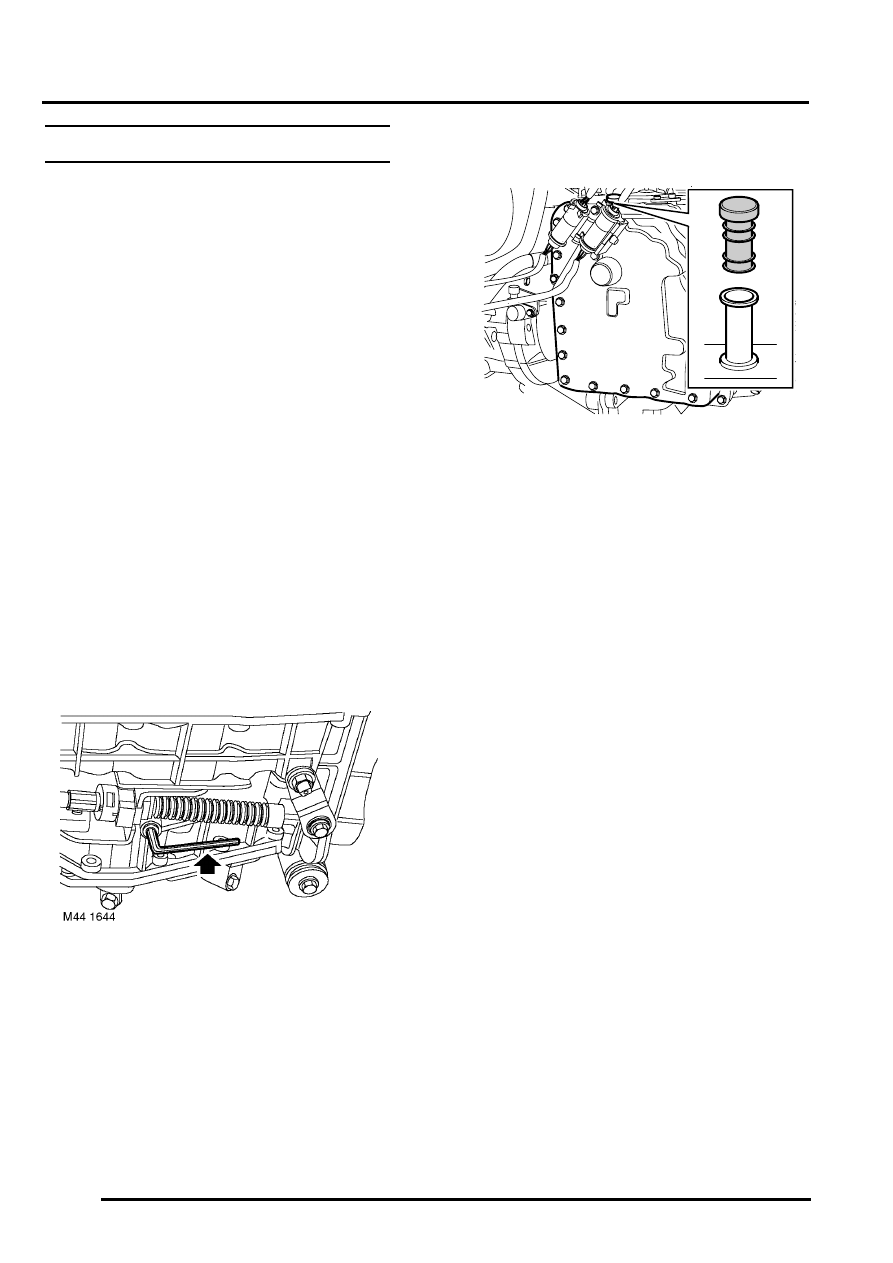

Automatic Gearbox – JATCO

Check and top-up fluid

WARNING: Avoid excessive skin contact
with mineral oil. Mineral oils remove the
natural fats from the skin, leading to
dryness, irritation and dermatitis.

1. Position vehicle on ramp.
2. Apply handbrake and position chocks under

front and rear wheels.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Connect TestBook to monitor gearbox fluid

temperature.

CAUTION: The gearbox fluid level must only
be checked when the temperature of the
fluid is between 35

°

 and 45

°

. The reading

obtained will be incorrect if the fluid is
outside this temperature range.

5. Start engine, move selector lever from 'P'

through all gear positions, pausing in each gear
position for 2-3 seconds and return to 'P'
position.

6. Clean area around level plug.

7. With the engine still running, remove level plug

using a 5 mm Allen socket and allow any
excess fluid to drain off.

WARNING: Observe due care when draining
gearbox fluid as the fluid can be very hot.

CAUTION: There are a number of similar
fixings/plugs on the underside of the
gearbox. It is imperative that the correct
plug is removed prior to checking the level.
Removing the wrong fixing/plug could
result in internal damage to the gearbox.

8. If no fluid loss is apparent when level plug is

removed:

9. Remove filler plug and add fluid until it just runs

from level plug aperture.

When topping up after a new air blast cooler
(Td4 hot climates) has been fitted, an extra
420 cc of fluid is required. The fluid must
also reach a temperature of 80

°

 C (176

°

 F) to

allow the switch on the cooler to open.

10. Move selector lever from 'P' through each gear

position and return to 'P' , allowing any excess
fluid to drain off.

11. Fit new level plug and tighten to 14 Nm (10

lbf.ft).

12. Clean and fit filler plug.
13. Disconnect TestBook.
14. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

M44 1642

MAINTENANCE

MAINTENANCE

10-21

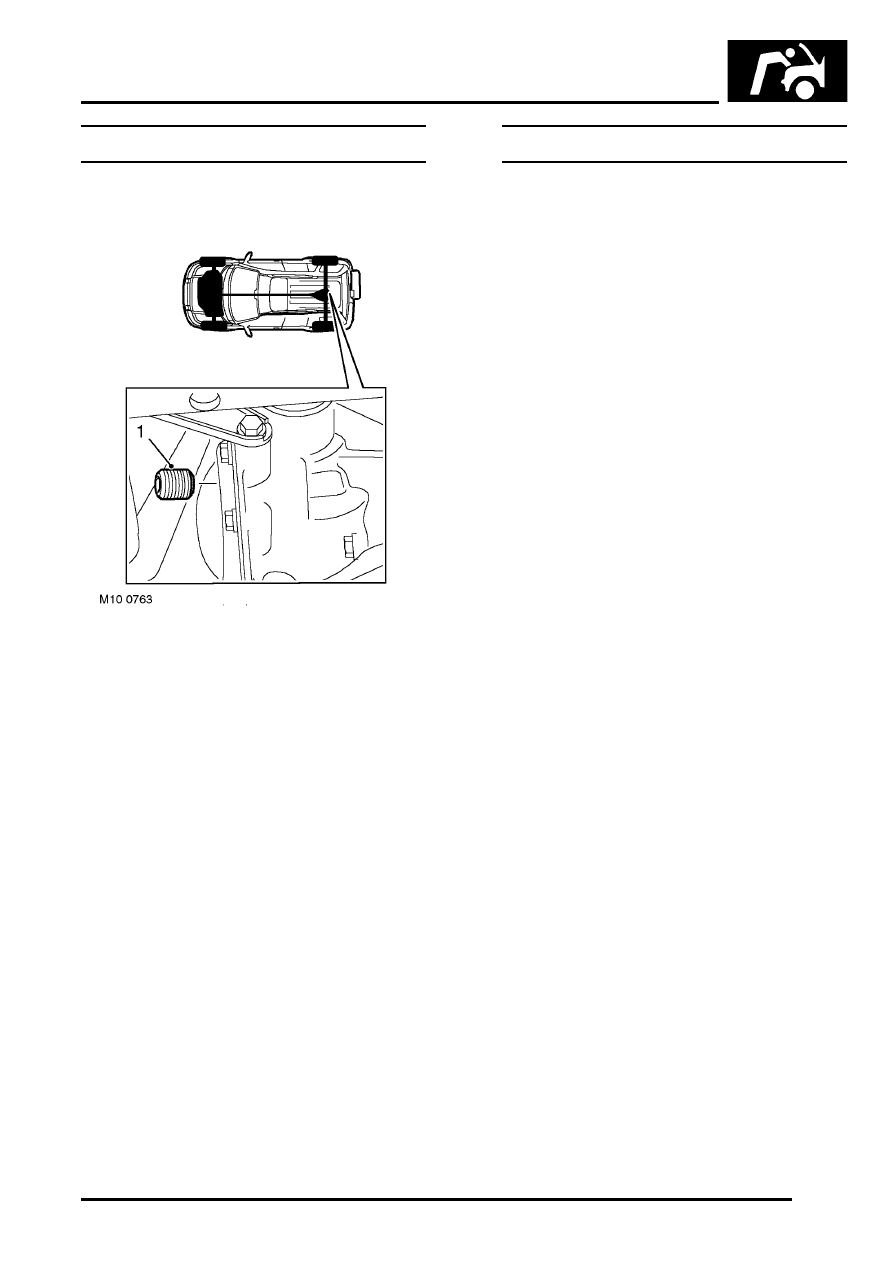

Rear Axle

Replace Fluid

1. With vehicle on a ramp at a convenient working

height, carefully remove rear differential level
plug.

2. Check oil level. Before topping up oil level,

check for visible signs of  leakage. Pay
particular attention to drive shaft oil seals,
differential  pinion oil seal and backplate
gasket.

3. Refit level plug to rear differential.

Clutch Pipes and Unions

Check

1. Check route of clutch pipe from master cylinder

to slave cylinder. Ensure that pipe is correctly
retained and shows no signs of fluid leakage or
chafing.

2.  Check unions for signs of fluid leakage.

MAINTENANCE

10-22

MAINTENANCE

Windscreen and Rear Washer Reservoir

Check and Top-up

1. Release cap from washer reservoir and fill with

the correct concentration of screen washer
fluid.

2. Refit cap ensuring it is securely fastened.

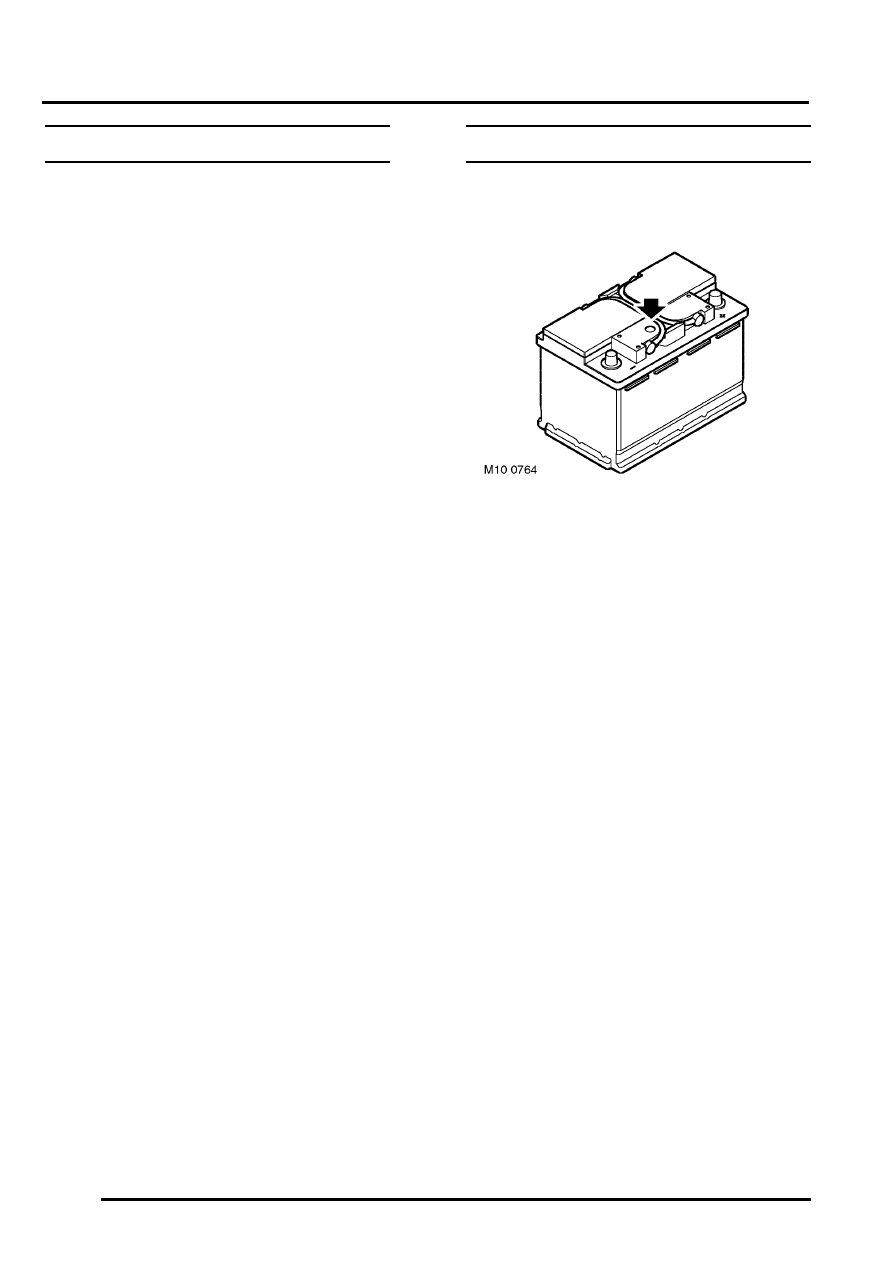

Battery

Check

1. Check battery condition indicator.   Green =

OK.  Black = Battery requires charging.   Clear/
white = New battery required.

2. Clean and check security of battery terminals.

Smear with petroleum jelly.
