GENERAL DATA

04-37

Dimensions

* At EEC kerb weight

Overall length (inc. 195/80 spare wheel/tyre):

 K1.8

4368 mm (14ft 4 in)

 KV6

4433 mm (14 ft 7 in)

 Td4

4368 mm (14ft 4 in)

Overall length (inc. 195/80 spare wheel/tyre):

 K1.8

4368 mm (14ft 4 in)

 KV6

4433 mm (14 ft 7 in)

 Td4

4368 mm (14ft 4 in)

Overall width (including mirrors)

2.068 m (6 ft 9.4 in)

Overall height (including roof bars and cross rails)*

1.708 m (5 ft 7.2 in)

Overall height (including roof bars and cross rails)*

 3 door

1.808 m (5 ft 11.2 in)

 5 door

1.828 m (5 ft 11.9 in)

Ground clearance (minimum)*:

186 mm (7.3 in)

Wading depth (maximum)

400 mm (15.7 in)

Wheelbase

2.557 m (8ft 4.7 in)

Maximum approach angle

*

30.5

°

Maximum departure angle (with towbar)

*

24

°

Maximum departure angle (without towbar)

*

33.9

°

Maximum breakover angle

24

°

Track:

 Front

 Rear

1534 mm (60.4 in)
1545 mm (60.8 in)

GENERAL DATA

04-38

Weights

To increase stability, it is recommended that the nose weight is adjusted to the maximum limit, when loading to the

maximum trailer weight.

*

If the vehicle trailer weight exceeds 1800 kg the vehicle payload must be restricted to less than the Gross Vehicle

Weight to ensure the loaded combination is within the Gross Train Weight limit.

**

The Gross Towing Weight must be reduced by 300 kg (662 lb) when the following conditions exist:

climbing steep hills and mountains with air temperatures above 30

°

C

/ 86

°

F.

altitudes of 1000 metres (3280 feet) and above.

Unladen weight (full fuel tank, excluding options):

 Petrol models

1410 - 1620 kg (3109 -3572 lb)

 Diesel models

1540 - 1635 kg (3395 - 3605 lb)

Maximum gross vehicle weight:

 Td4 engine

2080 kg (4586 lb)

 K1.8 engine

2040 kg (4497 lb)

 KV6 engine

2060 kg (4542 lb)

Maximum front axle load:

 Td4 engine

1100 kg (2425 lb)

 K1.8 engine

1050 kg (2315 lb)

 KV6 engine

1080 kg (2381 lb)

Maximum rear axle load (must NOT be exceeded)

1120 kg (2470 lb)

Maximum trailer weight

*

2000 kg (4410 lb)

Maximum Gross Towing Weight (GTW)

**

:

 Td4 engine

3880 kg (8554 lb)

 K1.8 engine

3840 kg (8466 lb)

 KV6 engine

3860 kg (8510 lb)

Towing hitch downward load (maximum nose weight)

140 kg (309 lb)

Maximum roof rack load (includes weight of rack)

75 kg (165 lb)

IDENTIFICATION NUMBERS

05-1

IDENTIFICATION NUMBERS

Vehicle Identification Number

Location

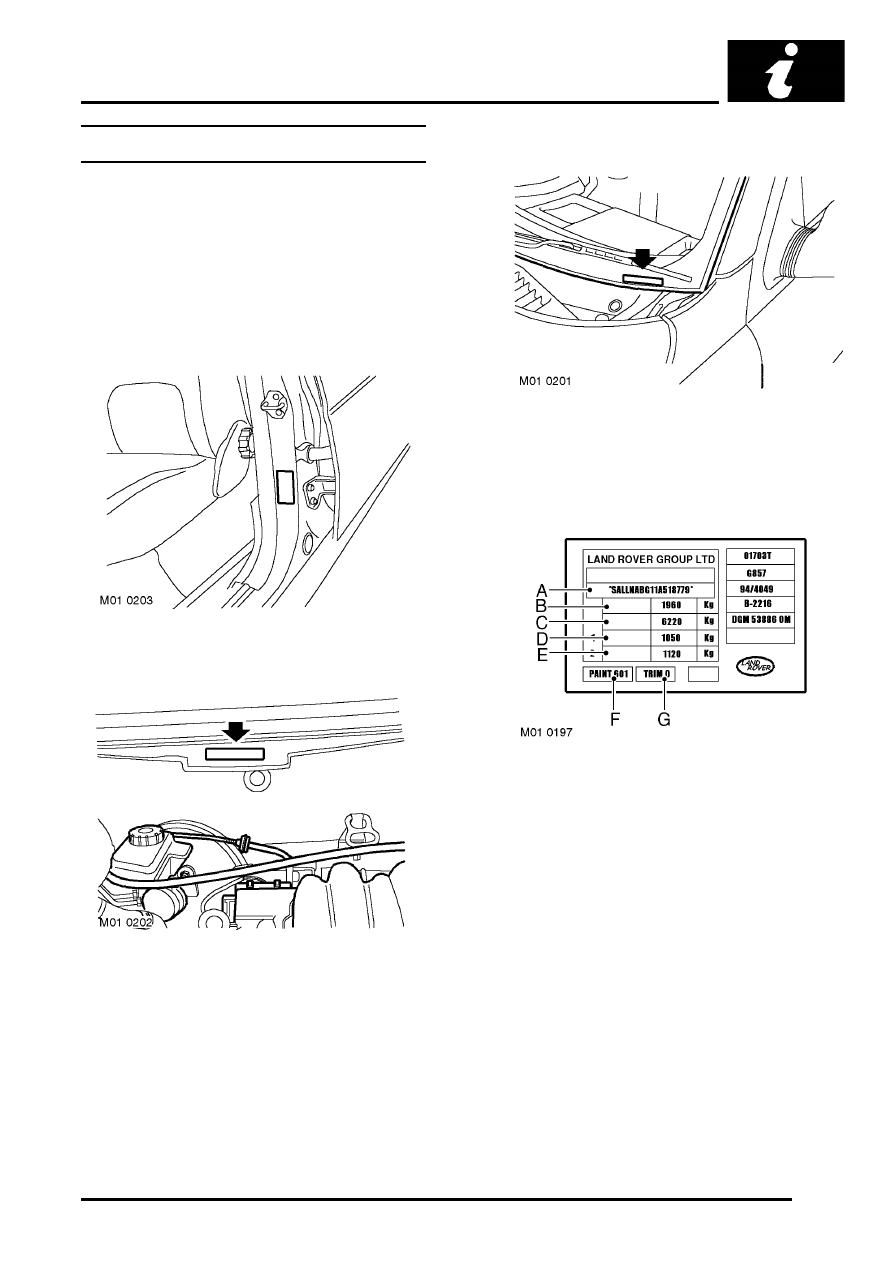

The Vehicle Identification Number (VIN) plate is
stamped on a plate attached to the LH 'B' post. The
VIN is also stamped in the following locations:

l

On a plate attached to the LH 'B' post.

l

On a plate behind the LH lower corner of the
windscreen.

l

On the engine compartment bulkhead.

VIN plate on LH 'B' post

Engine compartment bulkhead

Windscreen VIN

The VIN plate contains the following information:

Vehicle Identification Number (VIN)

Gross vehicle weight

Gross train weight

Maximum front axle load

Maximum rear axle load

Paint code

Trim code

IDENTIFICATION NUMBERS

05-2

Vehicle identification number -
Example: SALLNABG11A518779

Paint and trim colour codes
Paint code (F):
 a 3 digit code identifying the original
paint colour is stamped on the VIN plate.

Trim code (G):a code identifying the original trim
type and colour is stamped on the VIN plate.

Identification Number Locations

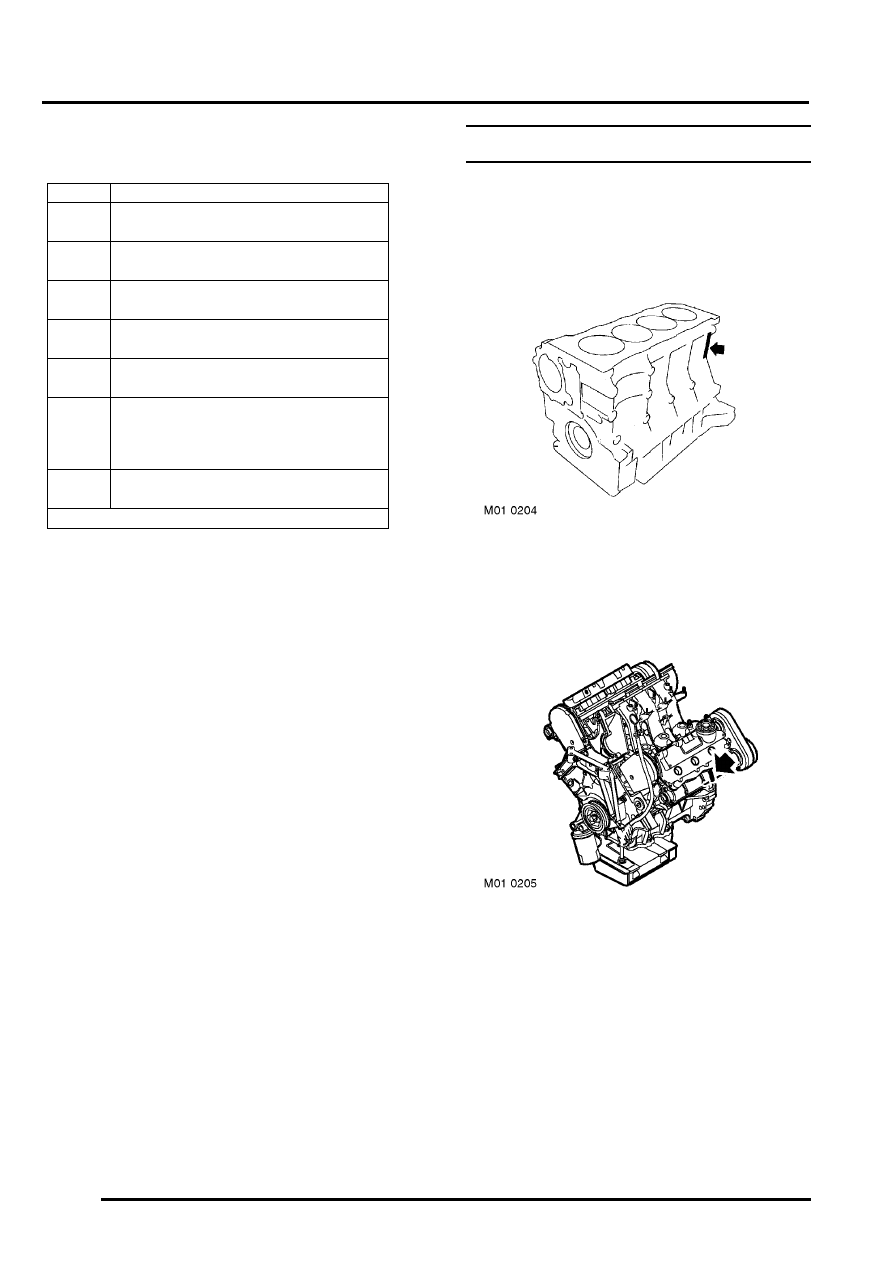

Engine number
K1.8 engine serial number is stamped on the front
face of the cylinder block adjacent to the gearbox.

K1.8 engines

KV6 engine serial number is stamped on the rear LH
side of the LH cylinder block.

KV6 engines

Td4 engine serial number is stamped on the bottom
LH side of the cylinder block.

SAL

Manufacturer's identifier (Land Rover UK)

LN

Marque/Model

LN = Freelander

A

Trim level

A = Trim level 1

B

Body Style

B = 5 door models

G

Engine

G = KV6 petrol engine models

1

Transmission and Steering

1 = RHD automatic gearbox

1

Model Year

1 = 2001 Model year
2 = 2002 Model year
3 = 2003 Model year

A

Assembly plant

A = Solihull

6 figures= Serial number
