DRIVING AIDS

REPAIRS 86-8-13

REPAIRS

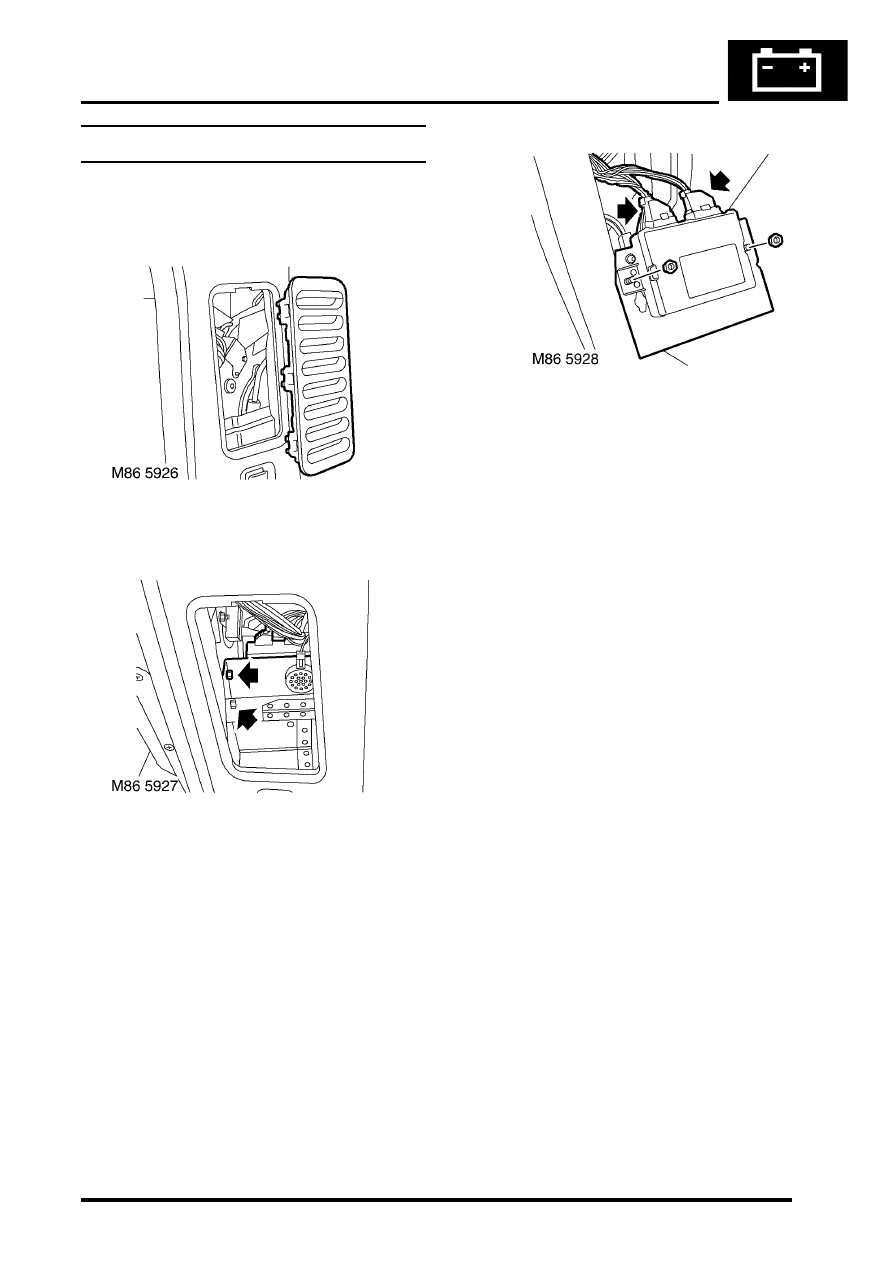

Control unit (ECU) - parking aid

$% 86.54.10

Remove

1. Remove loadspace LH side trim casing access

panel.

2. Remove 2 bolts securing parking aid ECU

mounting bracket to body and manoeuvre ECU
and bracket assembly from behind trim casing.

3. Disconnect multiplug from ECU.
4. Remove 2 nuts securing ECU to bracket.
5. Remove ECU.

Refit

1. Fit ECU to mounting bracket and fit and tighten

nuts.

2. Connect ECU multiplug.
3. Manoeuvre ECU and mounting bracket

assembly behind trim casing, align, fit bolts and
tighten to 25 Nm (18 lbf.ft).

4. Fit access panel.

DRIVING AIDS

86-8-14 REPAIRS

Sounder - parking aid rear

$% 86.54.19

Remove

1. Remove loadspace LH side trim casing access

panel.

2. Remove 2 bolts securing parking aid ECU

mounting bracket to body and manoeuvre ECU
and bracket assembly from behind trim casing.

3. Disconnect multiplugs from parking aid ECU

and parking aid sounder.

4. Remove 2 nuts and bolts securing parking aid

ECU to bracket and remove the ECU.

5. Remove 2 screws securing parking aid sounder

to bracket and remove the sounder.

Refit

1. Fit parking aid sounder to the bracket and

secure with screws.

2. Fit parking aid ECU to the bracket and secure

with nuts and bolts.

3. Connect multiplugs to parking aid ECU and

parking aid sounder.

4. Manoeuvre ECU and mounting bracket

assembly behind trim casing, align, fit bolts and
tighten to 25 Nm (18 lbf.ft).

5. Fit and secure loadspace access panel.

DRIVING AIDS

REPAIRS 86-8-15

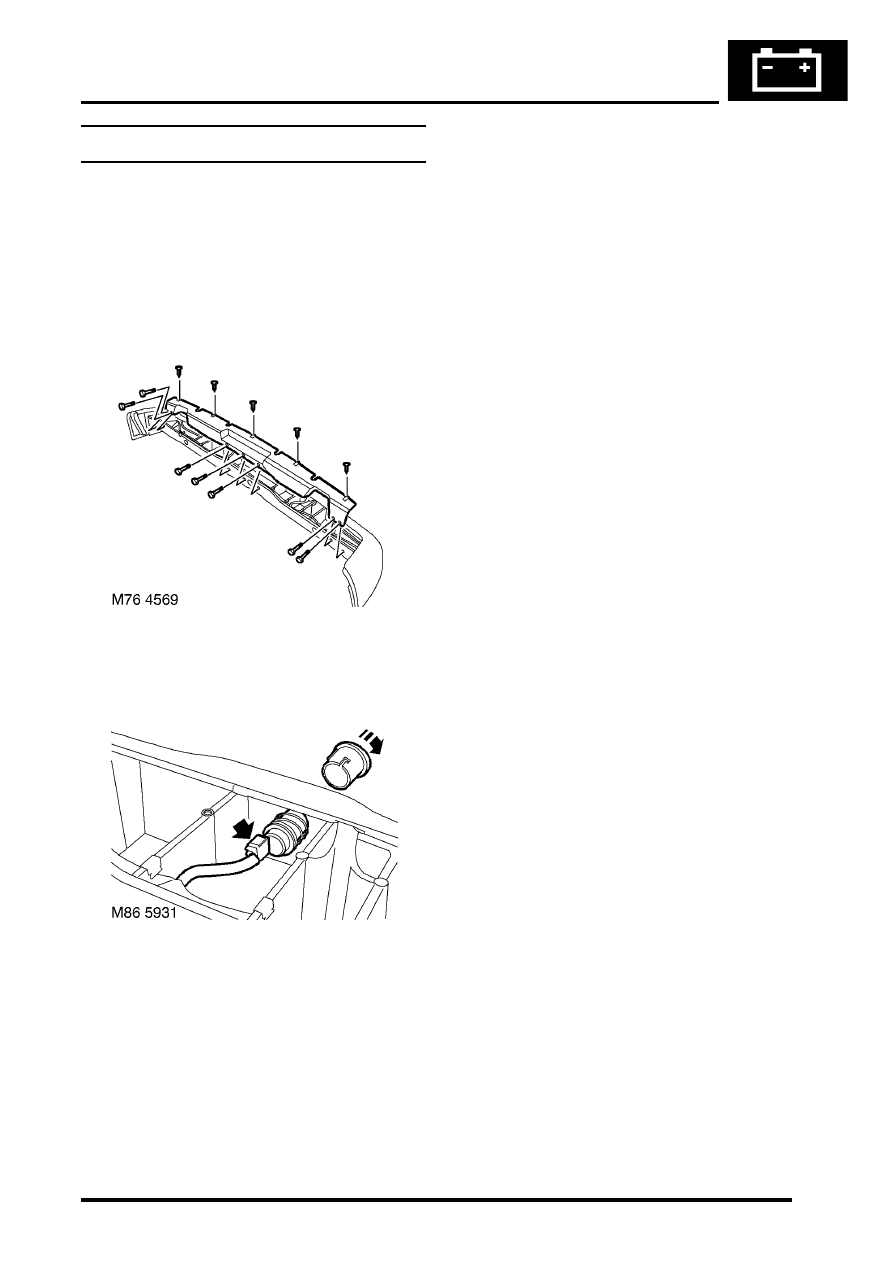

Sensor - parking aid - rear - inner

$% 86.54.23

Remove

1. Remove rear bumper assembly.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - rear - from 03MY.

2. Remove 7 bolts and 5 screws securing closing

panel and remove panel.

3. Disconnect multiplug from sensor.
4. Release and remove sensor and sensor

housing.

Refit

1. Clean sensor location on bumper.
2. Fit sensor housing to bumper, ensuring lug on

housing is aligned with cut-out in bumper.

3. Fit and secure sensor to housing.
4. Connect multiplug.
5. Fit closing panel and secure with bolts and

screws.

6. Fit bumper assembly.



 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - rear - from 03MY.

DRIVING AIDS

86-8-16 REPAIRS

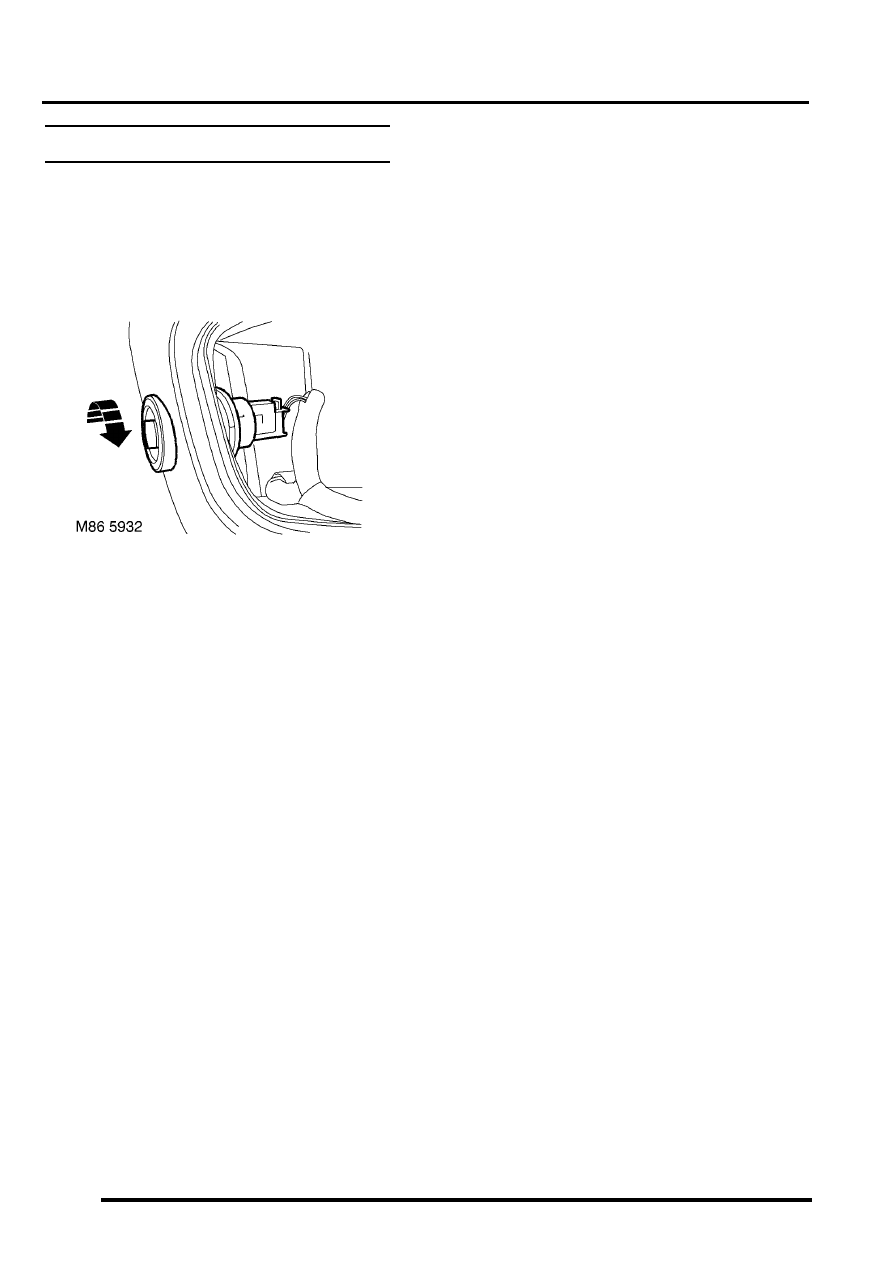

Sensor - parking aid - rear - outer

$% 86.54.24

Remove

1. Remove tail lamp from bumper.



 +

 LIGHTING, REPAIRS, Lamp - tail/

flasher - bumper.

2. Disconnect multiplug from sensor.
3. Release and remove sensor and sensor

housing.

Refit

1. Clean sensor location on bumper.
2. Fit sensor housing to bumper, ensuring lug on

housing is aligned with cut-out in bumper.

3. Fit and secure sensor to housing.
4. Connect multiplug.
5. Fit tail lamp.



 +

 LIGHTING, REPAIRS, Lamp - tail/

flasher - bumper.
