HARNESSES

REPAIRS 86-7-13

Harness - engine - diesel

$% 86.70.17

Remove

1. Remove engine acoustic cover.
2. Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Battery carrier.

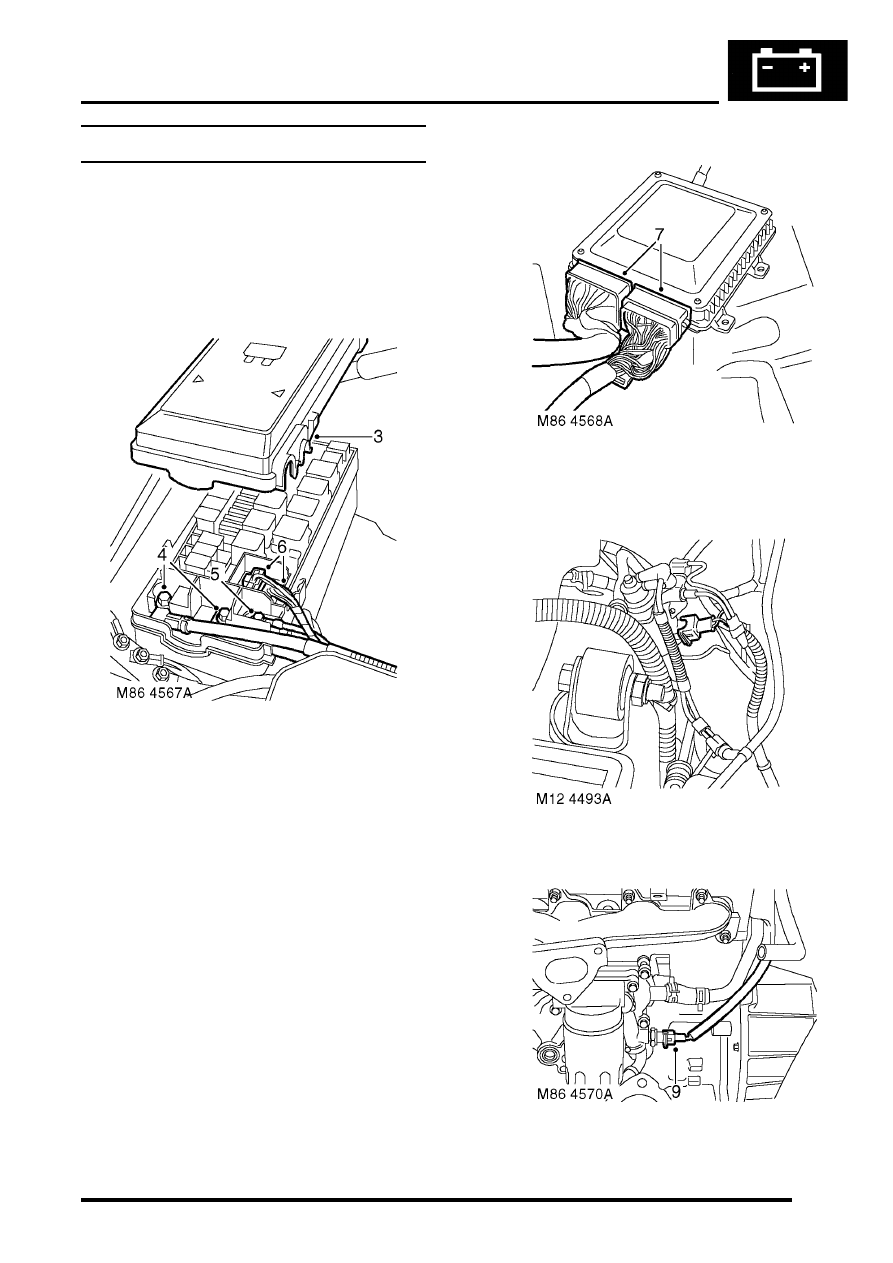

3. Remove engine compartment fuse box  cover.
4. Remove bolts securing battery and  alternator

leads to fuse box.

5. Remove bolt securing heater plug lead  to fuse

box.

6. Disconnect 2 engine harness multiplugs from

fuse box.

7. Disconnect 2 engine harness multiplugs from

ECM and main harness.

8. Disconnect multiplug from EGR  solenoid.

9. Disconnect multiplug from oil pressure switch.

HARNESSES

86-7-14 REPAIRS

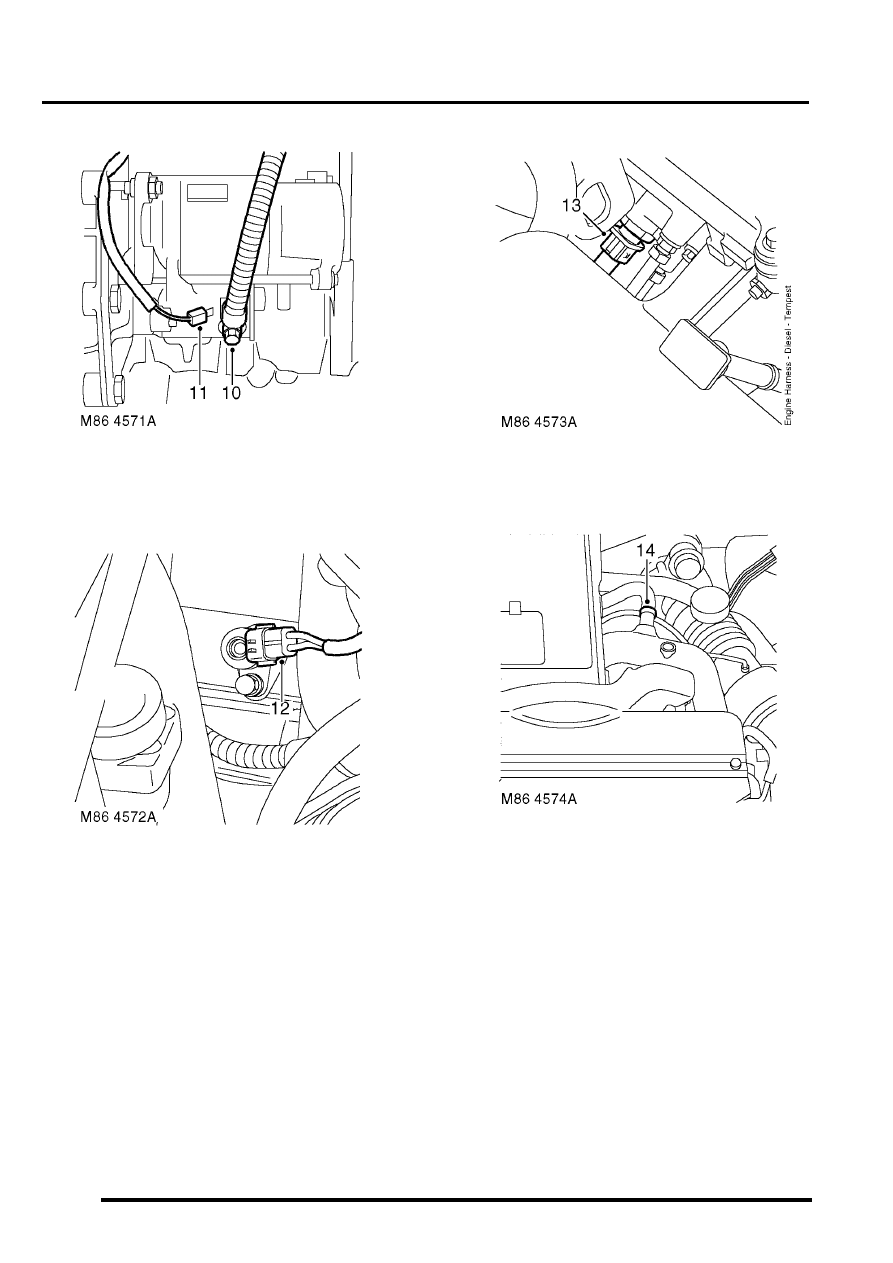

10. Remove nut and disconnect battery lead  from

starter solenoid.

11. Disconnect Lucar from starter solenoid.

12. Disconnect multiplug from CKP sensor.

13. Disconnect multiplug from fuel temperature

sensor.

14. Release harness clip from coolant pipe.

HARNESSES

REPAIRS 86-7-15

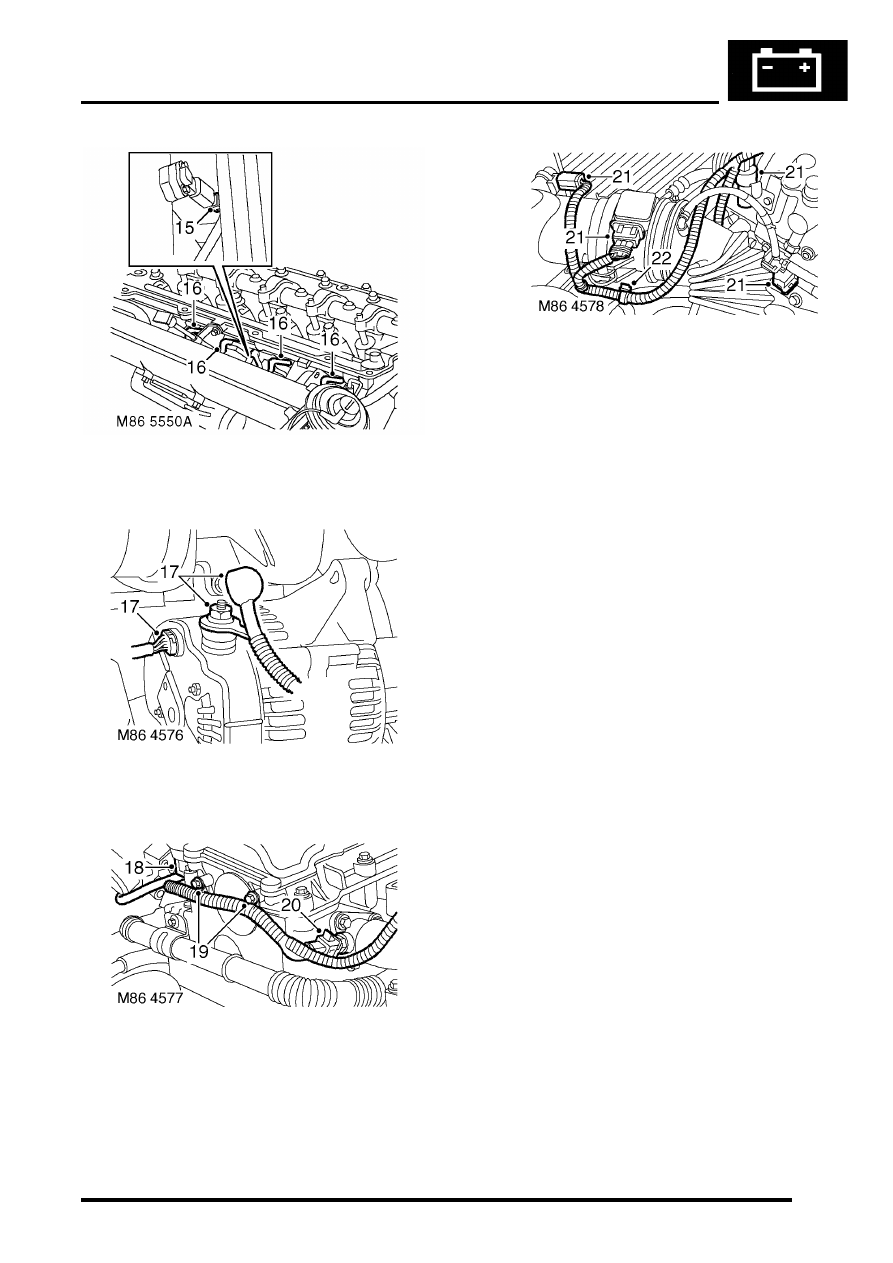

15. Disconnect multiplug from MAP sensor.
16. Disconnect 4 glow plug connectors.

17. Release nut securing battery lead to alternator

and disconnect multiplug from  alternator.

18. Disconnect injector multiplug.
19. Remove 2 bolts securing harness to front of

cylinder head.

20. Disconnect multiplug from ECT sensor.

21. Disconnect multiplugs from A/C compressor,

turbocharger solenoid valve,  AAP sensor and
MAF sensor.

22. Release harness clips from coolant hose and

PAS hose.

23. Note the route of the engine harness, release

from underneath of inlet manifold  and remove
from engine.

Refit

1. Position harness on engine.
2. Connect multiplugs to A/C compressor,

turbocharger solenoid valve, AAP and MAF
sensors.

3. Position harness clips to coolant and PAS

hoses.

4. Connect multiplug to ECT sensor.
5. Position  harness to front of  cylinder head and

tighten bolts to 10 Nm  (7 lbf.ft).

6. Connect injector multiplug.
7. Connect multiplug and position battery  cable to

alternator and tighten nut.

8. Connect multiplug to fuel temperature  sensor.
9. Connect multiplug to MAP sensor.

10. Connect glow plugs.
11. Connect CKP sensor multiplug.
12. Connect Lucar to starter solenoid.
13. Connect  battery lead to starter solenoid and

tighten nut to 10 Nm  (7 lbf.ft).

14. Position harness clip to coolant pipe.
15. Locate harness over bell housing and  connect

multiplug to oil pressure switch.

16. Connect 2 multiplugs to EGR solenoids.
17. Connect engine harness multiplug to ECM  and

main harness.

18. Connect engine harness multiplugs to  fuse

box.

19. Position glow plug lead to fuse box and tighten

bolt to 3.5 Nm (2.6 lbf.ft).

20. Position  battery and alternator  leads to fuse

box and tighten bolts to 6 Nm  (4.4 lbf.ft).

21. Fit engine compartment fuse box cover.
22. Fit battery carrier.
23. Fit engine acoustic cover.

HARNESSES

86-7-16 REPAIRS

Harness - main

$% 86.70.07

Remove

1. Remove heater assembly.



 +

 HEATING AND VENTILATION,

REPAIRS, Heater assembly - models with
air conditioning.


 +

 HEATING AND VENTILATION,

REPAIRS, Heater assembly - models
without air conditioning.

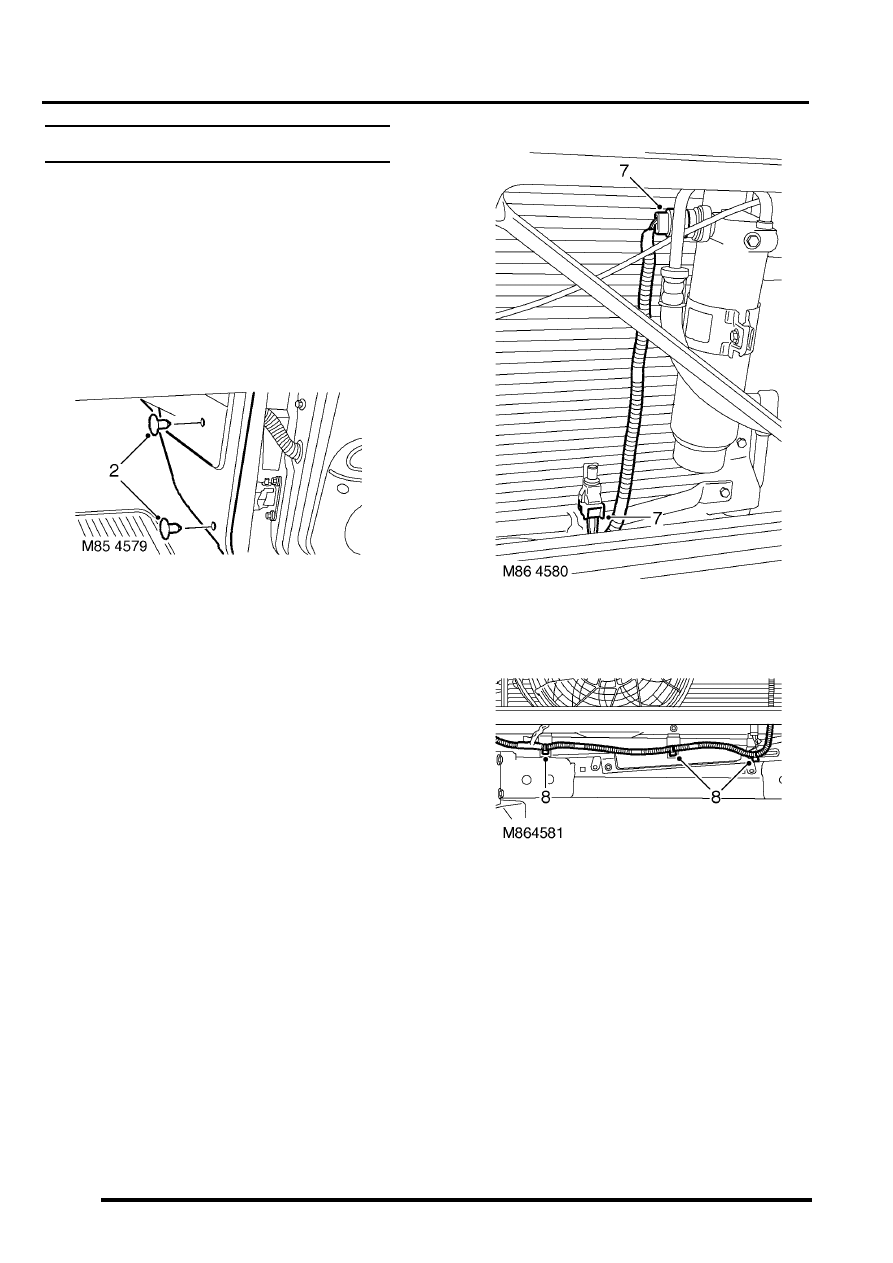

2. Remove 4 clips securing LH and RH trim

panels to lower 'A' post.

3. Remove both lower 'A' post trim panels.
4. Remove air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

5. Remove battery tray.
6. Remove front bumper.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - front.

7. Disconnect multiplugs from receiver drier and

air temperature sensor.

8. Release 3 cable tie clips securing  harness to

lower support rail.
