HARNESSES

REPAIRS

86-7-5

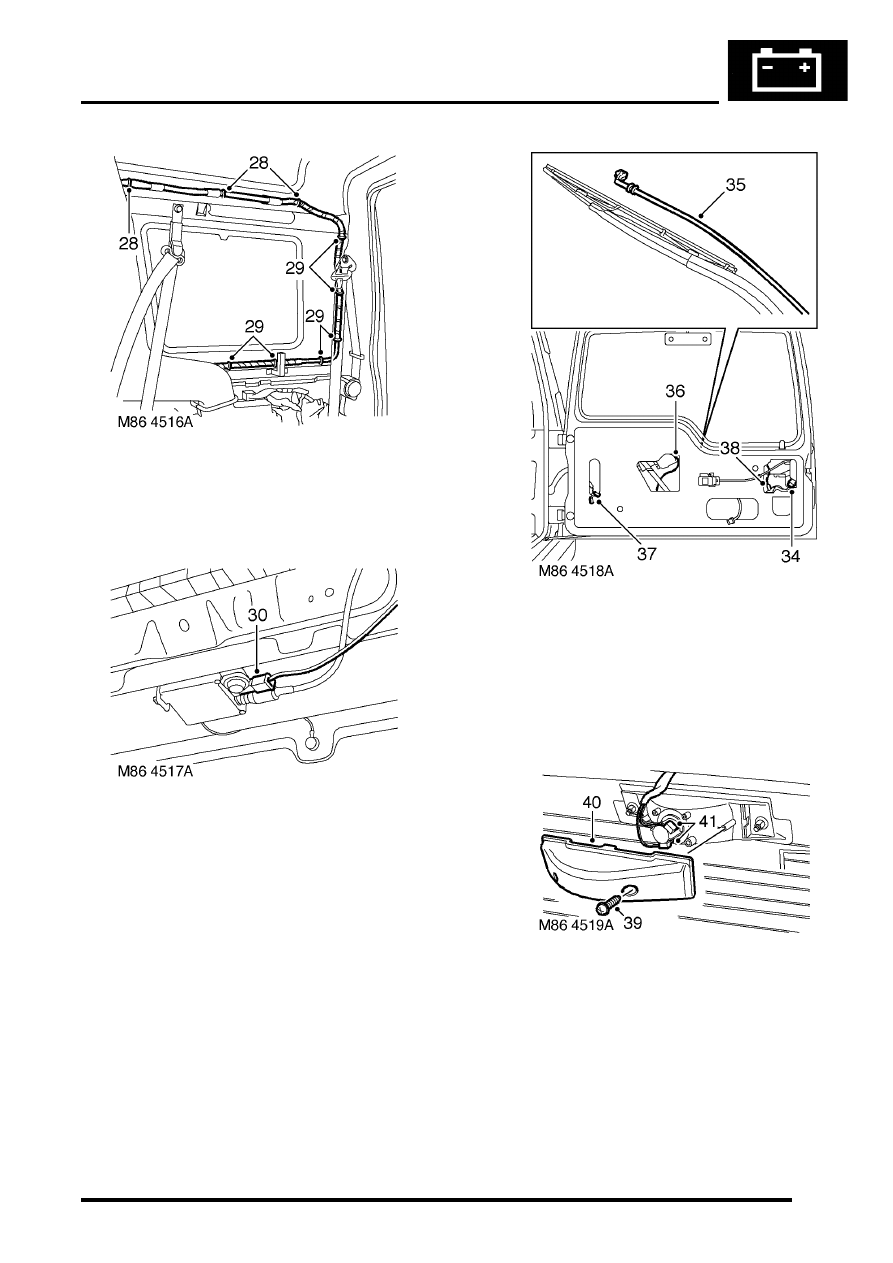

28. Release 3 harness retainers securing harness

to RH side of body.

29. Release 6 cable clips securing harness  to

body.

30. Disconnect Lucar from RH aerial amplifier.
31. Release harness from roof and feed to  upper

'E' post.

32. Remove tail door trim casing.



 +

 DOORS, REPAIRS, Trim casing - tail

door.

33. Carefully release plastic sheet from  tail door.

34. Disconnect multiplug from door latch.
35. Disconnect multiplug and washer tube from

rear wiper  arm.

36. Disconnect multiplug from rear wiper  motor.
37. Disconnect 2 Lucars from heated rear  window

(HRW).

38. Disconnect multiplug from number plate  lamp.

39. Remove 2 screws securing centre high

mounted stop lamp (CHMSL) cover to tail door
glass.

40. Remove CHMSL cover.
41. Disconnect 2 Lucars from CHMSL.
42. Attach draw string to  harness and  draw

harness through tail door.

43. Disconnect draw string from harness, and tape

to the tail door.

HARNESSES

86-7-6

REPAIRS

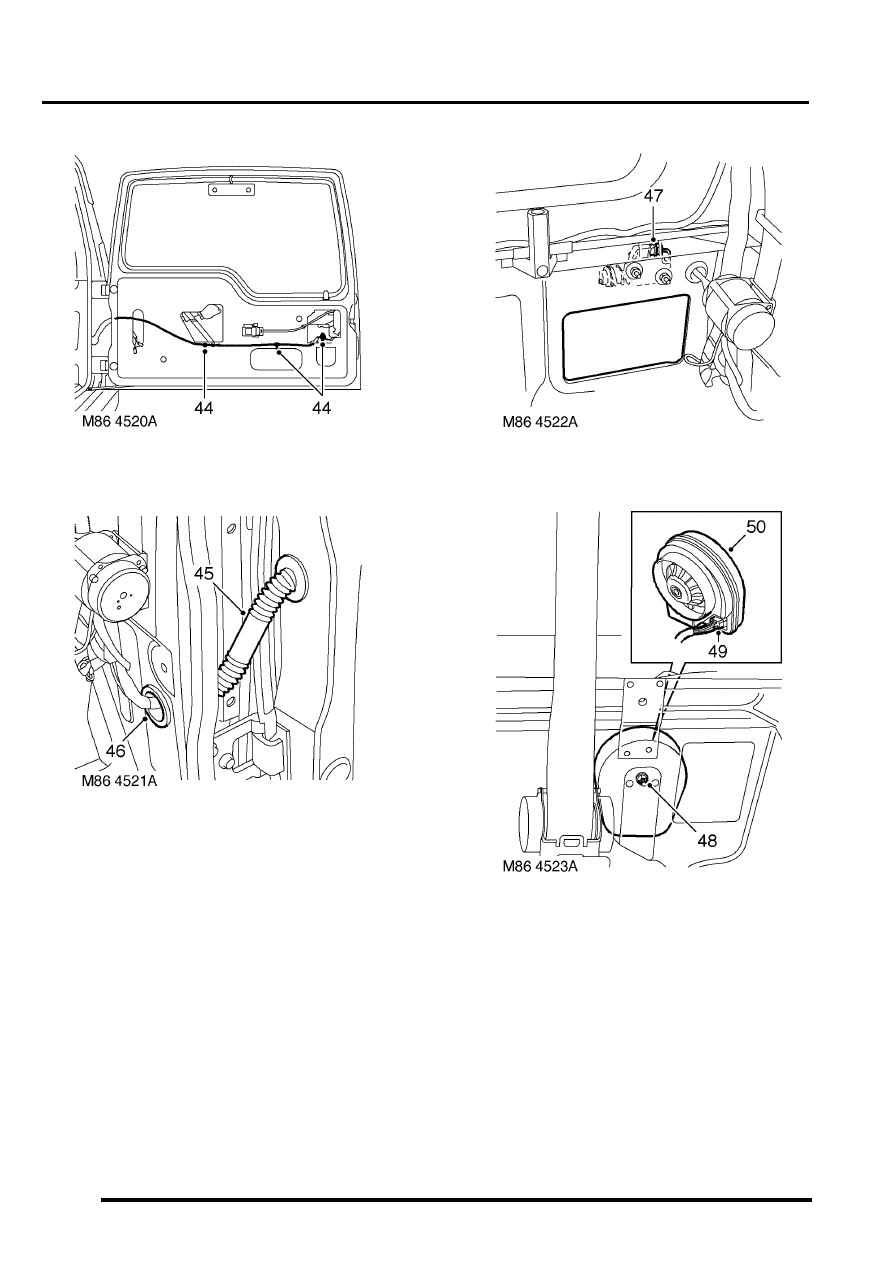

44. Release 3 clips securing harness to tail  door.

45. Release harness sleeve from door outer  edge

and feed harness through door.

46. Release grommet from 'E' post and feed  tail

door harness back to upper 'E' post.

47. Disconnect multiplug from fuel flap  solenoid.

48. Remove nut securing alarm sounder to RH

lower 'E' post.

49. Disconnect multiplug from alarm sounder.
50. Remove alarm sounder.

HARNESSES

REPAIRS

86-7-7

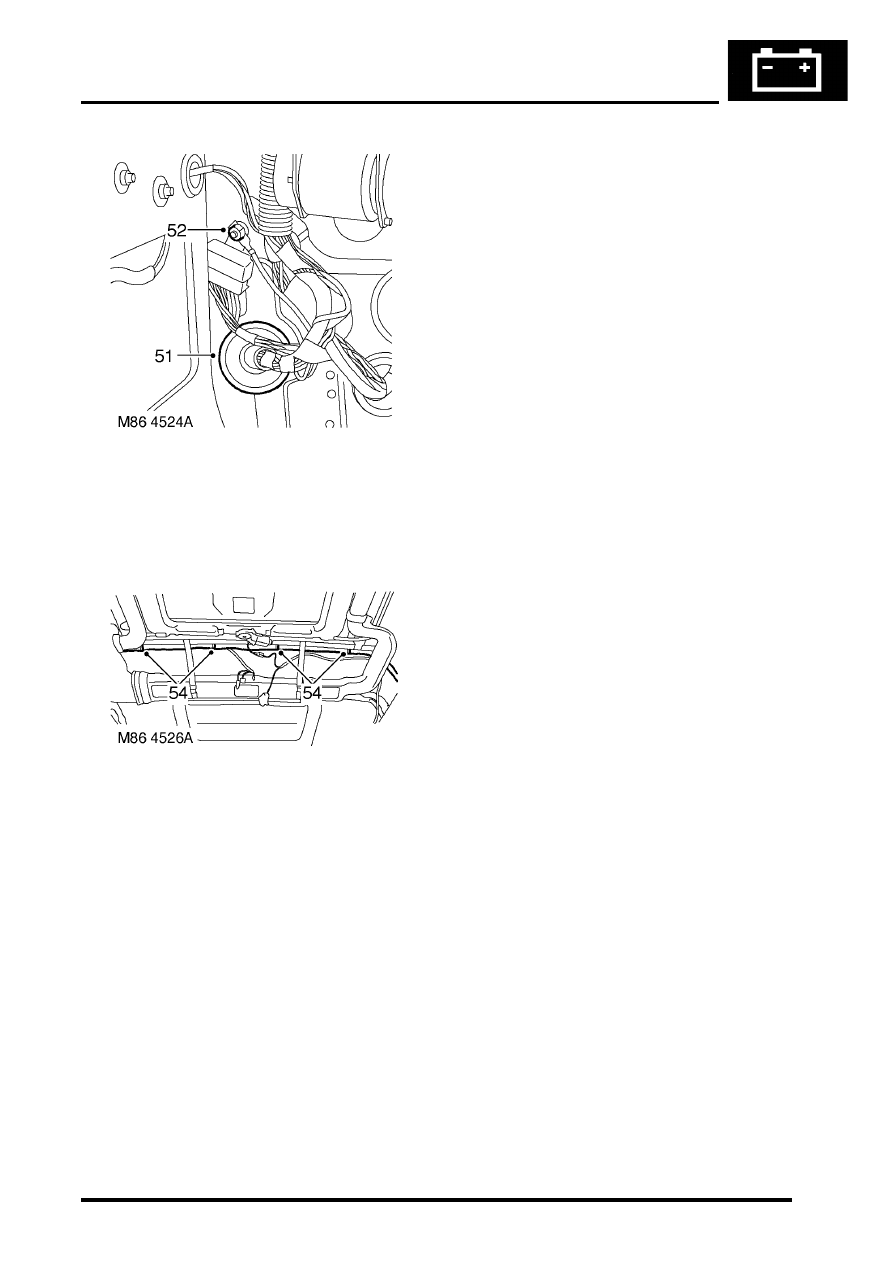

51. Remove grommet and feed harness from  rear

bumper to upper 'E' post.

52. Remove nut securing earth headers to RH 'E'

post.

53. Feed harness to air conditioning ducting.

54. Remove 4 cable ties securing harness to centre

of roof.

55. With assistance, remove harness from  air

conditioning ducting and remove from vehicle.

Refit

1. With assistance, position harness to air

conditioning ducting and secure with cable ties.

2. Secure harness to sunroof harness with cable

clips.

3. Connect multiplug to RF receiver.
4. Feed harness to LH and RH  upper 'E'  posts.
5. Feed harness through 'E' post to tail  lamp and

rear bumper and secure with  grommet.

6. Connect multiplug to fuel flap solenoid and

alarm sounder.

7. Position alarm sounder to rear quarter and

secure with nut to 9 Nm (7 lbf.ft).

8. Position both RH earth header to 'E' post and

tighten nut to 10 Nm  (7 lbf.ft).

9. Feed tail door harness through 'E' post  and

secure with grommet.

10. Position harness sleeve to outer edge  of door

and pull harness through door.

11. Secure harness to tail door with clips.
12. Connect washer tube to rear of wiper arm.
13. Remove tape from draw string and secure  to

CHMSL harness.

14. Draw harness through tail door and  connect

Lucars to CHMSL.

15. Fit CHMSL cover and secure with screws.
16. Connect multiplug to door lock switch.
17. Connect Lucars to HRW.
18. Connect multiplug to rear wiper motor.
19. Connect multiplug to door latch.
20. Fit plastic sheet to tail door, ensuring  it aligns

with witness marks.

21. Fit tail door trim casing.



 +

 DOORS, REPAIRS, Trim casing - tail

door.

22. Connect Lucar  to radio aerial  RH amplifier.
23. Secure harness to RH side of body with clips

and retainers.

24. Position both LH earth header to 'E' post and

tighten nut to 10 Nm  (7 lbf.ft).

25. Connect multiplugs to both  tail/flasher lamps

and secure harness to bumper with clips.

26. Fit both rear tail lamps.



 LIGHTING, REPAIRS, Lamp - tail.

27. Secure harness to  rear LH side of  body with 6

cable clips.

28. Connect 2 Lucars to rear air conditioning unit.
29. Fit both luggage compartment trim  casings.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - side - loadspace.

30. Feed harness into position for rear  interior light.
31. Connect Lucar to radio aerial  LH amplifier.
32. Secure harness to body with cable ties clips

and retainers.

33. Secure air conditioning ducting to body with

rivets.

34. Feed harness to LH lower 'A' post.

HARNESSES

86-7-8

REPAIRS

35. Secure harness to LH side of body with cable

tie clips and retainers.

36. Connect and secure multiplugs to lower LH 'A'

post.

37. Feed harness through roof to centre.
38. Secure harness behind bonnet release cable.
39. Connect rear washer pipe at lower 'A' post and

secure with clip.

40. Secure harness to roof with clips.
41. Connect multiplug to interior mirror,  ARC

accelerometer.

42. Position sound  deadening panels and secure

with clips.

43. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining.

44. Fit fascia panel.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

Harness - engine - V8

$% 86.70.17

Remove

1. Remove upper inlet manifold.



 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Gasket - inlet
manifold - upper - Without Secondary Air
Injection.

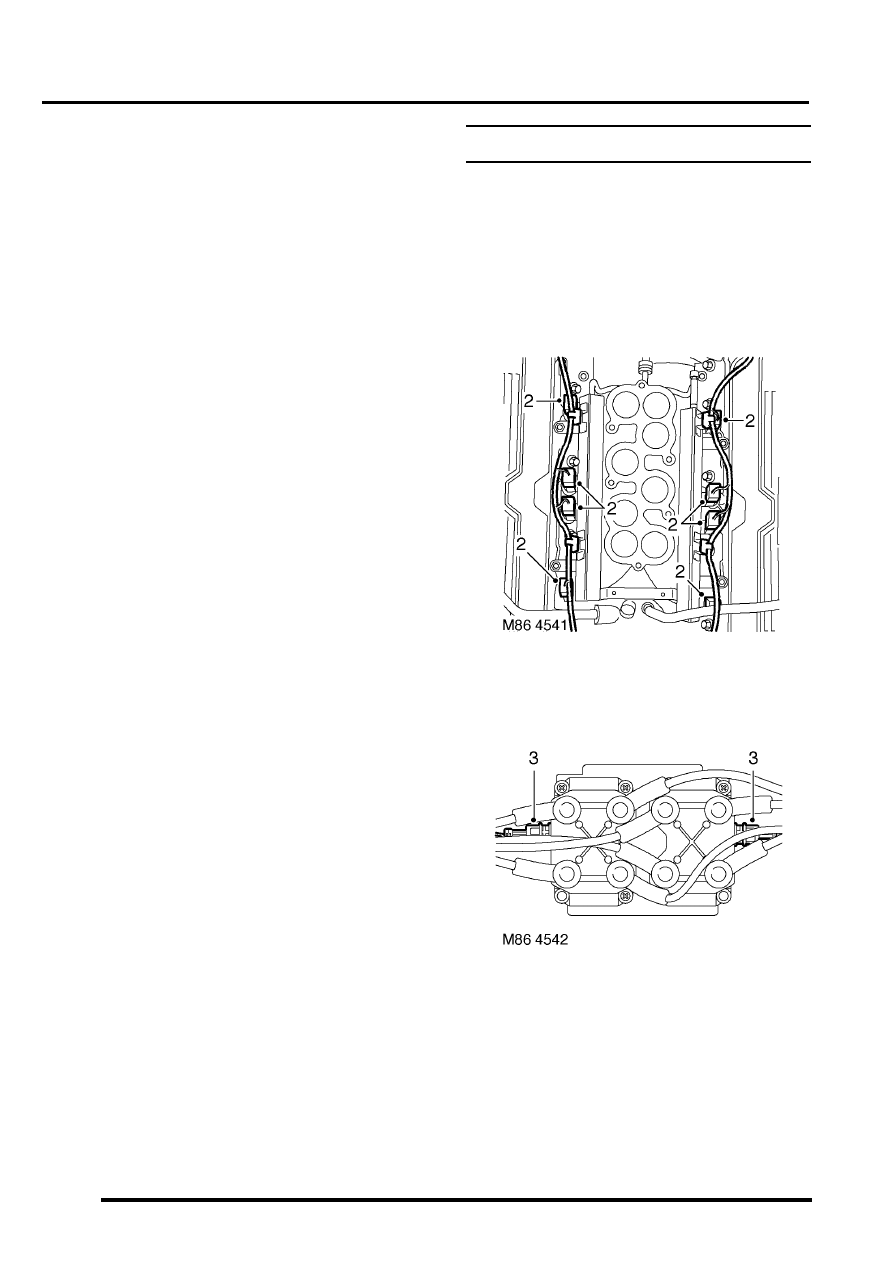

2. Disconnect injector multiplugs, release harness

from fuel rail.

3. Disconnect ignition coil multiplugs.
