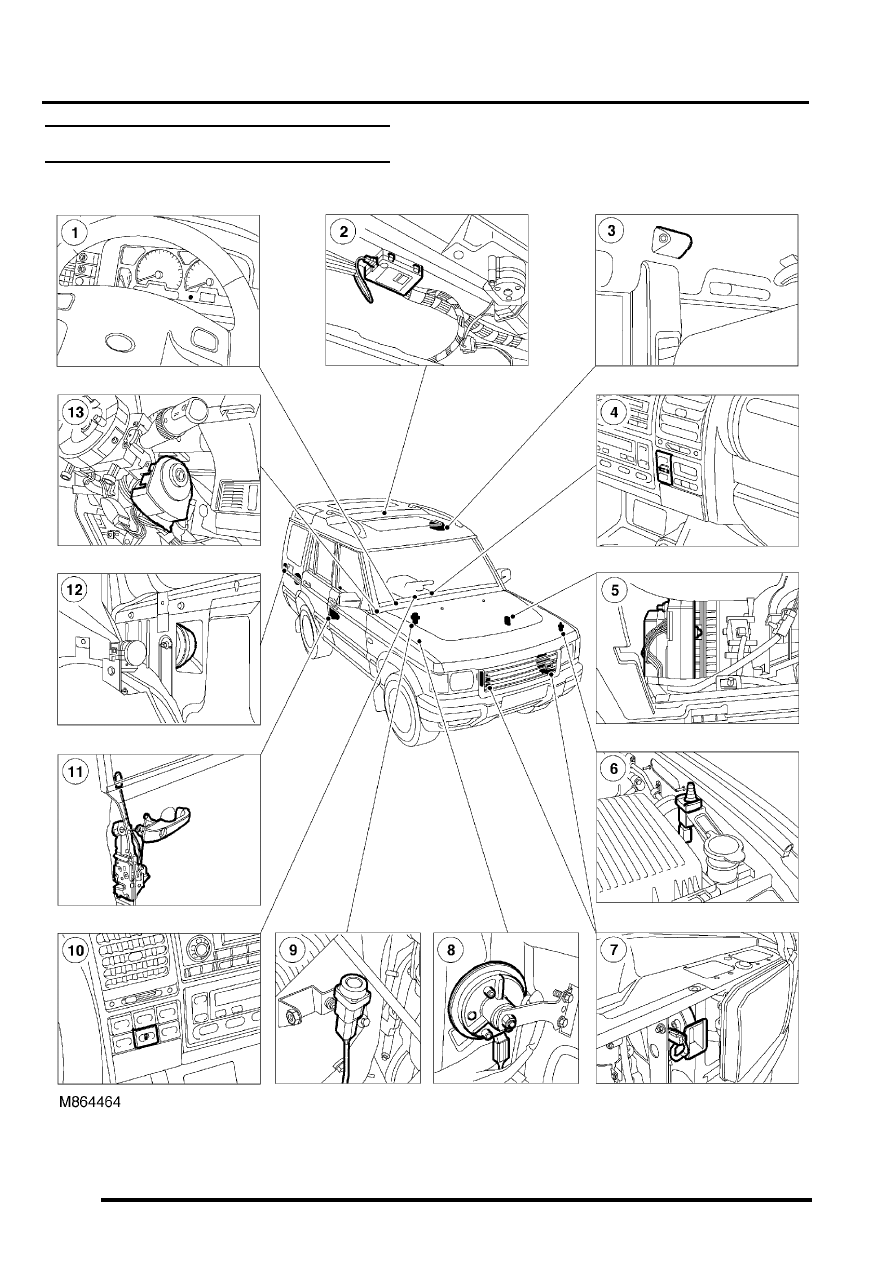

Body control unit (BCU)

$% 86.55.75

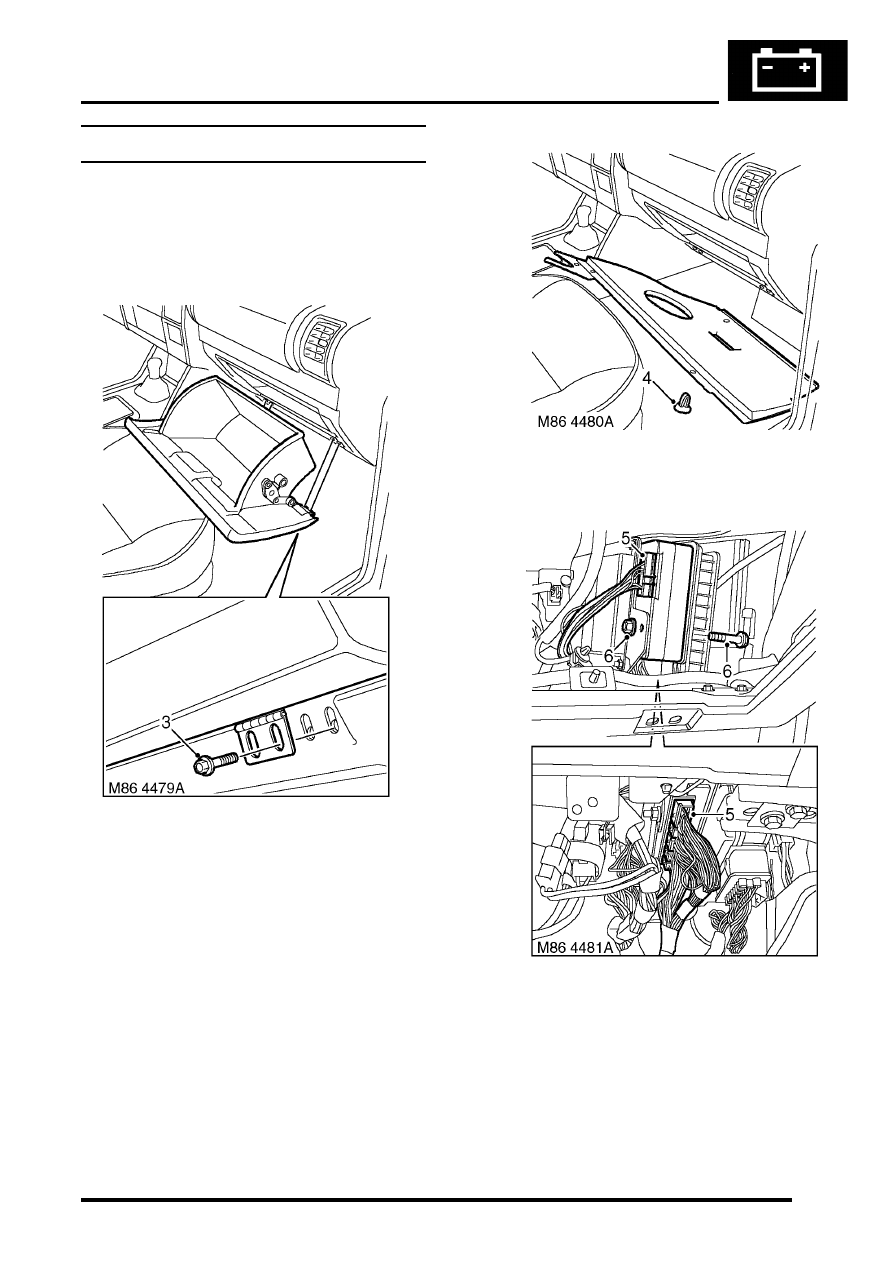

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.

3. Remove 4 bolts securing glove box and remove

glove box.

4. Remove 4 fixings securing closing panel and

remove panel.

5. Disconnect 5 multiplugs from BCU.
6. Remove nut and bolt securing BCU to bracket

and remove BCU.

BODY CONTROL UNIT

86-3-40 REPAIRS

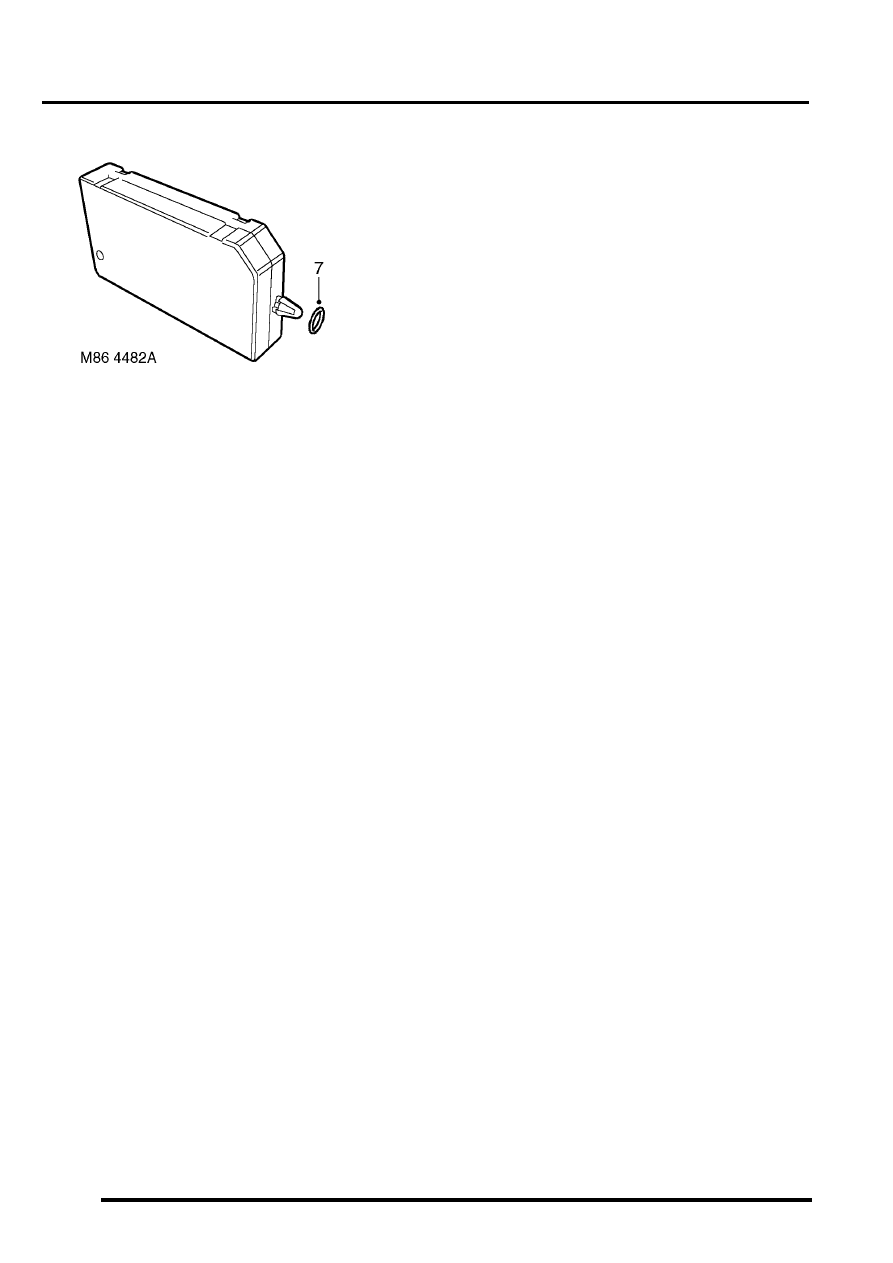

7. Remove rubber ring from locating peg.

Refit

1. Fit rubber ring to new BCU.
2. Fit BCU to bracket and secure with nut and bolt.
3. Connect multiplugs to BCU.
4. Fit closing panel and secure with fixings.
5. Fit glove box and secure with bolts.
6. Connect battery earth lead.
7. Fit battery cover and secure with fixings.
8. Programme and calibrate new BCU using

TestBook.
