Discovery 2. Manual - part 727





WIPERS AND WASHERS

REPAIRS

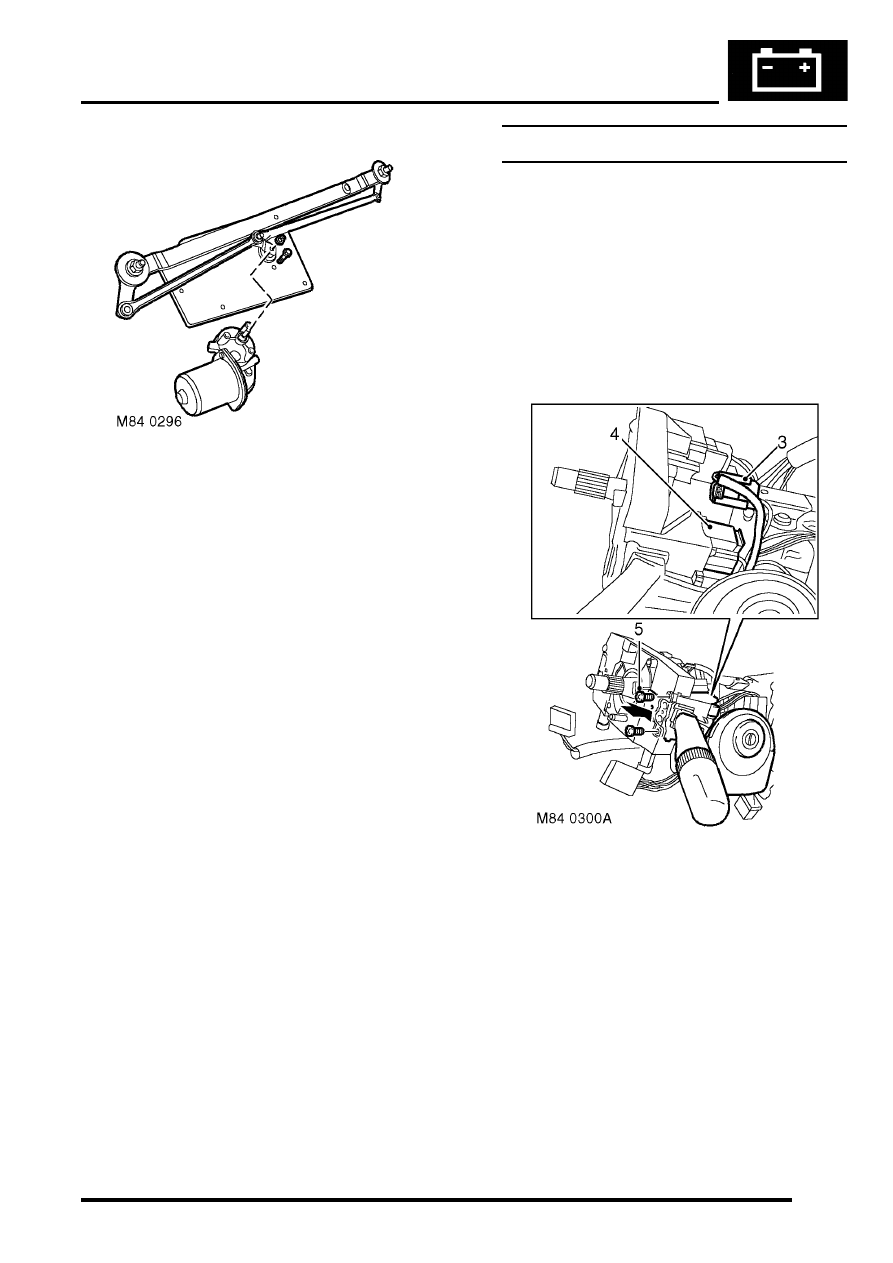

84-23

6. Remove nut securing linkage connecting  rod to

wiper motor spindle.

7. Release link from motor spindle.
8. Remove 3 bolts securing motor to  mounting

plate and remove motor.

Refit

1. Fit new wiper motor to mounting  plate and

secure with bolts.

2. Connect link to motor spindle and  tighten nut to

7 Nm (5.2 lbf.ft).

3. Fit motor and linkage to body,  connect

multiplug. Tighten all fixings to  2.5 Nm (1.8
lbf.ft).

4. Fit plenum air intake.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum Air Intake.

Switch - wiper and washer - windscreen

$% 84.15.34

WARNING: It is imperative that before any work
is undertaken on the SRS system the appropriate
information is read thoroughly.

Remove

1. Remove rotary coupler.



 RESTRAINT SYSTEMS, REPAIRS,

Rotary coupler.

2. Release passive coil from steering column lock

and lower the coil without disconnecting the
harness.

3. Release front wiper delay multiplug from

column switch mounting  bracket and
disconnect from harness.

4. Disconnect harness multiplug from wiper

switch.

5. Remove 2 screws securing switch, carefully

raise edge of switch bracket to  clear location
peg and remove switch.

Refit

1. Fit new switch to bracket and secure with

screws.

2. Connect harness multiplug to switch.

WIPERS AND WASHERS

84-24

REPAIRS

3. Connect front wiper delay multiplug and fit

multiplug to switch bracket.

4. Fit passive coil to column lock.
5. Fit rotary coupler.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Rotary coupler.

Jet - washer - headlamp

$% 84.20.08

The procedure to remove the headlamp washer jet
on 03MY vehicles is detailed in the front bumper
finisher job.


 EXTERIOR FITTINGS, REPAIRS, Trim

finisher - bumper - front - from 03MY.

Remove

1. Remove retaining screw cover from jet

housing.

2. Remove screw securing jet to bumper.
3. Release jet and withdraw sufficiently to gain

access to washer tube. Disconnect tube from
jet and remove jet.

Refit

1. Connect jet to washer tube, ensuring it is

pushed fully home.

2. Locate jet in bumper, retain with screw and fit

screw cover.

WIPERS AND WASHERS

REPAIRS

84-25

Jet - washer - rear screen

$% 84.30.09

Remove

1. Remove spare wheel.
2. Remove rear screen wiper blade.

3. Release washer jet and washer jet tube  from

wiper arm.

4. Release washer jet from washer jet tube  and

remove jet.

Refit

1. Fit new washer jet to washer jet tube  and fit to

wiper arm.

2. Fit rear screen wiper blade.
3. Fit spare wheel.

Switch - rear wash

$% 84.30.27

Remove

1. Carefully remove  switch from instrument cowl.
2. Disconnect multiplug and remove switch.

Refit

1. Position new switch and connect multiplug.
2. Carefully push switch into instrument cowl.

WIPERS AND WASHERS

84-26

REPAIRS

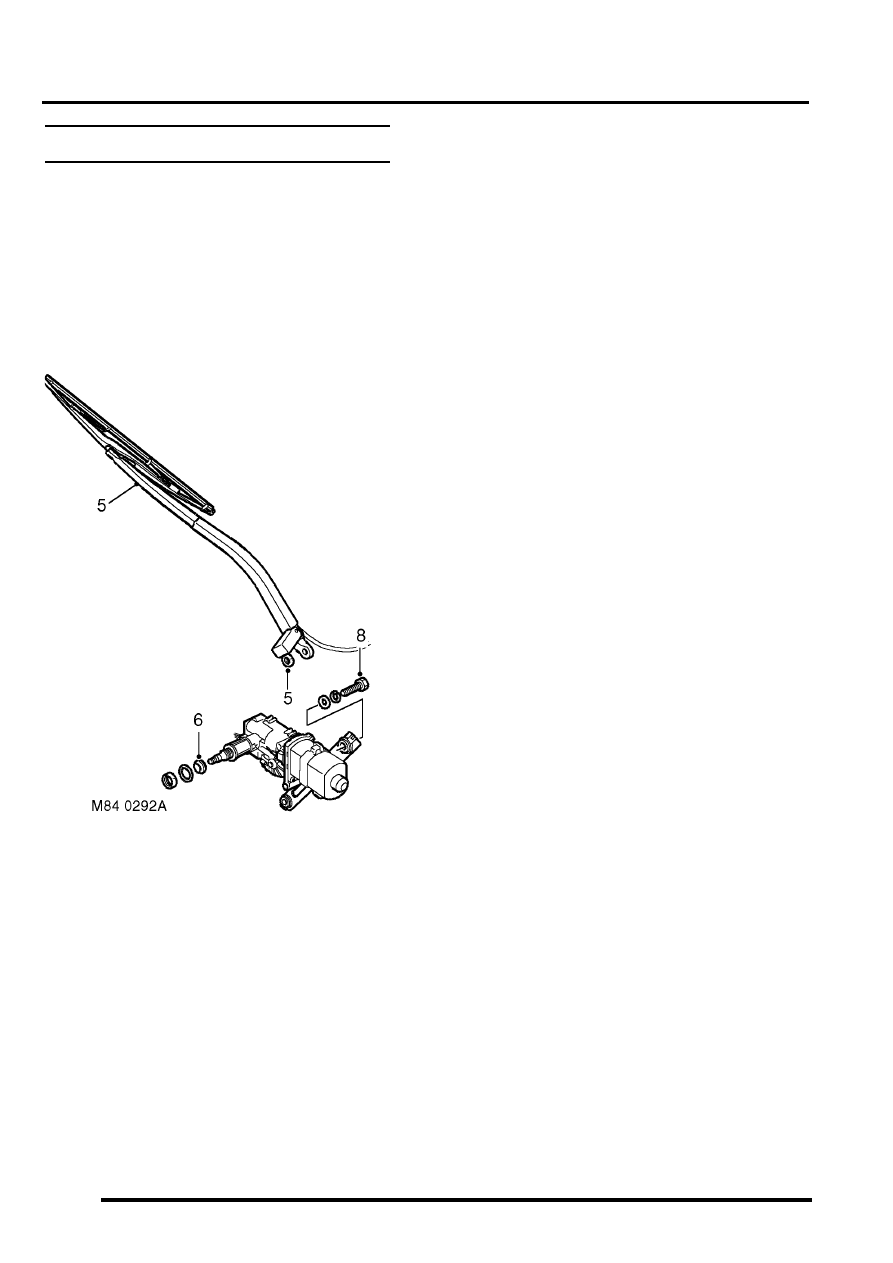

Motor - wiper - rear screen

$% 84.35.12

Remove

1. Remove spare wheel from taildoor.
2. Remove tail door trim casing.



 +

 DOORS, REPAIRS, Trim casing - tail

door.

3. Remove tail door water shedder.
4. Disconnect washer tube

5. Raise nut cover, remove  nut and release wiper

arm.

6. Remove spindle nut and flat washer and

discard rubber seal.

7. Disconnect taildoor harness multiplug from

wiper  motor.

8. Remove 2 bolts securing wiper motor to  tail

door.

9. Remove wiper motor.

Refit

1. Position wiper motor to door and secure  with

bolts.

2. Connect tail door harness multiplug to wiper

motor.

3. Fit rubber seal, flat washer and spindle nut.

Tighten spindle nut to 3 Nm (2.2 lbf.ft).

4. Position wiper arm to tail door and  connect

washer tube.

5. Tighten   wiper arm nut to 20 Nm (15 lbf.ft) and

fit nut cover.

6. Fit tail door water shedder.
7. Fit tail door trim casing.



 DOORS, REPAIRS, Trim casing - tail

door.

8. Fit spare wheel to tail door.
