CORROSION PREVENTION AND SEALING

CORROSION PREVENTION

77-4-1

CORROSION PREVENTION AND SEALING

CORROSION PREVENTION

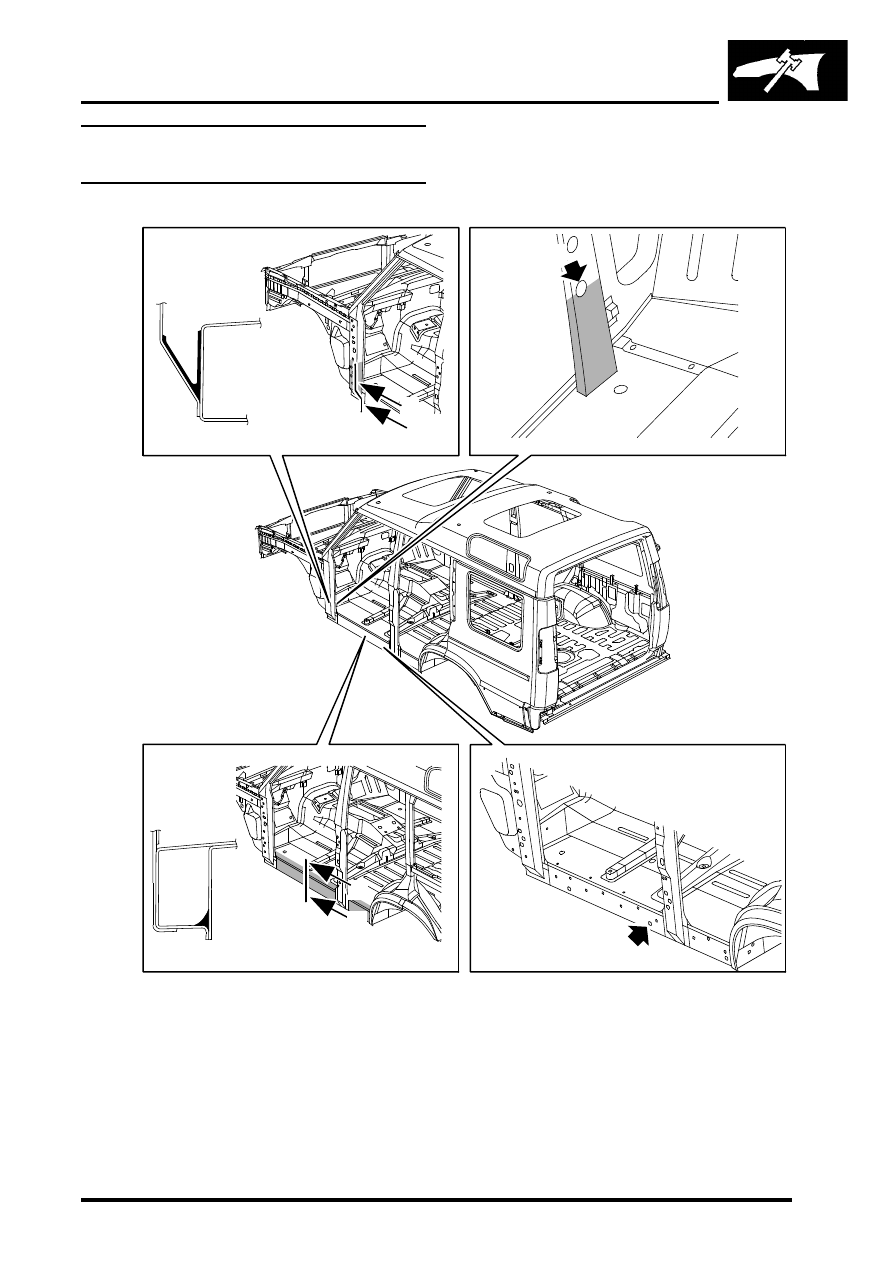

Cavity wax treatment areas and injection
holes - 'A' post and sill

All areas symmetrically opposite to those shown are also treated.

Injection hole for 'A' post
Injection hole for sill

 1

C-C

 C

 C

M77 1671A

 2

B-B

 B

 B

CORROSION PREVENTION AND SEALING

77-4-2

CORROSION PREVENTION

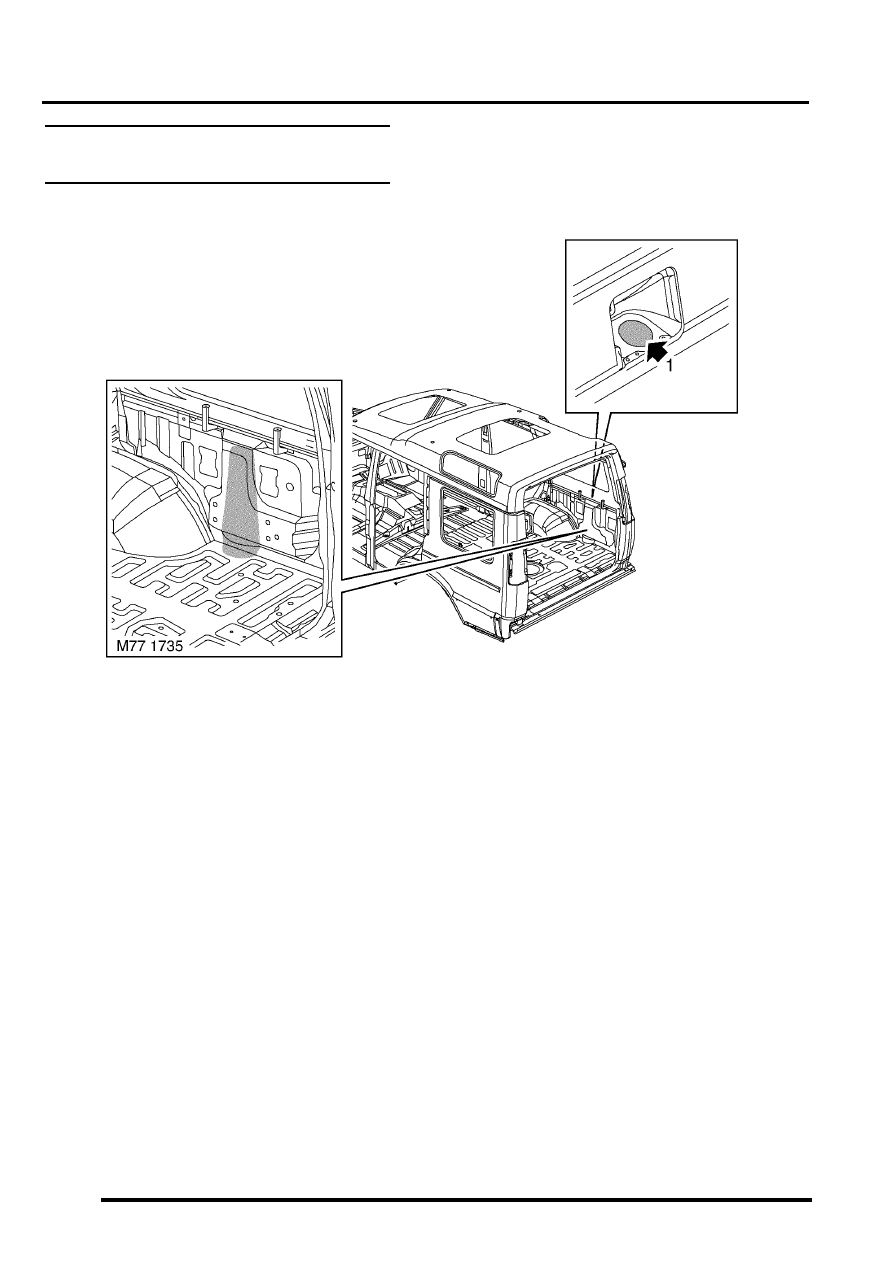

Cavity wax treatment area and injection
hole - fuel filler neck

Injection hole for fuel filler neck

CORROSION PREVENTION AND SEALING

CORROSION PREVENTION

77-4-3

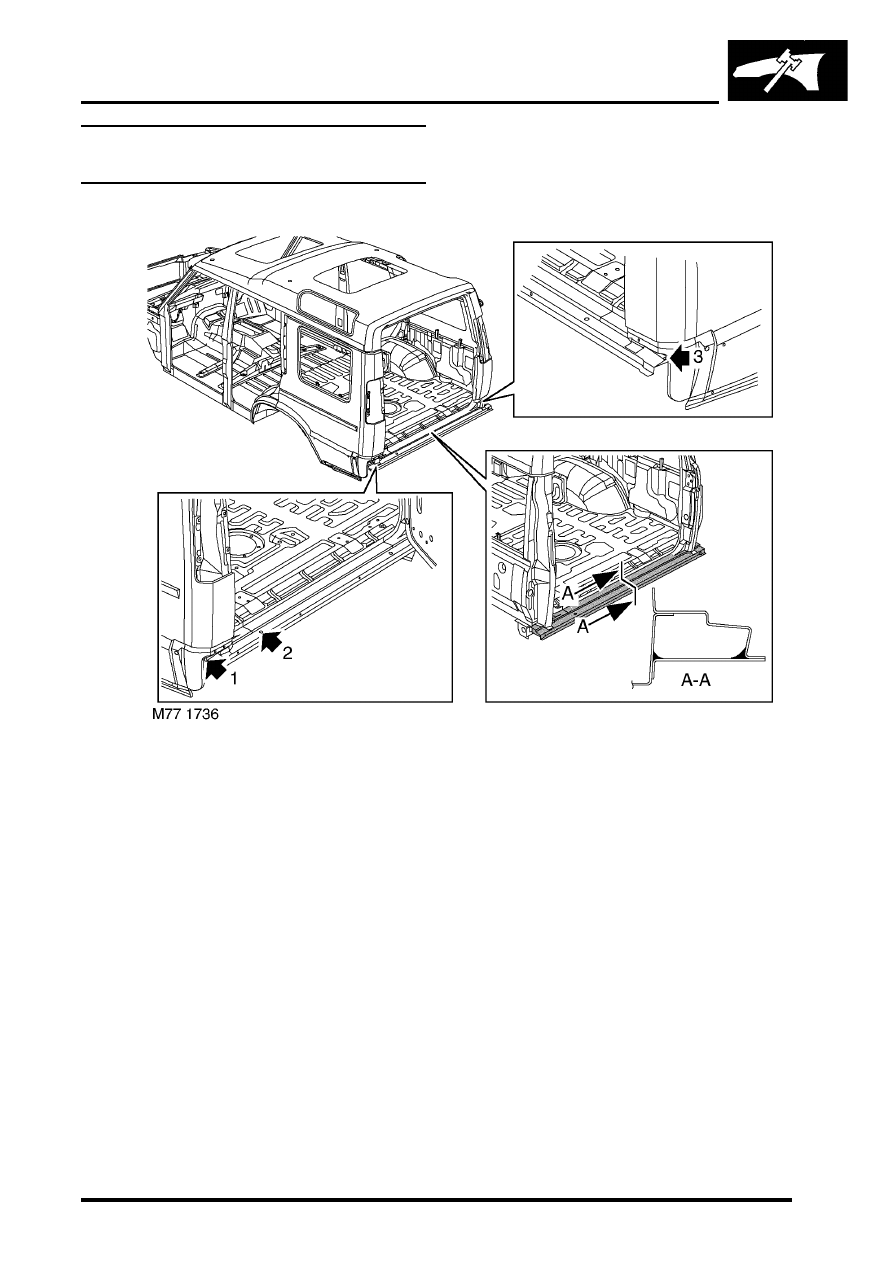

Cavity wax treatment areas and injection
holes - rear cross member

LH Injection hole for rear cross member
Top injection hole for rear cross member
RH Injection hole for rear cross member

CORROSION PREVENTION AND SEALING

77-4-4

CORROSION PREVENTION

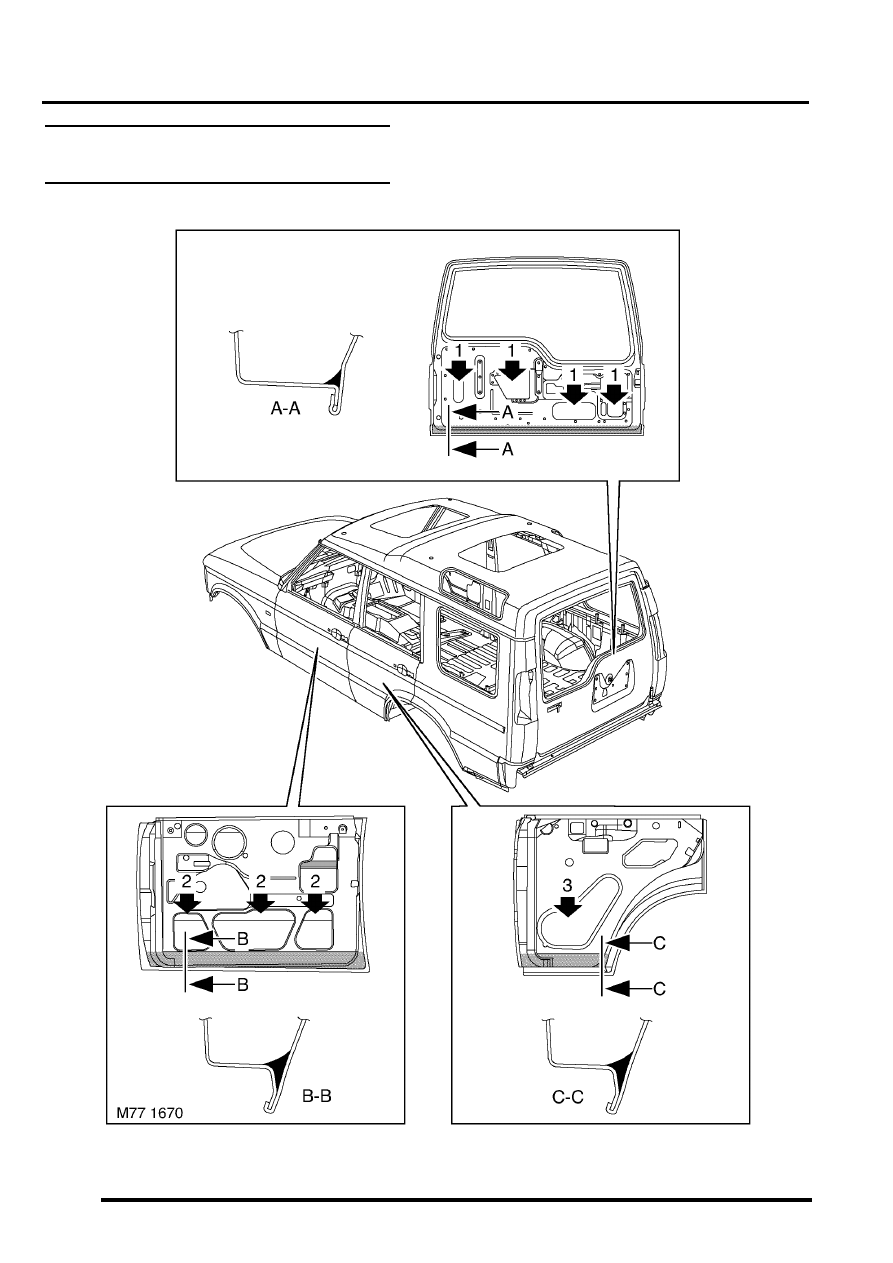

Cavity wax treatment areas and injection
holes - front door, rear door and tail door

All areas symmetrically opposite to those shown are also treated.
