CHASSIS AND BODY DIMENSIONS

BODY DIMENSIONS 77-1-15

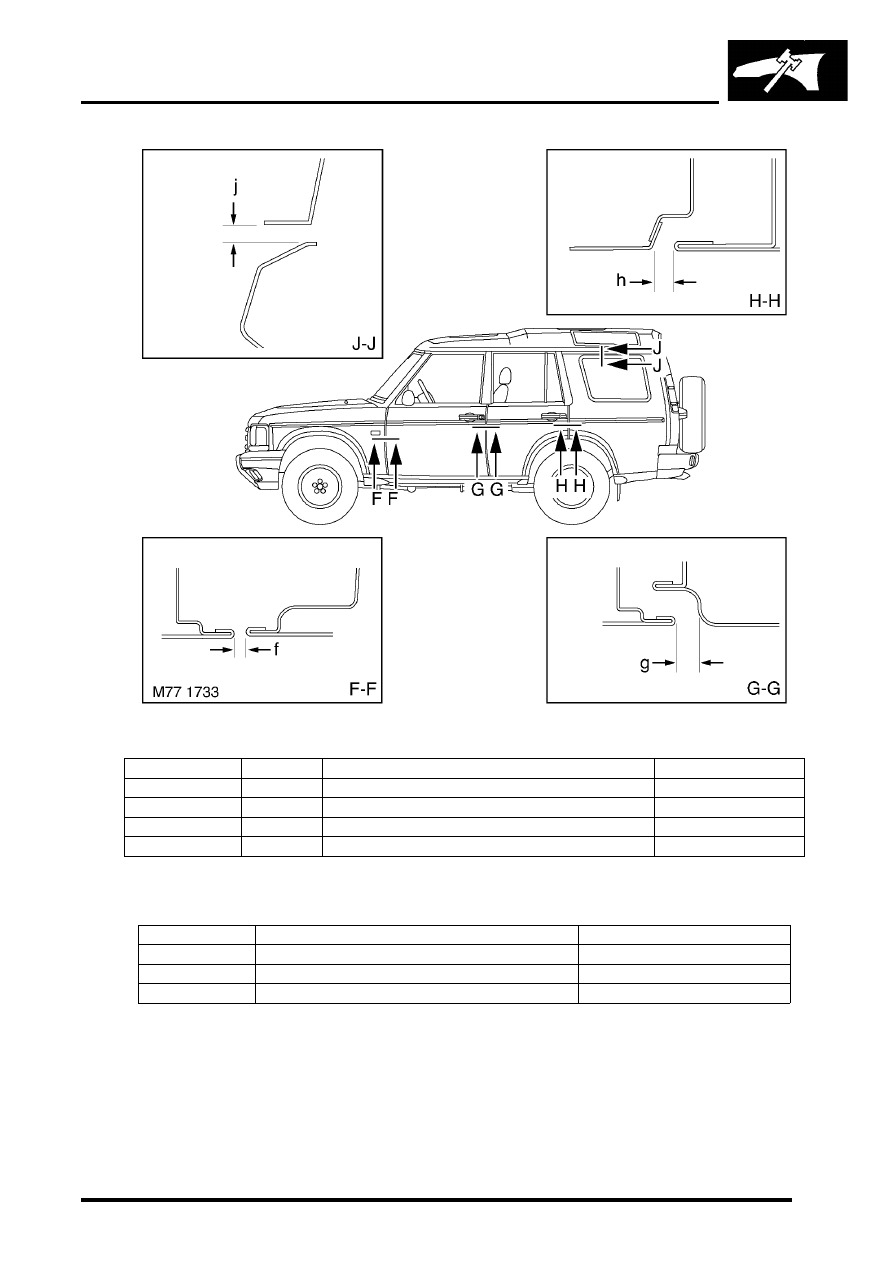

Side information

Gaps

The tolerance for gap 'f', 'g' and 'h' is

±

 1.0 (0.039), and for gap 'j' is

±

 2.0 (0.078).

Profiles

Section

Gap

Description

Dimension

F-F

f

Wing to front door

6.0 (0.236)

G-G

g

Front door to rear door

6.0 (0.236)

H-H

h

Rear door to panel body side

6.0 (0.236)

J-J

j

Panel body side to roof

3.0 (0.118)

Section

Description

Dimension

F-F

Profile of wing to front door

+1.0 (0.039) -0.0

G-G

Profile of front door to rear door

+1.0 (0.039) -0.0

H-H

Profile of rear door to panel body side

+1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS

77-1-16 BODY DIMENSIONS

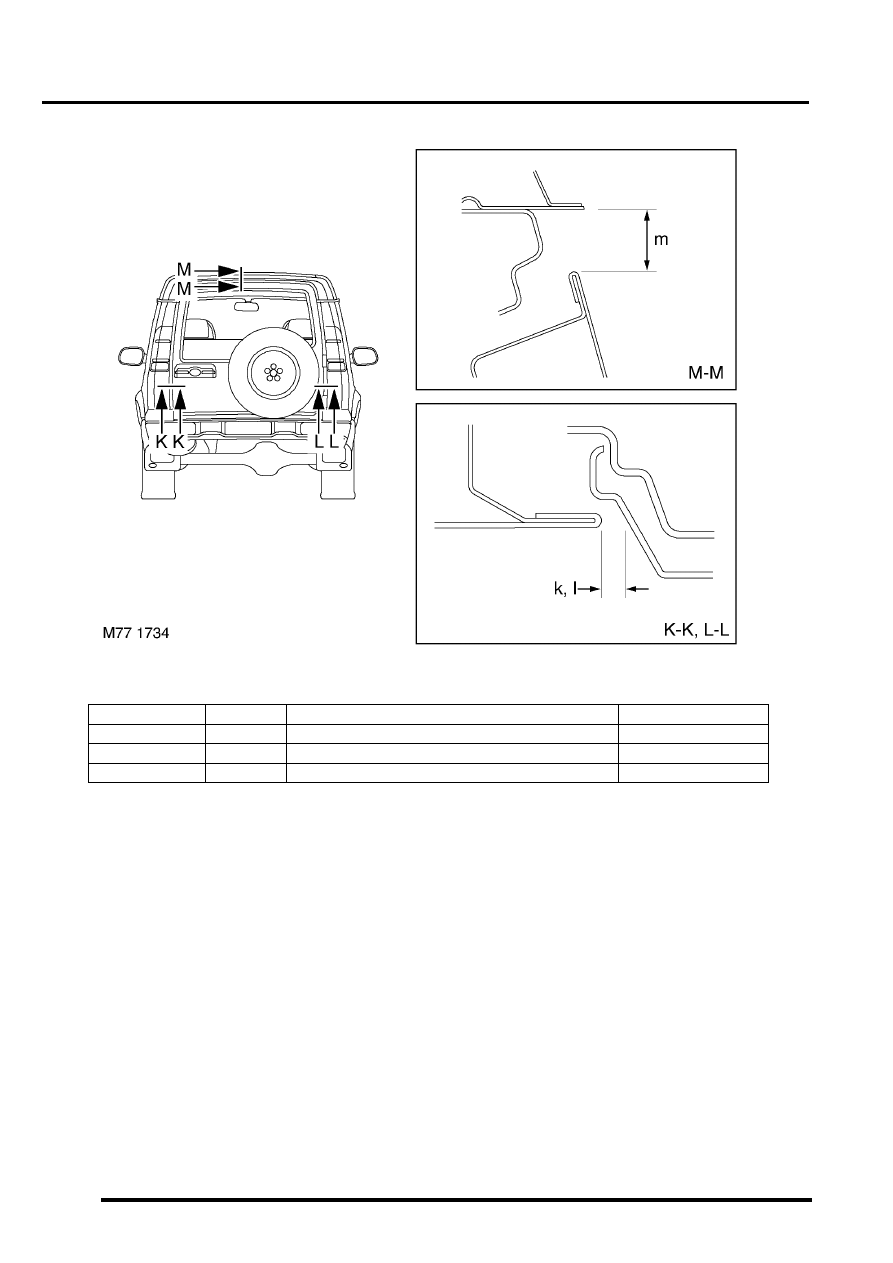

Rear end information

Gaps

The tolerance for gap 'k' and 'l' is

±

 1.0 (0.039), and for gap 'm' is

±

 2.0 (0.078).

Section

Gap

Description

Dimension

K-K

k

Taildoor to body side panel

7.0 (0.275)

L-L

l

Taildoor to body side panel

7.0 (0.275)

M-M

m

Taildoor to roof

23.0 (0.905)

PANEL REPAIRS

REPLACEMENT PANELS

77-2-1

PANEL REPAIRS

REPLACEMENT PANELS

Replacement panels

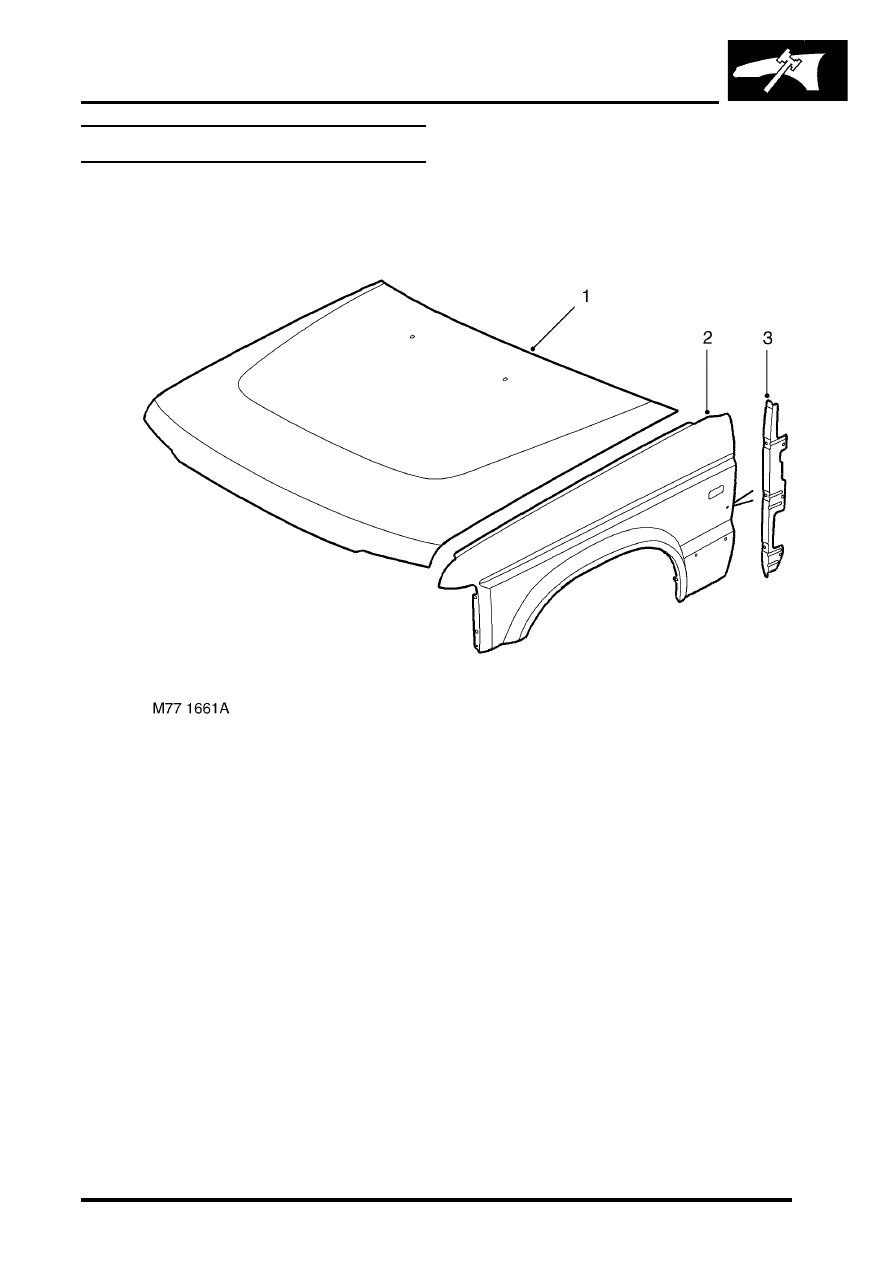

Front end outer panels

1 Bonnet assembly
2 Front wing
3 Wing support bracket

PANEL REPAIRS

77-2-2

REPLACEMENT PANELS

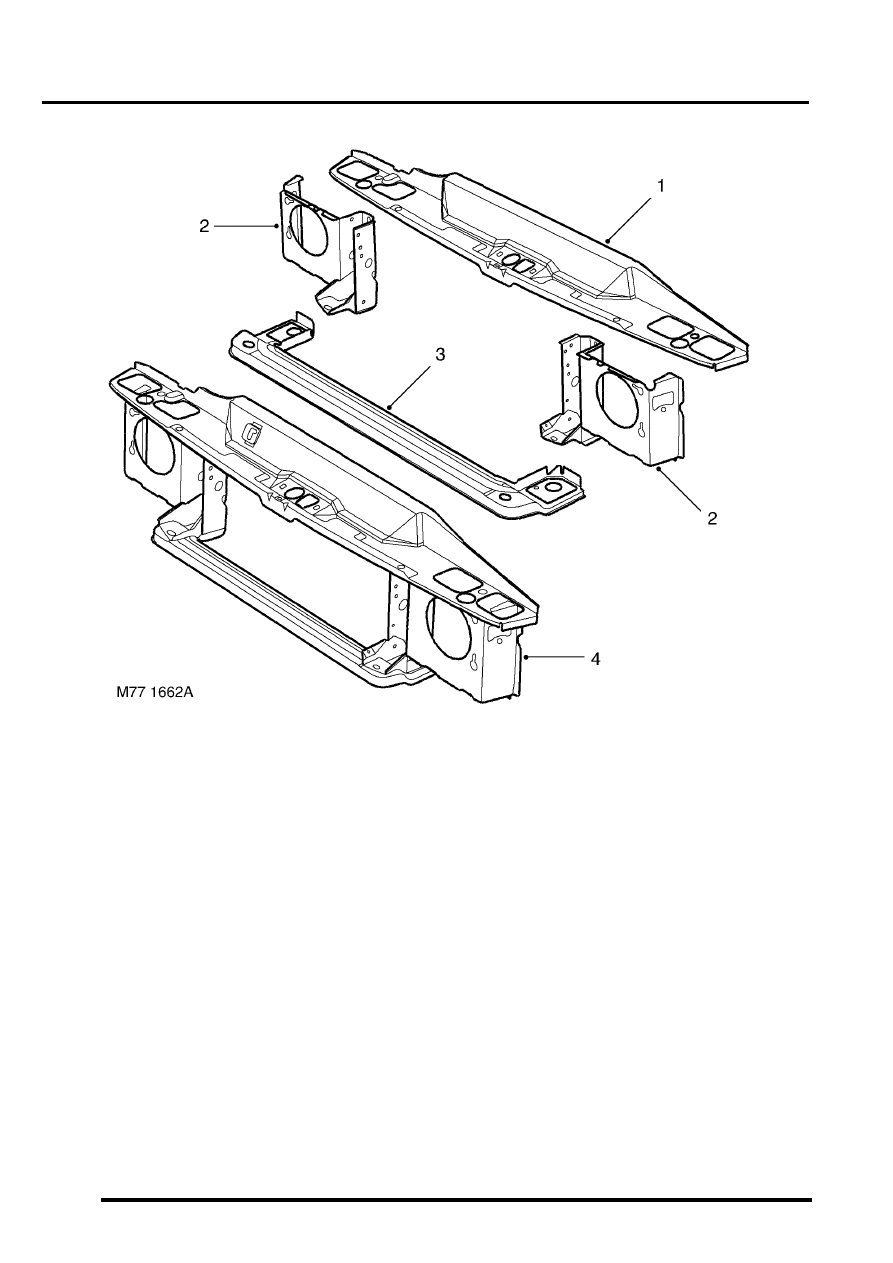

Front end inner panels

1 Bonnet locking platform
2 Headlamp mounting panels
3 Front crossmember
4 Front bulkhead assembly
