CHASSIS AND BODY DIMENSIONS

BODY DIMENSIONS 77-1-11

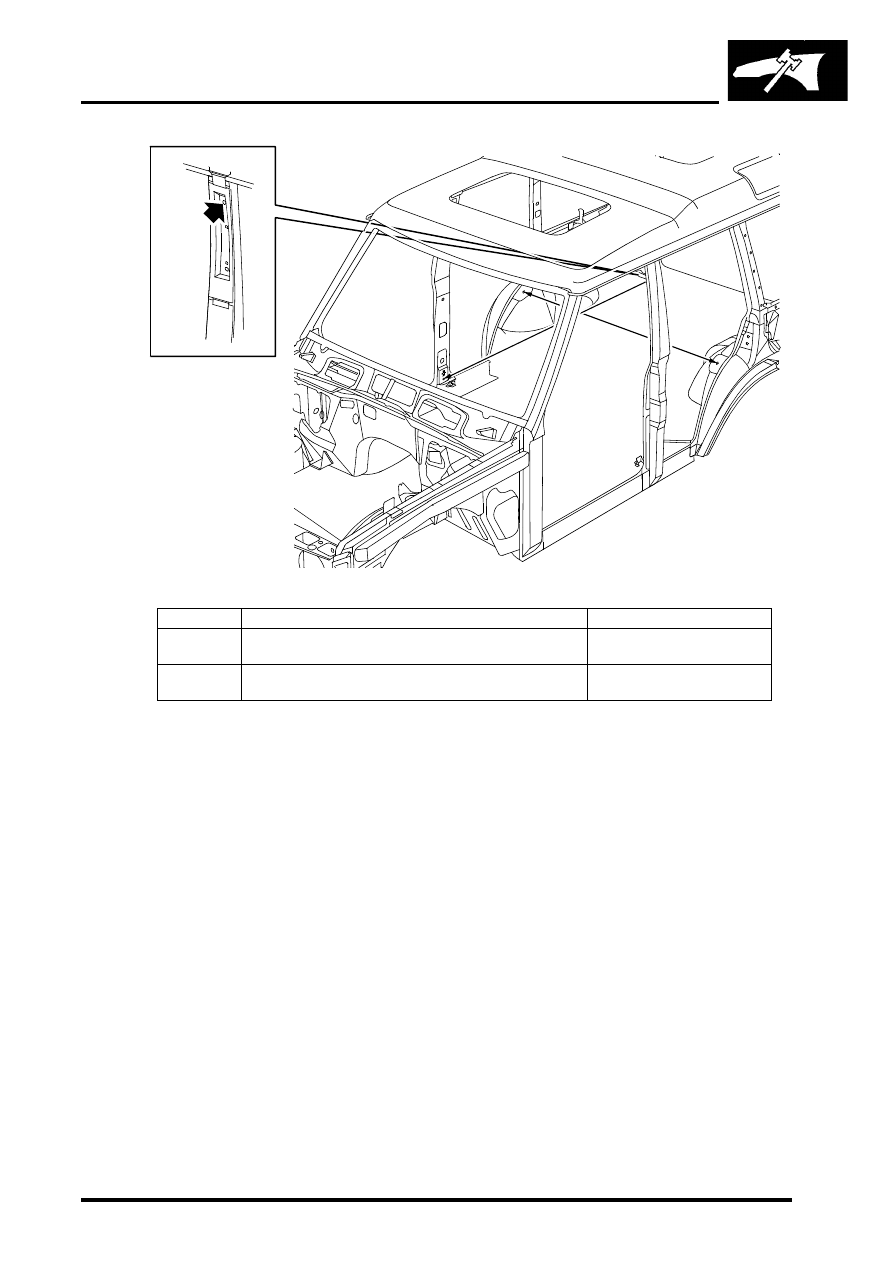

Internal information

I.D

Description

Length

A

Distance between seat belt anchorage top fixing and
seat belt reel lower fixing

1814.5 (71.437)

B

Distance between seat belt anchorage lower fixings on
wheel arch inner

1430.2  (56.307)

M77 1760

A

B

CHASSIS AND BODY DIMENSIONS

77-1-12 BODY DIMENSIONS

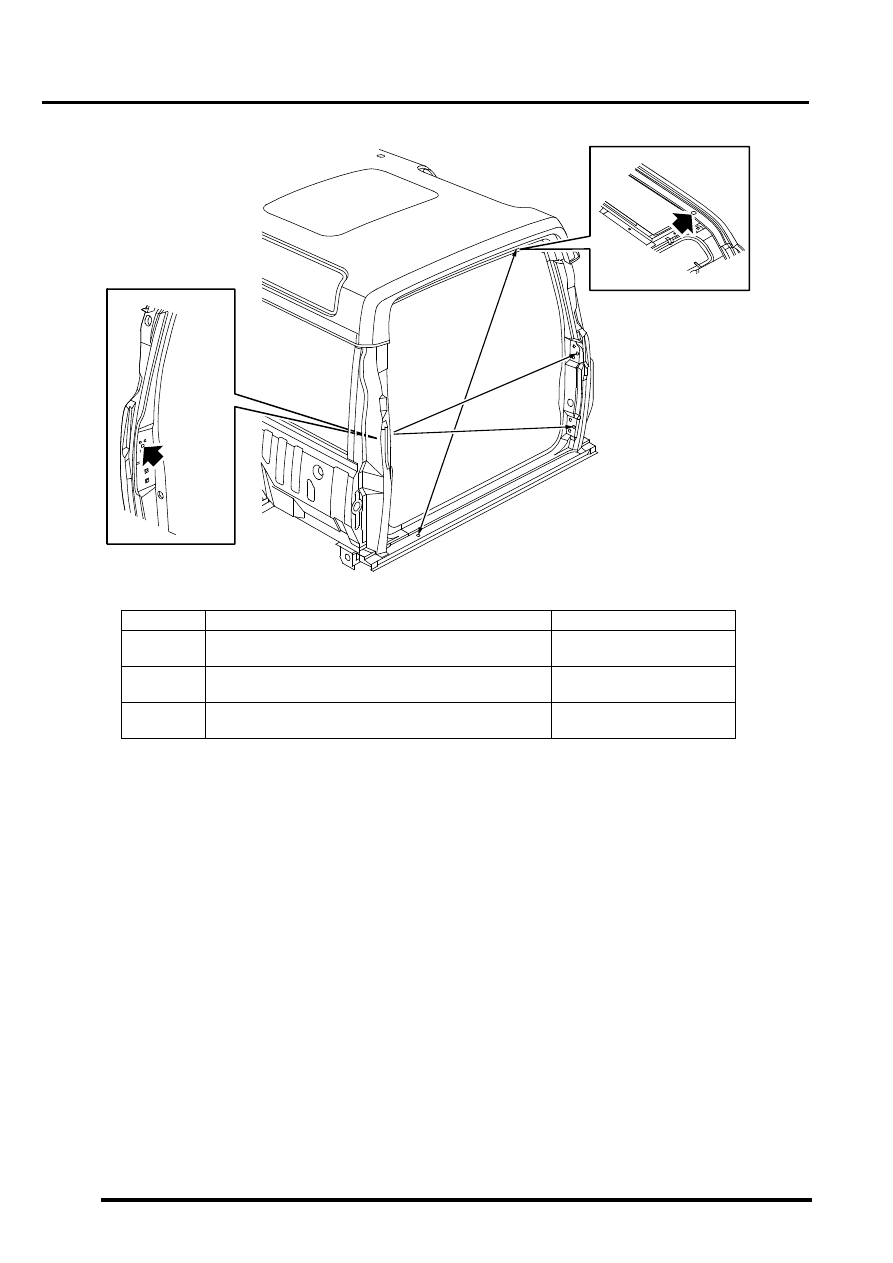

Rear end information

I.D

Description

Length

A

Distance between taildoor setting block, jig location hole
and taildoor bottom hinge, middle fixing hole

1364.4 (53.716)

B

Distance between taildoor setting block, jig location hole
and taildoor top hinge, middle fixing hole

1319.8  (51.960)

C

Distance between crossmember outer rear panel, jig
location hole and rear headrest fixing hole

1413 (55.629)

M77 1758A

A

B

C

CHASSIS AND BODY DIMENSIONS

BODY DIMENSIONS 77-1-13

Gaps and profiles
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

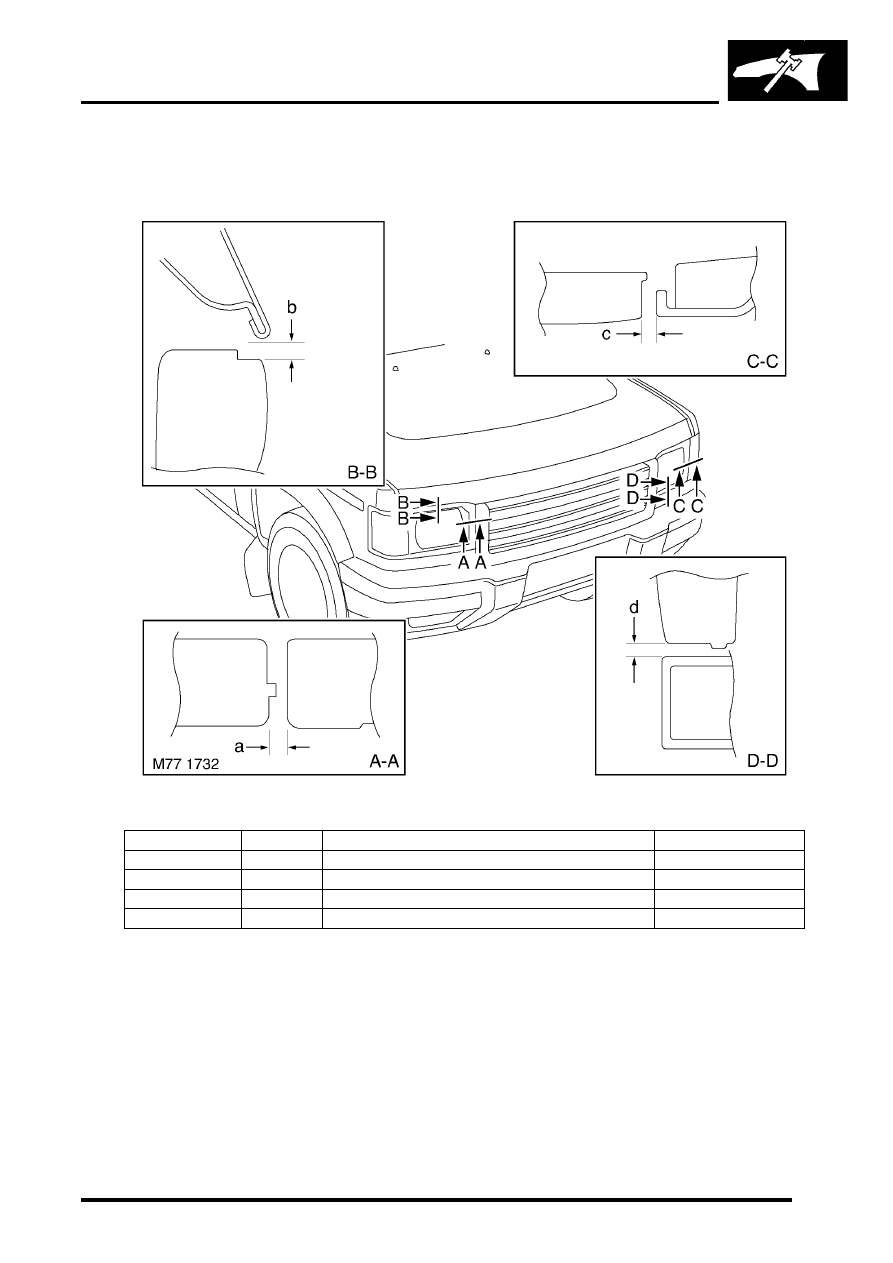

Front end information

Gaps

The tolerance for the above figures is

±

 1.0 (0.039).

Section

Gap

Description

Dimension

A-A

a

Headlamp to grille

9.5 (0.374)

B-B

b

Headlamp to bonnet

14.0 (0.551)

C-C

c

Headlamp to indicator lamp

6.0 (0.236)

D-D

d

Headlamp to headlamp surround panel

9.5 (0.374)

CHASSIS AND BODY DIMENSIONS

77-1-14 BODY DIMENSIONS

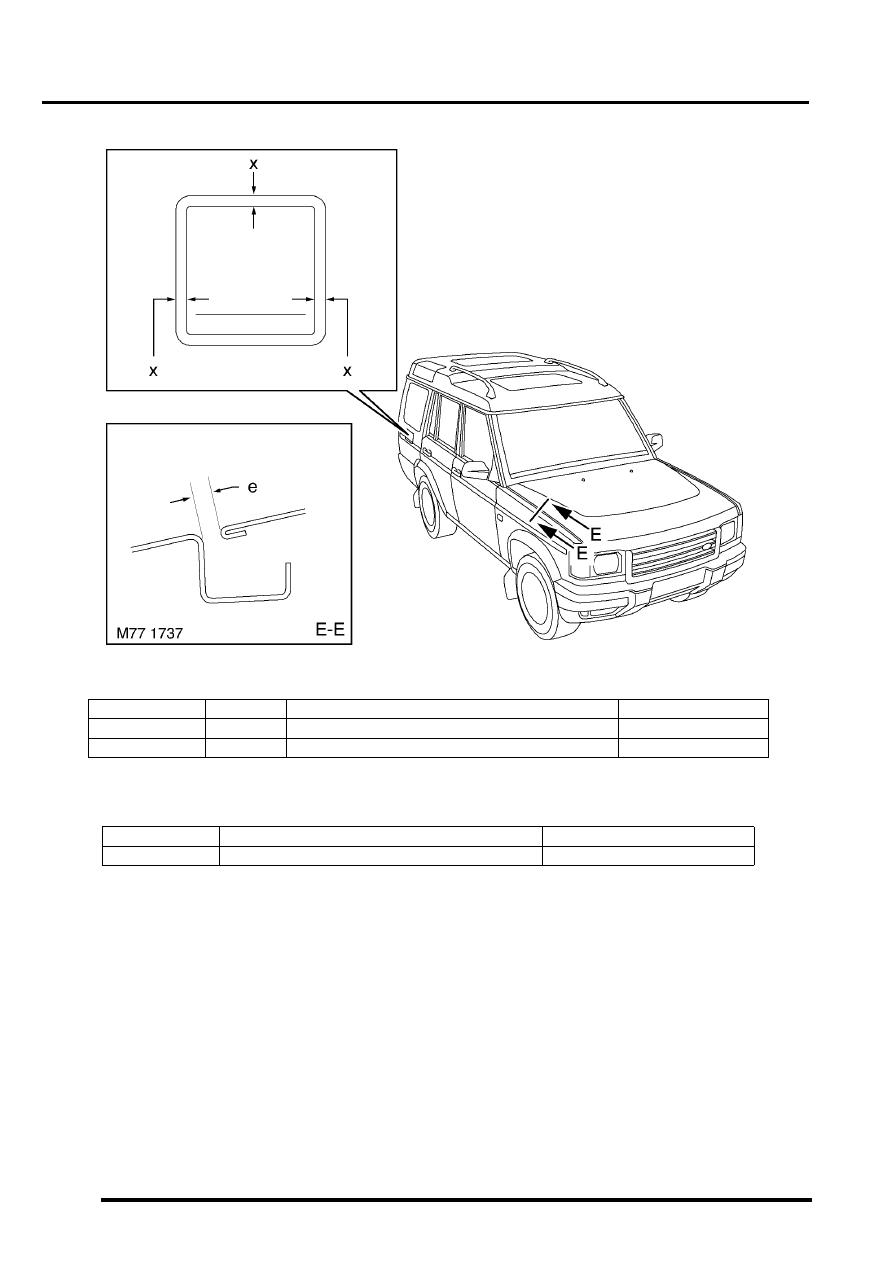

Front end/side information

Gaps

The tolerance for gap 'e' is

±

 1.0 (0.039), and for gap 'x' is

±

 0.5 (0.019).

Profile

Section

Gap

Description

Dimension

E-E

e

Bonnet to wing

6.0 (0.236)

x

Fuel filler lid to body side panel

3.0 (0.118)

Section

Description

Dimension

E-E

Profile of bonnet to wing

+1.0 (0.039) -0.0
