SUNROOF

REPAIRS 76-6-17

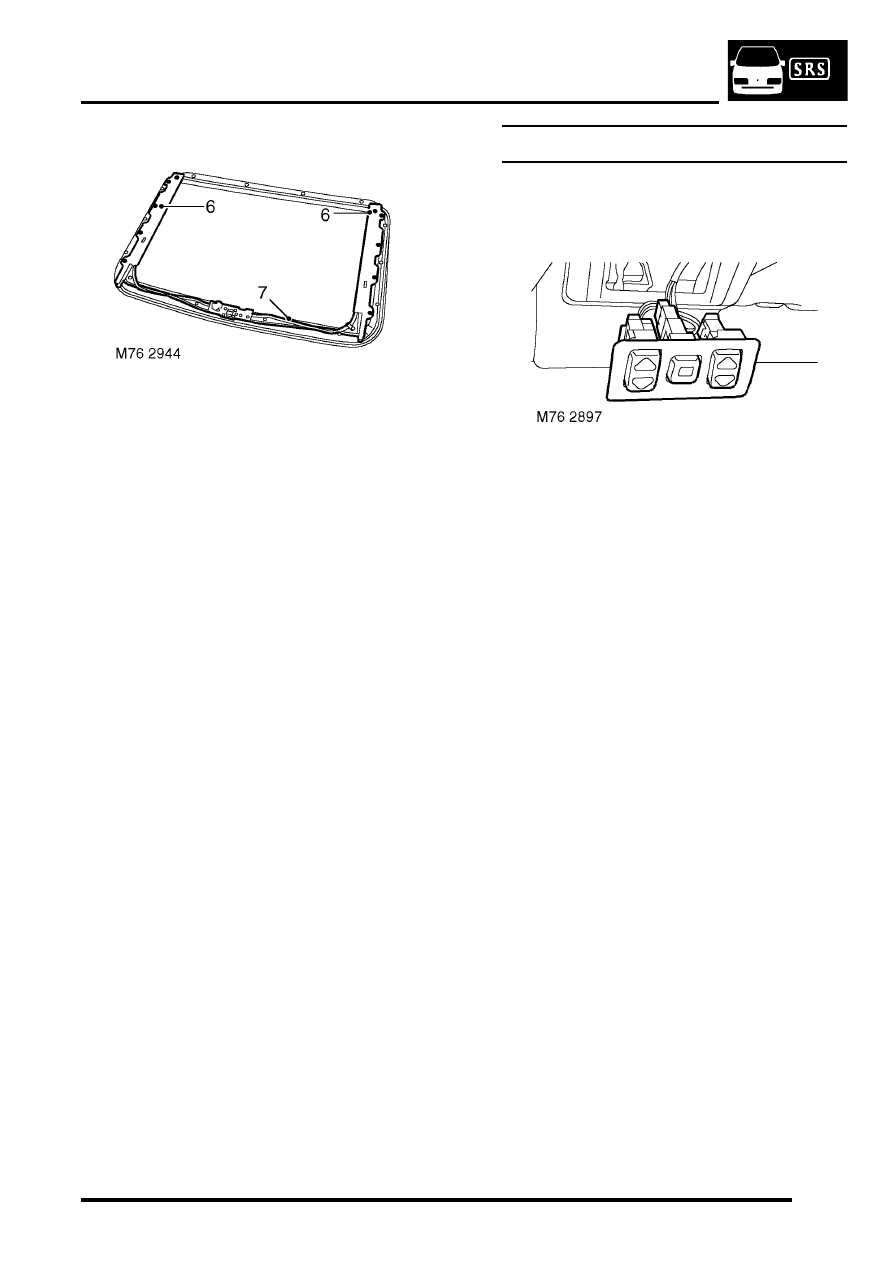

6. Remove 10 Torx screws securing frame to

drive cable assembly.

7. Remove drive cable assembly from frame.

Refit

1. Fit drive cable assembly to frame.
2. Fit Torx screws  securing frame to drive cable

assembly and tighten to  2.5 Nm (1.8 lbf.ft).

3. Fit glass carriers to cables.
4. Fit glass to sunroof frame and secure with Torx

screws. Do not fully tighten screws at this
stage.

5. Fit sunroof.

l

For front drive cable assembly:


 +

 SUNROOF, REPAIRS, Sunroof -

front.

l

For rear drive cable assembly:


 +

 SUNROOF, REPAIRS, Sunroof -

rear.

6. Remove timing pegs supplied with drive cables.
7. Adjust position of sunroof glass in relation to

sunroof panel until a 6.5 mm (0.25 in) gap is
produced between the front edge of the glass
and the sunroof frame.

8. Tighten sunroof glass retaining screws to 3 Nm

(2.2 lbf.ft).

Switch pack - sunroof

$% 76.84.44

Remove

1. Release switch pack from front stowage

pocket.

2. Disconnect multiplugs from 3 sunroof

switches.

3. Remove switches from switch pack.

Refit

1. Fit switches to switch pack.
2. Connect multiplugs to switches.
3. Fit switch pack to front stowage pocket.

SUNROOF

76-6-18 REPAIRS

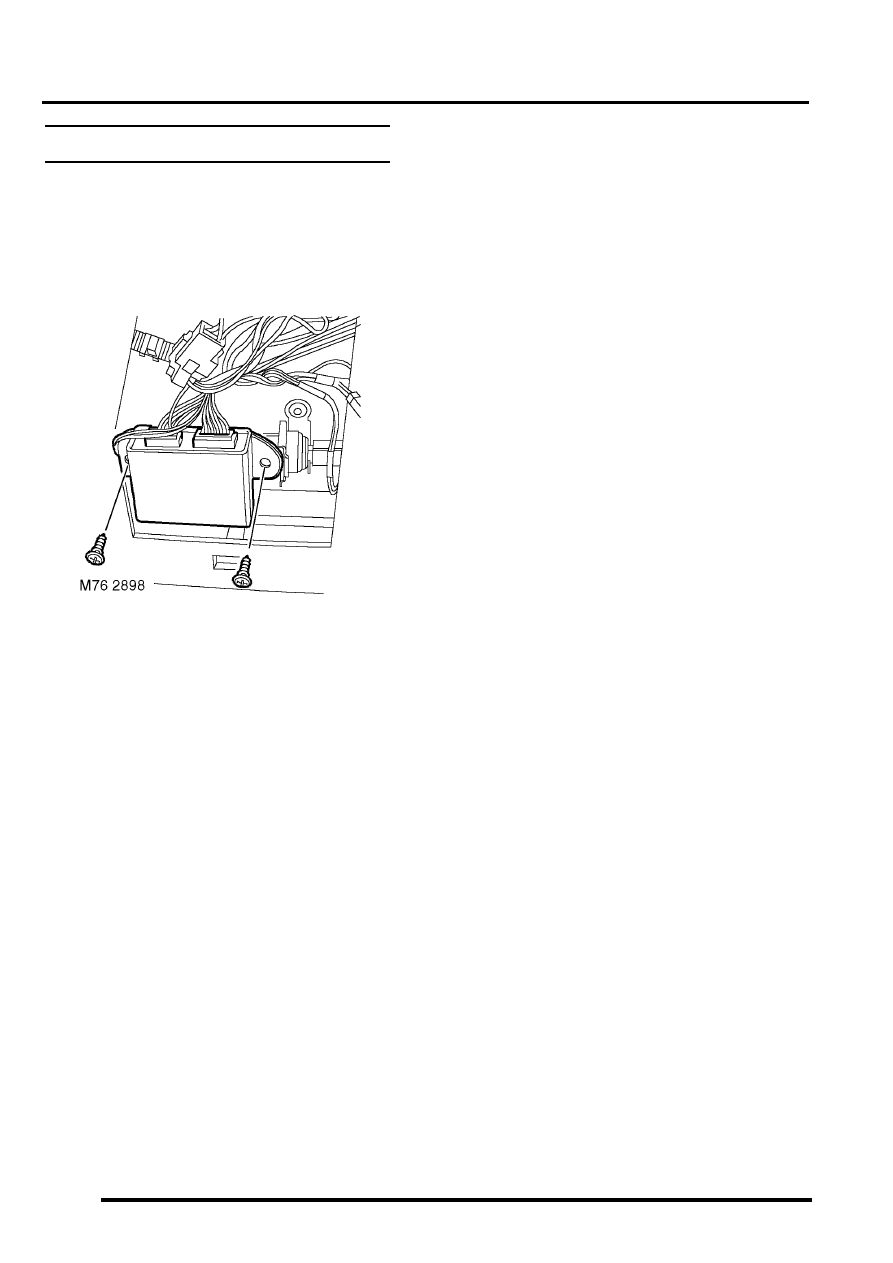

ECU - sunroof

$% 76.84.46

Remove

1. Remove front stowage pocket.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Stowage pocket - front.

2. Remove 2 screws securing ECU to roof.
3. Disconnect 2 multiplugs from ECU.
4. Remove sunroof ECU.

Refit

1. Position sunroof ECU and connect  multiplugs.
2. Fit and tighten screws securing ECU to  roof.
3. Fit front stowage pocket.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Stowage pocket - front.

CHASSIS AND BODY DIMENSIONS

CHASSIS DIMENSIONS

77-1-1

CHASSIS AND BODY DIMENSIONS

CHASSIS DIMENSIONS

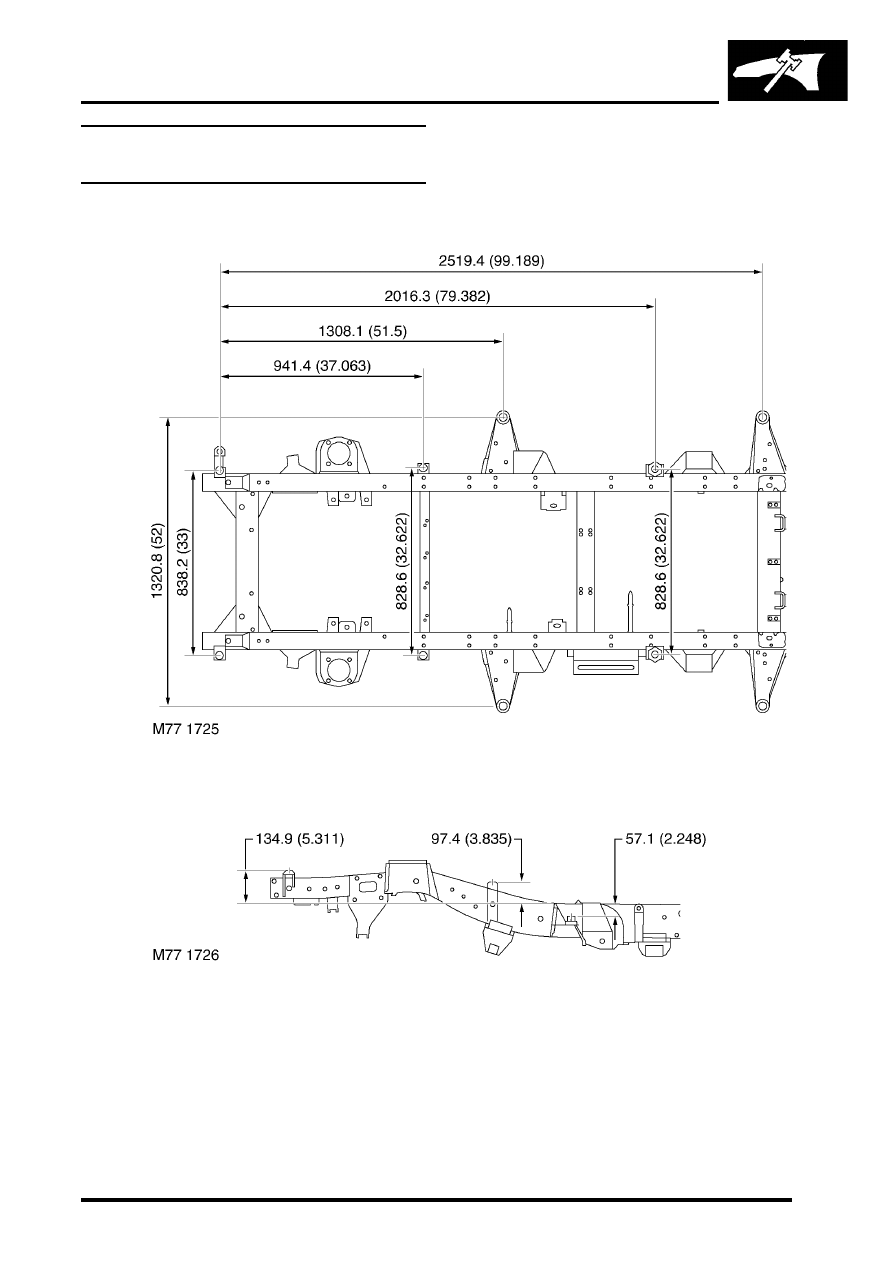

Chassis body mounting points - front
end

Plan view

Side view

Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial

measurements (inches).

CHASSIS AND BODY DIMENSIONS

77-1-2

CHASSIS DIMENSIONS

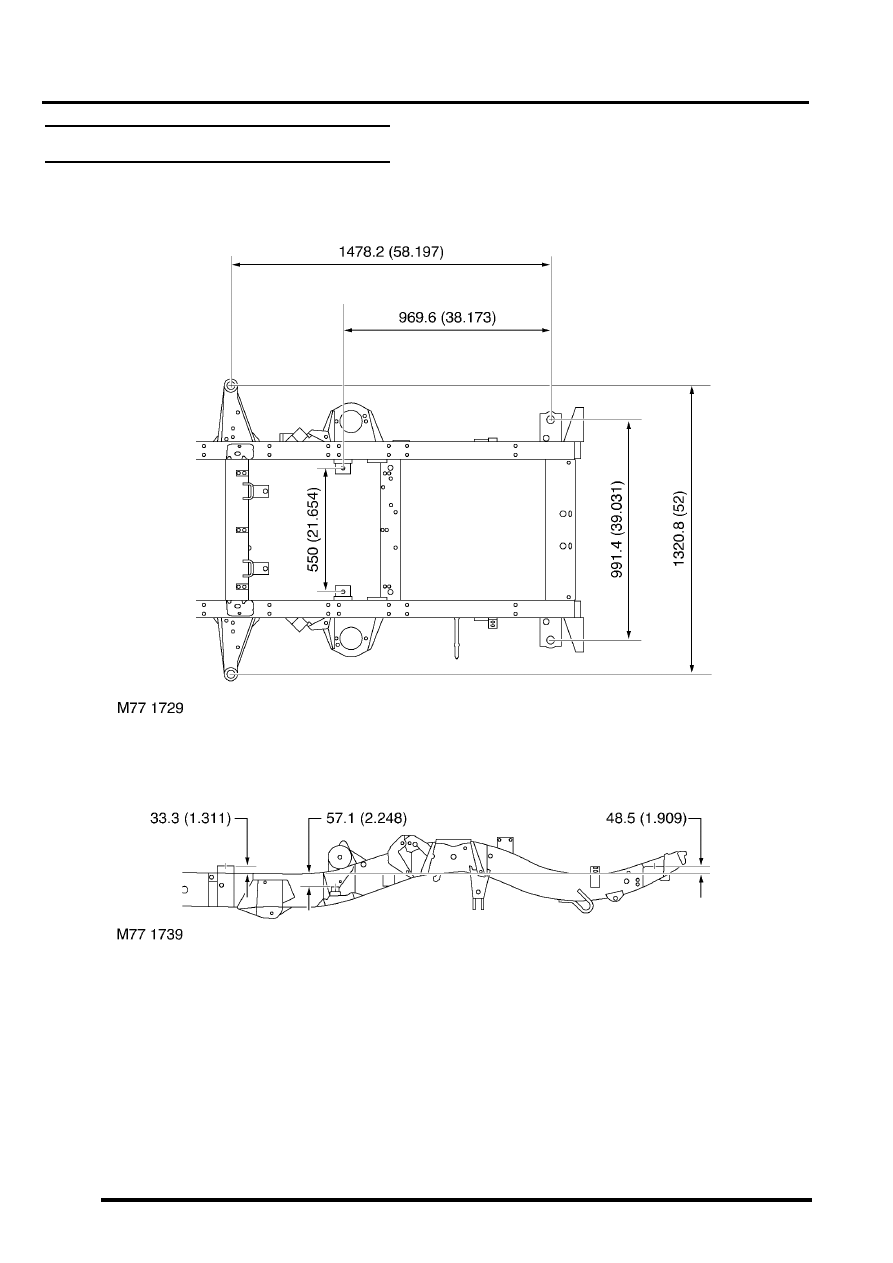

Chassis body mounting points - rear end

Plan view

Side view

Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial

measurements (inches).
