SEATS

REPAIRS 76-5-27

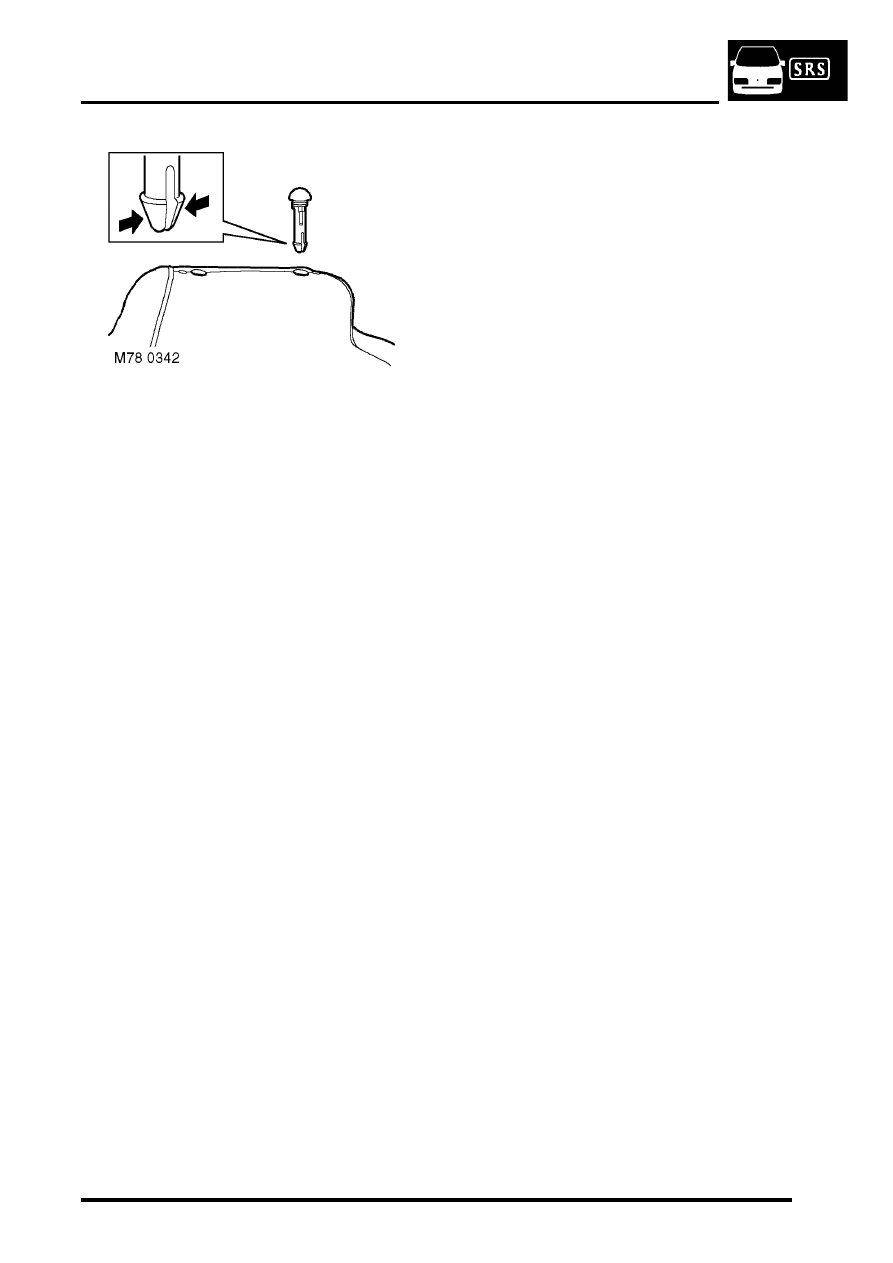

30. Remove headrest guides.
31. Fold cover fully upwards and remove.

Refit

1. Fit squab cover to top of seat. Do not fold down

too far onto seat.

2. Fit headrest guides.
3. Fit grab handles to seat and secure with

screws.

4. Ensure top of cover fits correctly around grab

handles.

5. Fit bar securing rear of squab cover to seat

frame.

6. Fit hog rings securing rear of squab cover to

seat frame.

7. Pull cover down tight and align hog ring

location points.

8. Fit third row of hog rings.
9. Pull cover down tight and feed hooks though

foam.

10. Connect hooks to rear of squab frame.
11. Align stowage pocket elastic to seat frame and

secure with trim clips.

12. Pull cover down tight and align hog ring

location points.

13. Fit second row of hog rings.
14. Pull cover down tight and align hog ring

location points.

15. Fit first row of hog rings.
16. Pull cover down tight and connect hooks to

squab frame.

17. Feed front of cover through to rear.
18. Secure bottom of cover to frame with  clip.
19. Fit clips securing ends of cover to  frame.
20. Fit headrest to seat.
21. Turn seat upside down.
22. Secure rear edge of squab cover to  frame with

clip.

23. Turn seat correct way up.
24. Fit inner edge trim casing to seat frame.
25. Fit outer edge trim casing and secure with

screws.

26. Position arm rest to seat, secure with screw and

loosen arm rest adjuster to the required
position.

27. Fit front seat.

SEATS, REPAIRS, Seat - front.

SEATS

76-5-28 REPAIRS

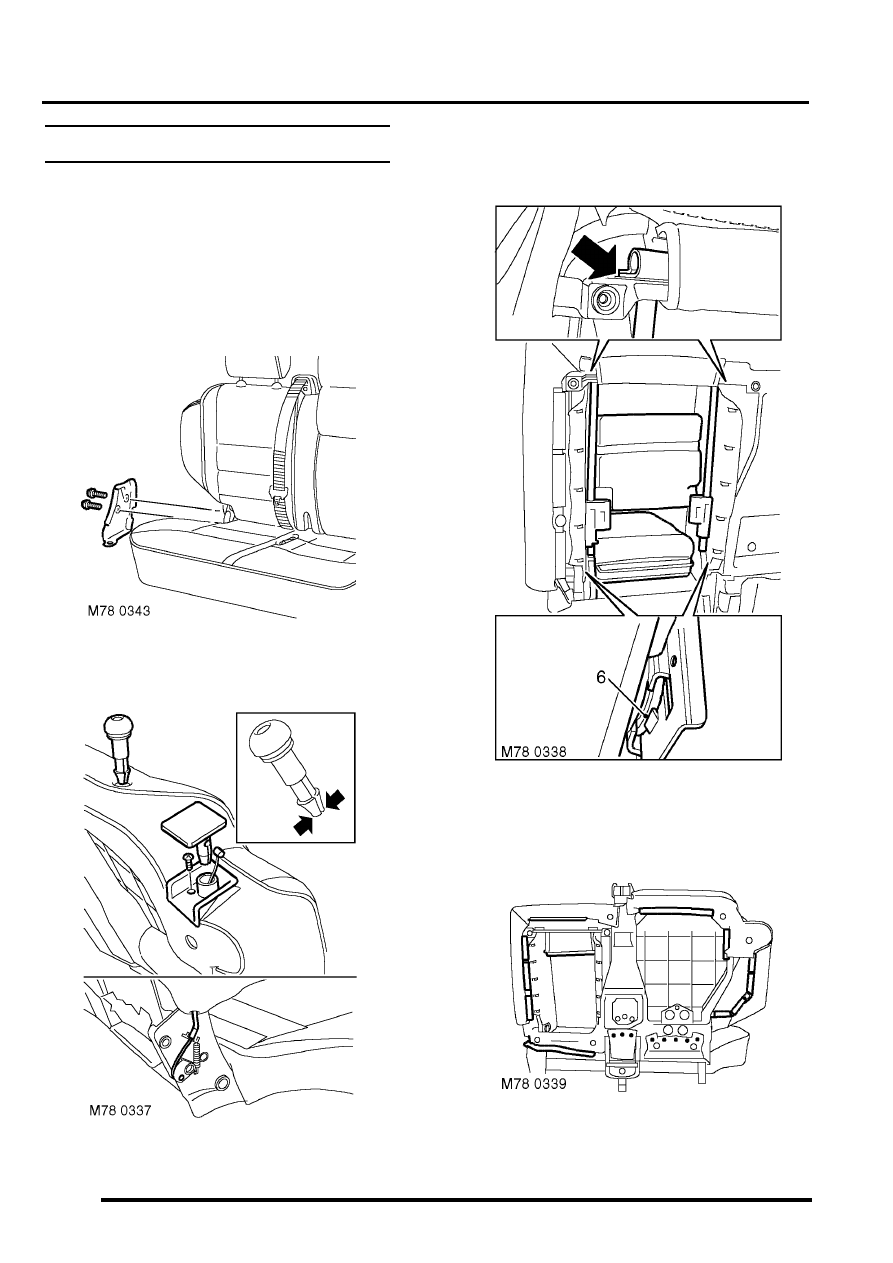

Cover - squab - RH rear seat

$% 78.90.13

Remove

1. Remove rear seat.

SEATS, REPAIRS, Seat - rear.

2. Remove centre rear seat belt.

RESTRAINT SYSTEMS, REPAIRS,

Seat belt - rear - centre.

3. Remove 2 screws securing end cover and

remove end cover.

4. Remove both head restraint guide tubes.

5. Remove 2 screws securing squab release

lever, release cable and remove lever
assembly.

6. Release catches securing arm rest supports,

lower arm rest, release arm rest hinge catches
and remove arm rest assembly.

7. Release squab from 10 hooks in arm rest

recess.

SEATS

REPAIRS 76-5-29

8. Release top and bottom rap round clips in arm

rest recess.

9. Remove 3 studs securing squab to centre of

frame.

10. Release squab from 5 studs securing RH side.
11. Release 9 side clips securing squab to frame,

release and remove squab assembly.

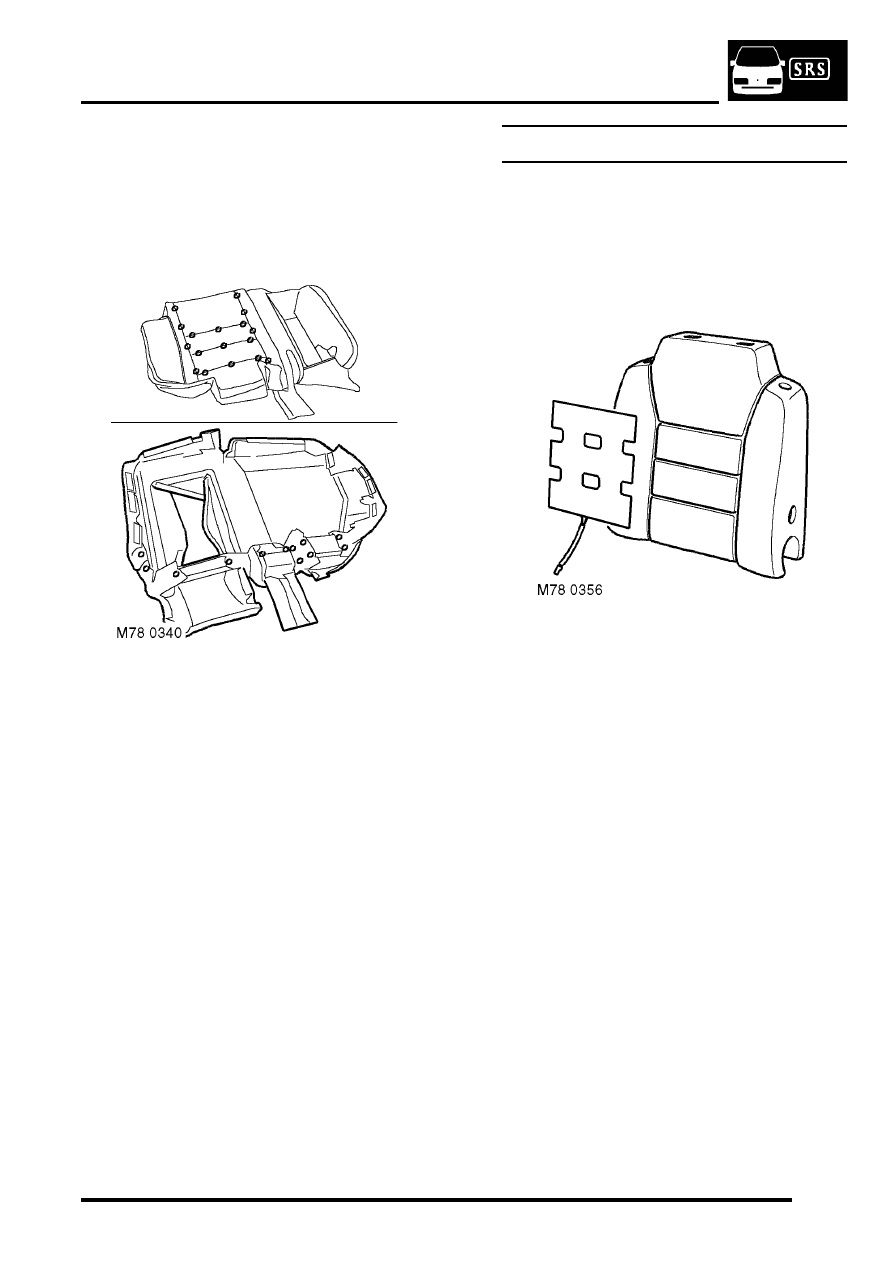

12. Release squab from sides of pad to access

hog rings.

13. Remove 29 hogs rings and remove squab

cover from pad.

Refit

1. Position squab to pad and secure with hog

rings.

2. Position squab assembly to frame and secure

side clips.

3. Secure squab to hooks at RH side and fit studs

to centre of frame.

4. Fit top and bottom rap round clips and hooks in

arm rest recess.

5. Fit and secure arm rest assembly.
6. Position squab release lever, connect cable

and secure with screws.

7. Fit head restraint guide tubes.
8. Position end cover and secure with screws.
9. Fit centre rear seat belt.

RESTRAINT SYSTEMS, REPAIRS,

Seat belt - rear - centre.

10. Fit rear seat.

SEATS, REPAIRS, Seat - rear.

Heating element - squab - front seat

$% 78.90.36

Remove

1. Remove front seat squab cover.

SEATS, REPAIRS, Cover - squab -

front seat.

2. Disconnect heating element multiplug.
3. Carefully release heating element from squab

pad, ensuring adhesive does not tear squab
pad.

Refit

1. Ensure squab pad is free of adhesive.
2. Remove adhesive cover from new heating

element, position element and secure to squab
pad.

3. Fit front seat squab cover.

SEATS, REPAIRS, Cover - squab -

front seat.

SEATS

76-5-30 REPAIRS

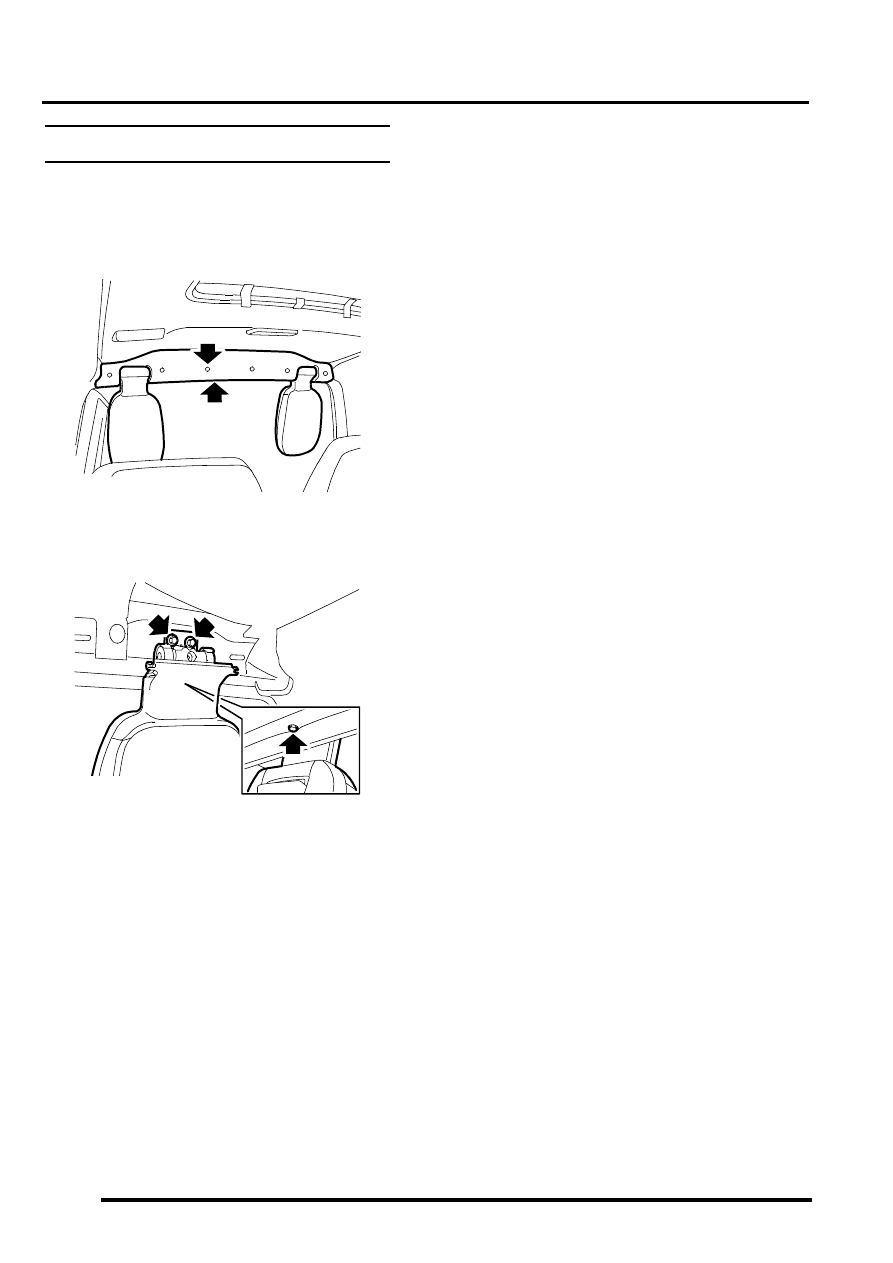

Head restraint - third row seat

$% 78.50.10

Remove

1. Fold down both third row head restaints.

2. Release upper tail gate finisher from 6 clips and

remove finisher.

3. Remove 3 bolts securing head restraint and

remove head restraint.

Refit

1. Position head restraint, fit and tighten bolts.
2. Position upper tail gate finisher and secure in

clips.

M78 0493

M78 0494
