Discovery 2. Manual - part 662





SCREENS

REPAIRS

76-4-7

12. Position glass to body and align to reference

tape.

13. Lightly press glass to ensure correct profile.
14. Secure glass with tape until sealer has cured.
15. Remove protective covers and tape.
16. Test sealer for leaks, apply additional sealer if

necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark any area that leaks. Dry
glass and sealer then apply additional sealer.

CAUTION: A curing time of 6 hours is
desirable. During this time leave a window
open to ventilate the vehicle interior. If the
vehicle must be used before the curing time
has elapsed, do not drive at speed or slam
the doors with the windows closed.

SCREENS

76-4-8

REPAIRS

SEATS

DESCRIPTION AND OPERATION

76-5-1

SEATS

DESCRIPTION AND OPERATION

Electric seat component location

RHD shown, LHD similar

BCU
Drivers door switch
Power relay
Satellite fuse box
Switch pack
Fore/aft motor
Cushion front up/down motor
Cushion rear up/down motor
Squab fore/aft motor

10 Lumbar support bladder
11 Lumbar pump

SEATS

76-5-2

DESCRIPTION AND OPERATION

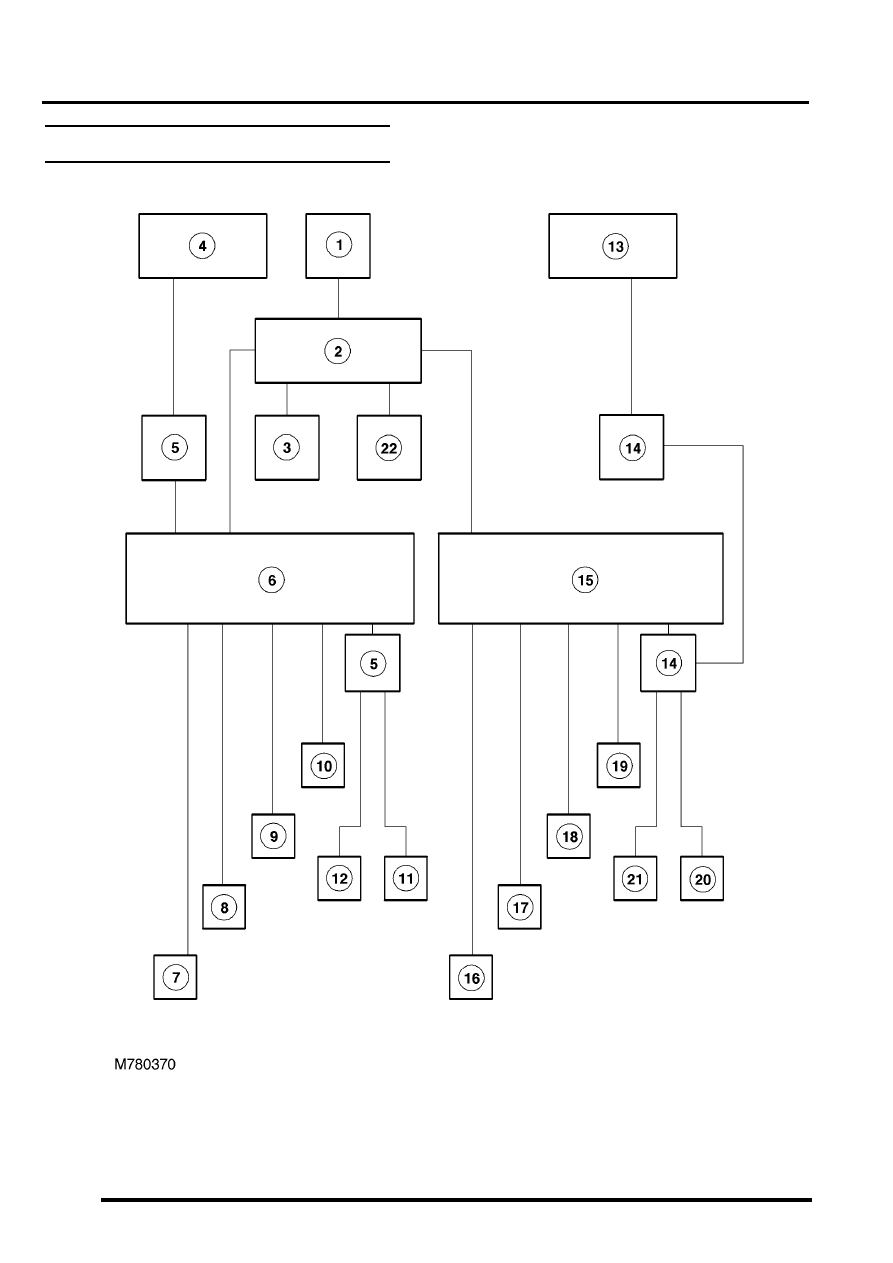

Electric seat block diagram
