INTERIOR TRIM COMPONENTS

REPAIRS

76-3-7

Console - centre - manual models

$% 76.25.01

Remove

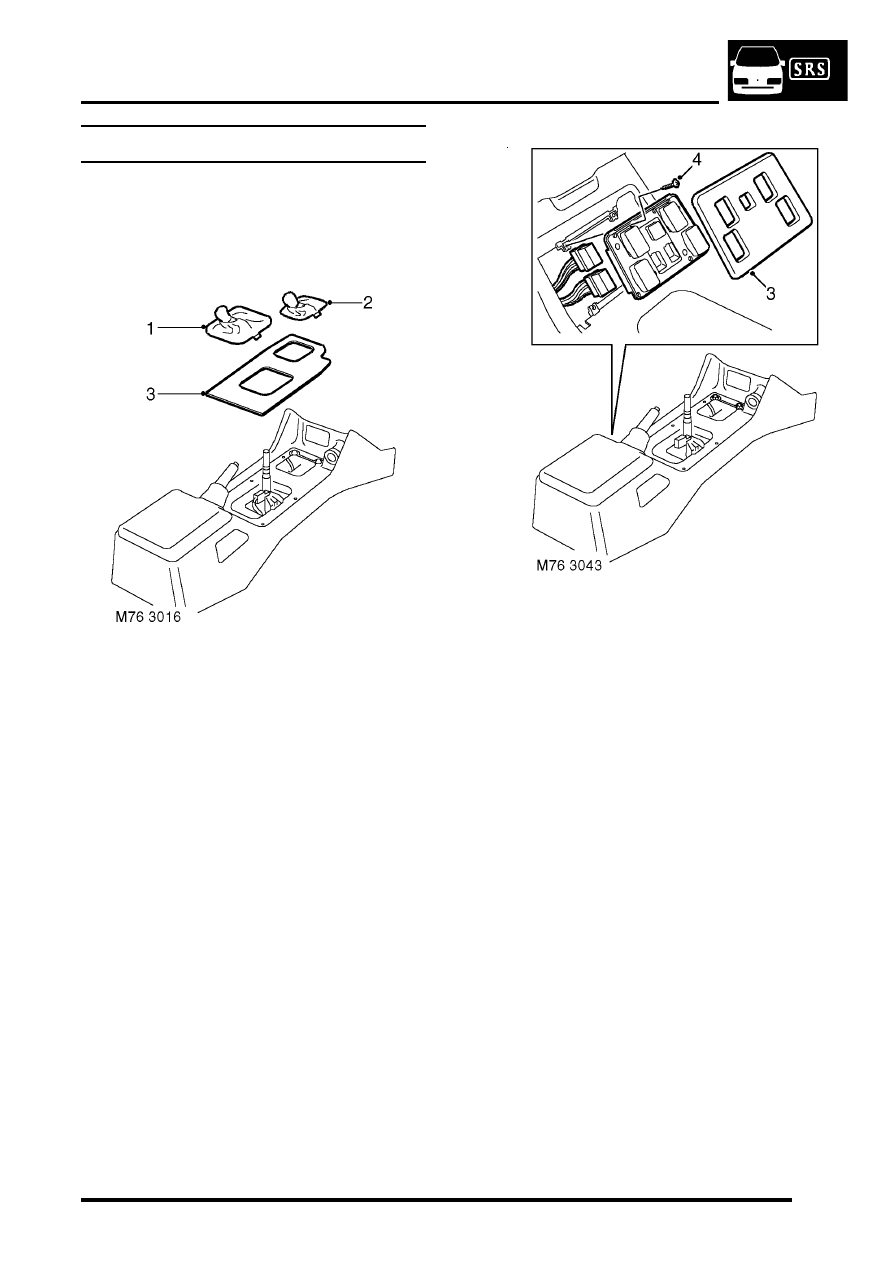

1. Release clips securing gear lever gaiter to

centre console and  remove knob and gaiter.

2. Models from 03MY:Remove both centre

console cup holders.

3. Release clips securing transfer box  lever gaiter

to centre console and remove knob and gaiter.

4. Models with base trim: Remove rubber mat

from console and remove cover plate from
switch pack.

5. Models with base trim: Remove 4 screws

securing switch pack to centre console,
disconnect multiplugs and remove switch pack.

INTERIOR TRIM COMPONENTS

76-3-8

REPAIRS

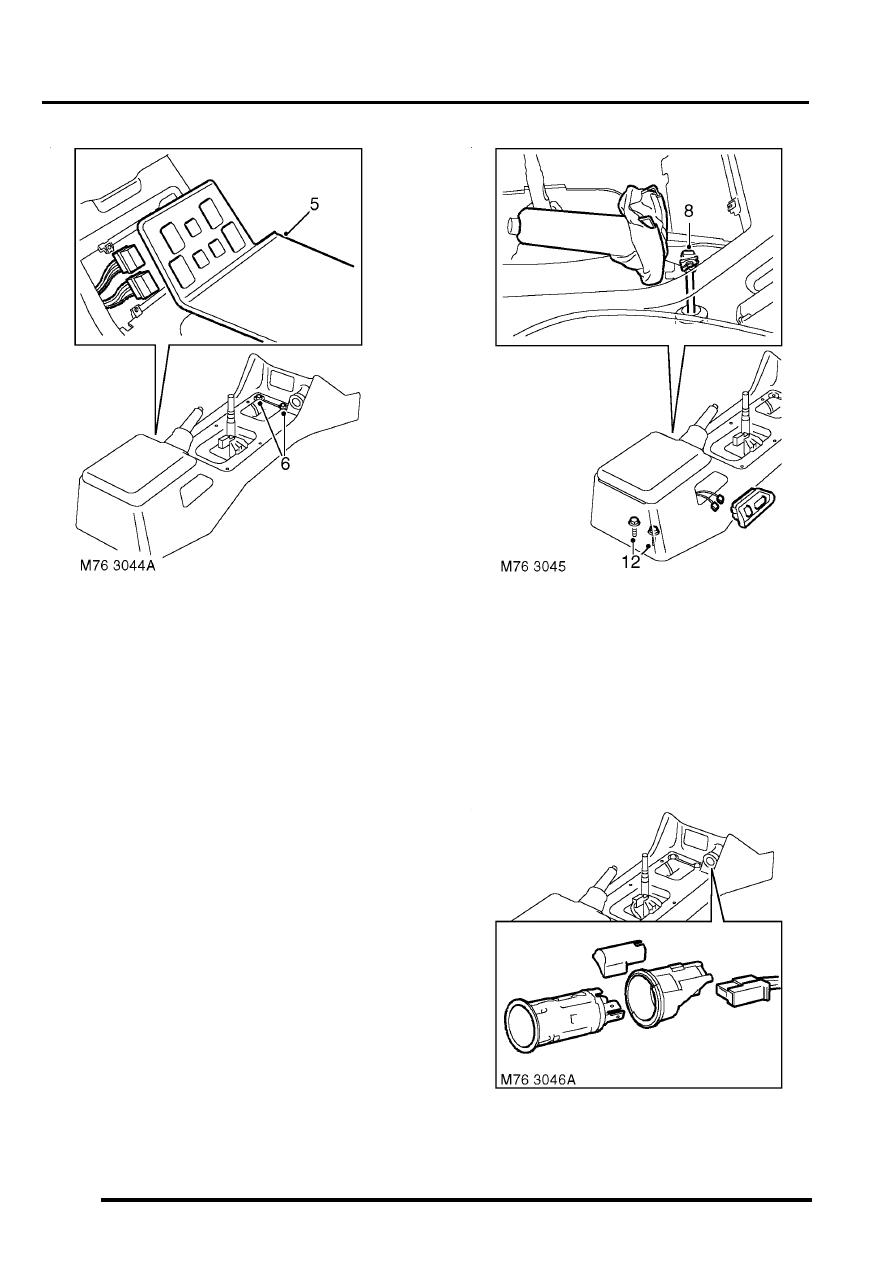

6. Models with veneer trim: Release veneered

console cover from console and remove cigar
lighter element. Disconnect multiplugs from
switch pack and remove veneered console
cover.

7. Remove 2 bolts securing  forward edge of

console to transmission  tunnel.

8. Release handbrake gaiter from console.
9. Remove clip and clevis pin securing cable to

handbrake.

10. Move handbrake to fully upward position.
11. Release electric seat switches from  console.
12. Disconnect multiplugs from switches and

remove.

13. Remove 2 bolts securing rear of console  to

transmission tunnel.

14. Release centre console from fascia.

15. Disconnect multiplug and bulb from cigar

lighter.

INTERIOR TRIM COMPONENTS

REPAIRS

76-3-9

16. Remove console.

NOTE: Do not carry out further dismantling if
component is removed for access only.

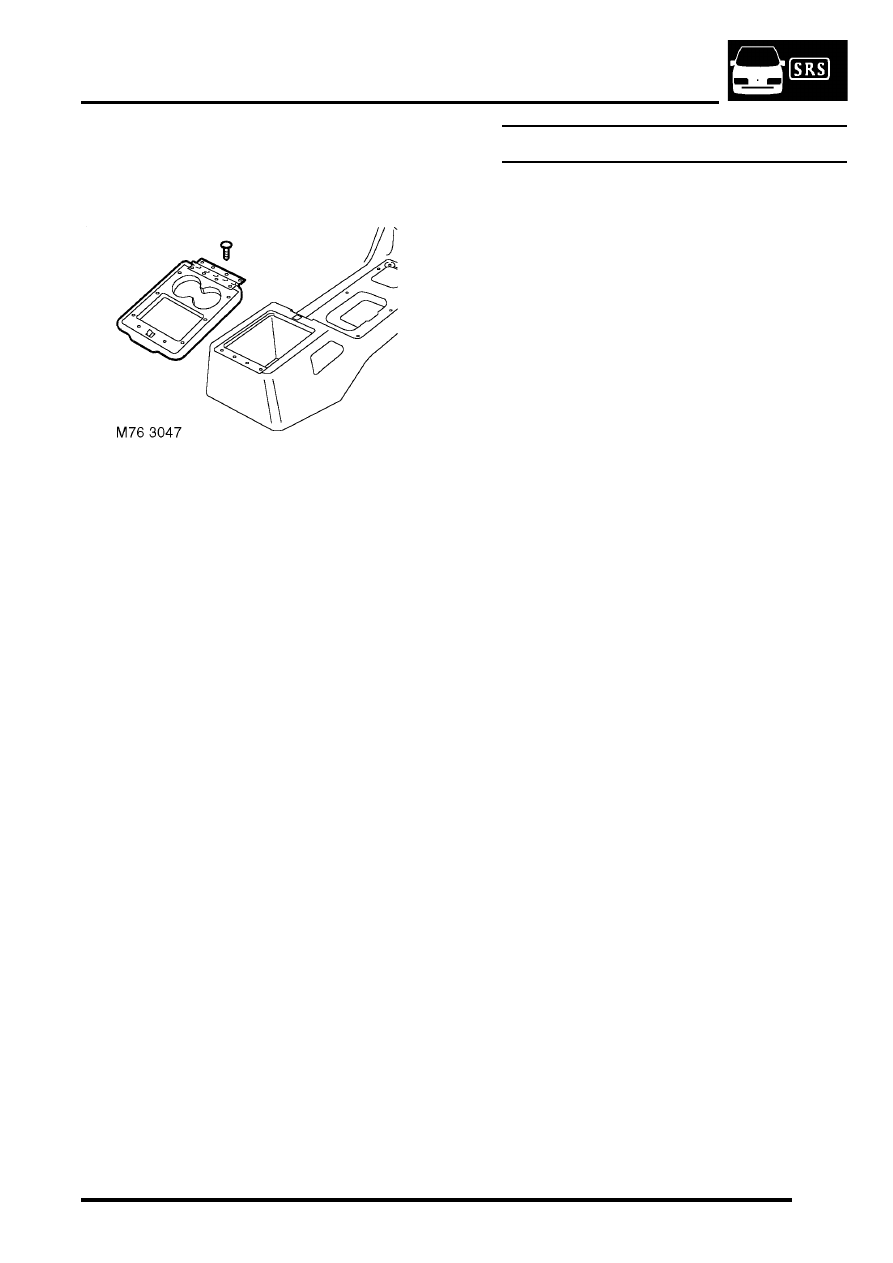

17. Remove 4 screws securing storage bin lid  to

console and remove lid.

18. Release cigar lighter body from console  and

remove.

Refit

1. Fit and secure cigar lighter body to  console.
2. Fit lid to console and secure with  screws.
3. Fit console.
4. Connect multiplug and bulb to cigar  lighter.
5. Fit centre console to fascia.
6. Fit 2 bolts securing rear of console to

transmission tunnel.

7. Connect multiplugs to seat switches.
8. Fit switches to console.
9. Move handbrake to lowered position.

10. Fit cable to handbrake and secure with clevis

pin and clip.

11. Fit handbrake gaiter to console.
12. Fit bolts securing forward edge of  console to

transmission tunnel.

13. Models with veneer trim:  Position veneered

console cover and connect multiplugs to switch
pack. Fit cigar lighter element and secure
veneered console cover to console.

14. Models with base trim: Connect multiplugs to

switch pack,  fit switch pack to console and
secure with screws.

15. Models with base trim: Fit cover plate to

switch pack, and rubber mat to console.

16. Fit transfer gearbox gaiter and knob to  lever.
17. Secure gaiter to console.
18. Fit knob and gaiter to gear lever and secure

gear lever gaiter to console with clips.

19. Models from 03MY:Fit both centre console

cup holders.

Fascia

$% 76.46.23/99

Remove

1. Remove the key from the starter switch.

Disconnect both battery leads, negative lead
first. Wait ten minutes before starting work.

2. Remove radio cassette player.



 IN CAR ENTERTAINMENT,

REPAIRS, Radio cassette player.

3. Remove steering wheel.



 STEERING, REPAIRS, Steering

wheel.

4. Remove steering column nacelle.



 STEERING, REPAIRS, Nacelle -

steering column.

5. Remove centre console.

l

For models with automatic gearbox:


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - automatic
models.

l

For models with manual gearbox:


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - manual
models.

6. Remove 'A' post trim panels.

INTERIOR TRIM COMPONENTS

76-3-10 REPAIRS

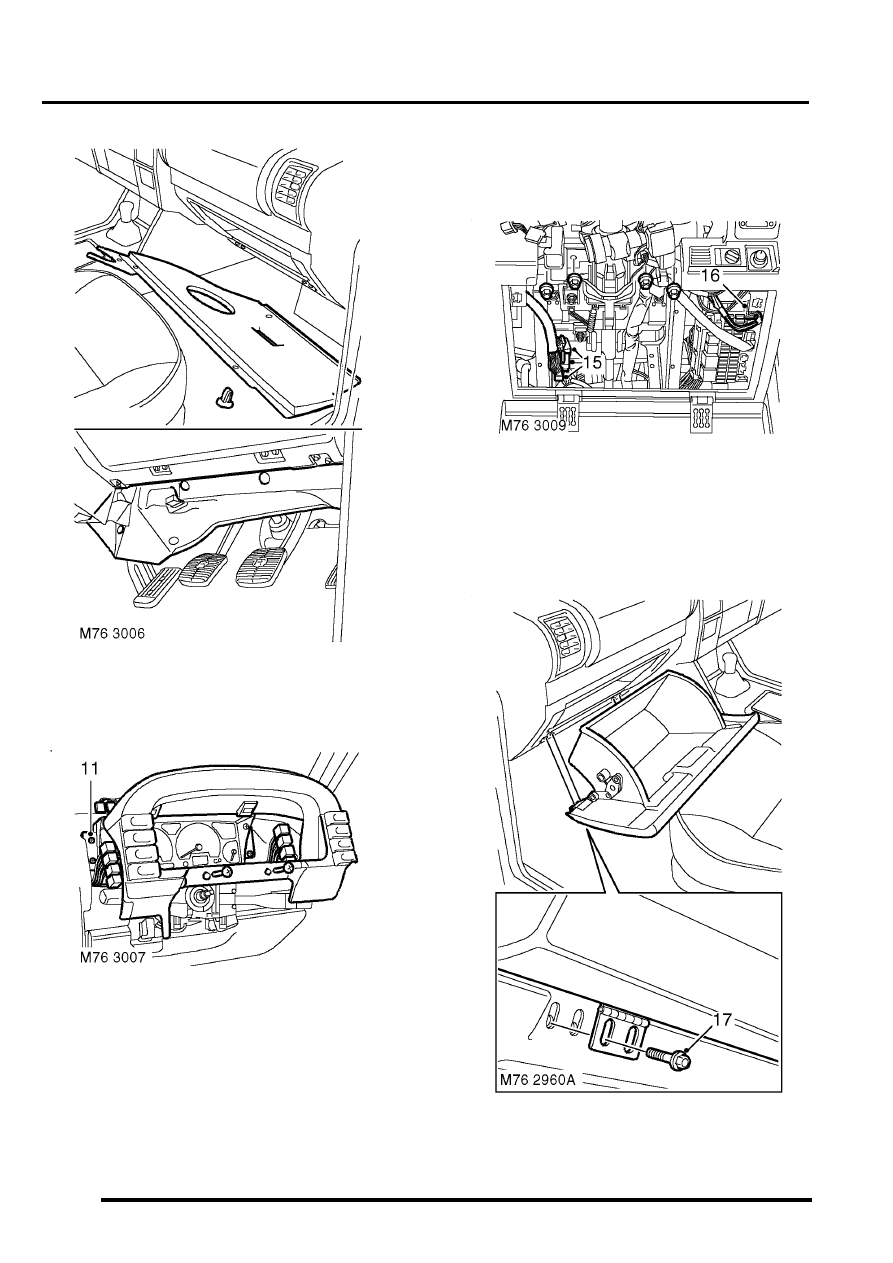

7. Remove 6 clips securing both lower closing

panels to fascia and remove closing panels.

8. Remove mats from fascia.

9. Remove 2 screws and release instrument cowl

from 2 clips on fascia.

10. Disconnect multiplugs from switches in

instrument cowl and remove cowl.

11. Remove 4 screws securing instrument pack to

fascia.

12. Disconnect 2 multiplugs from instrument pack

and remove pack.

13. Remove fascia access panel.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Panel - fascia access - driver's
side.

14. Remove 4 nuts securing fascia to steering

column bracket.

15. Disconnect 3 multiplugs connecting main body

harness to fascia harness.

16. Disconnect fascia harness multiplug from fuse

box.

17. Remove 4 bolts securing glove box and remove

glove box.
