DOORS

REPAIRS 76-1-13

Handle - exterior - front door

$% 76.58.07

Remove

1. Remove front door trim casing.



 +

 DOORS, REPAIRS, Trim casing -

front door.

2. Carefully release water shedder from door.

3. Release control rod from  latch.

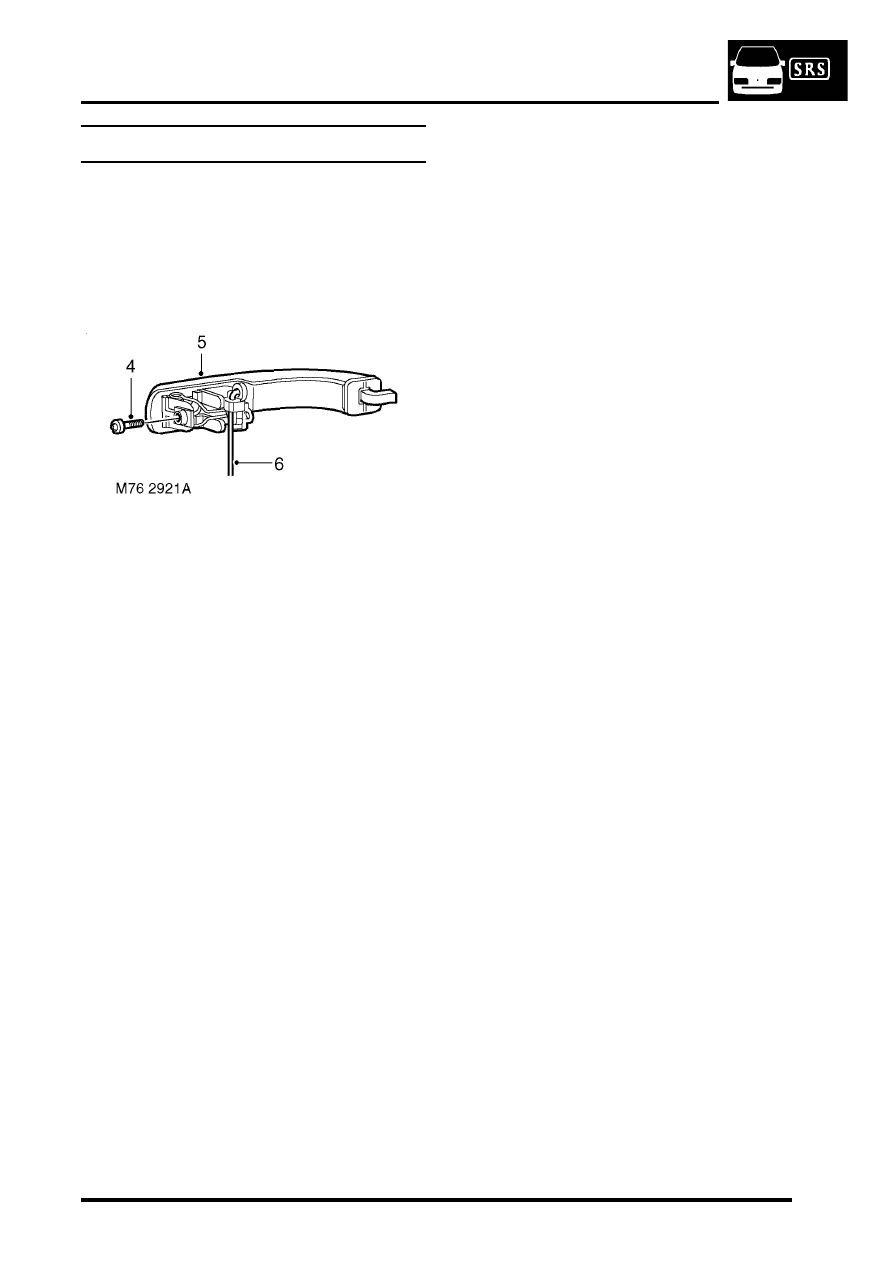

4. Remove Torx bolt securing exterior handle to

door.

5. Remove exterior handle.
6. Remove control rod from exterior handle.

Refit

1. Fit control rod to exterior handle.
2. Position  exterior handle  to door,  fit  Torx bolt

and tighten to 7 Nm. (5.2 lbf.ft).

3. Connect control rod to door latch.
4. Fit water shedder to door.
5. Fit front door trim casing.



 +

 DOORS, REPAIRS, Trim casing -

front door.

DOORS

76-1-14 REPAIRS

EXTERIOR FITTINGS

REPAIRS

76-2-1

EXTERIOR FITTINGS

REPAIRS

Wing - front - up to 03MY

$% 76.10.24

Remove

1. Remove front repeater lamp.



 +

 LIGHTING, REPAIRS, Lamp - front

repeater.

2. Remove front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - wheel arch - front.

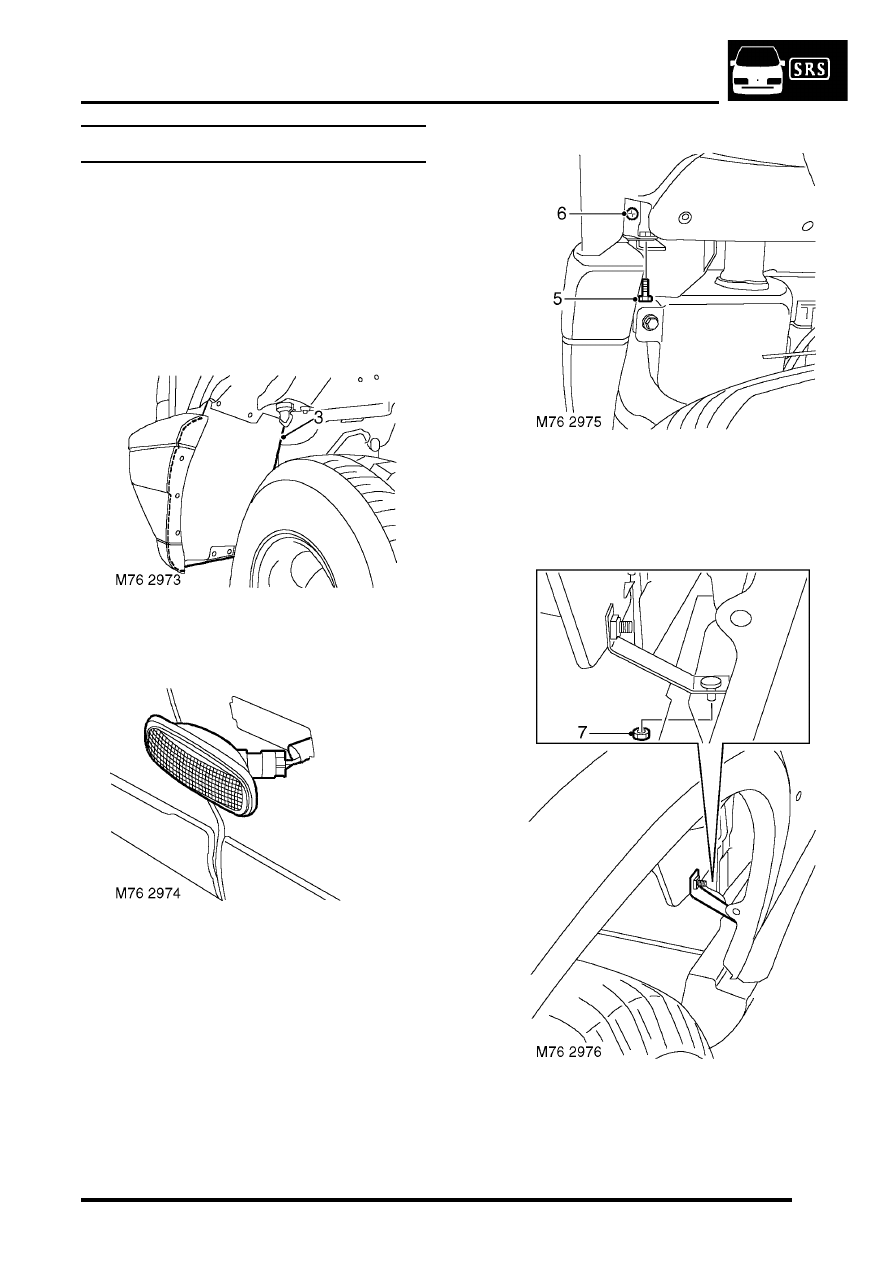

3. Remove 5 screws securing wheel arch liner

extension to bumper valance and remove liner.

4. Remove side repeater lamp from wing,

disconnect multiplug and remove lamp.

5. Remove bolt securing front of wing to bracket

on body.

6. Remove screw securing headlamp surround

panel to wing.

7. Remove nut securing wing to bracket on sill

finisher.

EXTERIOR FITTINGS

76-2-2

REPAIRS

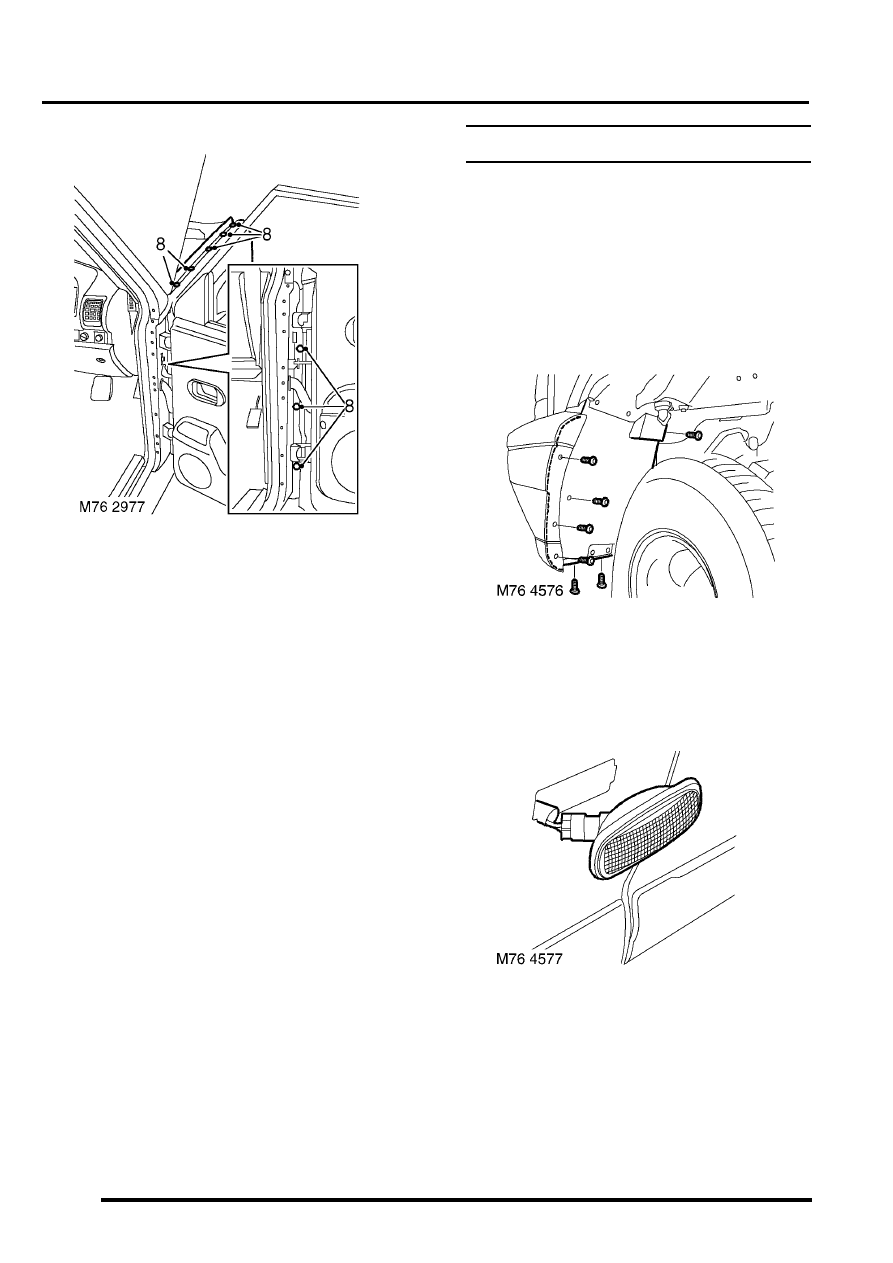

8. Remove 8 bolts securing wing to body and

remove wing.

Refit

1. Position wing to body.
2. Connect side repeater lamp to multiplug and fit

to wing.

3. Position wing to body, align wing to bonnet and

front door so that the correct gaps are achieved
and tighten  bolts  to 17 Nm (13 lbf.ft).

4. Check alignment of wing to bonnet and front

door. If necessary, adjust wing to achieve
correct gaps.

5. Fit and tighten nut securing wing to bracket on

sill finisher to 17 Nm  (13 lbf.ft).

6. Fit and tighten screw securing wing to

headlamp surround panel.

7. Fit and tighten bolt securing front of wing to

bracket on body to 17 Nm  (13 lbf.ft).

8. Fit wheel arch liner extension to bumper and

secure with screws.

9. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - wheel arch - front.

10. Fit front repeater lamp.



 +

 LIGHTING, REPAIRS, Lamp - front

repeater.

Wing - front - from 03MY

$% 76.10.24

Remove

1. Remove the headlamp assembly.



 LIGHTING, REPAIRS, Headlamp -

from 03MY.

2. Remove the front wheel arch liner.



 EXTERIOR FITTINGS, REPAIRS,

Liner - wheel arch - front.

3. Remove screw securing wheel arch liner

extension panel to the inner wing.

4. Remove 6 screws securing wheel arch liner

extension panel to the front bumper and
remove the extension panel.

5. Release side repeater lamp from front wing,

disconnect the multiplug and remove the lamp.
