BRAKES

REPAIRS

70-35

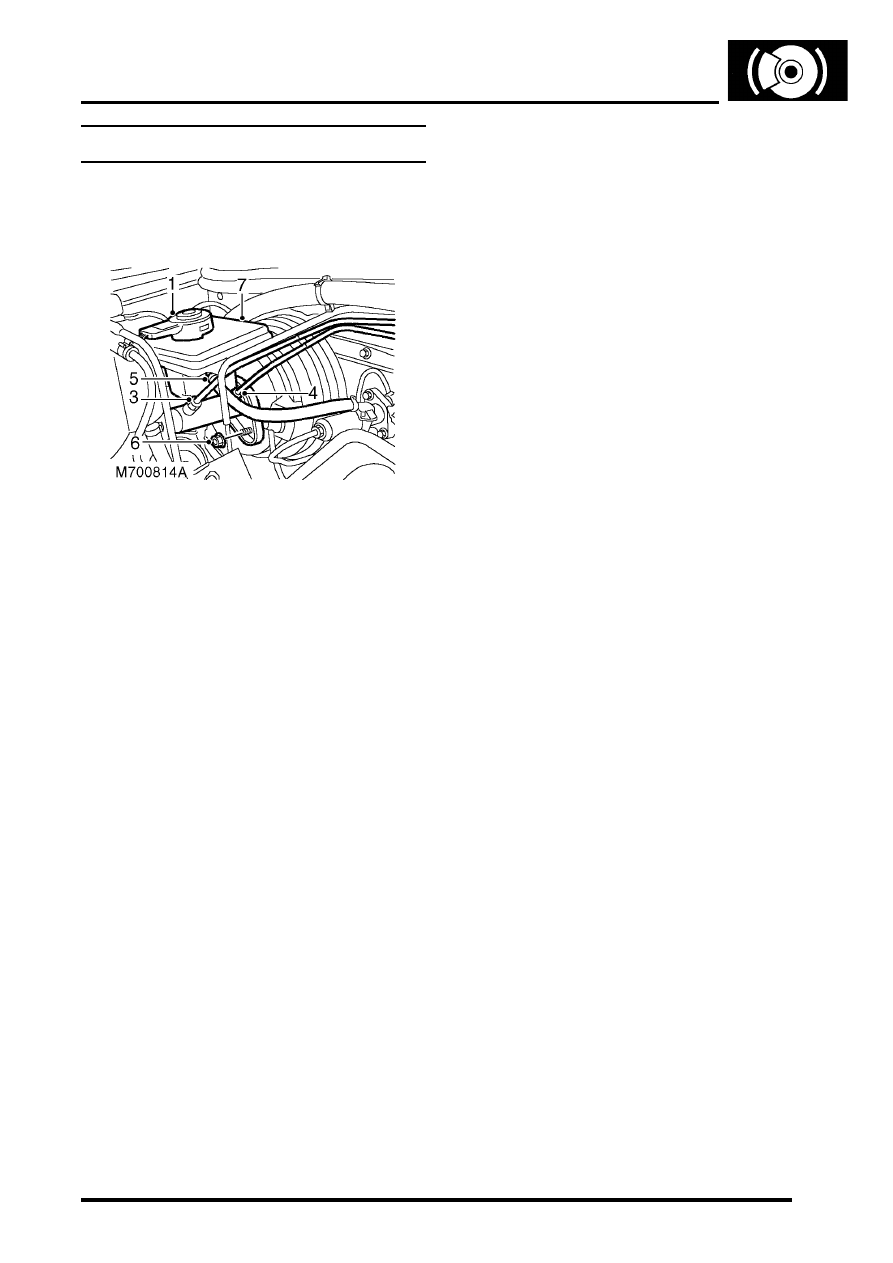

Master cylinder - brake

$% 70.30.08

Remove

1. Disconnect multiplug from fluid level switch.
2. Position cloth under master cylinder to absorb

spilled fluid.

CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.

3. Disconnect secondary system pipe union from

master cylinder.

4. Disconnect primary system pipe union from

master cylinder.

5. Manual gearbox only: Release clip and

disconnect clutch fluid supply hose from
reservoir.

CAUTION: Always fit plugs to open
connections to prevent contamination.

6. Remove 2 nuts and washers securing  master

cylinder to servo.

7. Remove master cylinder.

Refit

1. Clean master cylinder and servo mating

surfaces.

2. Align push rod and position master cylinder to

servo.

3. Fit nuts and washers securing master cylinder

to servo and tighten to 25 Nm (18 lbf.ft).

4. Connect primary and secondary   brake  pipes,

and tighten unions to 25 Nm (18 lbf.ft).

5. Manual gearbox only: Connect clutch fluid

hose to reservoir, secure with clip.

6. Connect fluid level switch multiplug.
7. Bleed brake system using TestBook/T4.



 BRAKES, ADJUSTMENTS, Brake

system bleeding.

BRAKES

70-36

REPAIRS

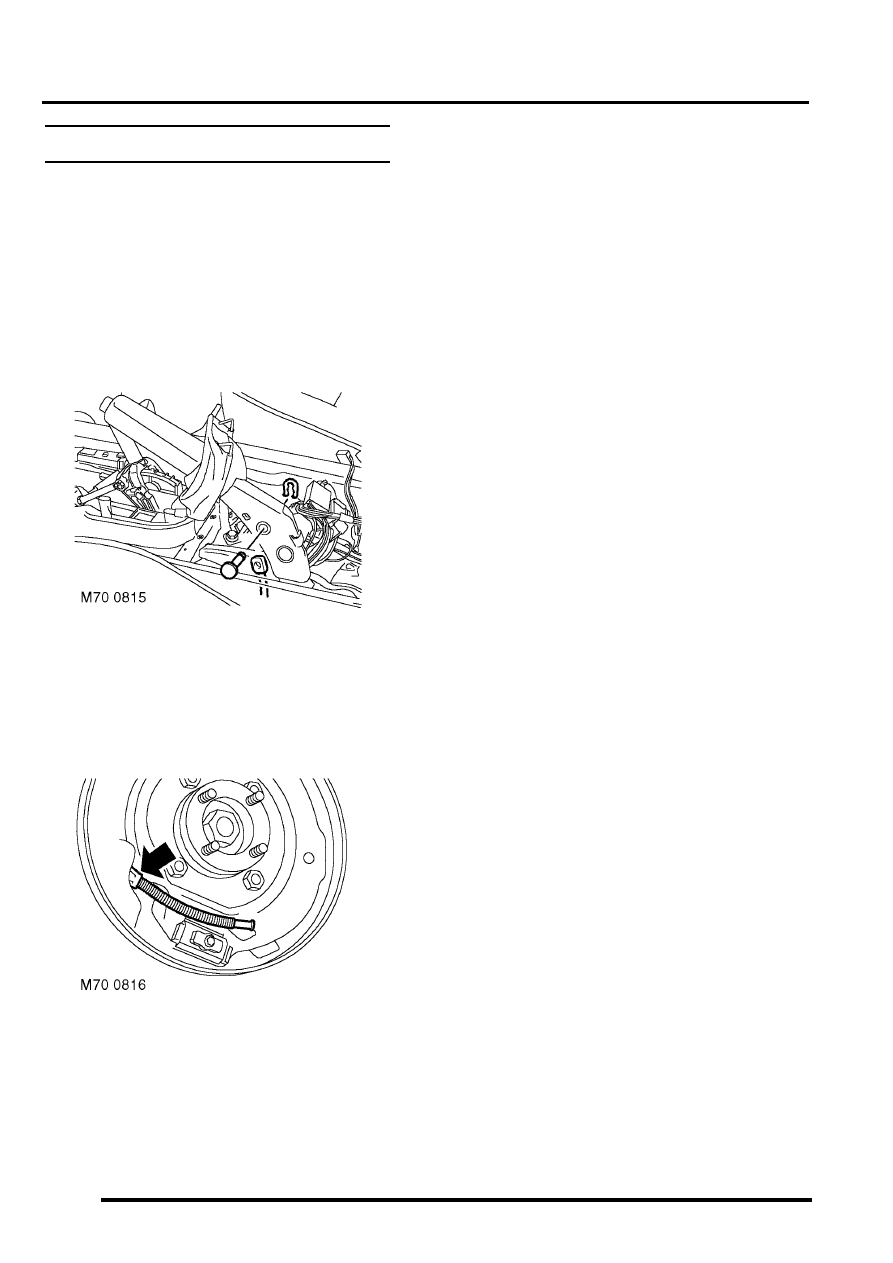

Cable - handbrake

$% 70.35.25

Remove

1. Remove centre console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - automatic
models.


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - manual
models.

2. Remove clip and clevis pin securing  cable to

hand brake lever.

3. Remove brake shoes from hand brake

assembly.


 +

 BRAKES, REPAIRS, Brake shoes -

handbrake.

4. From below the vehicle, pull handbrake cable

through  transmission tunnel.

5. Release handbrake cable from backplate.

Refit

1. Fit and secure handbrake cable to  backplate.
2. Position hand brake cable through

transmission tunnel.

3. Fit brake shoes to hand brake assembly.



 BRAKES, REPAIRS, Brake shoes -

handbrake.

4. Align cable to hand brake lever and  secure with

clip and clevis pin.

5. Fit centre console.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - automatic
models.


 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - manual
models.

6. Adjust handbrake.



 +

 BRAKES, ADJUSTMENTS,

Handbrake.

BRAKES

REPAIRS

70-37

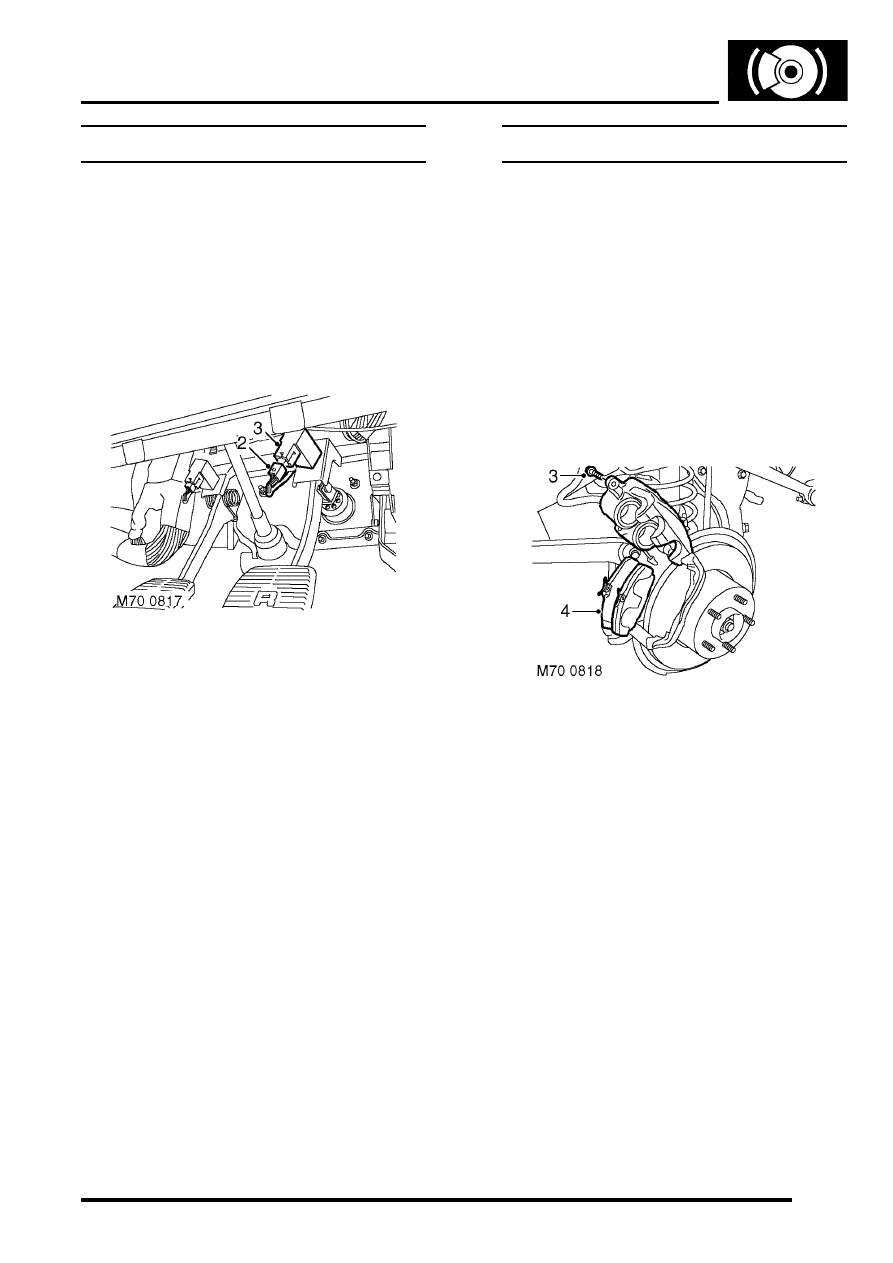

Switch - brake light

$% 70.35.42

The brake switch is set automatically during fitment.
If the setting is disturbed, the switch can be reset by
depressing the brake pedal and pulling the plunger
out of the switch body, until it contacts the pedal.

Remove

1. Remove 3 fasteners and move drivers  side

lower closing panel aside.

2. Disconnect multiplug from brake light  switch.
3. Remove brake light switch from pedal  bracket.

Refit

1. Engage switch fully into pedal bracket  location

and connect multiplug.

2. Position lower closing panel and secure  with

fasteners.

Brake pads - front

$% 70.40.02

WARNING: Brake pads must be renewed in axle
sets only, otherwise braking efficiency may be
impaired.

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel(s).

3. Remove lower guide pin bolt from  caliper and

pivot caliper housing upwards.

4. Remove 2 brake pads from caliper  carrier.

Shims are part of the brake pads.

Refit

1. Rotate disc by hand and scrape all scale  and

rust from around edge of disc.

2. Scrape rust from pad locating surfaces  on

caliper.

3. Clean dust from calipers using brake cleaning

fluid.

WARNING: Do not use compressed air to
clean brake components. Dust from friction
materials can be harmful if inhaled.

BRAKES

70-38

REPAIRS

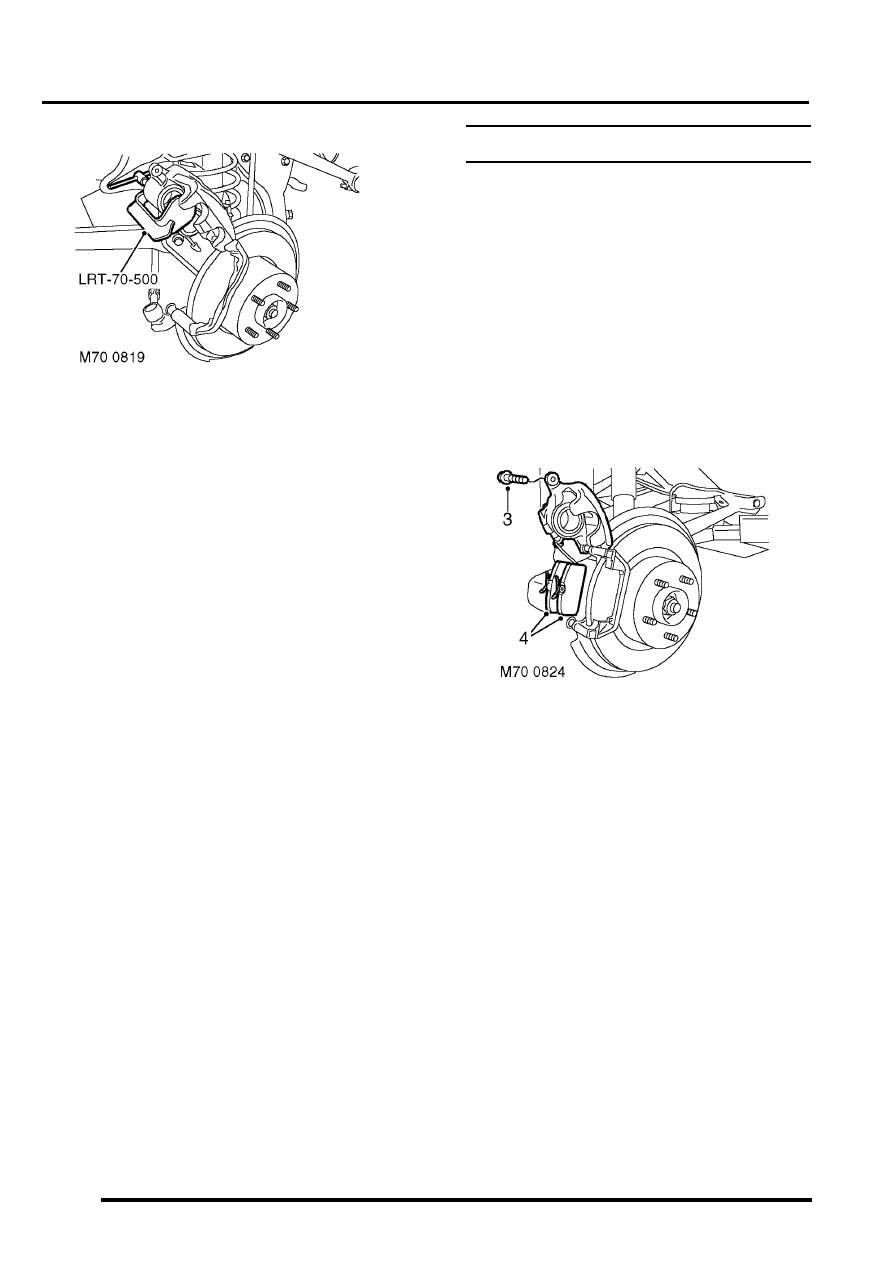

4. Using tool LRT-70-500, press caliper  pistons

fully into bores.  Ensure that displaced fluid
does not  overflow from reservoir.

5. Fit brake pads with chamfer towards  leading

edge of disc.

6. Lower caliper housing over pads.
7. Ensure flats on guide pins  locate with lugs on

caliper housing.  fit new pivot bolt and tighten to
30  Nm (22 lbf.ft).

8. Fit  road wheel(s) and tighten nuts  to 140 Nm

(103 lbf.ft).

9. Remove stand(s) and lower vehicle.

10. Depress brake several times to set pad to disc

clearance.

11. Check and top-up brake fluid.

Brake pads - rear

$% 70.40.10

WARNING: Brake pads must be renewed in axle
sets only, otherwise braking efficiency may be
impaired.

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel(s).

3. Remove lower guide pin bolt from  caliper and

pivot caliper housing upwards.

4. Remove 2 brake pads from caliper  carrier.

Shims are part of the brake pads.

Refit

1. Rotate disc by hand and scrape all scale  and

rust from around edge of disc.

2. Scrape rust from pad locating surfaces  on

caliper.

3. Clean dust from calipers using brake  cleaning

fluid.

WARNING: Do not use compressed air to
clean brake components. Dust from friction
materials can be harmful if inhaled.
