TRANSFER BOX - LT230SE

OVERHAUL

41-55

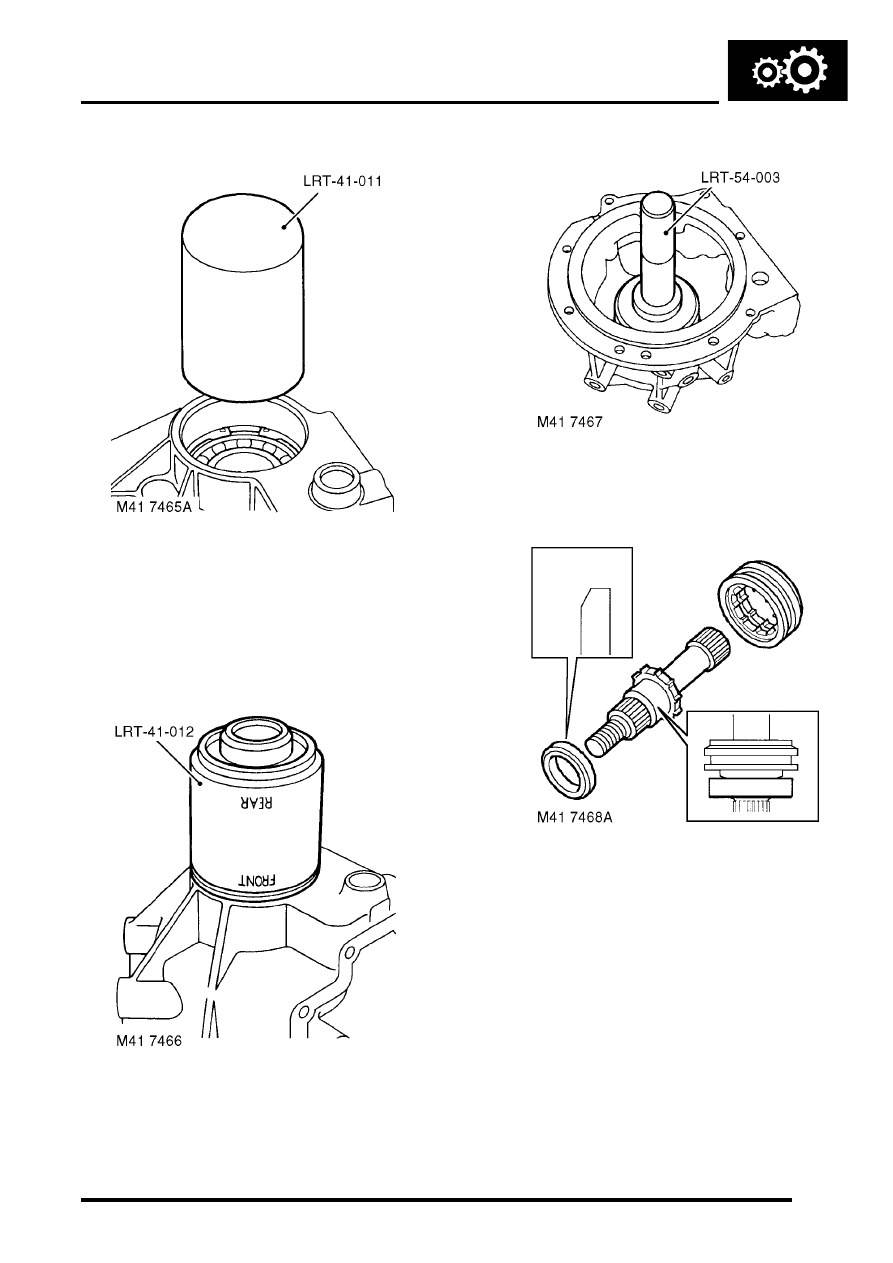

37. Heat the front output housing to  100

°

C (210

°

F)

and fit new output  shaft bearing using tool
LRT-41-011.

38. Allow housing to air cool.
39. Fit new bearing retaining circlip  ensuring that

circlip is fully seated.

40. Using tool LRT-41-012, fit new output  shaft oil

seal. Check that oil seal is just  contacting
circlip.

41. Position selected shim in front output  housing

and using tool LRT-54-003, fit new  differential
front bearing track.

42. Fit bearing spacer to output shaft with  chamfer

on spacer towards threaded end.

43.  If fitted: Fit dog clutch with flange on clutch

facing towards splined end.

44. Using a copper mallet, drive output  shaft into

bearing.

Note: Carry out the following operations for
transfer boxes fitted with differential lock.

45. Compress differential lock selector  spring and

fit selector fork.

46. Position selector fork to groove in  dog clutch.
47. Fit selector shaft and locate in housing  recess,

rotate shaft until the two flats  for retaining clips
are at right angles to  the cover plate mating
face.

TRANSFER BOX - LT230SE

41-56

OVERHAUL

48. Compress selector spring and fit  retaining clips

at each end of spring.

CAUTION: Ensure ends of spring are fully
seated in recess of clips.

49. Fit detent ball and spring.
50. Apply Loctite 290 to threads of detent  plug.
51. Fit and tighten detent plug, then  loosen 2

complete turns.

52. Fit new 'O' ring to differential lock  selector

housing.

53. Fit selector housing, ensure selector  finger is

located in shaft recess.

54. Apply Loctite 290 to threads of bolts,  and

tighten selector housing bolts to 25 Nm (18
lbf.ft).

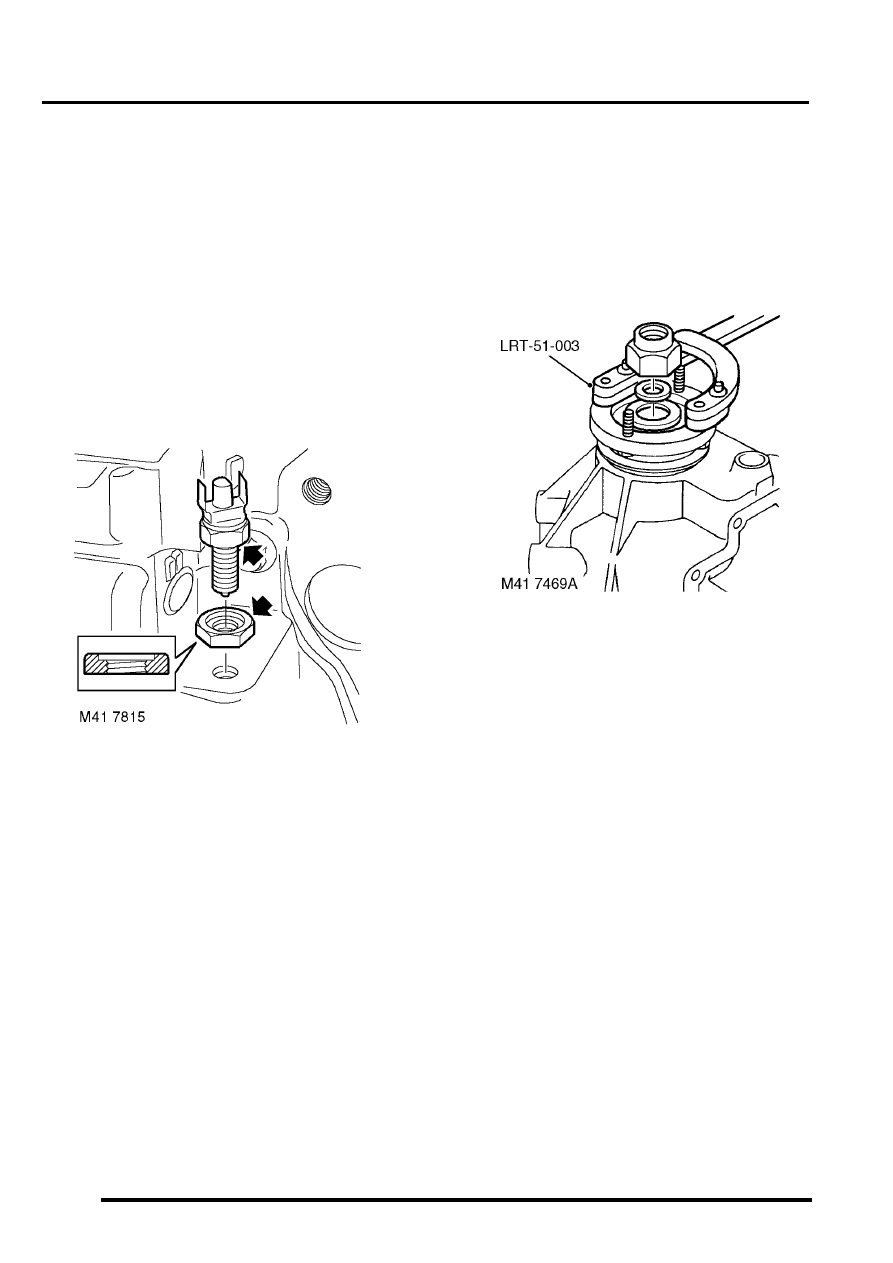

55. Clean threads of differential lock warning lamp

switch(es).

56. Up to 03 MY: Fit nut to switch head with

counterbore positioned towards  switch head.
The nut acts as a spacer to ensure that
switch setting is correct. Always ensure
that nut is fully tightened  to switch head (no
gap).

57. Apply Hylomar PL 32 sealant to threads of

differential warning lamp switch(es).

58. Up to 03 MY: Position switch into front output

housing until nut bottoms  out on housing;
tighten  nut to 11 Nm (8 lbf.ft)

59. 03 MY onwards: Fit new sealing washers to

switches, fit switches in front output housing
and tighten  to 25Nm (18 lbf.ft).

Note: Carry out the following operations for all
transfer boxes.

60. Apply sealant, Part No. STC 3254 to front

output shaft housing.

61. Position housing ensuring that output  shaft and

dog clutch splines - if fitted  are correctly
engaged.

62. Clean output housing bolt threads.
63. Apply Loctite 290 to threads of bolts.
64. Fit  output shaft housing bolts and tighten in a

diagonal sequence to 45 Nm (33 lbf.ft).

65. Fit output flange, new felt washer,  steel washer

and new retaining nut.

66. Using tool LRT-51-003 to restrain  flange,

tighten output flange nut to 162 Nm (119 lbf.ft).

67.  If fitted -  Operate differential lock selector

lever and  check that detent ball can be felt to
positively engage/disengage with  grooves in
shaft. Screw plug in or out until setting is
correct.

68. Fit high/low selector shaft detent ball  and

spring.

69. Apply Loctite 290 sealant to threads of high/low

selector shaft detent plug.

70. Fit and tighten plug, then loosen 2  complete

turns.

71.  Operate high/low selector lever and  check that

detent ball can be felt to positively engage/
disengage with  grooves in shaft. Screw plug in
or out until setting is correct.

72. Fit intermediate gear cluster.



 TRANSFER BOX - LT230SE,

OVERHAUL, Intermediate gear assembly.

TRANSFER BOX - LT230SE

OVERHAUL

41-57

Dog clutch - differential lock

$% 41.20.23

Disassembly

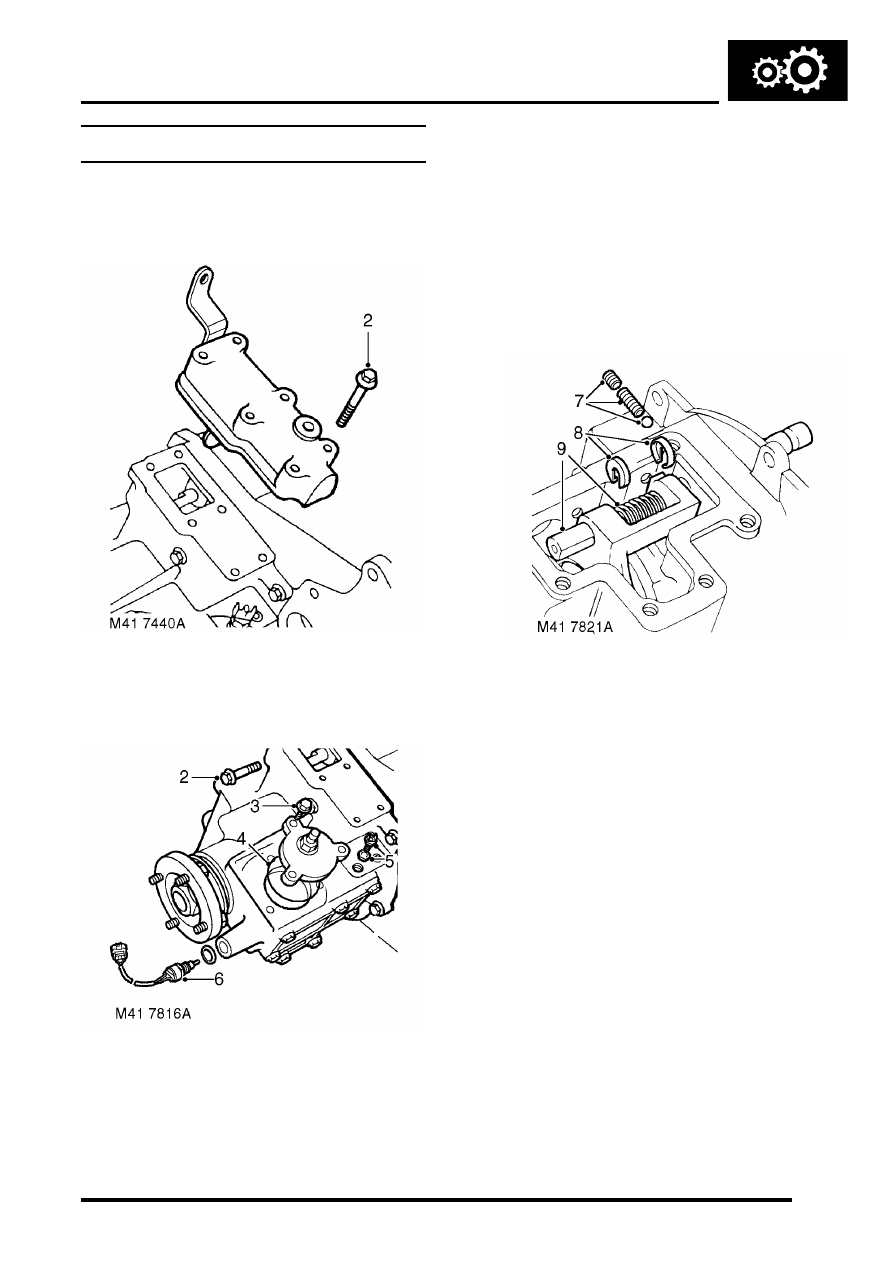

1. Remove 6 bolts securing high/low cross  shaft

housing to front output shaft housing  and
remove housing.

2. Note position of longest bolt and remove  8

bolts securing front output shaft housing  to
main casing and remove housing.

3. Remove 3 bolts securing differential  lock

selector housing and remove housing.

4. Remove and discard 'O' ring from  selector

housing.

5. Remove differential warning lamp switch and

locknut.

Note: Locknut is only fitted to switches up to 03
MY, a modified switch and sealing washer is
fitted from 03 MY onwards..

6. 03 MY onwards: Remove differential lock

warning lamp switch from end of front output
shaft housing, discard sealing washer.

7. Remove Allen plug and remove detent  spring

and ball.

8. Compress differential lock selector fork  spring

and remove retaining clips from each  end of
spring.

9. Withdraw differential lock selector  shaft from

front output housing, recover  spring and
remove selector fork.

TRANSFER BOX - LT230SE

41-58

OVERHAUL

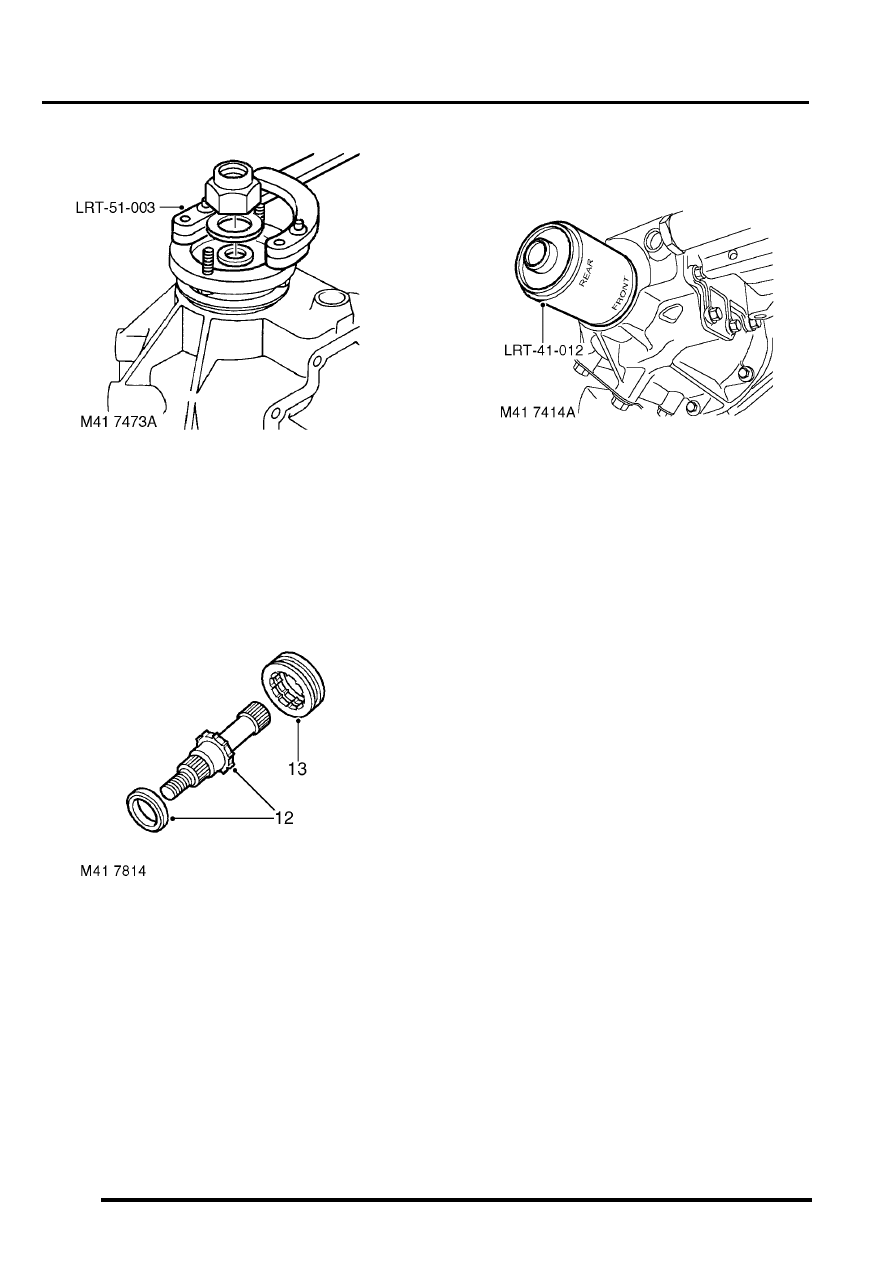

10. Position tool LRT-51-003 to output  shaft drive

flange, remove and discard nut.

11. Remove and discard steel and felt washers.

Remove output shaft drive flange.

12. Using a copper mallet, drive output  shaft from

housing.

13. Noting its fitted position, remove bearing

spacer from output shaft.

14. Noting its fitted position, remove dog  clutch

from output  shaft.

15. Remove and discard oil seal from  housing.

Reassembly

1. Clean differential lock components.
2. Lubricate components with gearbox oil.

3. Using tool LRT-41-012, fit new output  shaft oil

seal.

4. Fit bearing spacer to output shaft with  chamfer

on spacer towards threaded end.

5. Fit dog clutch with flange on clutch  facing

towards splined end.

6. Using a copper mallet, drive output  shaft into

bearing.

7. Compress differential lock selector  spring and

fit selector fork.

8. Position selector fork to groove in  dog clutch.
9. Fit selector shaft and locate in housing  recess,

rotate shaft until the two flats  for retaining clips
are at right angles to  the cover plate mating
face.

10. Compress selector spring and fit  retaining clips

at each end of spring.

CAUTION: Ensure ends of spring are fully
seated in recess in clips.

11. Fit detent ball and spring.
12. Apply Loctite 290 to threads of detent  plug.
13. Fit and tighten detent plug, then  unscrew 2

complete turns.

14. Fit new 'O' ring to differential lock  selector

housing.

15. Fit selector housing, ensure selector  finger is

located in shaft recess.

16. Apply Loctite 290 to threads of bolts and tighten

selector housing bolts to 25 Nm (18 lbf.ft).

17. Apply sealant, Part No. STC 3254 to front

output shaft housing.

18. Position housing ensuring that output  shaft and

dog clutch splines are correctly  engaged.

19. Apply Loctite 290 to threads of bolts.
20. Fit  front output shaft housing bolts and tighten

in a  diagonal sequence to 45 Nm (33 lbf.ft).
