Discovery 2. Manual - part 562





TRANSFER BOX - LT230SE

OVERHAUL

41-51

25. Remove retaining ring, then remove the planet

gears and cross shafts.

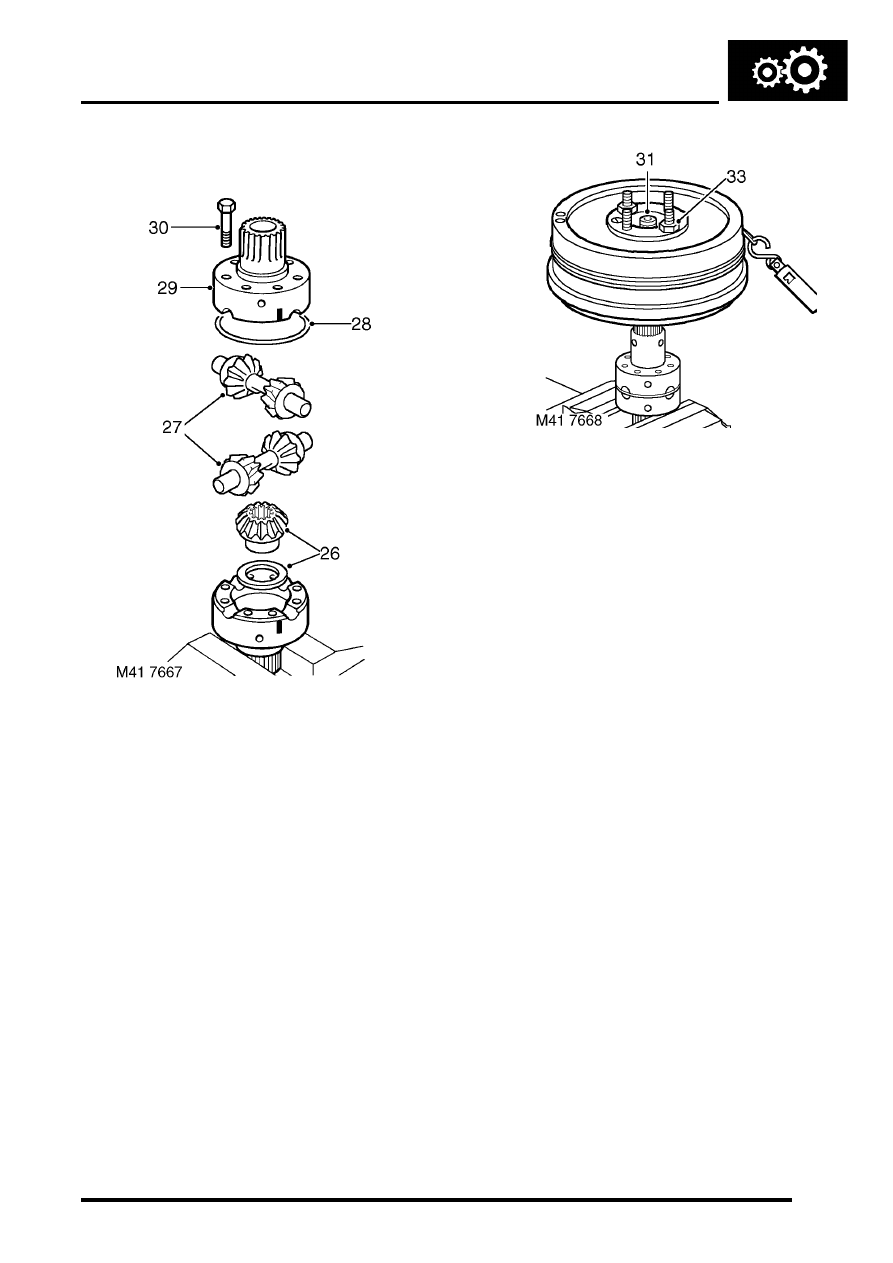

26. Fit a 1.05 mm (0.04 in) thrust washer to sun

gear from rear half of carrier. Position gear in
rear half of carrier.

27. Fit planet gears, cross shafts and dished thrust

washers to rear half of carrier. Ensure that
cross shafts are fitted correctly. Do not fit
the sun gear into the rear half carrier at this
stage.

28. Fit retaining ring.
29. Ensuring that assembly marks are aligned, fit

both halves of carrier together.

30. Fit the differential carrier bolts and, working in a

diagonal sequence, tighten the bolts to 60 Nm,
(44 lbf.ft).

31. Invert the assembly in the vice, insert the rear

output shaft into the rear half of the carrier and
check that the gears rotate freely.

32. Fit output flange on to the splines of the output

shaft, but do not fit flange nut at this stage.

33. Fit transmission brake drum to output flange

and secure the drum using 2 nuts.

34. Carry out the load to turn check, using the same

method as for the front half carrier. Record the
shim thickness when the load to turn is correct.

35. Fit the sun gear and selected thickness shim to

the front half carrier.

36. Ensuring that assembly marks are aligned, fit

both halves of carrier together.

37. Fit the differential carrier bolts and, working in a

diagonal sequence, tighten the bolts to 60 Nm,
(44 lbf.ft).

38. With differential assembled, fit rear output shaft

and brake drum, then check overall load to turn.
This should be approximately the same as the
combined load to turn figure of both front and
rear half carriers.

l

Used gears = 0.90 kg (2.0 lb)

l

New gears = 3.44 kg (7.6 lb)

TRANSFER BOX - LT230SE

41-52

OVERHAUL

Refit

1. Clean differential components.
2. Lubricate components with gearbox oil.

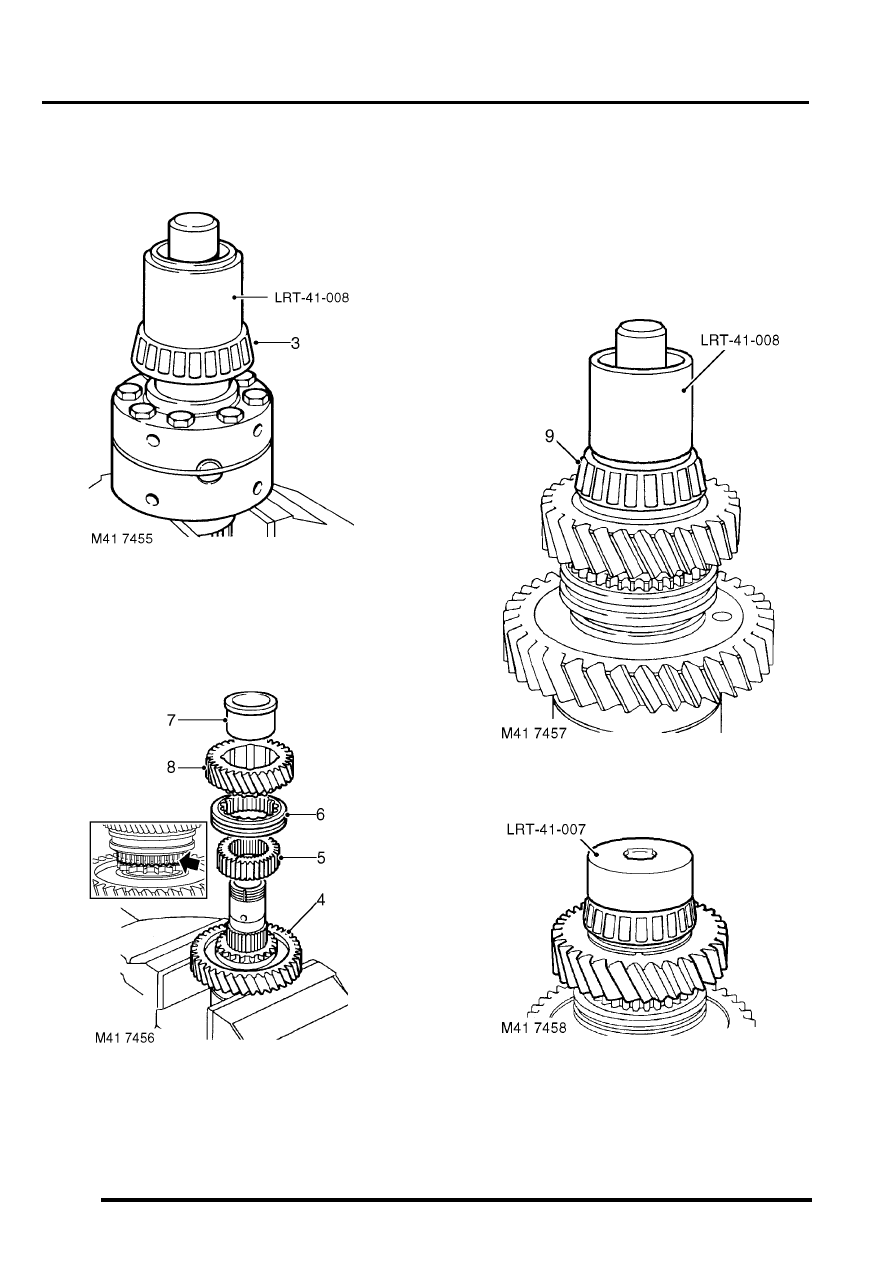

3. Position differential in soft jawed vice  and fit

front bearing using tool LRT-41-008.

4. Invert differential in soft jawed vice,  and fit low

range gear with dog teeth facing  uppermost.

5. Fit high/low hub ensuring that machined

groove on hub teeth faces towards low range
gear.

6. Fit high/low selector sleeve ensuring  that

alignment marks on hub and sleeve are
together.

7. Fit bush to high range gear ensuring  collar is

uppermost.

8. Fit high range gear and bush onto shaft.

9. Fit new rear bearing using tool LRT-41-008.

10. Using tool LRT-41-007,  fit  new bearing

retaining nut and tighten to  72 Nm (53 lbf.ft).
Do not stake nut at  this stage.

TRANSFER BOX - LT230SE

OVERHAUL

41-53

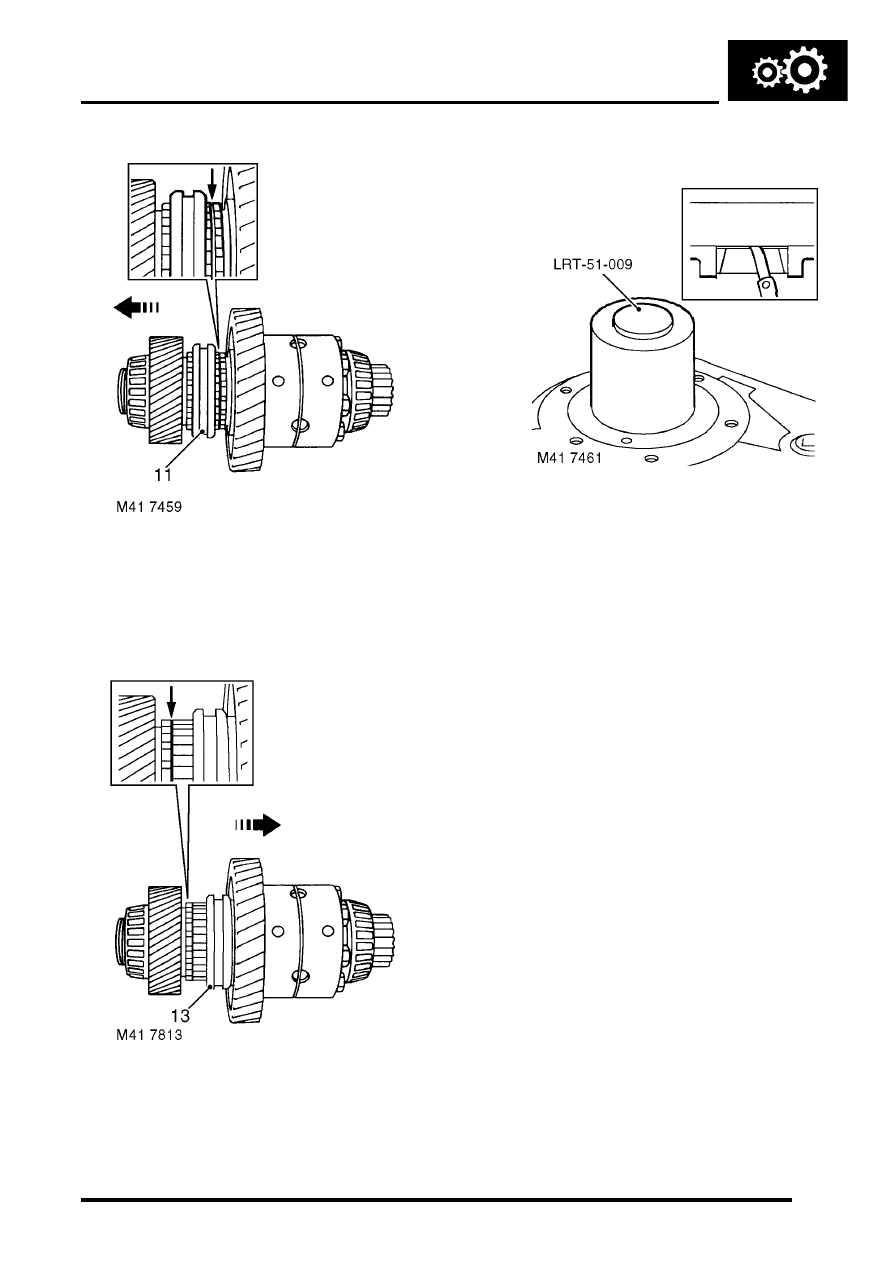

11. Using feeler gauges, determine clearance

between low range gear and high/low hub:

l

Clearance = 0.05 to 0.15 mm (0.002 to
0.006 in).

12. If clearance is not as specified, fit a  new low

range gear and high/low hub and  re-check.

13. Using feeler gauges, determine clearance

between high range gear and high/low hub:

l

Clearance = 0.05 to 0.15 mm (0.002 to
0.006 in).

14. If clearance is not as specified, fit  new high

range gear and high/low hub and  re-check.

15. Using a suitable drift, stake collar of  nut into

differential shaft recess.

16. Using LRT-51-009, fit new rear  bearing track

into main casing.

17. Using a straight edge and feeler gauges,  check

that bearing track is recessed 1 mm  (0.04 in)
below outer face of main casing.

18. Apply sealant, Part No. STC 3254 to rear

output shaft housing face.

19. Position housing to main casing.
20. Apply Loctite 290 to bolt threads  fit housing to

main case bolts and tighten by diagonal
selection to 45 Nm (33 lbf.ft).

21. 03 MY only: Fit high/low selector fork and

spring to high/low selector shaft, fit retaining
clips.

CAUTION: Ensure ends of spring are fully
seated in recess in clips.

22. Position high/low selector shaft and  fork to

differential ensuring that fingers  of selector fork
are located in selector  sleeve.

23. Position differential assembly into  main casing

ensuring that splines of rear  output shaft are
engaged in differential.

24. Position new differential front bearing  track

ensuring that track is seated  squarely.

TRANSFER BOX - LT230SE

41-54

OVERHAUL

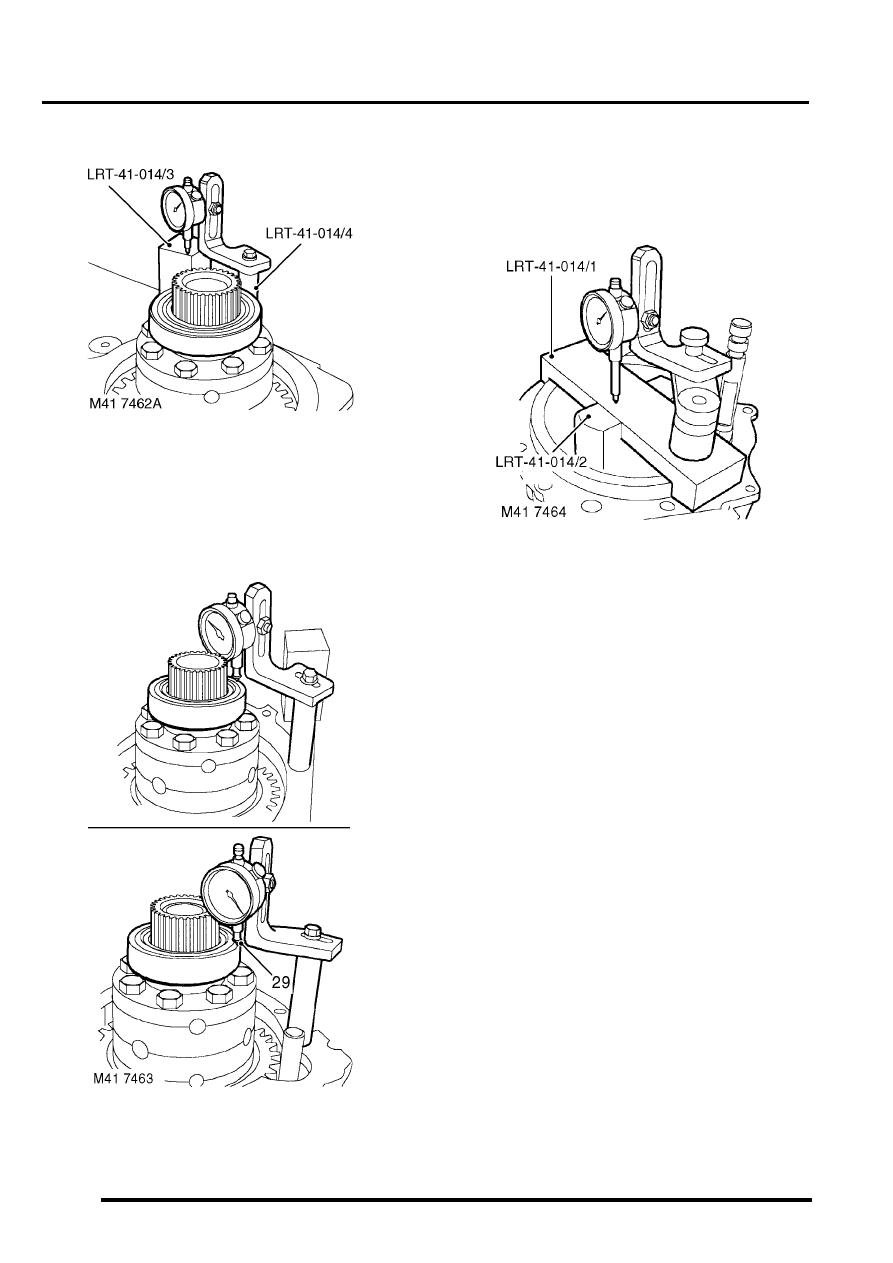

25. Position tool LRT-41-014/3 onto main  casing.
26. Screw tool LRT-41-014/4 into tapped  hole in

main casing and attach suitable DTI  to pillar.

27. Position stylus of gauge to setting  block LRT-

41-014/3 and zero gauge.

28. Position stylus onto front bearing outer track

and record reading.

29. Taking care not to disturb bearing, position

stylus on opposite side of  bearing track and
record reading.

30. Obtain average of the 2 readings and  record

figure.

31. Position  depth  block tool LRT-41-014/2 and

cross bar tool LRT-41-014/1 to  front output
housing.

32. Position DTI to tool LRT-41-014/1  cross bar

and zero DTI on depth block.

33. Position DTI to cross bar and record  reading

obtained.

34. Using the formula:  3.05 mm (0.120 in)+B-

A=D where:  B=Height difference recorded
between depth  block and cross bar.
A=Average of readings to differential front
bearing outer track.  D=Thickness of shim
required to give  differential bearing pre-load of
0.05 mm  (0.002 in).

35. From the resultant figure obtained,  select

appropriate thickness shim from the  range
available.

36. Shims are available from 2.00 to 3.25 mm

(0.08 to 0.13 in) thickness, rising in  increments
of 0.05 mm (0.002 in).
