COOLING SYSTEM - V8

REPAIRS 26-2-15

REPAIRS

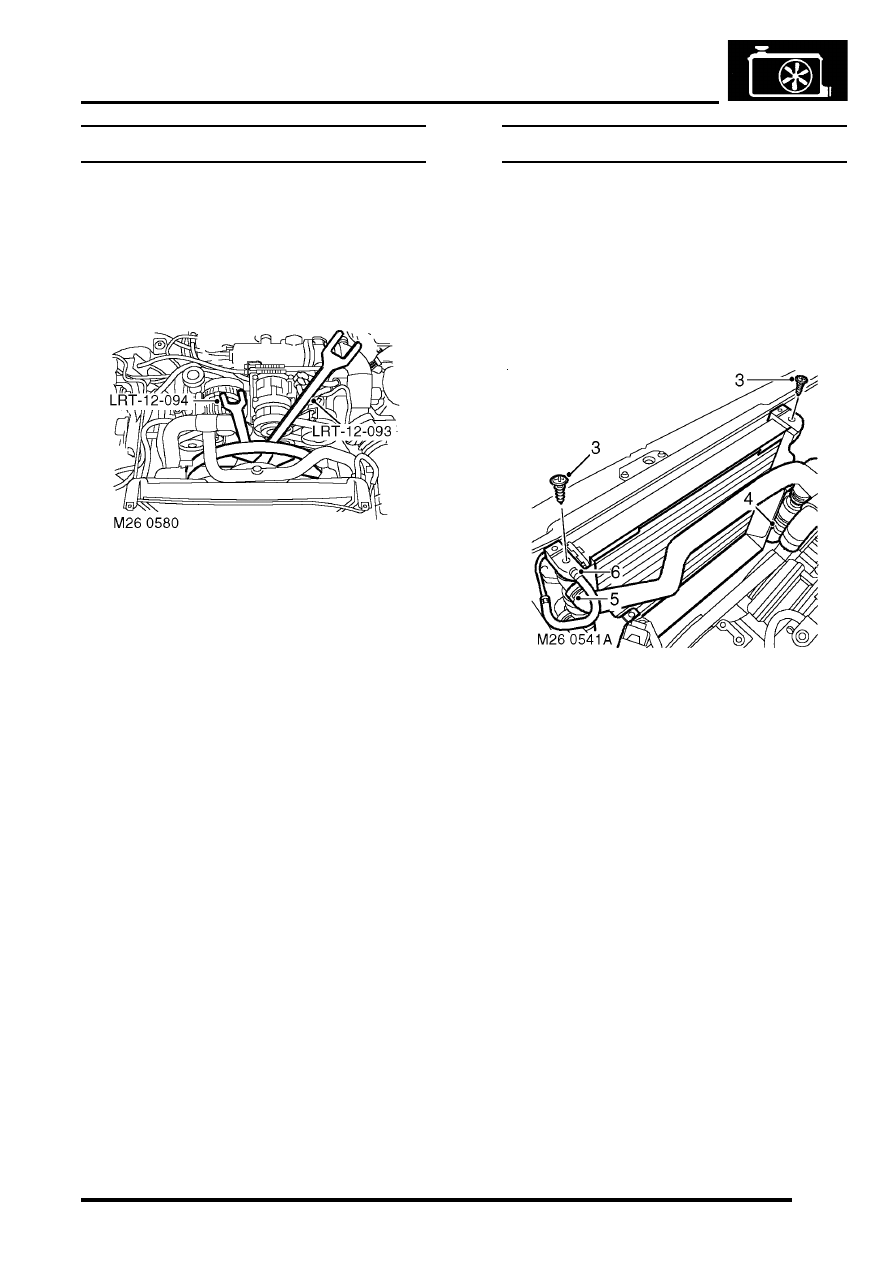

Fan - viscous

$% 26.25.19

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Remove upper fan cowl.

4. Remove viscous fan using tool  LRT-12-093

and tool LRT-12-094.

RH thread.

Refit

1. Position viscous fan and tighten using tool

LRT-12-093 and tool LRT-12-094

2. Fit upper fan cowl.
3. Connect battery earth lead.
4. Fit battery cover and secure fixings.

Radiator

$% 26.40.01

Remove

1. Remove viscous fan.



 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

2. Drain cooling system.



 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

3. Remove 2 screws and remove lower of  fan

cowl.

4. Release clip and disconnect bottom hose  from

thermostat housing.

5. Release clip and disconnect top hose  from

radiator.

6. Remove clip and disconnect bleed hose  from

radiator.

7. Remove front grille.



 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

COOLING SYSTEM - V8

26-2-16 REPAIRS

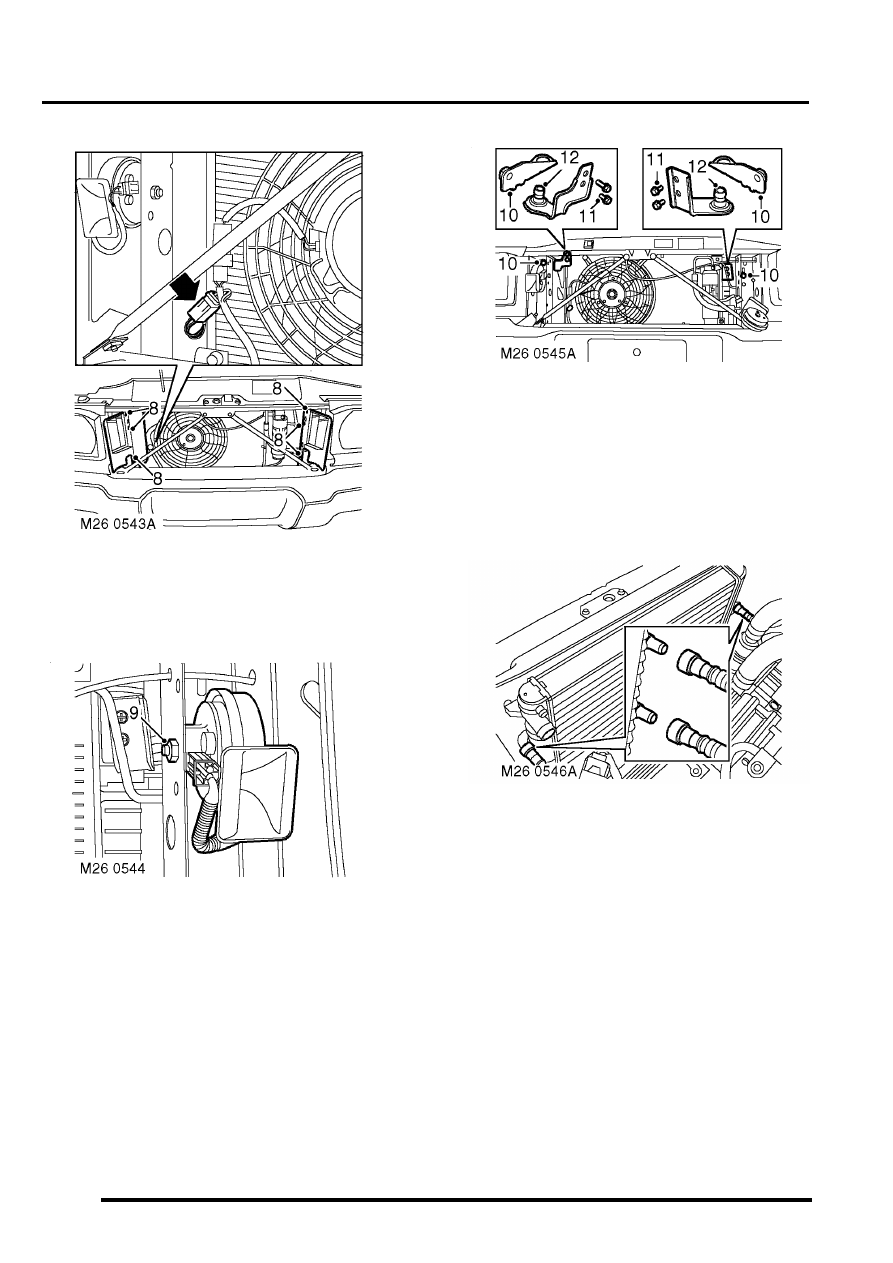

8. Remove 6 scrivets and remove LH and RH  air

deflectors from front panel. Disconnect
multiplug of gearbox oil temperature sensor
(arrowed).

9. Remove nut and move horn aside.

10. Remove 2 bolts securing radiator LH and   RH

upper mounting brackets to body panel  and
remove brackets.

11. Remove 4 screws securing air  conditioning

condenser LH and RH upper  mounting
brackets to condenser.

12. Remove brackets with rubber mounts from

radiator extension brackets.

13. Position absorbent cloth under each  cooler

hose to collect oil spillage.

14. Push against coupling release rings and

disconnect hoses from gearbox  oil cooler.

CAUTION: Always fit plugs to open
connections to prevent contamination.

15. If fitted: Push against coupling release rings

and disconnect hoses from engine oil cooler.

COOLING SYSTEM - V8

REPAIRS 26-2-17

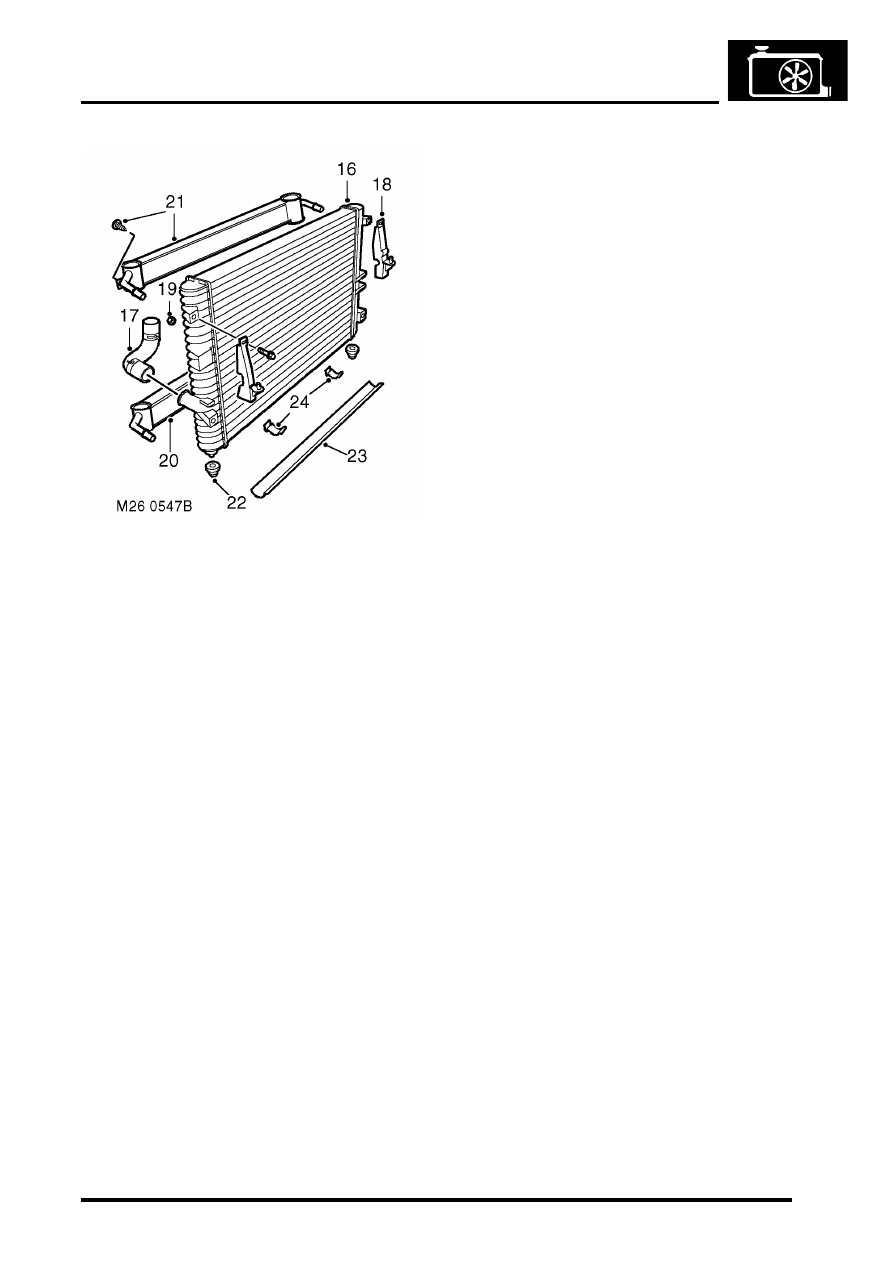

16. Remove radiator assembly.
17. Release clip and remove bottom hose  from

radiator.

18. Remove 2 bolts and remove extension

brackets from radiator.

19. Remove 2 captive nuts from radiator.
20. Remove 2 screws and remove gearbox oil

cooler from radiator.

21. If fitted: Remove 2 screws and remove engine

oil cooler from radiator.

22. Remove 2 rubber mountings from radiator.
23. Remove sealing strip from bottom of  radiator.
24. Remove 2 cowl retaining clips from  radiator.

Refit

1. Fit cowl retaining clips to radiator.
2. Fit sealing strip to radiator.
3. Fit rubber mountings to radiator.
4. Fit gearbox oil cooler to  radiator and secure

with screws.

5. If fitted: Fit engine oil cooler to radiator and

secure with screws.

6. Fit captive nuts to radiator.
7. Fit extension brackets to radiator and secure

with bolts.

8. Fit bottom hose to radiator and secure  with clip.
9. Fit radiator and engage lower mountings  in

chassis.

10. Ensure connections are clean, then secure

hoses to oil coolers.

11. Fit air conditioning condenser brackets  and

secure with screws.

12. Fit radiator upper mounting brackets  and

secure with bolts.

13. Fit LH horn and secure with nut.
14. Fit air deflectors and secure with  scrivets.
15. Connect multiplug of gearbox oil temperature

sensor.

16. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

17. Connect bottom hose to thermostat  housing

and secure with clip.

18. Connect top hose to radiator and secure  with

clip.

19. Connect bleed hose to radiator and  fit clip.
20. Fit lower fan cowl and secure with screws.
21. Fit viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

22. Top up gearbox oil.
23. Top up engine oil.
24. Refill cooling system.



 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

COOLING SYSTEM - V8

26-2-18 REPAIRS

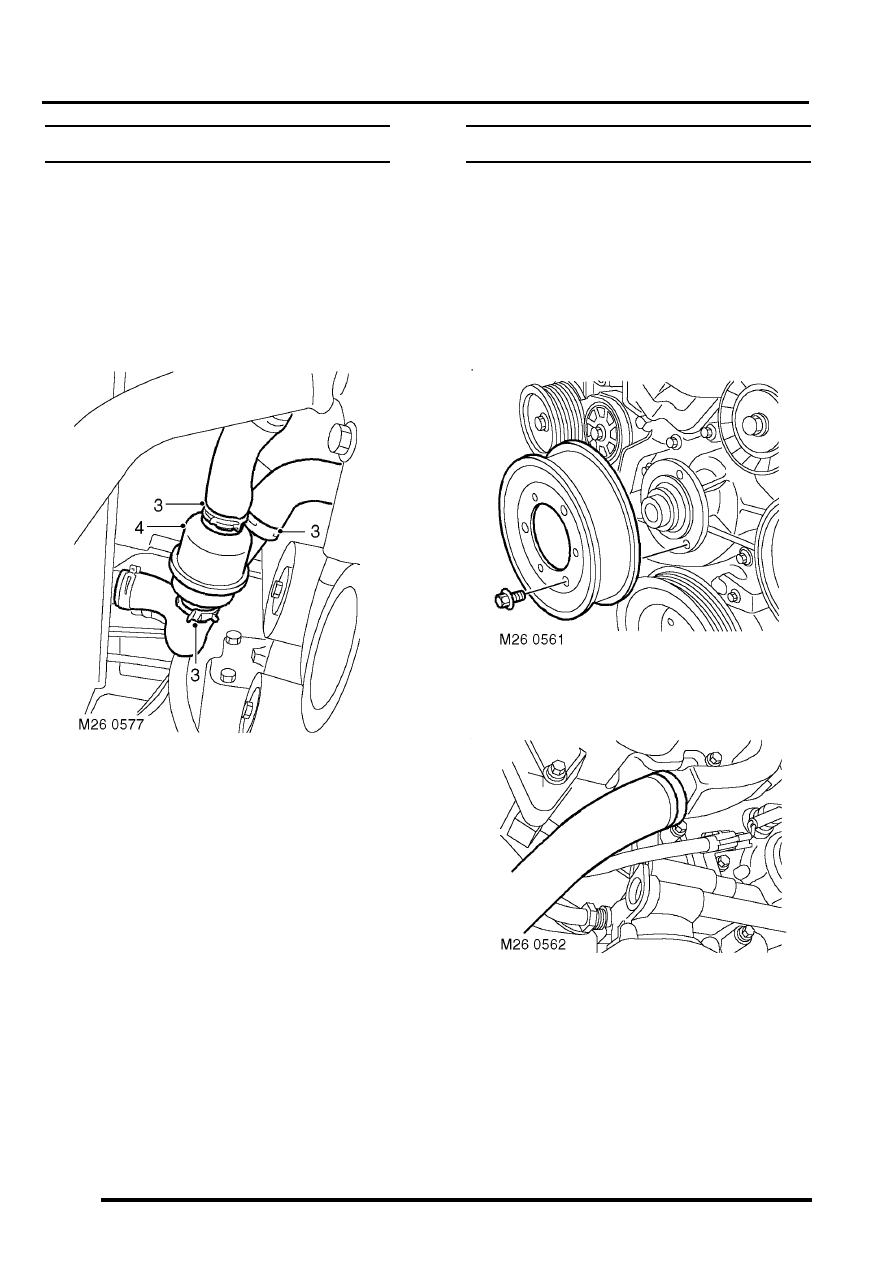

Thermostat

$% 26.45.09

Remove

1. Drain cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

2. Remove viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

3. Release 3 clips and disconnect coolant  hoses

from thermostat.

4. Remove thermostat.

Refit

1. Position thermostat, connect hoses and secure

with clips.

2. Fit viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

3. Refill cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

Gasket - coolant pump

$% 26.50.02

Remove

1. Remove auxiliary drive belt.



 CHARGING AND STARTING,

REPAIRS, Belt - auxiliary drive.

2. Drain cooling system.



 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

3. Remove 3 bolts securing pulley to coolant

pump and remove pulley.

4. Release clip and disconnect feed hose from

coolant pump.
