ENGINE - TD5

REPAIRS 12-1-65

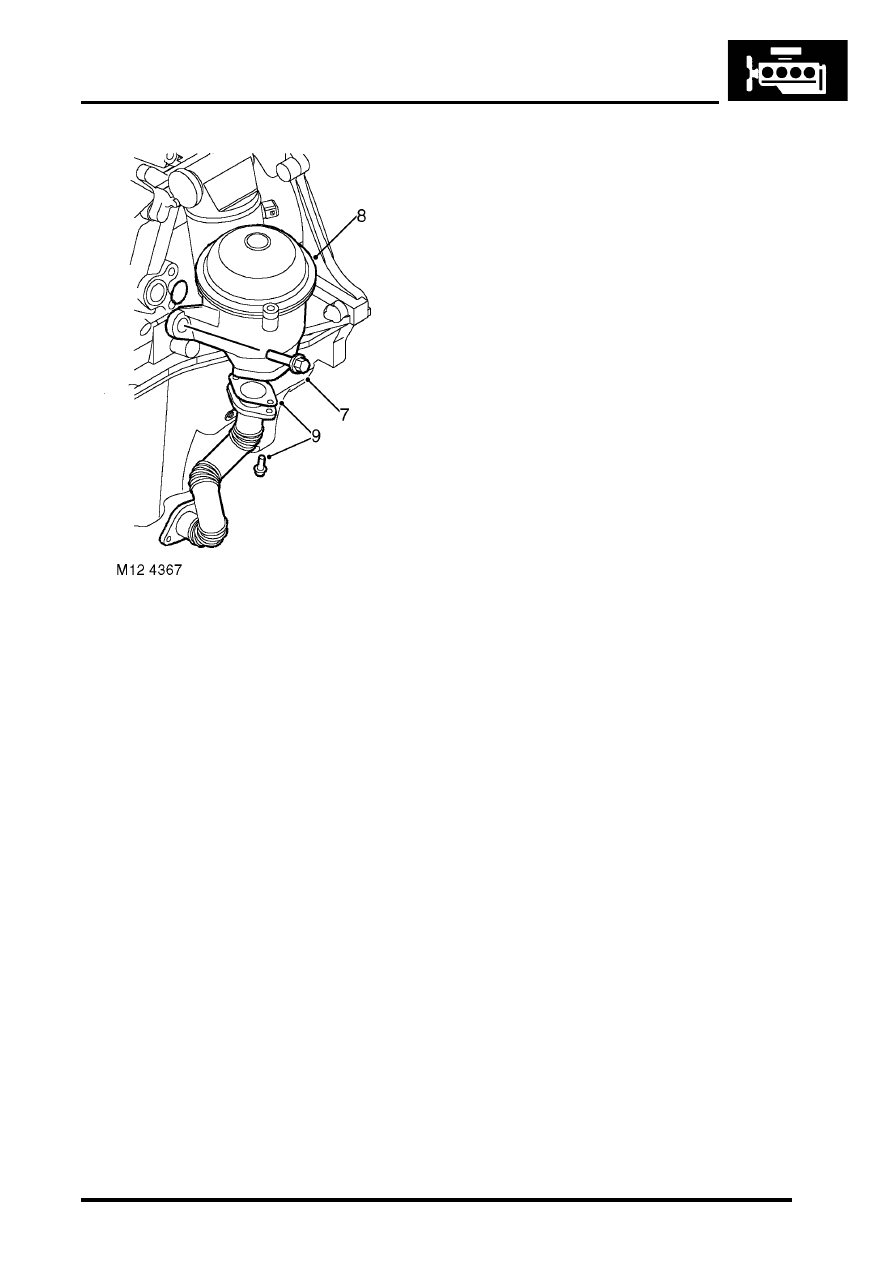

7. Remove 3 bolts securing centrifuge to  engine

oil cooler.

8. Remove centrifuge and discard 'O' ring.
9. Remove 2 bolts, remove drain pipe from

centrifuge and discard gasket.

Refit

1. Clean mating faces of centrifuge, oil  cooler and

sump.

2. Position new gasket and fit oil drain pipe to

centrifuge, tighten bolts to  10 Nm  (7 lbf.ft).

CAUTION: Gasket must be fitted dry.

3. Position new 'O' ring to oil cooler.
4. Position  centrifuge to oil cooler housing and

tighten bolts to 25 Nm (18 lbf.ft).

5. Using a new gasket, align the  centrifuge oil

drain pipe to sump and tighten bolts to  10 Nm
(7 lbf.ft).

CAUTION: Gasket must be fitted dry.

6. Models with air conditioning: Position  A/C

compressor and tighten bolts to  25 Nm (18
lbf.ft).

7. Fit turbocharger.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Turbocharger.

8. Models with air conditioning: Fit auxiliary

drive belt.


 +

 CHARGING AND STARTING,

REPAIRS, Belt - auxiliary drive.

9. Fit underbelly panel and secure with fixings.

10. Remove stand(s) and lower vehicle.

ENGINE - TD5

12-1-66 REPAIRS

Rotor - centrifuge

$% 12.60.91

Remove

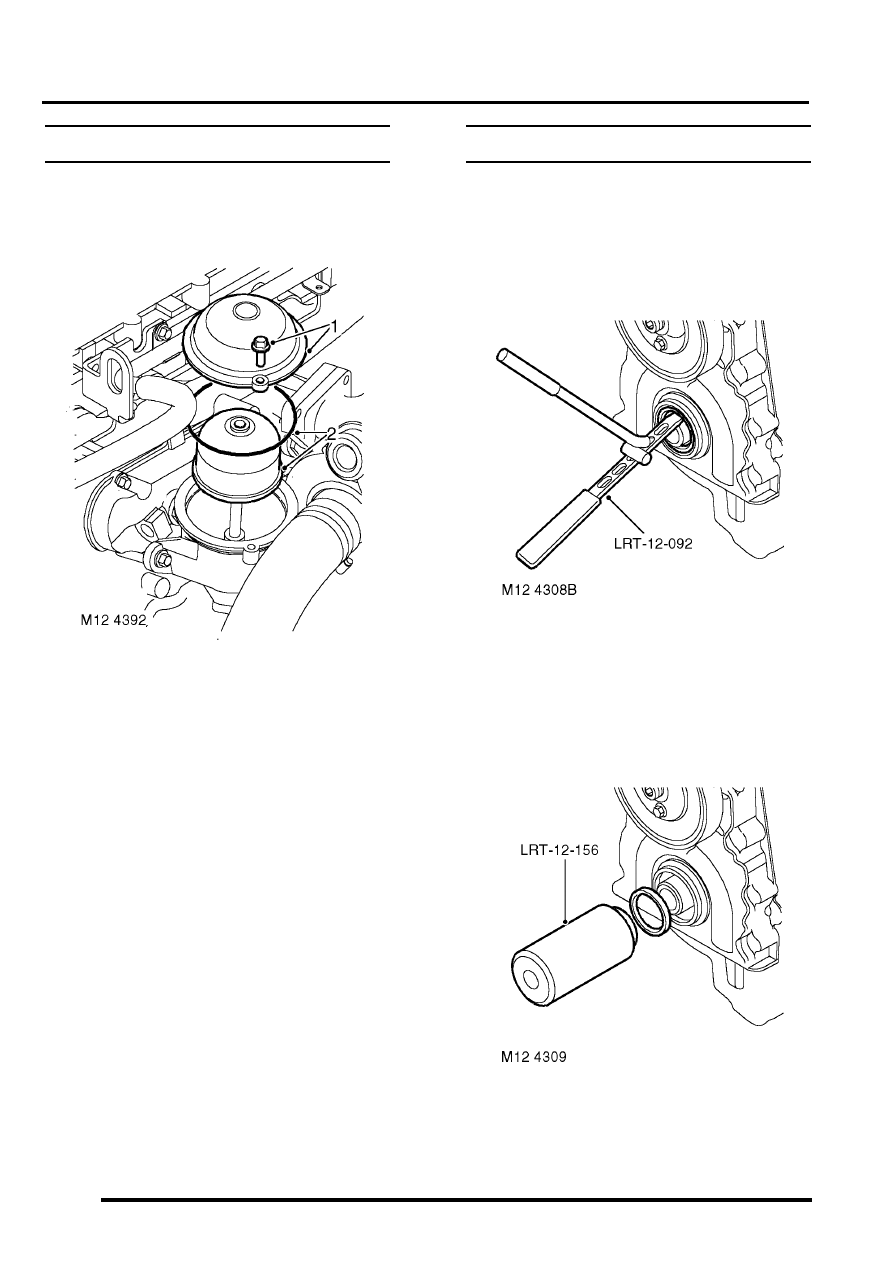

1. Remove 2 bolts and remove centrifuge  cover.
2. Remove and discard 'O' ring and rotor.

Refit

1. Clean centrifuge body and cover.
2. Fit new rotor.
3. Using a new 'O' ring, fit    centrifuge cover and

tighten bolts to 10 Nm (7 lbf.ft).

Seal - oil - timing cover

$% 12.65.05

Remove

1. Remove crankshaft pulley.



 ENGINE - Td5, REPAIRS, Pulley -

crankshaft.

2. Position tool LRT-12-092  into  crankshaft front

oil seal and discard seal.

Refit

1. Using a lint free cloth, thoroughly  clean oil seal

recess and the running   surface on crankshaft
pulley.

2. Position new seal into timing chain   housing.

Drift seal into  place using tool  LRT-12-156

CAUTION: Oil seal must be fitted dry.

ENGINE - TD5

REPAIRS 12-1-67

3. Remove tool LRT-12-156
4. Fit crankshaft pulley.



 +

 ENGINE - Td5, REPAIRS, Pulley -

crankshaft.

ENGINE - TD5

12-1-68 REPAIRS
