IN CAR ENTERTAINMENT

REPAIRS 86-6-37

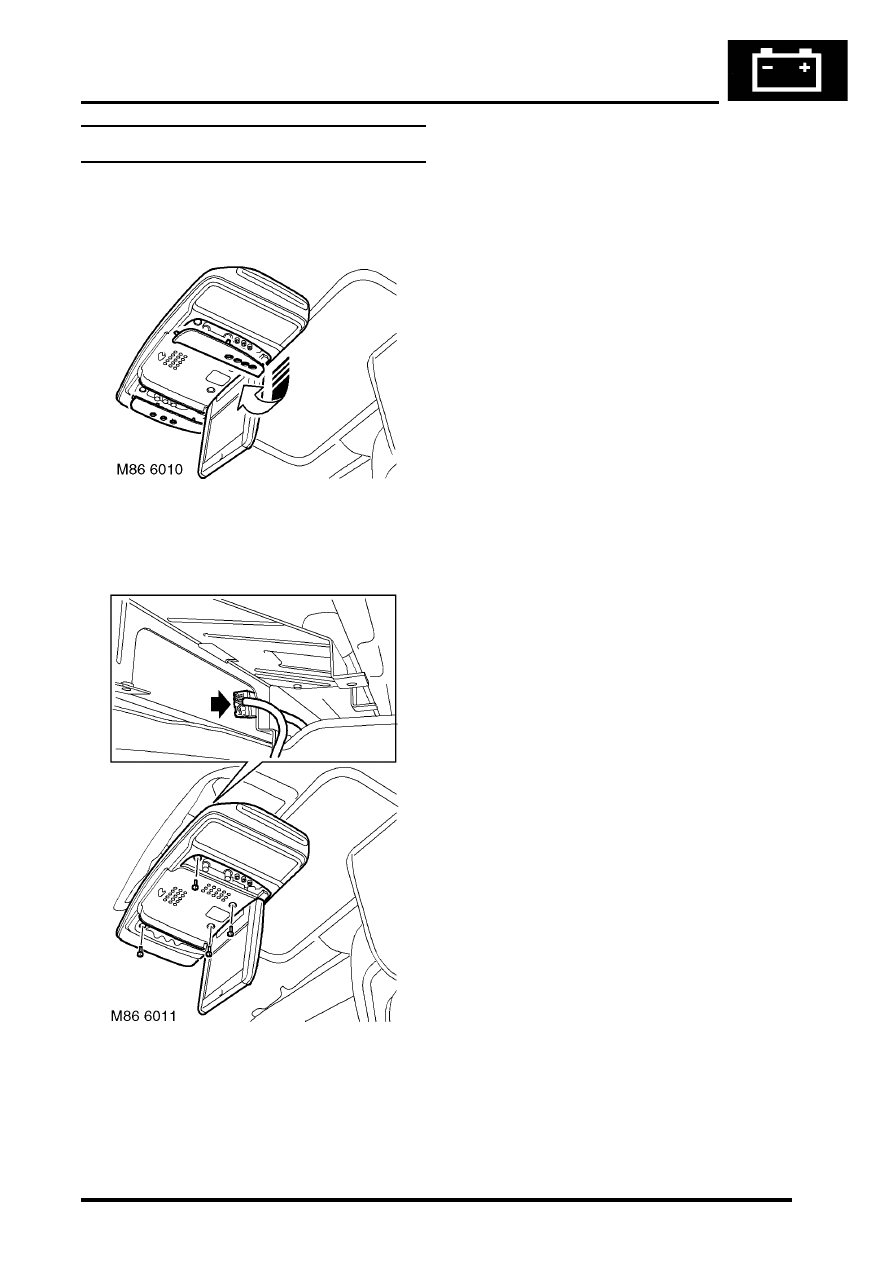

DVD screen/player unit

$% 86.53.40

Remove

1. Carefully release and remove finishers from

DVD unit.

2. Lower the DVD screen.

3. Remove 4 Torx screws securing DVD unit and

carefully lower unit for access to multiplug.

4. Disconnect harness multiplug and remove DVD

unit.

Refit

1. Carefully release and remove finishers from

new DVD unit and lower the screen.

2. Position DVD unit and connect the multiplug.
3. Align DVD unit to its bracket, fit Torx screws

and tighten them to 6 Nm (4.4 lbf.ft).

4. Close DVD screen and fit finishers.

IN CAR ENTERTAINMENT

86-6-38 REPAIRS

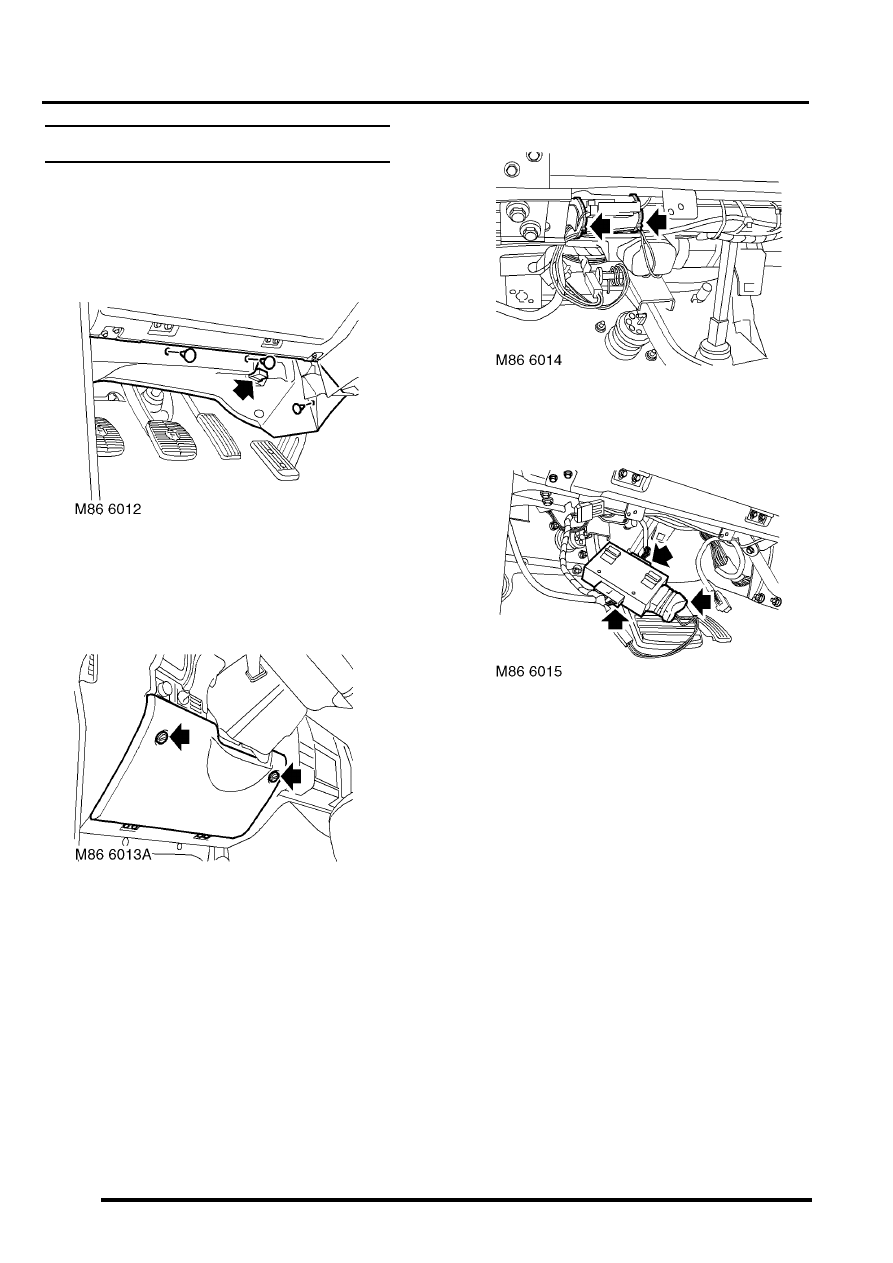

Switch box - CD/DVD player

$% 86.53.41

Remove

1. Remove battery cover and disconnect the

battery earth lead.

2. Remove 3 fasteners and release drivers side

lower closing panel.

3. Release diagnostic socket and remove closing

panel.

4. Rotate turnbuckles and lower fuse box access

panel.

5. Remove cable ties securing DVD harness to

fascia.

6. Release CD switch box from fascia support

bracket.

7. Disconnect 3 multiplugs and remove CD switch

box.

Refit

1. Position CD switch box and connect multiplugs.
2. Fit CD switch box to fascia support bracket.
3. Align harness to fascia and secure with cable

ties.

4. Close and secure fuse box access panel.
5. Position fascia closing panel and fit diagnostic

socket.

6. Fit closing panel and secure with fasteners.
7. Connect battery earth lead, fit and secure

battery cover.

HARNESSES

REPAIRS

86-7-1

HARNESSES

REPAIRS

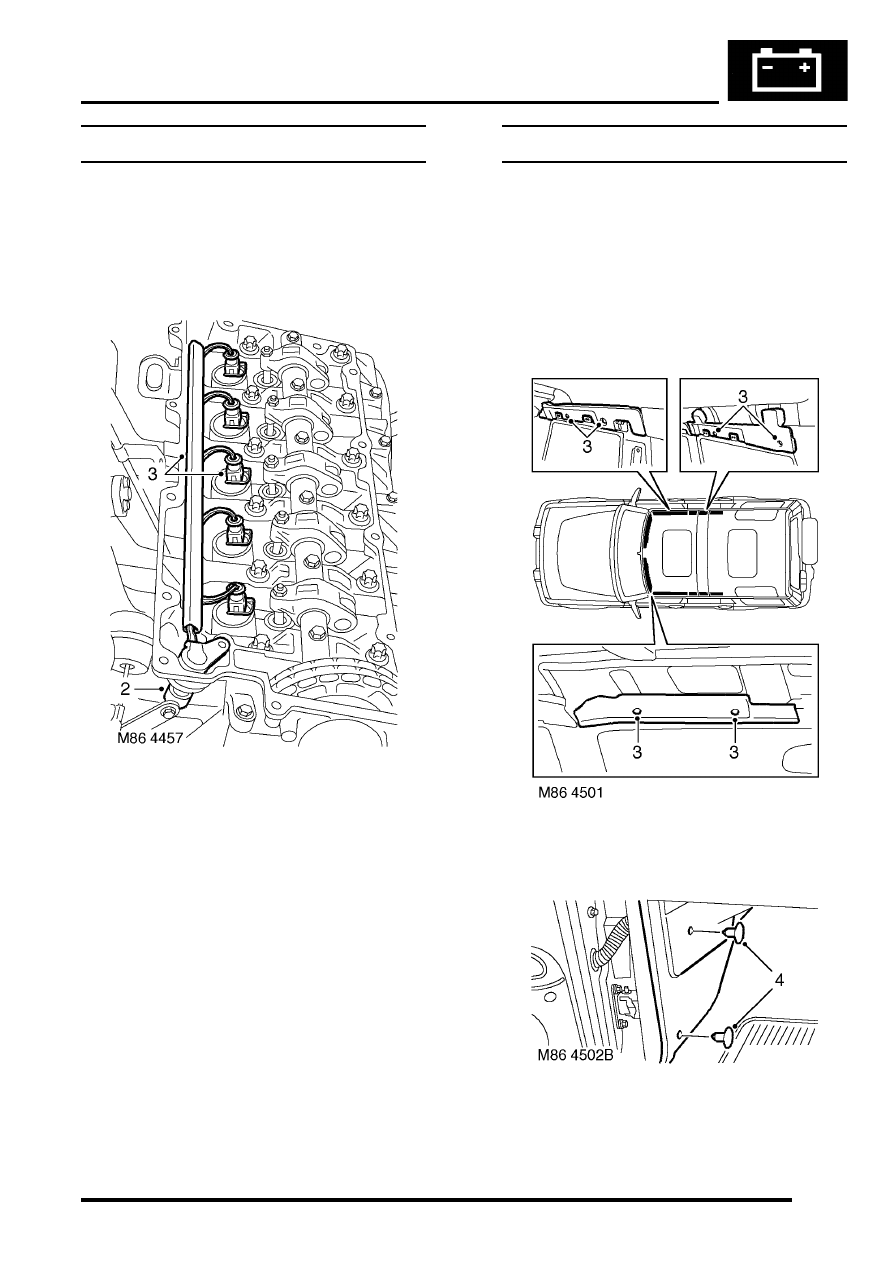

Harness - injectors - diesel

$% 86.70.22

Remove

1. Remove camshaft cover gasket.



 +

 ENGINE - Td5, REPAIRS, Gasket -

cover - camshaft.

2. Disconnect engine harness from injector

harness.

3. Disconnect multiplugs from injectors.  release

injector harness from camshaft  carrier and
remove harness.

Refit

1. Fit new 'O' rings to injector harness  connector.
2. Position harness and locate connector  to

camshaft carrier.

3. Connect injector and engine harness

multiplugs.

4. Fit camshaft cover gasket.



 +

 ENGINE - Td5, REPAIRS, Gasket -

cover - camshaft.

Harness - body

$% 86.70.11

Remove

1. Remove fascia panel.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

2. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining.

3. Remove 5 studs securing sound deadening

and remove 3 sound deadening panels.

4. Remove 2 studs securing LH lower 'A'  post trim

panel and remove trim panel.

HARNESSES

86-7-2

REPAIRS

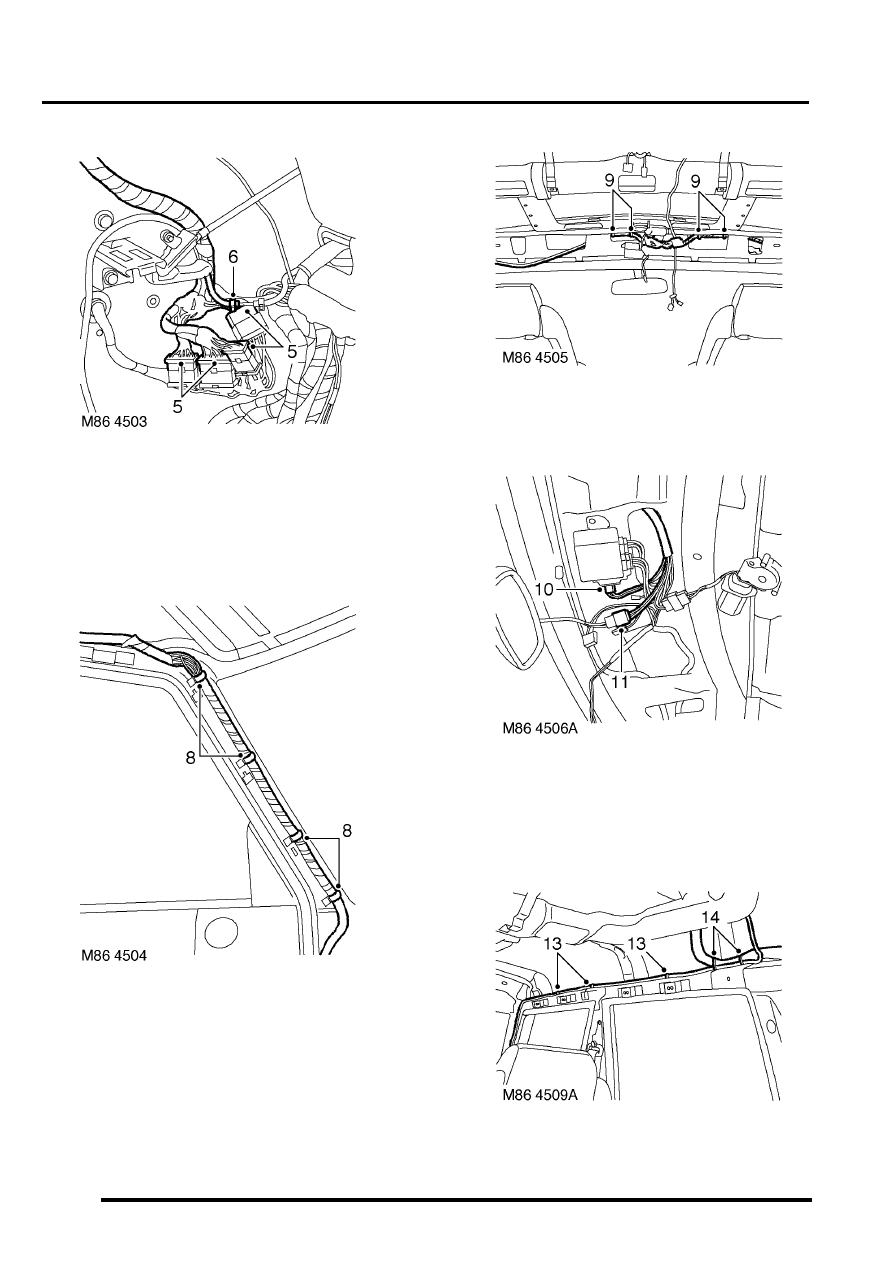

5. Release and disconnect 4 multiplugs from  LH

lower 'A' post.

6. Release clip and disconnect rear washer   pipe

from LH lower 'A' post.

7. Release harness from behind bonnet release

cable.

8. Release harness from 4 retainers in  LH upper

'A' post and collect protective sleeves.

9. Release 4 clips securing harness to centre of

roof.

10. Disconnect multiplug from ACE accelerometer.
11. Disconnect multiplug from interior  mirror.
12. Feed harness through roof to upper 'A'  post.
13. Release 3 retainers securing harness to  RH

roof panel.

14. Release 2 cable clips securing body harness to

sunroof harness.
