ALARM SYSTEM AND HORN

REPAIR 86-4-29

Coil - passive immobilisation

$% 86.77.35

Remove

1. Remove steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

steering column.

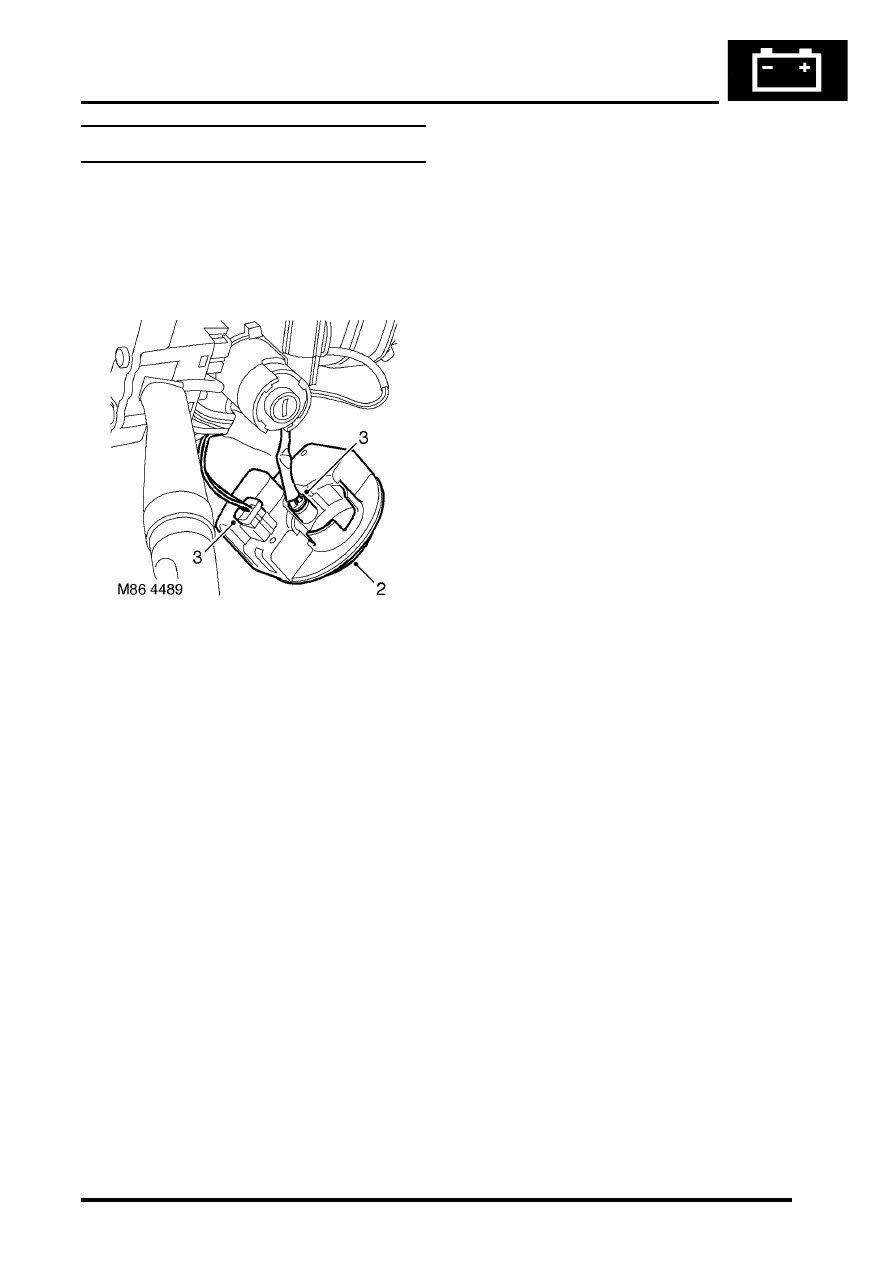

2. Release passive coil from steering  lock.
3. Disconnect illumination bulb holder and

multiplug and remove passive coil.

Refit

1. Position passive coil, connect multiplug and

illumination bulb holder.

2. Fit passive coil to steering lock.
3. Fit steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

steering column.

WINDOWS

DESCRIPTION AND OPERATION

86-5-1

WINDOWS

DESCRIPTION AND OPERATION

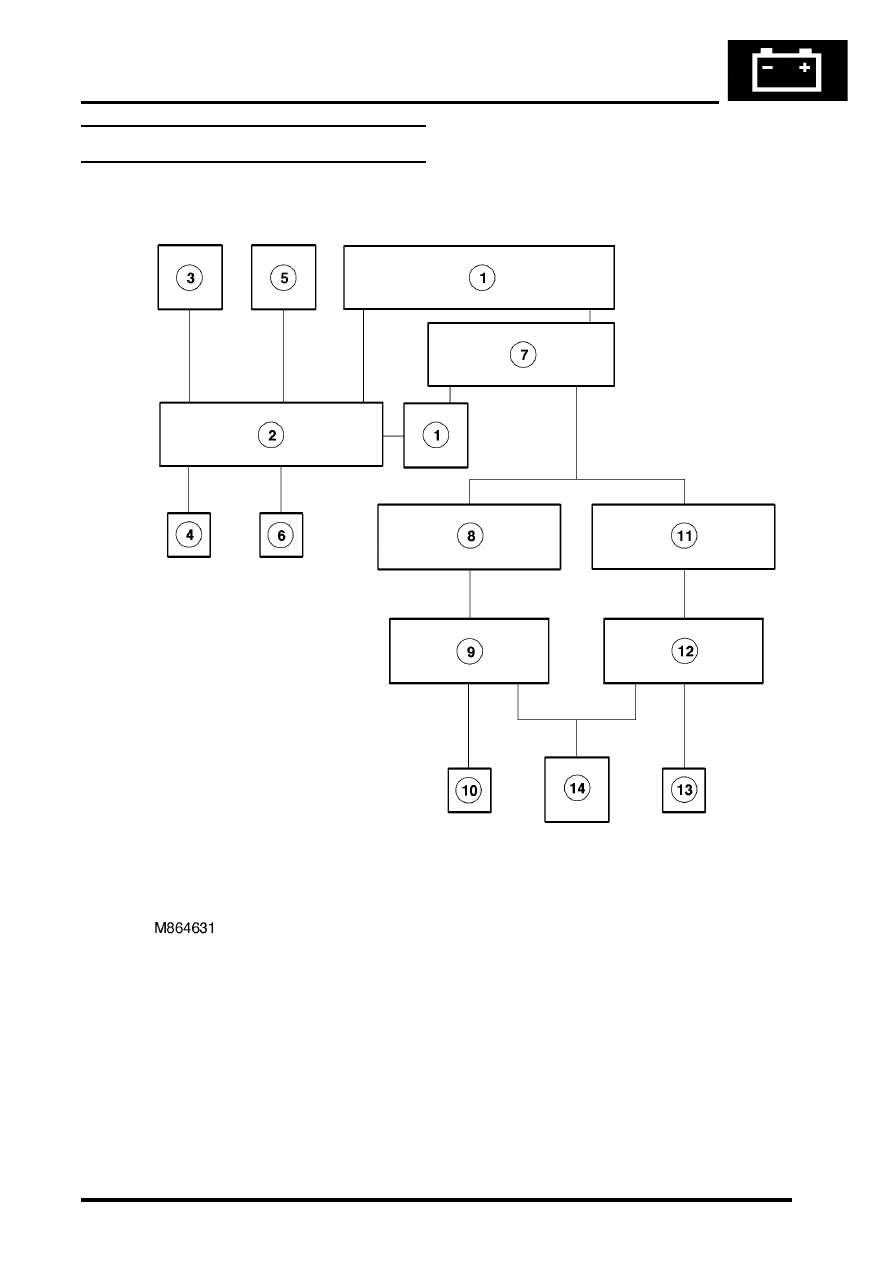

Electric windows block diagram

1 Passenger compartment fusebox
2 BCU
3 LH front window switch
4 LH front window motor
5 RH front window switch
6 RH front window motor
7 Rear window lift relay

8 Centre console LH rear window switch
9 LH rear door window switch

10 LH rear door window motor
11 Centre console RH rear window switch
12 RH rear door window switch
13 RH rear door window motor
14 Rear window isolation switch

WINDOWS

86-5-2

DESCRIPTION AND OPERATION

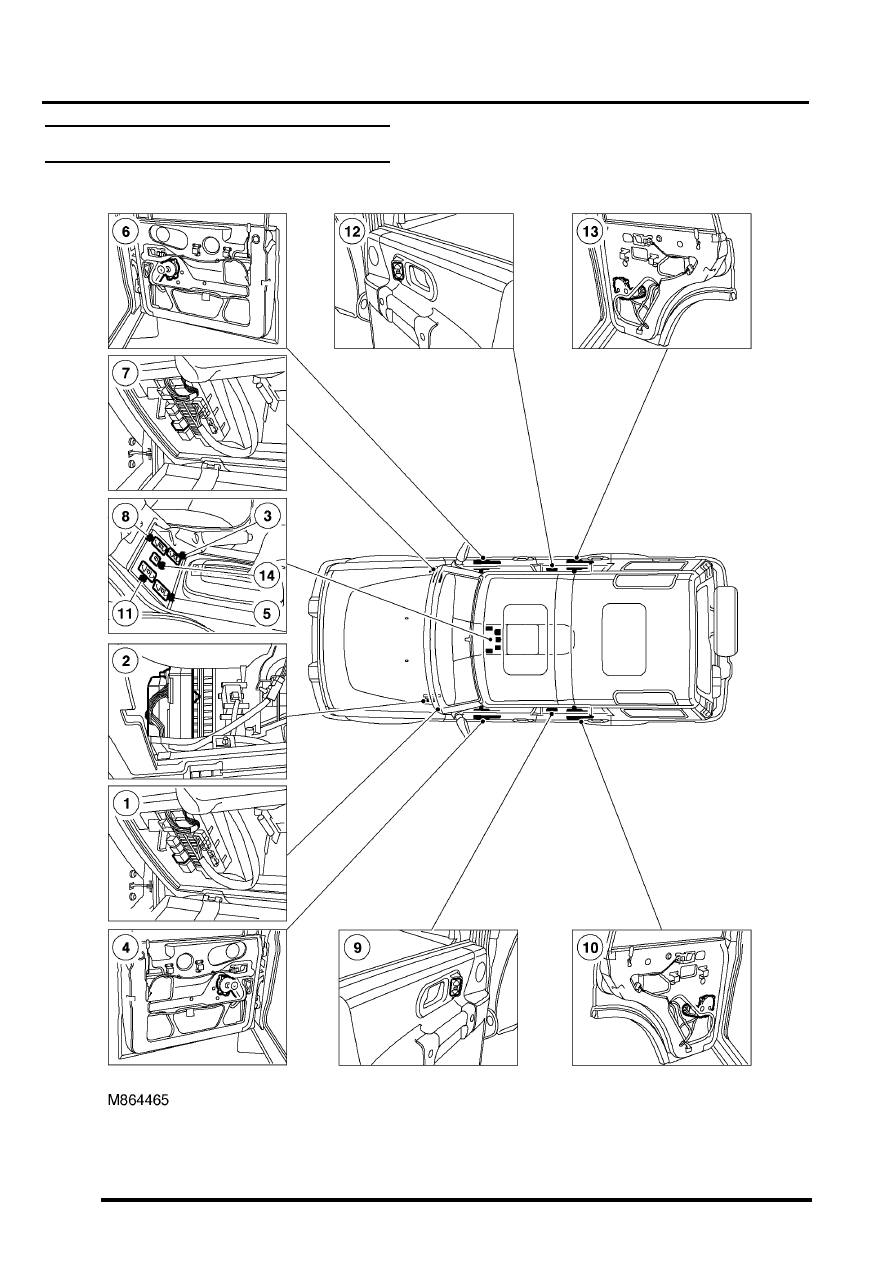

Electric windows component layout

RHD shown, LHD similar
