WIPERS AND WASHERS

DESCRIPTION AND OPERATION

84-1

WIPERS AND WASHERS

DESCRIPTION AND OPERATION

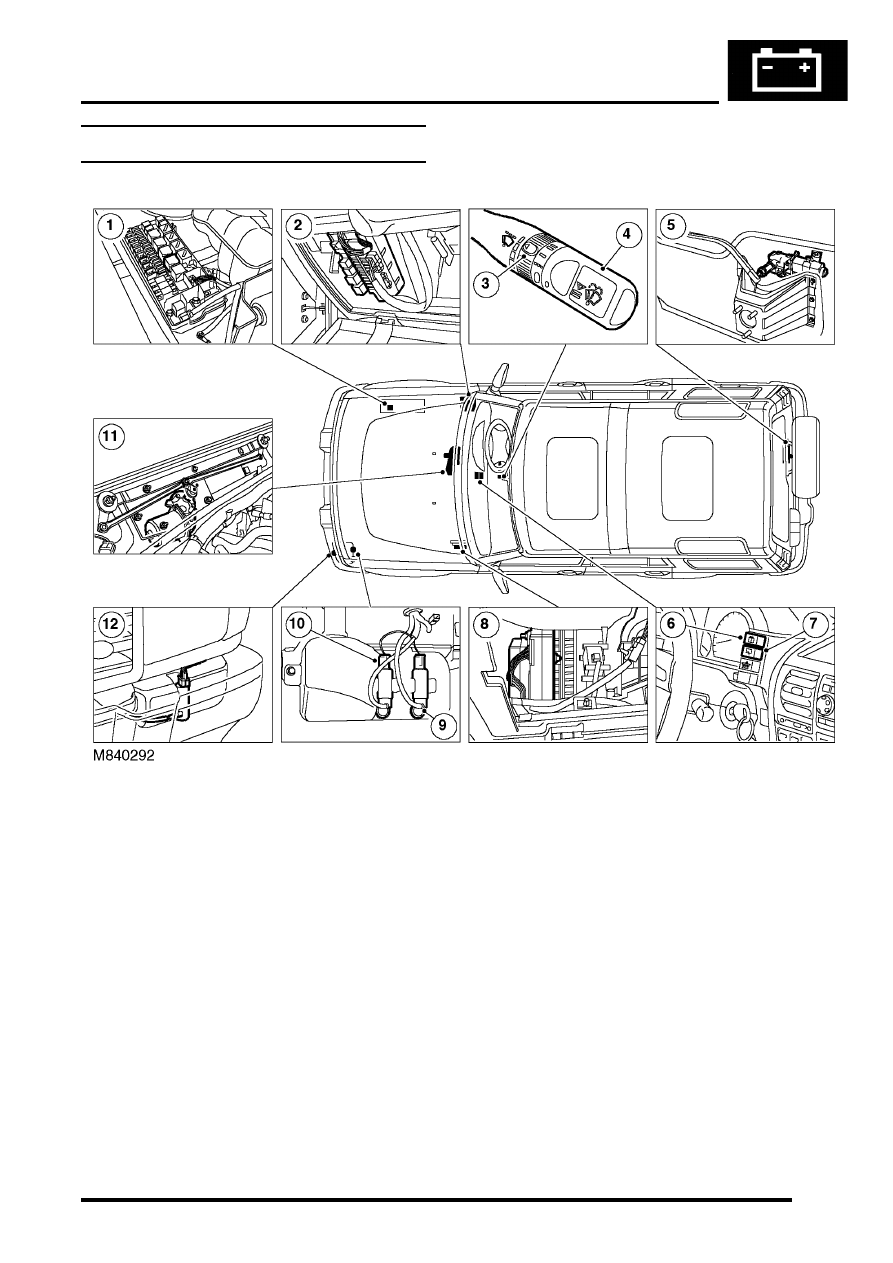

Wipers and washers component layout

RHD shown, LHD similar

Headlamp power wash relay
Passenger compartment fuse box

(rear wiper relay, front wiper relay and IDM)

Variable Delay Switch
Front wash/ wipe switch
Rear wiper motor
Rear washer switch

Rear wiper switch
Body Control Unit (BCU)
Front washer pump

10 Rear washer pump
11 Front wiper motor assembly
12 Headlamp power wash pump

WIPERS AND WASHERS

84-2

DESCRIPTION AND OPERATION

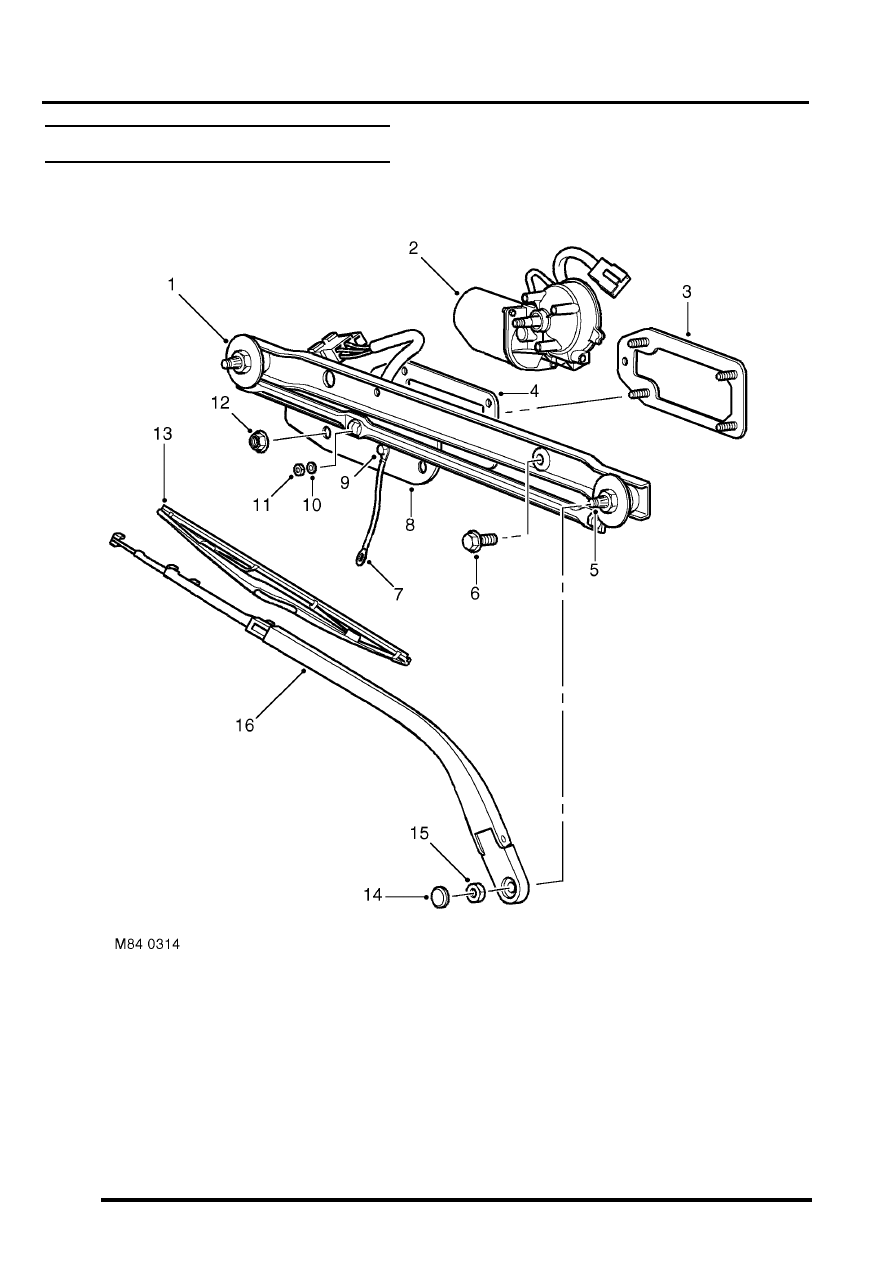

Front wiper components

Linkage assembly
Wiper motor
Stud plate
Gasket
Wheel box 2 off
Bolt 2 off
Earth strap
Cover plate

Bolt 3 off

10 Lock washer
11 Nut
12 Flanged nut 5 off
13 Wiper blade 2 off
14 Cover
15 Nut
16 Wiper arm 2 off

WIPERS AND WASHERS

DESCRIPTION AND OPERATION

84-3

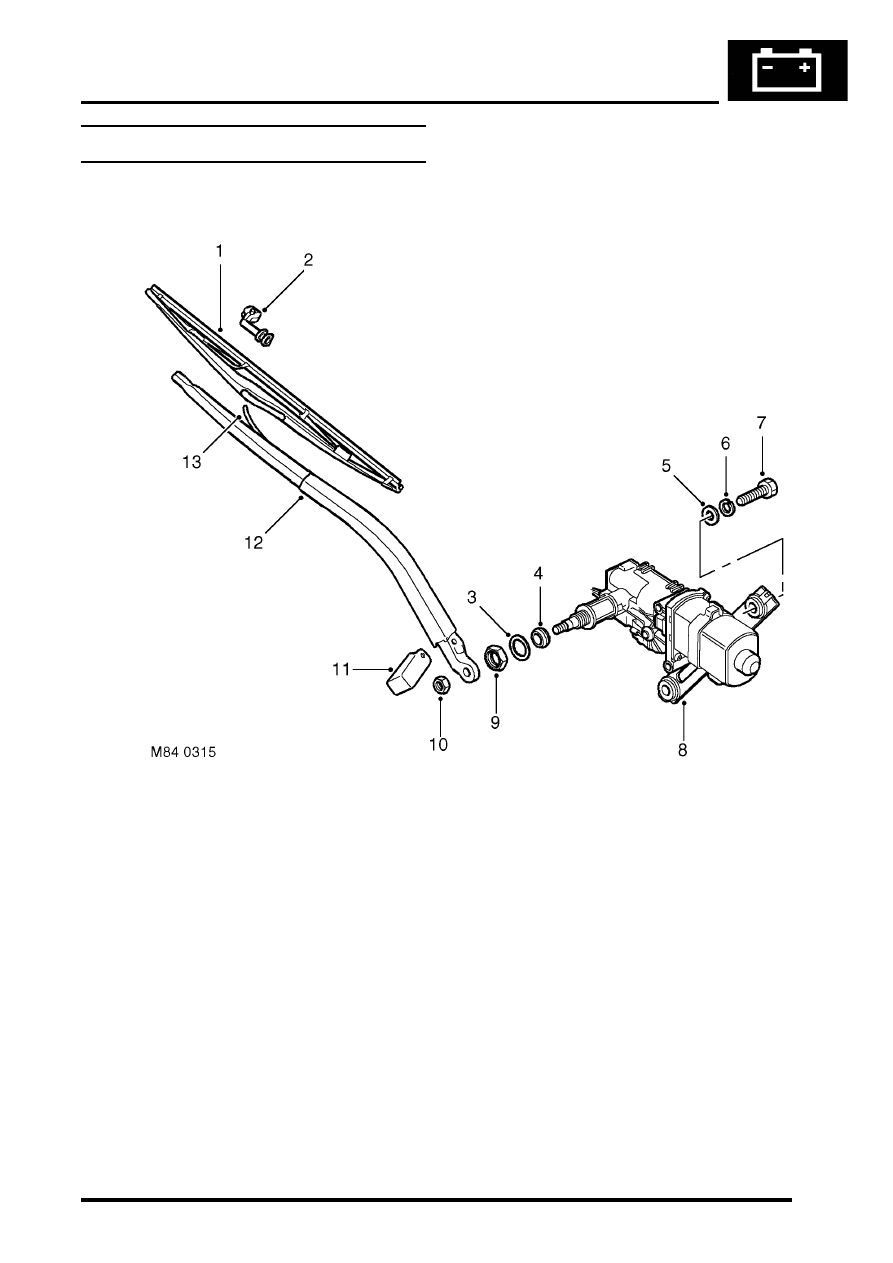

Rear wiper components

Wiper blade
Washer jet
Washer
Seal
Washer 2 off
Lock washer 2 off
Bolt 2 off

Wiper motor
Nut

10 Nut
11 Cover
12 Wiper arm
13 Washer tube

WIPERS AND WASHERS

84-4

DESCRIPTION AND OPERATION

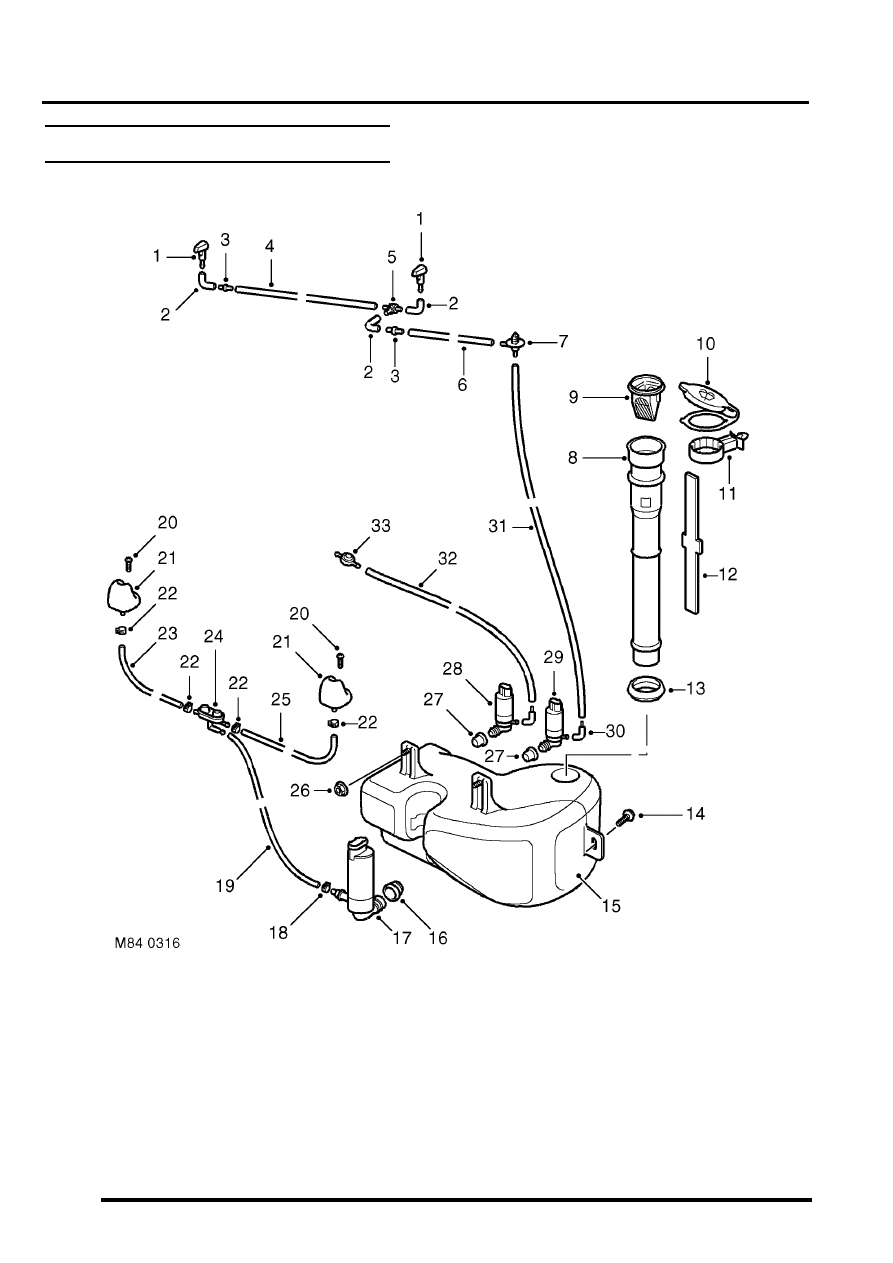

Washer components

Reservoir with headlamp power wash shown
