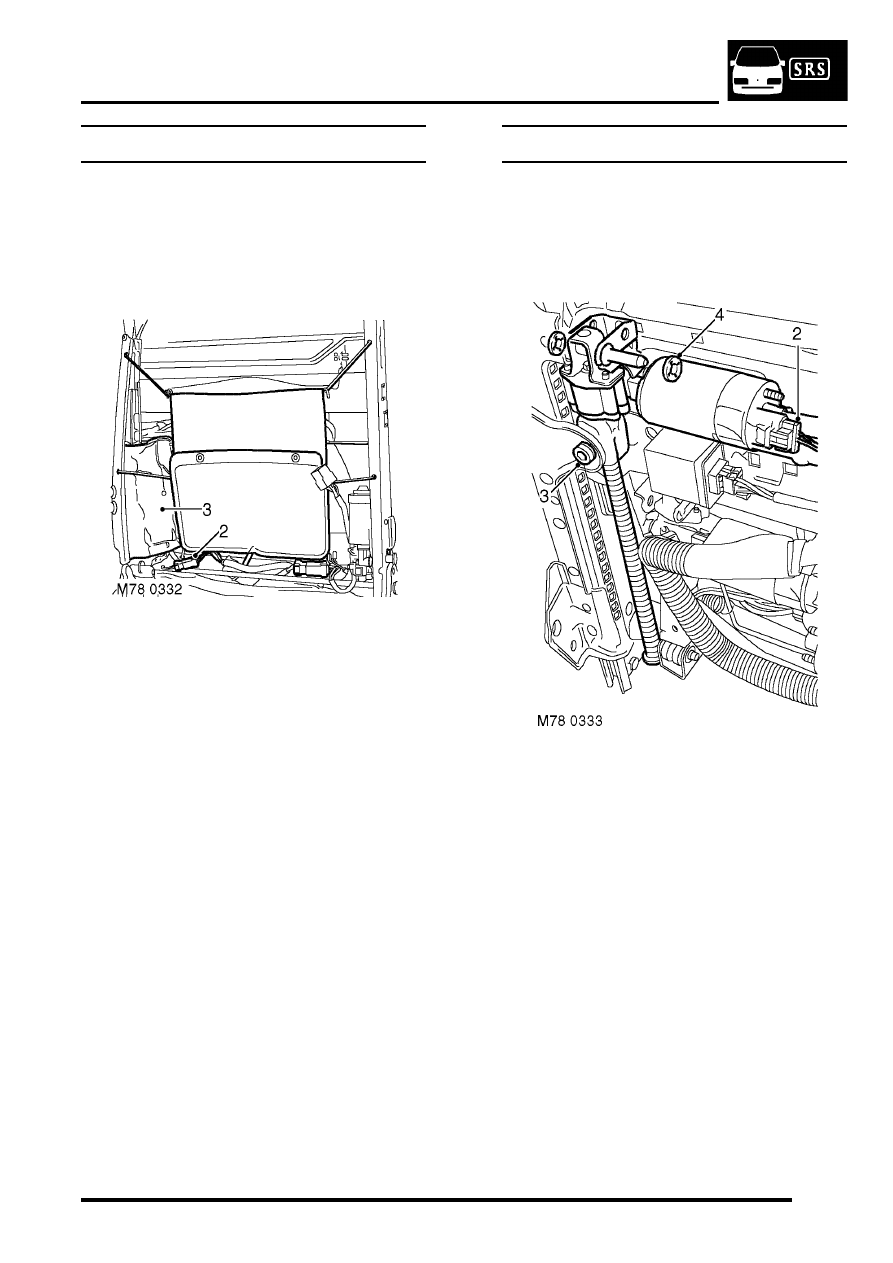

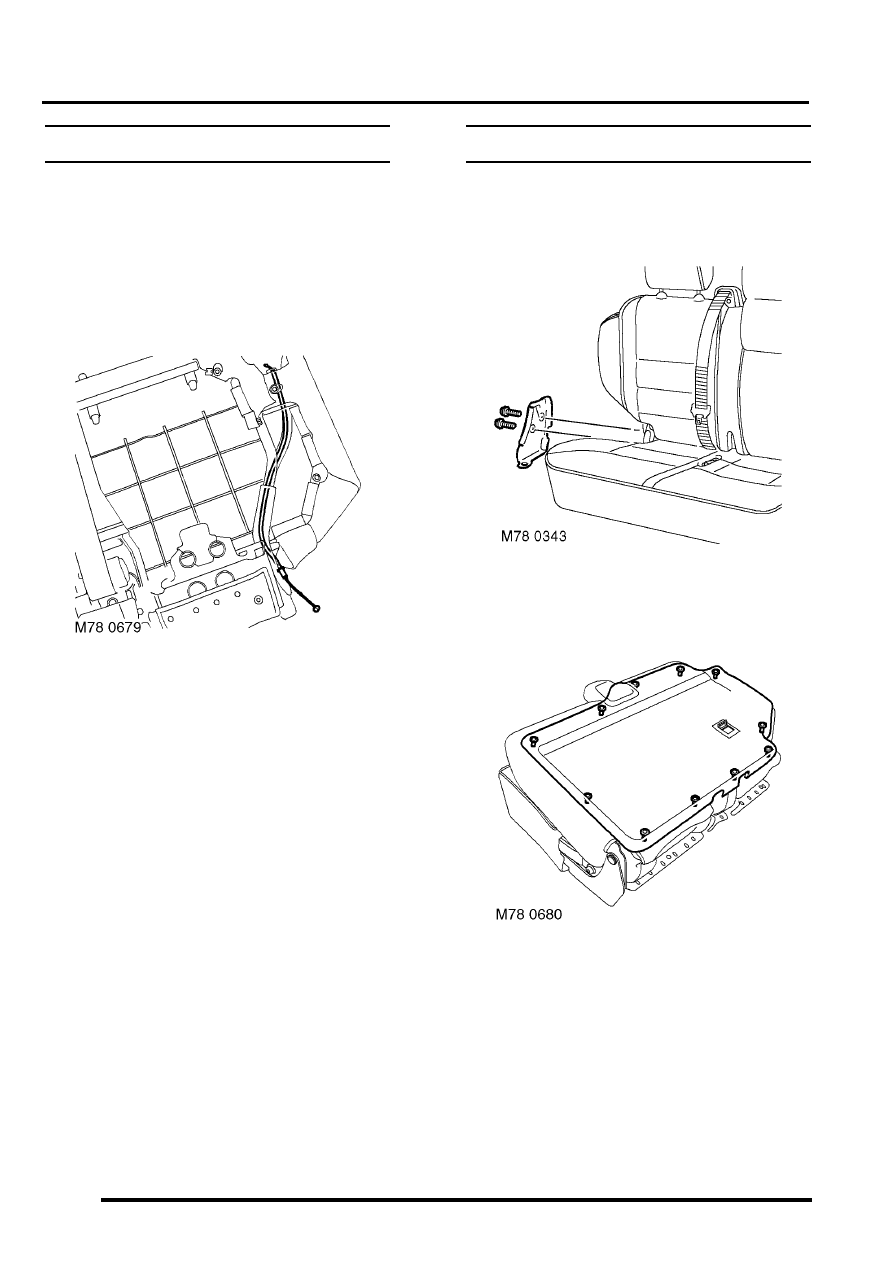

2. Disconnect lumbar support pump multiplug.
3. Release lumbar support pump from bladder

retainers.

4. Release bladder from 8 retainers and remove

bladder and lumbar support pump.

5. Collect bladder retainers.

Refit

1. Position bladder retainers to seat frame.
2. Position bladder and secure to bladder

retainers

3. Position pump in bladder retainers and

connect multiplug.

4. Fit squab cover.

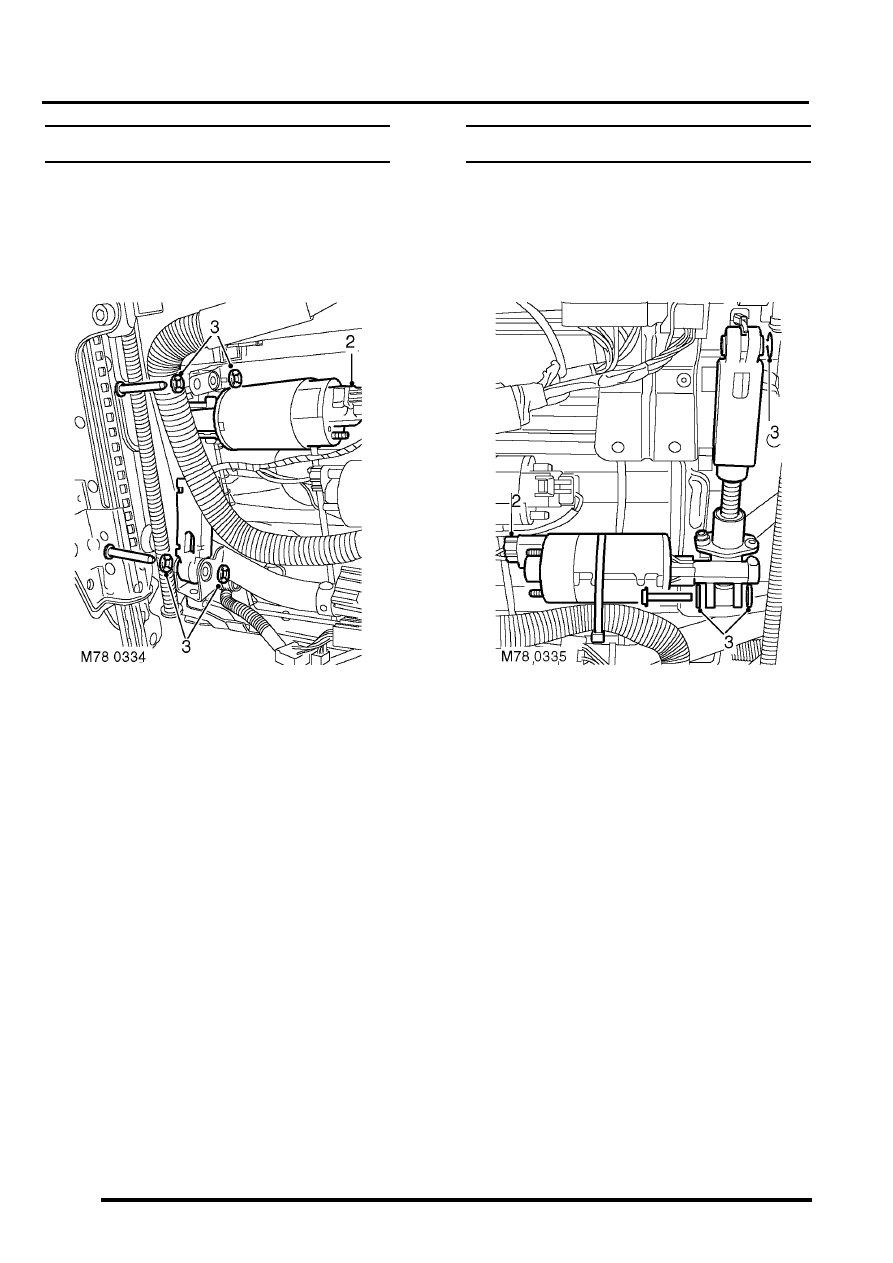

Motor - fore and aft - front seat

$% 78.70 25

Remove

1. Remove front seat.

2. Disconnect multiplug from fore and aft motor.
3. Remove Allen screw securing RH screw

thread to seat frame.

4. Remove 2 retainers from RH fore and aft

gearbox roll pin. Remove roll pin.

5. Remove spacers.
6. Position RH screw thread retainer clear of seat

frame and remove fore and aft motor.

Refit

1. Clean gearbox and motor drive tube.
2. Position motor drive tube to LH gearbox and

align fore and aft motor to seat frame.

3. Fit new gearbox spacers, roll pin and retainers.
4. Align RH screw thread retainer to seat frame

and secure with Allen screw.

Ensure retainer is correctly aligned or
damage may occur when seat motor is
operated.

5. Connect fore and aft motor multiplug.
6. Fit front seat.

SEATS

76-5-24 REPAIRS

Motor - rise and fall - front seat

$% 78.70.27

Remove

1. Remove front seat.

2. Disconnect multiplug from rise and fall motor.
3. Remove retainers from roll pins.
4. Using a suitable drift remove roll pins securing

rise and fall motor and operating lever to seat
frame.

5. Remove rise and fall motor.

Refit

1. Position and align rise and fall motor to seat

frame.

2. Fit new roll pins to secure rise and fall motor

and operating lever.

3. Fit new retainers to roll pins.
4. Connect multiplug to rise and fall motor.
5. Fit front seat.

Motor - tilt - front seat

$% 78.70.29

Remove

1. Remove front seat.

2. Disconnect multiplug from tilt motor.
3. Remove 2 retainers and 'C' clip from roll pins

securing tilt motor.

4. Using a suitable drift remove roll pins securing

tilt motor and operating lever to seat frame.

5. Remove tilt motor.

Refit

1. Position and align tilt motor to seat frame.
2. Fit new roll pins to secure motor and operating

arm.

3. Fit new retainers and 'C' clip to roll pins.
4. Connect multiplug to tilt motor.
5. Fit front seat.

SEATS

REPAIRS 76-5-25

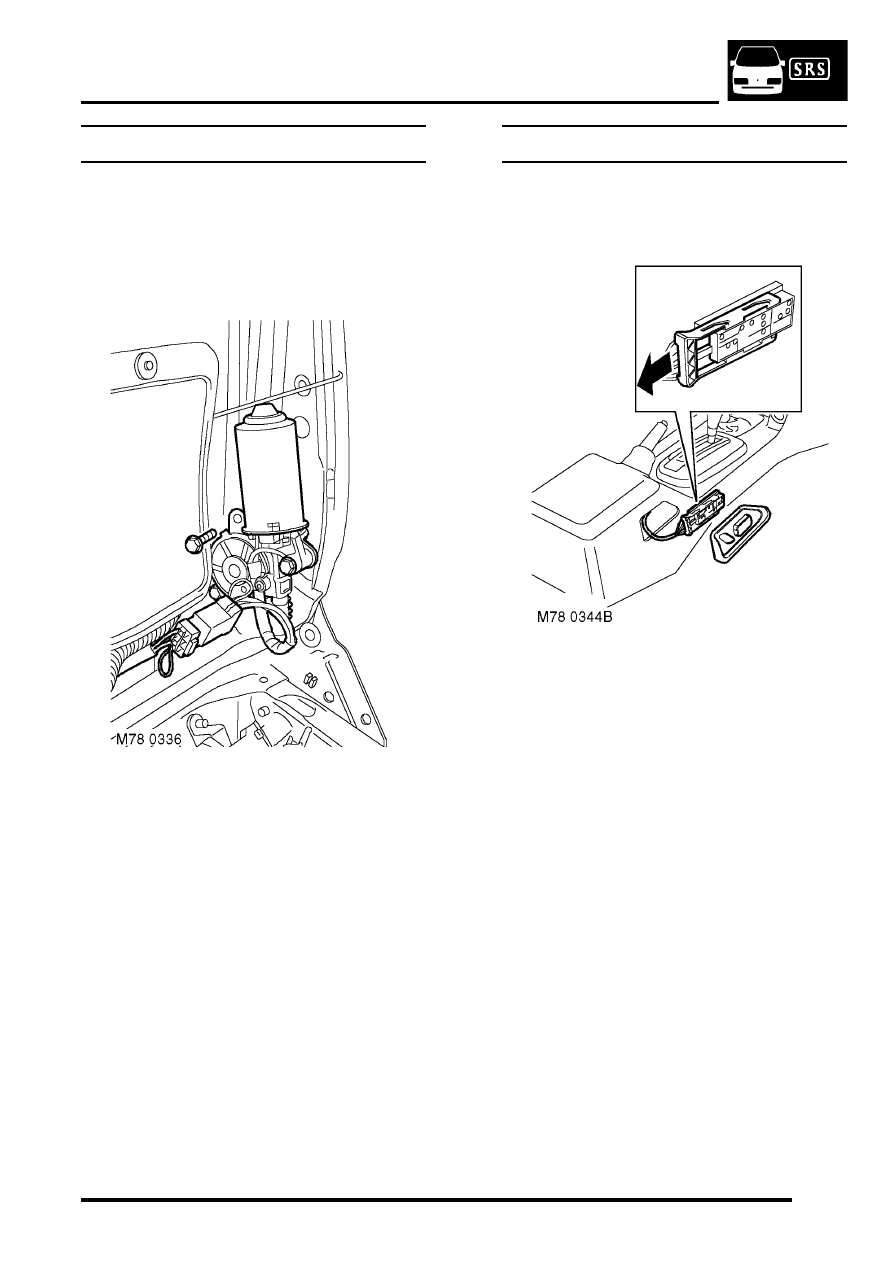

Motor - recline

$% 78.70.34

Remove

1. Remove squab cover.

2. Disconnect recline motor multiplug.
3. Remove 2 bolts securing recline motor and

remove motor.

Refit

1. Position recline motor and ensure gear and

gear spigot are engaged.

2. Fit and tighten bolts securing recline motor to

frame.

3. Connect recline motor multiplug.
4. Fit squab cover.
