FRONT SUSPENSION

REPAIRS

60-63

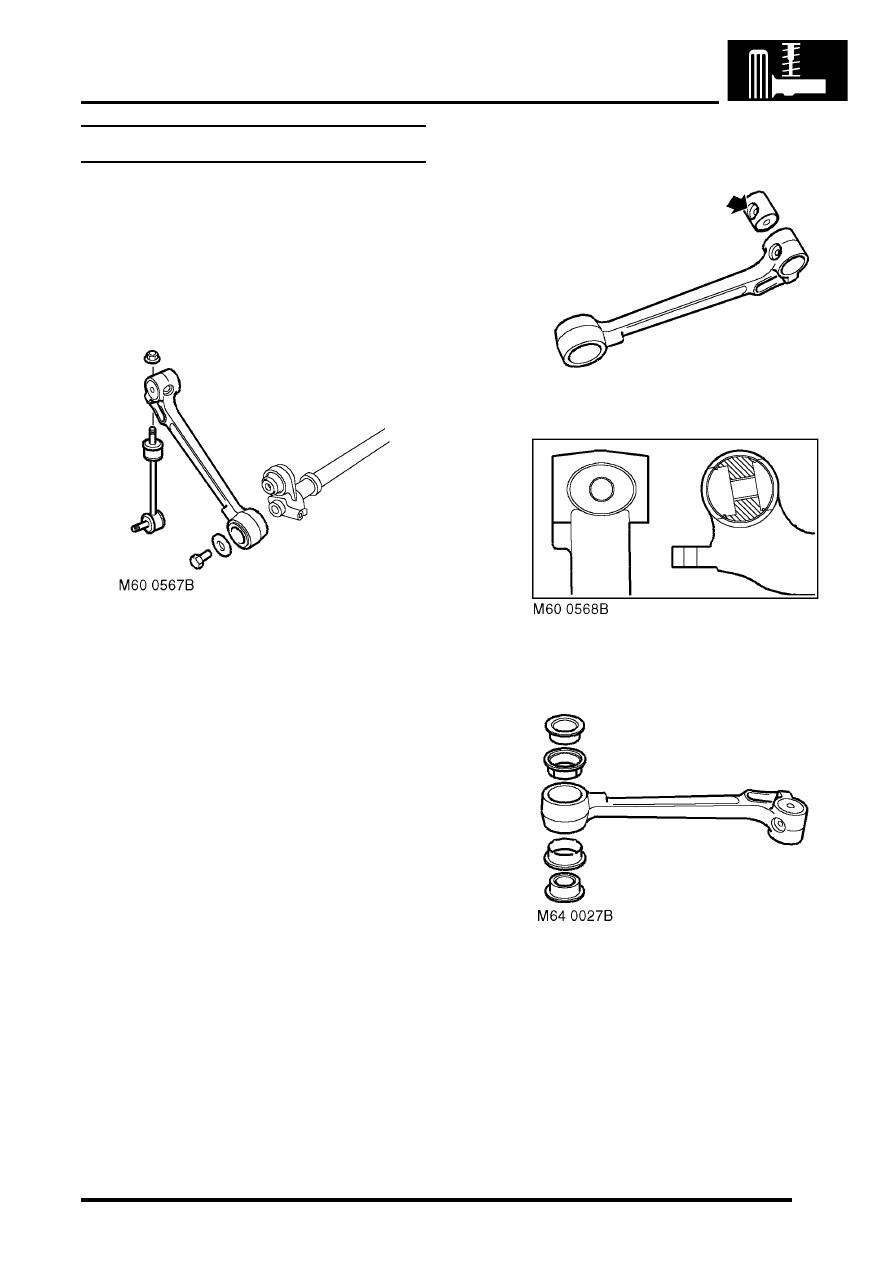

Bushes - front long arm - ACE

$% 60.60.46

Remove

1. Remove ACE front actuator.



 +

 FRONT SUSPENSION, REPAIRS,

Actuator - front - ACE.

2. Remove securing nut and remove anti-roll bar

link from torsion bar.

3. Restrain torsion bar and remove long arm

securing bolt and washer. Remove long arm
from torsion bar.

CAUTION: The short arm and torsion bar
are supplied as an assembly and must not
be separated.

4. Use a suitable drift to remove both halves of

slipper bush from long arm.

5. Use suitable adaptors to press actuator rod end

bush from long arm.

Refit

1. Clean bush locations in long arm.

2. Use suitable adaptors to press new actuator

rod end bush into long arm. Ensure hole in bush
is correctly aligned with hole in long arm.

3. Align slots in new slipper bush halves with

those in long arm. Carefully press both halves
of slipper bush into long arm. Ensure the
sealing rings on the slipper bush faces are not
damaged.

4. Clean long arm and mating face on torsion bar.
5. Fit long arm to torsion bar. Restrain torsion bar

and tighten bolt to 180 Nm (133 lbf.ft).

6. Fit anti-roll bar link to long arm and tighten nut

to 50 Nm (37 lbf.ft).

7. Fit ACE front actuator.



 +

 FRONT SUSPENSION, REPAIRS,

Actuator - front - ACE.

REAR SUSPENSION

DESCRIPTION AND OPERATION

64-1

Deze pagina werd opzettelijk niet gebruikt

Cette page est intentionnellement vierge

Questa pagina è stata lasciata in bianco di proposito

Diese Seite ist leer

Esta página foi deixada intencionalmente em branco

Esta página fue dejada en blanco intencionalmente

This page is intentionally left blank

REAR SUSPENSION

DESCRIPTION AND OPERATION

REAR SUSPENSION

64-2

DESCRIPTION AND OPERATION

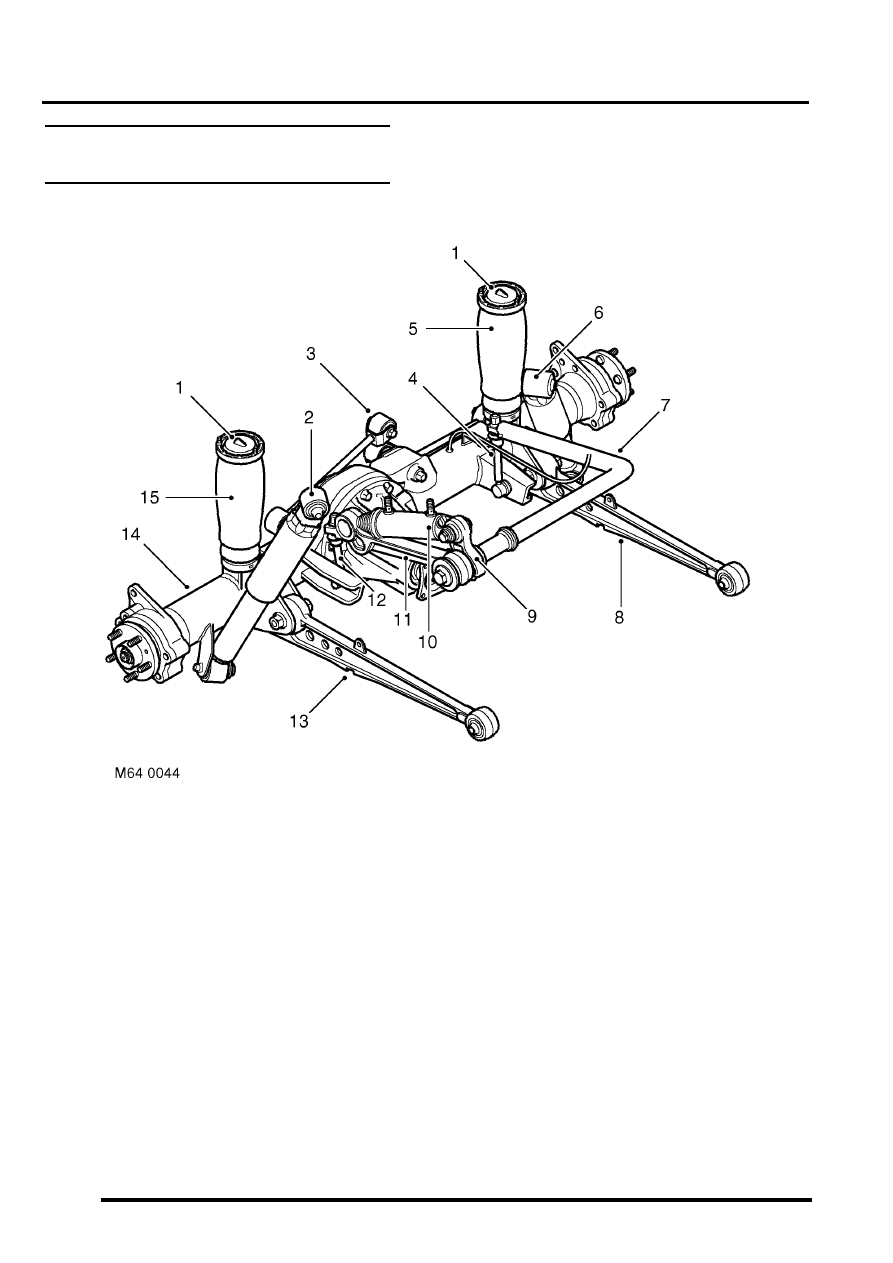

Rear suspension component layout
(vehicles with SLS)

Air pressure pipe connector
Damper RH
Watts linkage
Anti-roll bar link LH
Air spring LH
Damper LH
Torsion/Anti-roll bar
Radius arm LH

ACE short arm (if fitted)

10 ACE actuator (if fitted)
11 ACE long arm (if fitted)
12 Anti-roll bar link RH
13 Radius arm RH
14 Rear axle
15 Air spring RH
