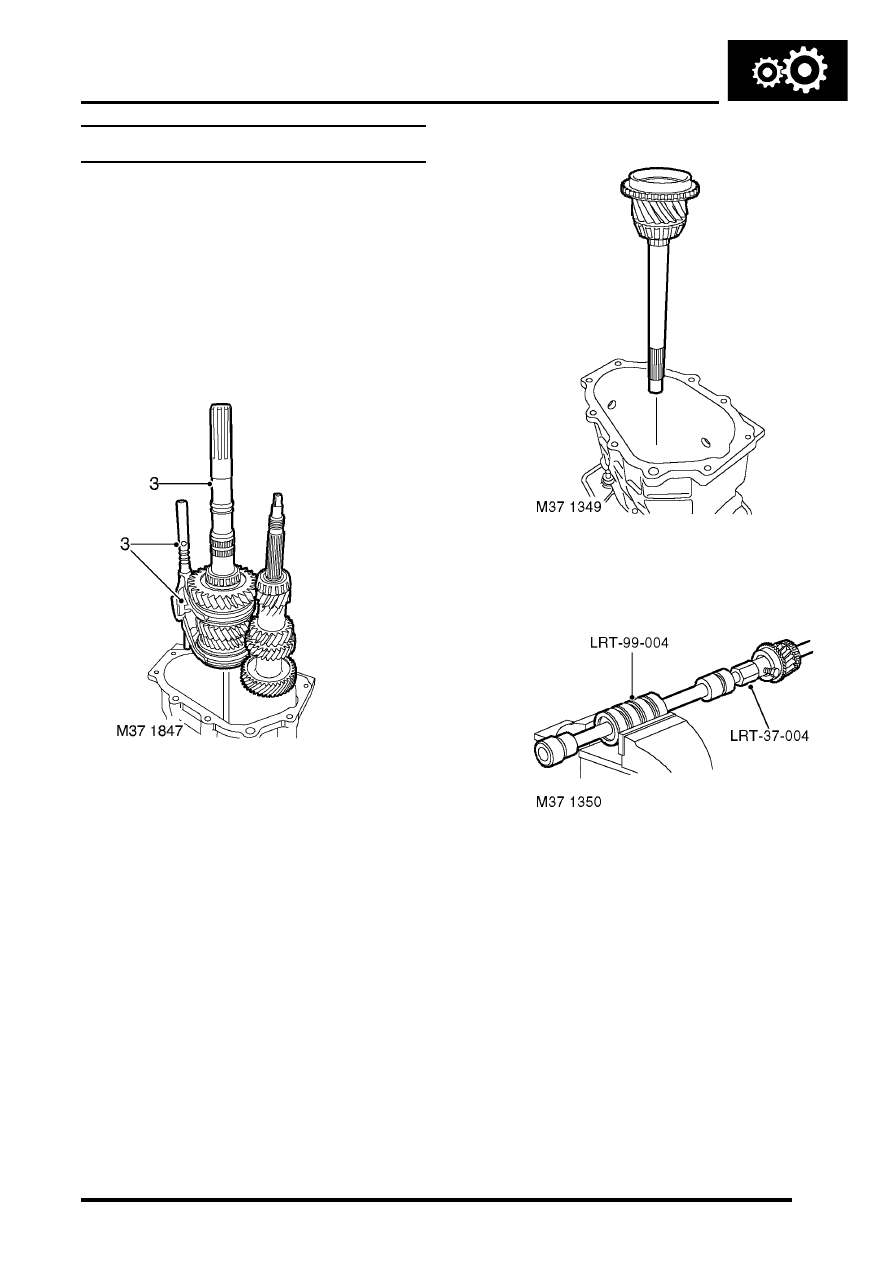

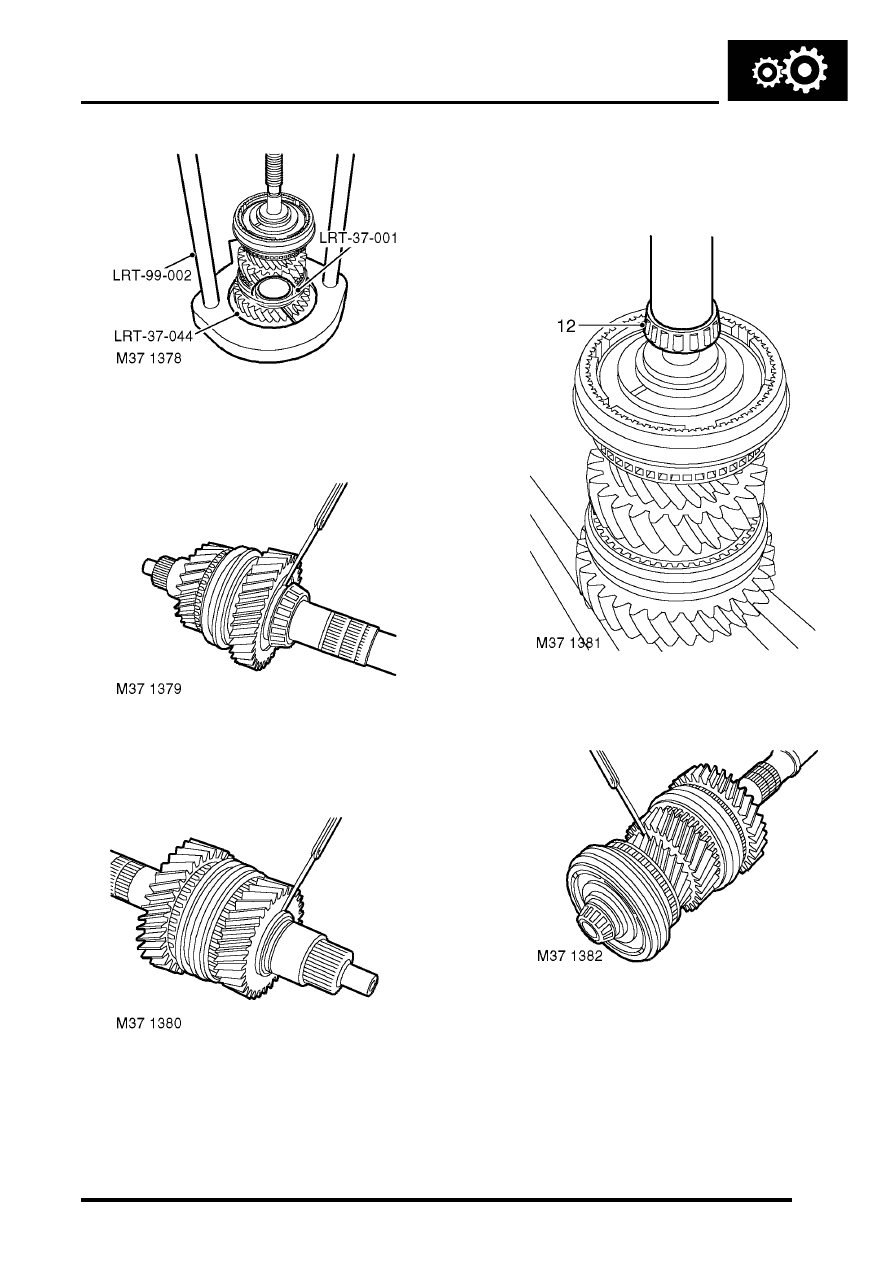

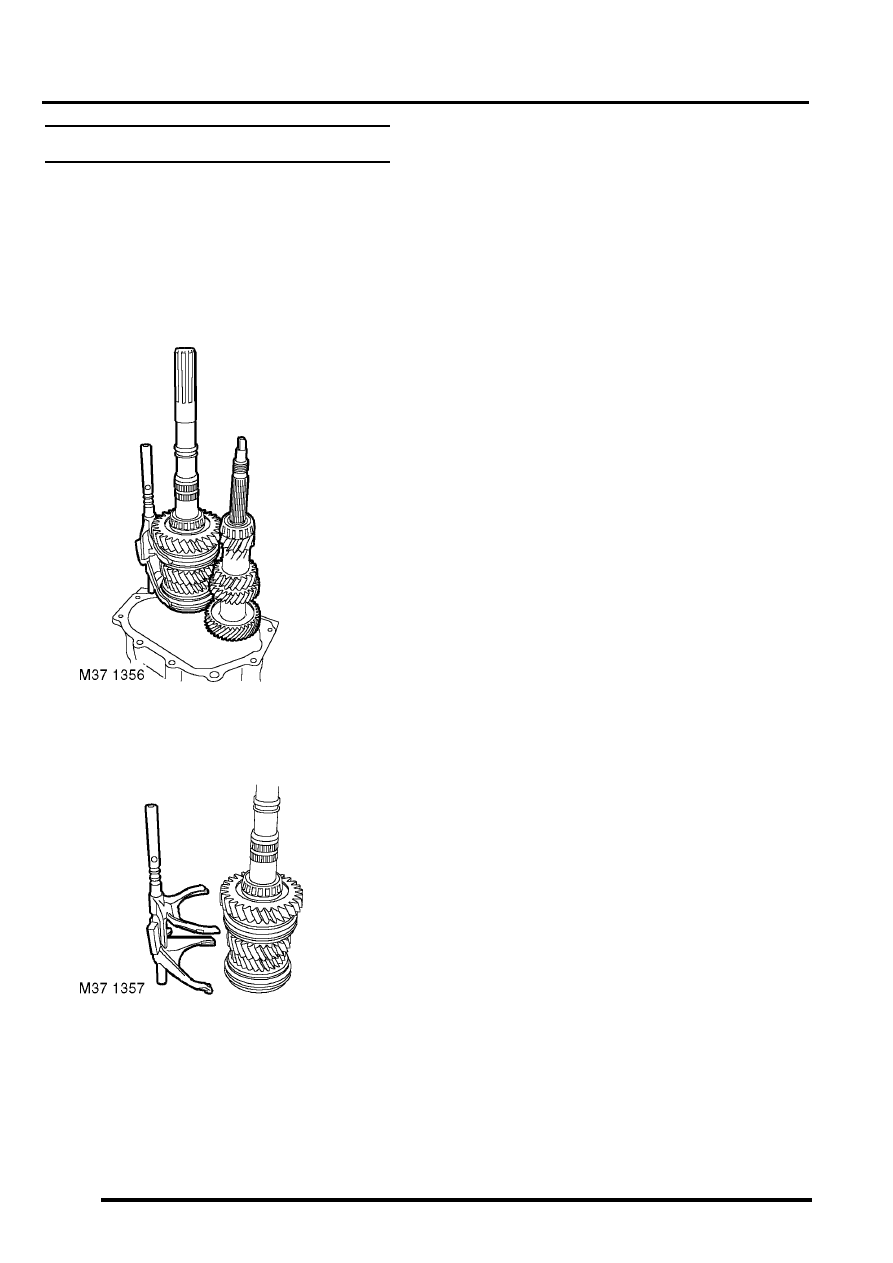

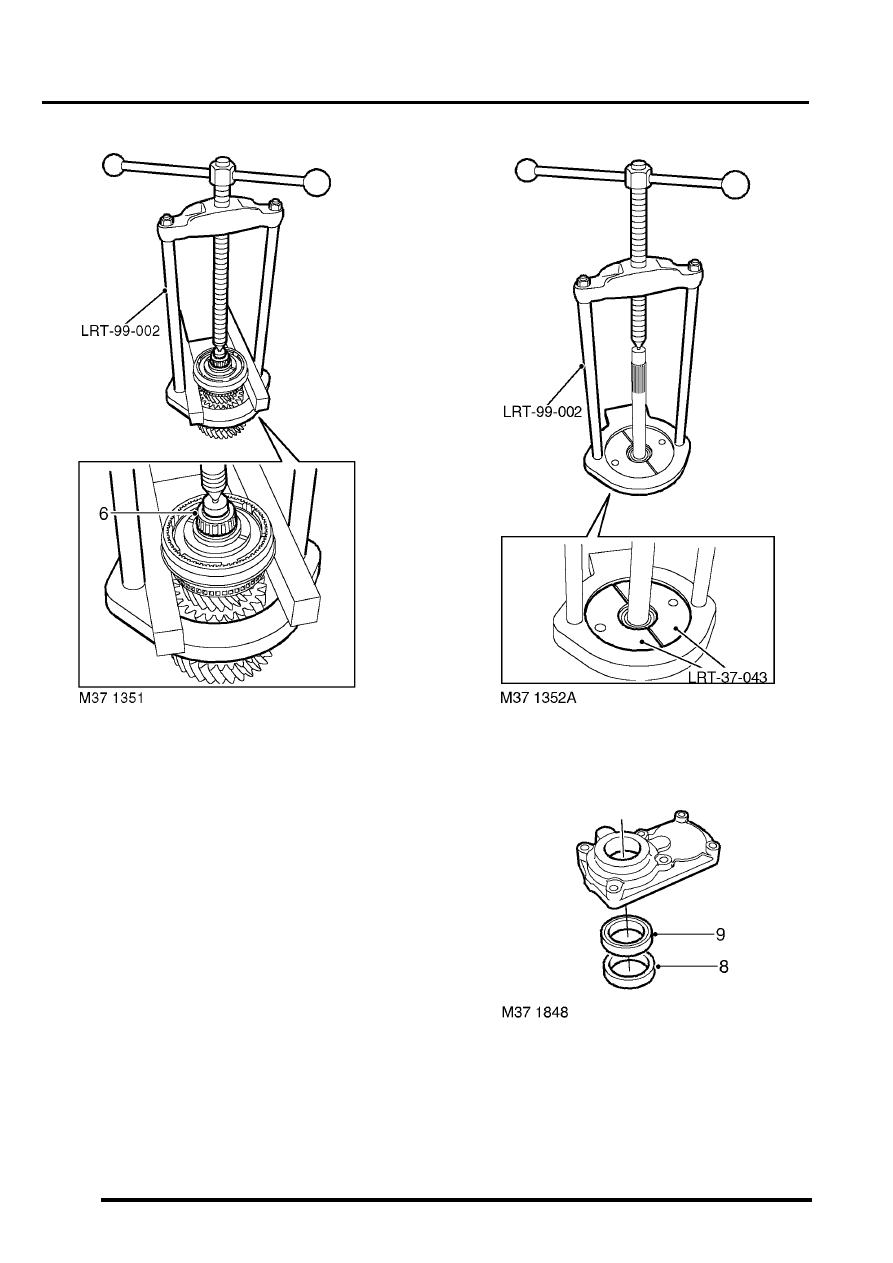

MANUAL GEARBOX - R380 OVERHAUL 37-33 7. Using tool LRT-37-001, LRT-37-044 and LRT-99-002, press taper bearing onto output 8. Check end float of 1st gear using a feeler gauge between gear and collar flange: l New = 0.05 - 0.20 mm (0.002 - 0.008 in) l Service limit = 0.327 mm (0.012 in) 9. Check end float of 2nd gear using a feeler gauge between gear and output shaft flange: l New = 0.04 - 0.21 mm (0.0016 - 0.0083 in) l Service limit = 0.337 mm (0.013 in) 10. Invert output shaft in vice and fit 3rd gear, bearing, baulk rings, 3rd / 4th synchroniser and 11. Remove output shaft from vice. 12. Using tool LRT-99-002 and a suitable mandrel press pilot bearing onto output shaft. 13. Check end float of 3rd gear between gear and flange on output shaft. l New = 0.11 - 0.21 mm (0.004 - 0.0083 in) l Service limit = 0.337 mm (0.013 in) 14. Fit gearbox selector fork set. |
