Discovery 2. Manual - part 110





CLUTCH - V8

REPAIRS 33-2-13

REPAIRS

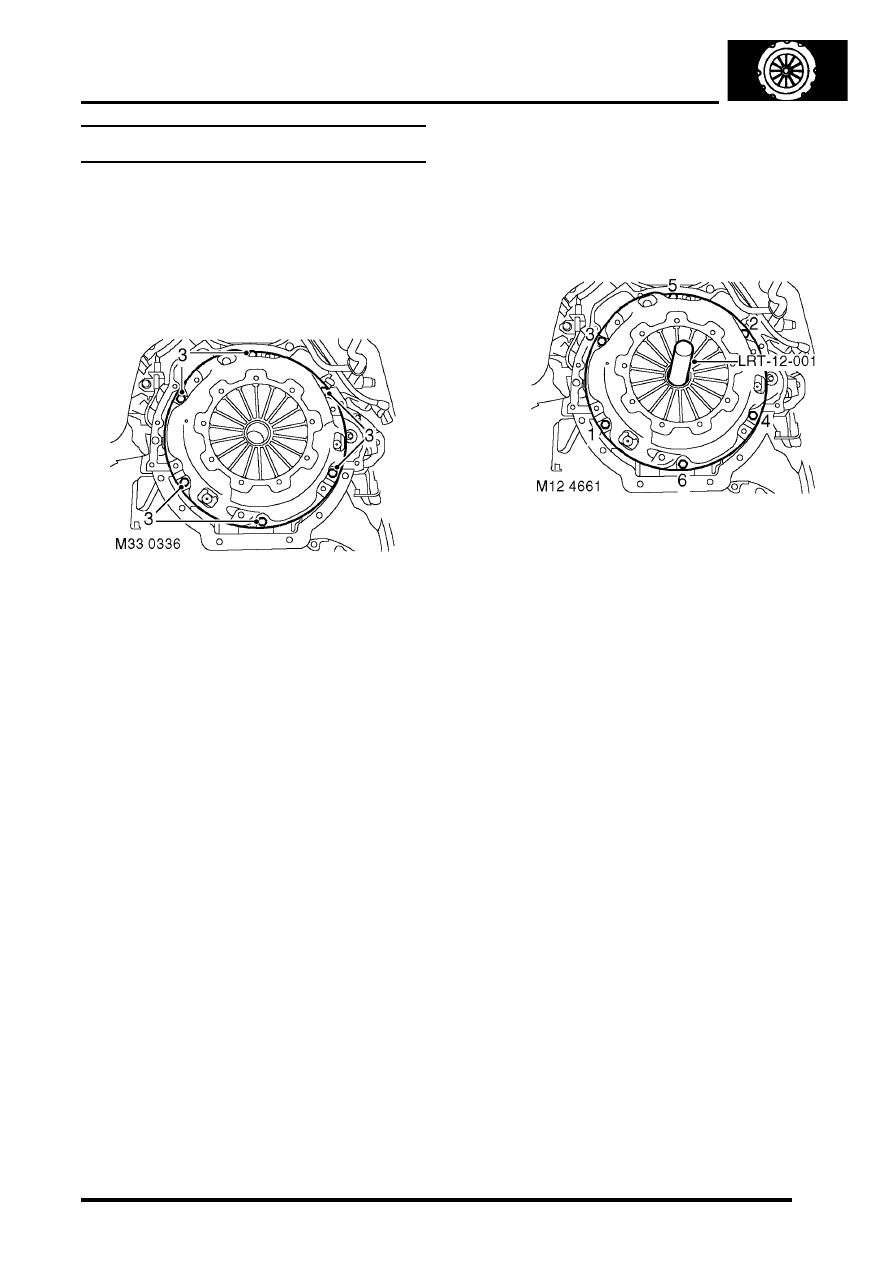

Clutch assembly

$% 33.10.01

Remove

1. Remove gearbox assembly.



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

2. Restrain flywheel.

3. Working in diagonal sequence, progressively

loosen 6 bolts securing clutch cover to flywheel.
Remove bolts.

4. Remove clutch cover.
5. Remove clutch plate.
6. Renew all worn or damaged components.

Refit

1. Clean clutch cover and flywheel mating  faces

and spigot bush in end of crankshaft.

2. Fit LRT-12-001   to spigot bearing in crankshaft.
3. Fit clutch plate onto LRT-12-001, ensure side

marked 'flywheel side' is against flywheel.

4. Fit clutch cover and locate on dowels.

5. Fit clutch cover bolts and progressively tighten,

in diagonal sequence shown, to 40 Nm. (30
lbf.ft).

6. Fit gearbox assembly.



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

CLUTCH - V8

33-2-14 REPAIRS

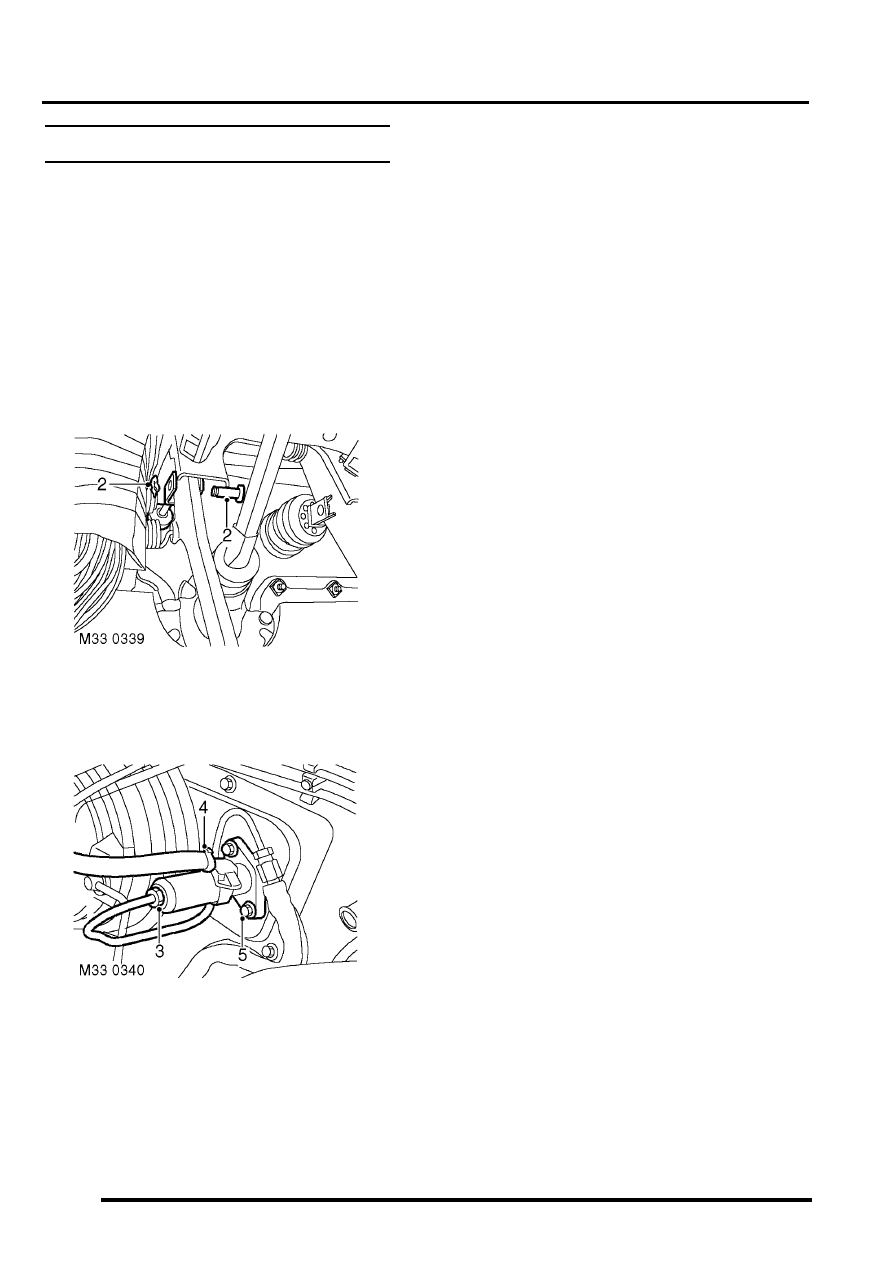

Master cylinder

$% 33.20.01

CAUTION: Brake fluid will damage paint finished
surfaces. If spilled, immediately remove fluid and
clean area with water.

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Release spring clip securing clutch  pedal

clevis pin and remove pin from push  rod and
clutch pedal.

3. Position container to catch spillage. Disconnect

hydraulic pipe from clutch master cylinder.

CAUTION: Always fit plugs to open
connections to prevent contamination.

4. Release clip and remove connecting hose from

clutch master cylinder.

5. Remove 2 bolts securing clutch master

cylinder to pedal box and remove clutch  master
cylinder.

Refit

1. Clean master cylinder and pedal box  mating

faces.

2. Position clutch master cylinder  to pedal box, fit

bolts and tighten to   25 Nm (18 lbf.ft).

3. Position clevis pin to push-rod and  clutch pedal

and secure with spring clip.

4. Fit connecting hose to brake master cylinder

and tighten clip.

5. Position hydraulic pipe and tighten union to 18

Nm (13 lbf.ft).

6. Bleed clutch



 +

 CLUTCH - V8, ADJUSTMENTS,

Clutch hydraulic system - bleed.

7. Remove stand(s) and lower vehicle.

CLUTCH - V8

REPAIRS 33-2-15

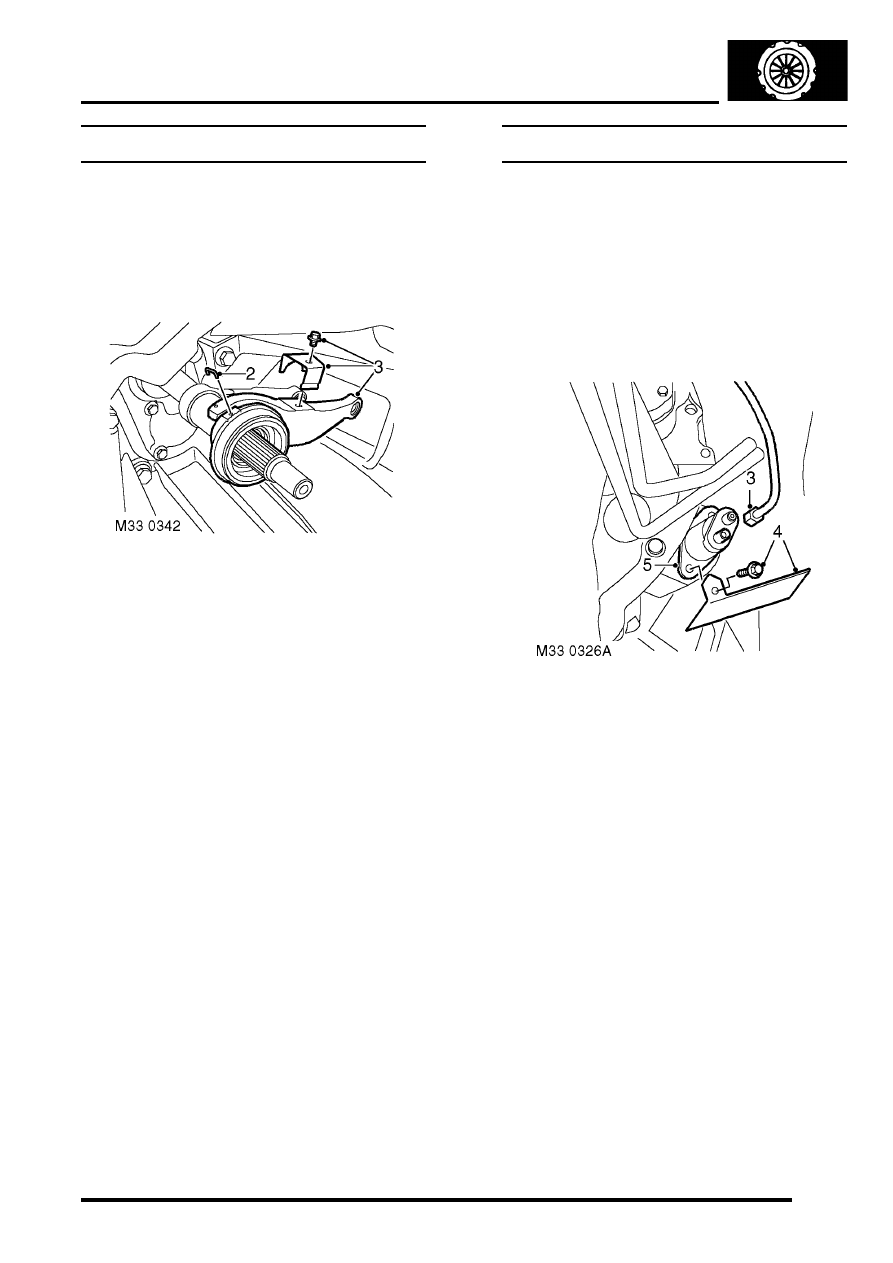

Bearing and lever - clutch release

$% 33.25.12

Remove

1. Remove gearbox assembly.



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

2. Remove retaining peg and remove release

bearing.

3. Remove bolt securing clutch release lever.

Remove retaining clip and remove clutch
release lever.

Refit

1. Clean clutch release lever.
2. Examine clutch release lever pivot points for

wear.

3. Apply a smear of Molybdenum disulphide

grease to clutch release lever pivot points.

4. Fit retaining clip, ensuring it locates over clutch

release lever pivot point washer. Fit bolt and
tighten to 8 Nm (6 lbf.ft).

5. Clean release bearing and bearing sleeve

mating faces.

6. Apply a smear of Molybdenum disulphide

grease to release bearing sleeve.

7. Fit release bearing and secure with  retaining

peg.

8. Fit gearbox assembly.



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

Slave cylinder

$% 33.35.01

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Position container to catch spillage.

3. Disconnect hydraulic pipe from slave cylinder.

CAUTION: Always fit plugs to open
connections to prevent contamination.

4. Remove 2 bolts securing slave cylinder to

gearbox housing and collect heat shield.

5. Withdraw slave cylinder from gearbox  housing

and push rod.

Refit

1. Clean ends of pipes, gearbox housing and

slave cylinder mating faces.

2. Lubricate end of push rod with Molybdenum

disulphide grease.

3. Locate slave cylinder to push rod and  gearbox

housing.

4. Position heatshield. Fit bolts securing slave

cylinder and tighten to 25 Nm (18 lbf.ft).

5. Connect hydraulic pipe to slave cylinder.
6. Bleed clutch system.



 +

 CLUTCH - V8, ADJUSTMENTS,

Clutch hydraulic system - bleed.

7. Remove stand(s) and lower vehicle.
